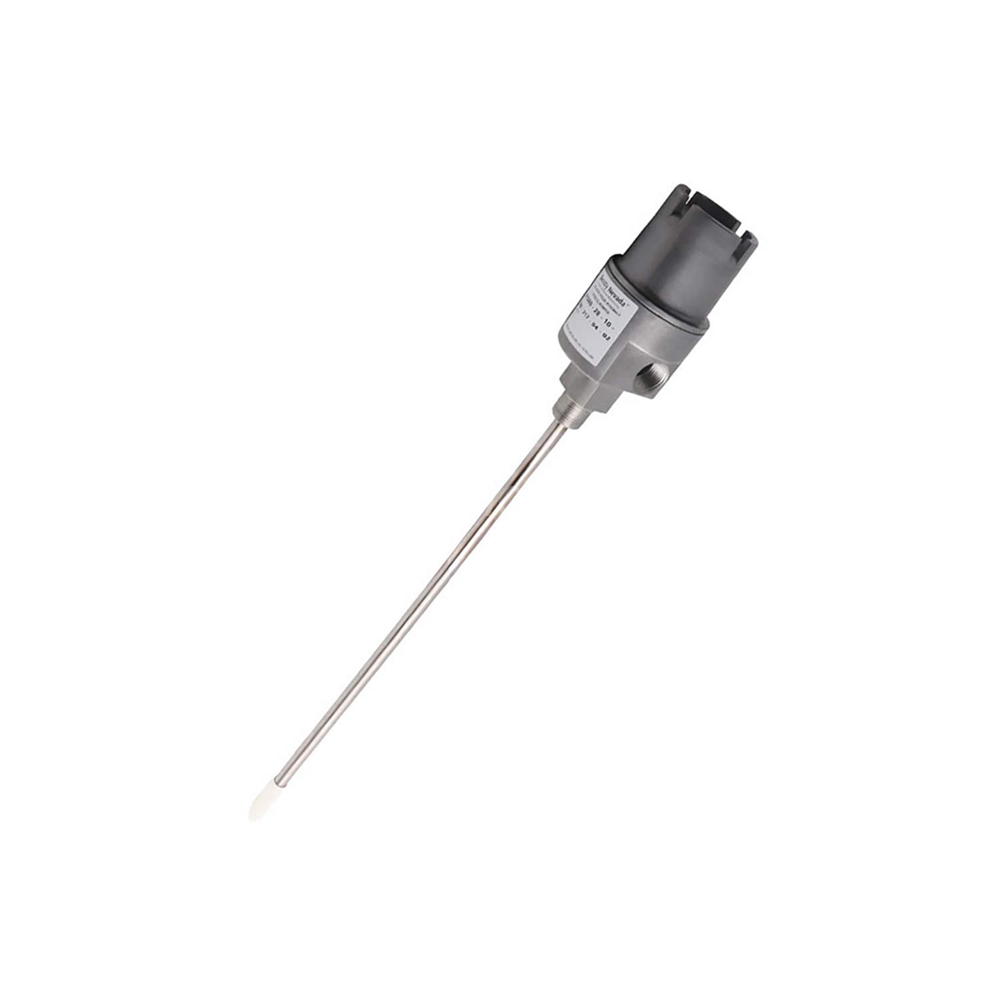

Bently Nevada 24701-16-05-00-035-04-02 Proximity Probe Housing Assembly

Product Overview and Core Function
This official Bently Nevada 24701-16-05-00-035-04-02 provides a complete housing solution for proximity probes. As a result, it effectively protects the probe in harsh industrial environments. The device belongs to the 24701 Series for turbomachinery monitoring applications. Specifically, this assembly includes a 3300 XL 8mm probe without approvals. Consequently, you get reliable shaft vibration and position measurement in one robust package.

Key Technical Parameters and Configuration
The Bently Nevada 24701-16-05-00-035-04-02 features a 303 stainless steel body with a 304 stainless steel sleeve. For instance, the probe cable length is 0.5 metre (20 inches). The probe penetration measures 3.5 inches (035 code) with no standoff adapter. The maximum (C) + (D) dimension with visible probe is not applicable for this model. Similarly, the maximum total (C) + (D) dimension reaches 13.5 inches (34.3 mm).

Materials and Mechanical Construction
The housing body uses 303 stainless steel for excellent corrosion resistance. Its sleeve features 304 stainless steel for additional durability. In addition, the assembly includes a dome cover that screws into the housing body. Threaded ports allow for easy conduit connections. Specifically, the probe sleeve comes in an optional length as configured. O-rings and a thread seal provide proper environmental protection accordingly.

Fittings and Mounting Specifications
This model includes a simplified fitting configuration with Option 04. For example, you get one 3/4-14 NPT plug only. Therefore, no reducer or cable seal grip comes with this assembly. The mounting thread is 3/4-14 NPT (Option 02). Consequently, this thread matches standard industrial conduit fittings perfectly. Users must supply their own cable sealing solution for field wiring.

Physical and Environmental Ratings
The typical weight is 1.8 kg (4.1 lb) without fittings. The probe operates reliably in demanding conditions. Housing materials resist UV damage and provide mechanical strength. Specifically, the 303 and 304 stainless steel construction offers excellent durability. As a result, this assembly withstands vibration and harsh industrial environments.

Component Breakdown: Housing and Sealing Parts
The Bently Nevada 24701-16-05-00-035-04-02 assembly consists of several key parts. For instance, a dome cover screws directly into the housing body. Consequently, this cover provides easy access for probe installation. Threaded ports provide conduit connection points for field wiring. A probe sleeve of optional length holds the probe securely in position. Similarly, O-rings and a thread seal prevent contamination and moisture ingress.

Component Breakdown: Probe and Fittings
A reverse mount proximity probe is included as part of this assembly. Therefore, you do not need to purchase a separate probe. Optional conduit fittings are not included in this specific configuration. Similarly, an optional standoff adapter is not provided with model 24701-16-05-00-035-04-02. The fitting option only includes a single NPT plug. As a result, you must provide your own cable gland or seal for the conduit entry.

Installation Guide
Mount the housing using the 3/4-14 NPT mounting thread. First, install the probe sleeve at the desired length. Next, insert the 3300 XL 8mm probe into the sleeve. Use the provided O-rings and thread seal to prevent leakage. Then, connect the conduit to the threaded ports. Install the single 3/4-14 NPT plug into any unused port. Finally, screw the dome cover onto the housing body. Always verify that the probe does not contact rotating machinery.

Complete Package Contents
Bently Nevada 24701-16-05-00-035-04-02 Proximity Probe Housing Assembly (1 unit)

3300 XL 8mm probe without approvals (Probe Option 16)

0.5 metre probe cable (Cable Length Option 05)

No standoff adapter (Standoff Adapter 00)

3.5-inch probe penetration (Probe Penetration 035)

One 3/4-14 NPT plug only (Fittings Option 04)

Dome cover

Housing body with threaded ports

Probe sleeve

O-rings

Thread seal

Reverse mount proximity probe

Frequently Asked Questions (FAQ)
1. What probe is included with the Bently Nevada 24701-16-05-00-035-04-02?
This assembly includes a 3300 XL 8mm probe without approvals. Specifically, it comes as a reverse mount configuration for easy installation.

2. What is the probe cable length for this model?
The probe cable measures 0.5 metre (20 inches). Consequently, this shorter cable suits installations with nearby monitoring equipment.

3. What fittings come with this housing assembly?
This model includes only one 3/4-14 NPT plug. Therefore, no reducer or cable seal grip is provided with Option 04.

4. What materials are used in this housing assembly?
The body uses 303 stainless steel. On the other hand, the sleeve uses 304 stainless steel for added corrosion protection.

5. What is the maximum (C)+(D) dimension for this assembly?
The maximum total dimension is 13.5 inches (34.3 mm). The probe part number and serial number are not visible on this configuration.
