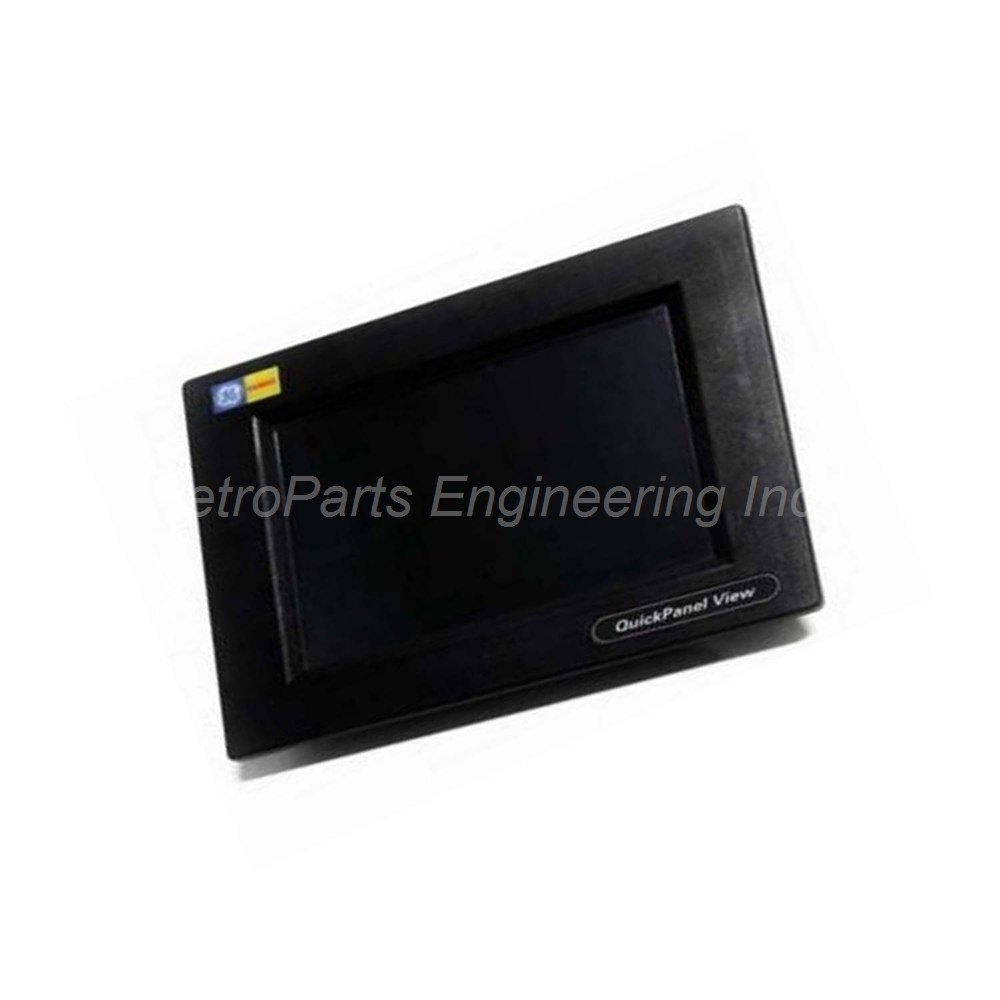

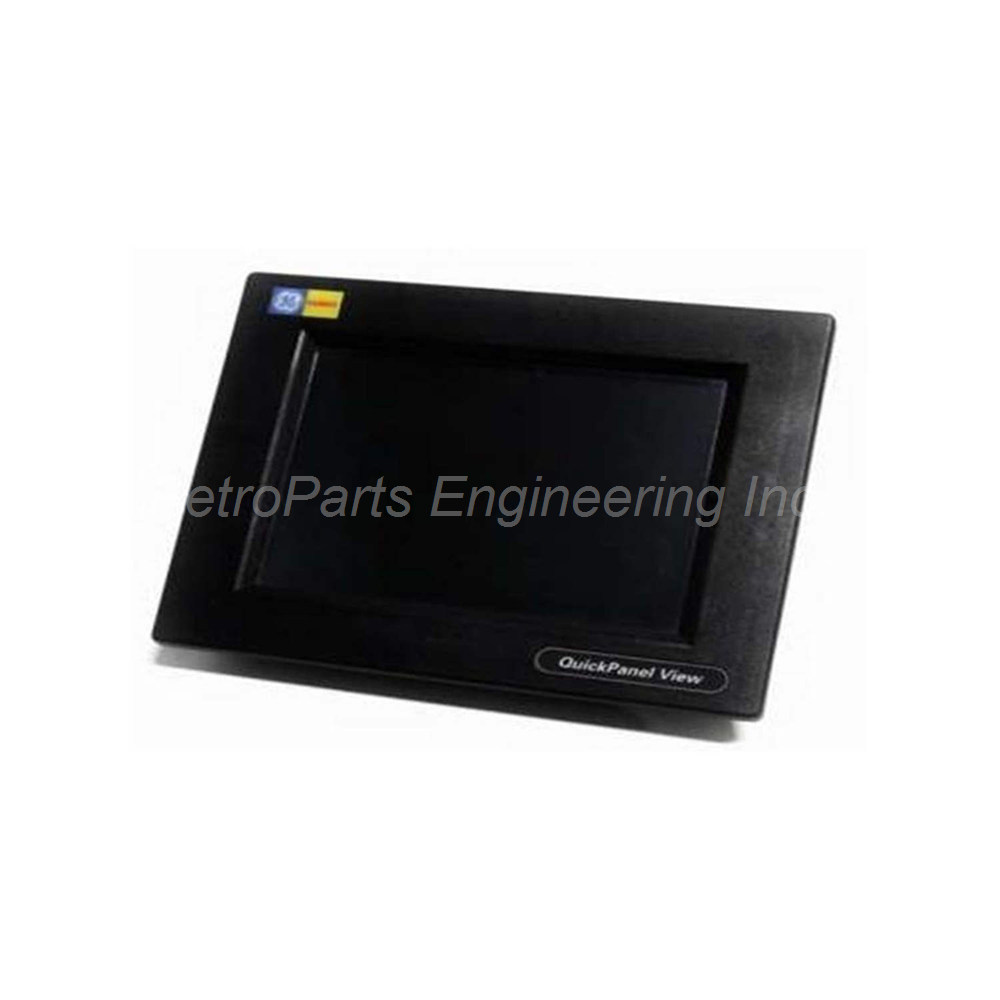

IC754VGI08CTD 8-Inch Color Touchscreen Operator Terminal

This IC754VGI08CTD terminal connects machines to interface devices. The IC754VGI08CTD belongs to the GE Fanuc QuickPanel series. It runs on Proficy View-Machine Edition software. This unit offers an 8-inch color display for clear visualization. Operators can control the terminal through a responsive touchscreen. This touchscreen input works well for data entry and display.

Technical Specifications

The IC754VGI08CTD features an 8-inch color display. The screen provides good visibility in dark and semi-lit environments. Input type uses a touchscreen for operator commands. Communication options include both RS232 and RS485 protocols. Internal memory provides 32 MB for application storage. Input power accepts 12 to 30 VDC range.

Key Technical Parameters:

• Display Size: 8 inches (Color)

• Input Type: Resistive Touchscreen

• Communication Ports: RS232 and RS485

• Input Power Range: 12 to 30 VDC

• Internal Memory: 32 MB

• Software Platform: Proficy View-Machine Edition

• Recommended Cable: HMI-CAB-C110

Environmental Requirements:

• Ventilation: Well-vented area required

• Dust Protection: Keep free from dust accumulation

• Light Exposure: Avoid strong UV light and direct sunlight

• Operating Environment: Industrial factories and similar settings

• Installation Supervision: Technical background recommended

The display performs well in low-light conditions. The unit has passed thorough testing for daily industrial use. Proper installation helps boost overall productivity. Always consult the user manual before installation. Improper use may cause damage to the terminal.

Lifecycle Status

This product has a Discontinued/Obsolete lifecycle status. The manufacturer no longer produces this model. However, we specialize in obsolete parts. We can likely supply surplus or refurbished replacement IC754VGI08CTD units. Please contact us for availability instead of migration.

Installation Guide

Follow these steps to install the IC754VGI08CTD properly. Choose a well-vented location free from dust. Keep the unit away from strong UV light and direct sunlight. Cut a panel opening according to the user manual dimensions. Insert the unit into the panel opening from the front. Secure the unit using the provided mounting hardware. Apply 12 to 30 VDC power to the input terminals. Connect your PLC or controller using the RS232 or RS485 ports. Use the recommended HMI-CAB-C110 communication cable. Power on the unit and calibrate the touchscreen. Test all communication ports before full operation. Work with someone who has a technical background. Consult the user manual to avoid improper use and damage.

What's in the Box

Please check the package contents upon delivery.

• IC754VGI08CTD Operator Interface Terminal (1 unit)

• Panel mounting gasket (1 piece)

• Mounting clips with screws (1 set)

• DC power connector plug (1 piece)

• User manual reference card (1 piece)

Common FAQs

1. What power supply works with the IC754VGI08CTD?
This unit accepts any DC power between 12 and 30 volts. Use a regulated DC power supply for stable and reliable operation.

2. Is this HMI still in production?
No, the IC754VGI08CTD has been discontinued by GE Fanuc Emerson. However, we specialize in obsolete parts. We can likely supply surplus or refurbished units.

3. What communication cable does this model need?
You should use the HMI-CAB-C110 communication cable. This cable supports both RS232 and RS485 serial protocols for industrial equipment.

4. Can I install this terminal without technical help?
We strongly recommend installation supervision by someone with a technical background. Always consult the user manual to avoid improper use and damage.

5. Does this HMI work well in bright sunlight?
The IC754VGI08CTD works best in dark and semi-lit environments. Keep the unit away from strong UV light and direct sunlight for best results.
