GE Fanuc IC697PWR724 90 Watt 24 VDC Power Supply Module
Introduction:
GE Fanuc IC697PWR724 90W DC power supply. Input range 18-32 VDC. Outputs 5V, 12V, and -12V. For Series 90-70 single or dual racks.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.

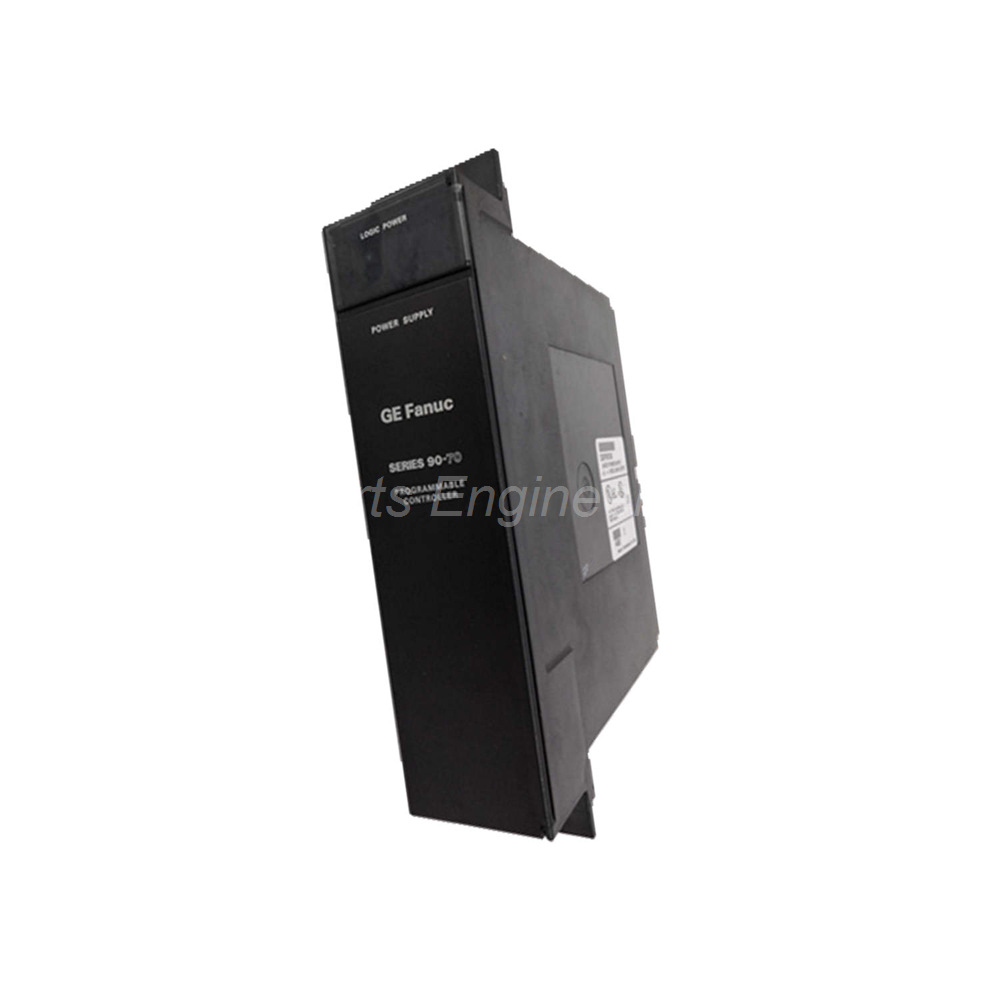

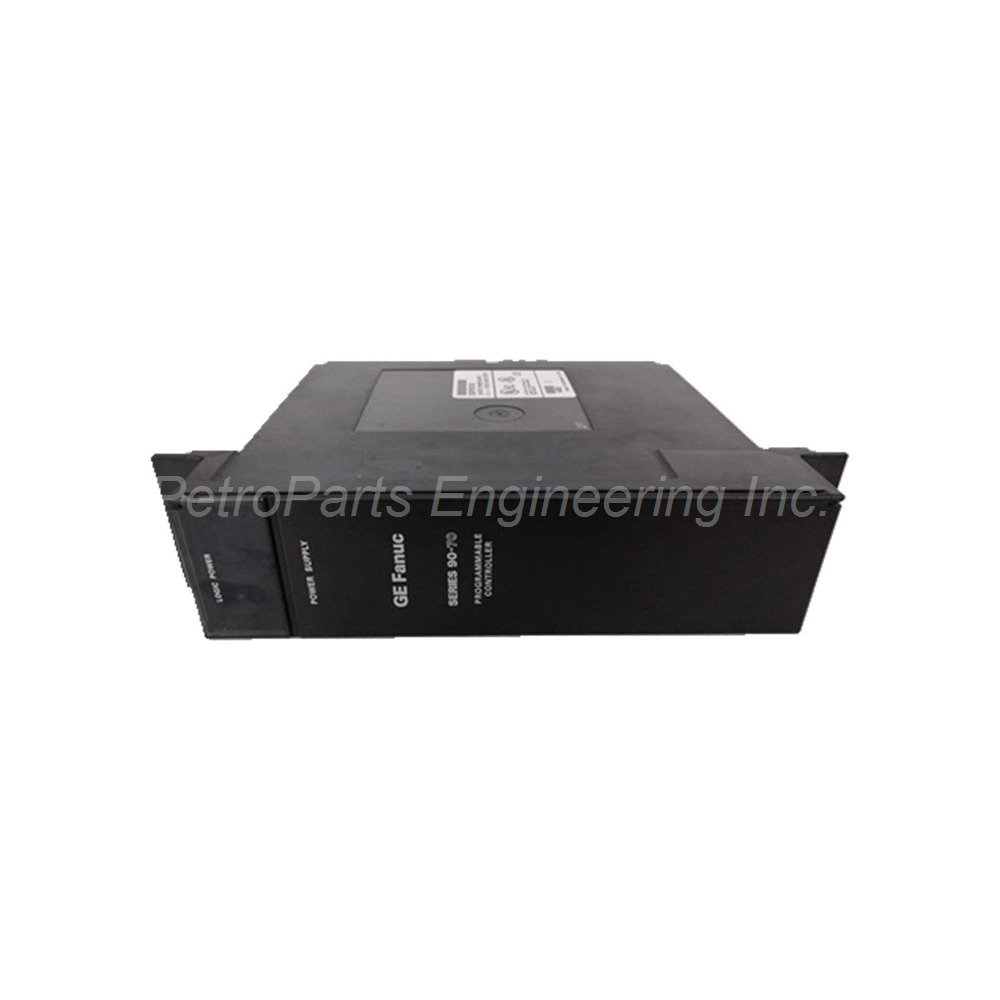

GE Fanuc IC697PWR724 90 Watt DC Power Supply Module
The GE Fanuc IC697PWR724 is a 90 Watt DC power supply module. It belongs to the Series 90-70 product line. This module plugs into the leftmost slot of the rack. It connects through a 48-pin backplane mounted connector. You can use it for single rack or dual rack applications.
Technical Specifications of the IC697PWR724
The GE Fanuc IC697PWR724 has a nominal rated voltage of 24 VDC. The input voltage range spans 18 to 32 VDC. This wide range accommodates various industrial DC power sources. The input power rating is 160 Watts maximum. The input inrush energy reaches 22 Joules maximum.
Output Power and Voltages
This power supply delivers 90 Watts of maximum output power. The GE Fanuc IC697PWR724 provides three different output voltages. The +5 VDC output delivers up to 26 Amps. The +12 VDC output provides up to 4 Amps. The -12 VDC output supplies up to 2 Amps. These voltages support all Series 90-70 logic and I/O requirements.
Protection and Ride-Through Time
The GE Fanuc IC697PWR724 includes overvoltage and overcurrent protection. The overvoltage limit is set at 5 VDC for the main output. The ride-through time is 10 milliseconds at 20 VDC. This keeps the system running through short power interruptions. The module also provides logic level sequencing signals for proper startup.
Environmental and Compatibility Ratings
The operating temperature range is 0 to 60 degrees Celsius. Derating may be needed above 60°C for reliable operation. The GE Fanuc IC697PWR724 is VME compatible for integrated rack systems. The module can power a second rack within the 90 Watt limit. An interconnection cable connects the second rack to the main rack.
Installation Guidelines for the IC697PWR724
Install the GE Fanuc IC697PWR724 in the leftmost slot of the Series 90-70 rack. Ensure the total system load does not exceed 90 Watts. For dual rack systems, calculate the combined load carefully. Use the proper interconnection cable between racks. Maintain ambient temperature below 60°C for full rating operation.
Package Contents
One (1) GE Fanuc IC697PWR724 power supply module
Product documentation and installation guide
Common FAQs for the IC697PWR724
1. Can the IC697PWR724 power two racks simultaneously?
Yes, the GE Fanuc IC697PWR724 can power a second rack. The total load of both racks must not exceed 90 Watts.
2. What input voltage range does this power supply accept?
The GE Fanuc IC697PWR724 accepts 18 to 32 VDC input. The nominal rated voltage is 24 VDC for normal operation.
3. What output voltages does the IC697PWR724 provide?
The GE Fanuc IC697PWR724 provides +5 VDC at 26 Amps, +12 VDC at 4 Amps, and -12 VDC at 2 Amps. Total output power is 90 Watts maximum.
4. Does this module work with VME racks?
Yes, the GE Fanuc IC697PWR724 is VME compatible. You can use it with VME integrated rack systems without issues.
5. What happens during a short power loss?
The GE Fanuc IC697PWR724 has a 10 ms ride-through time at 20 VDC. This prevents system shutdown during brief power interruptions.
Why Choose the GE Fanuc IC697PWR724?
This power supply delivers reliable DC power for Series 90-70 systems. The wide 18-32 VDC input range works with many industrial sources. Three output voltages support all rack components. Built-in protection keeps your system safe from overvoltage and overcurrent. Order the GE Fanuc IC697PWR724 today for your Series 90-70 power needs.
