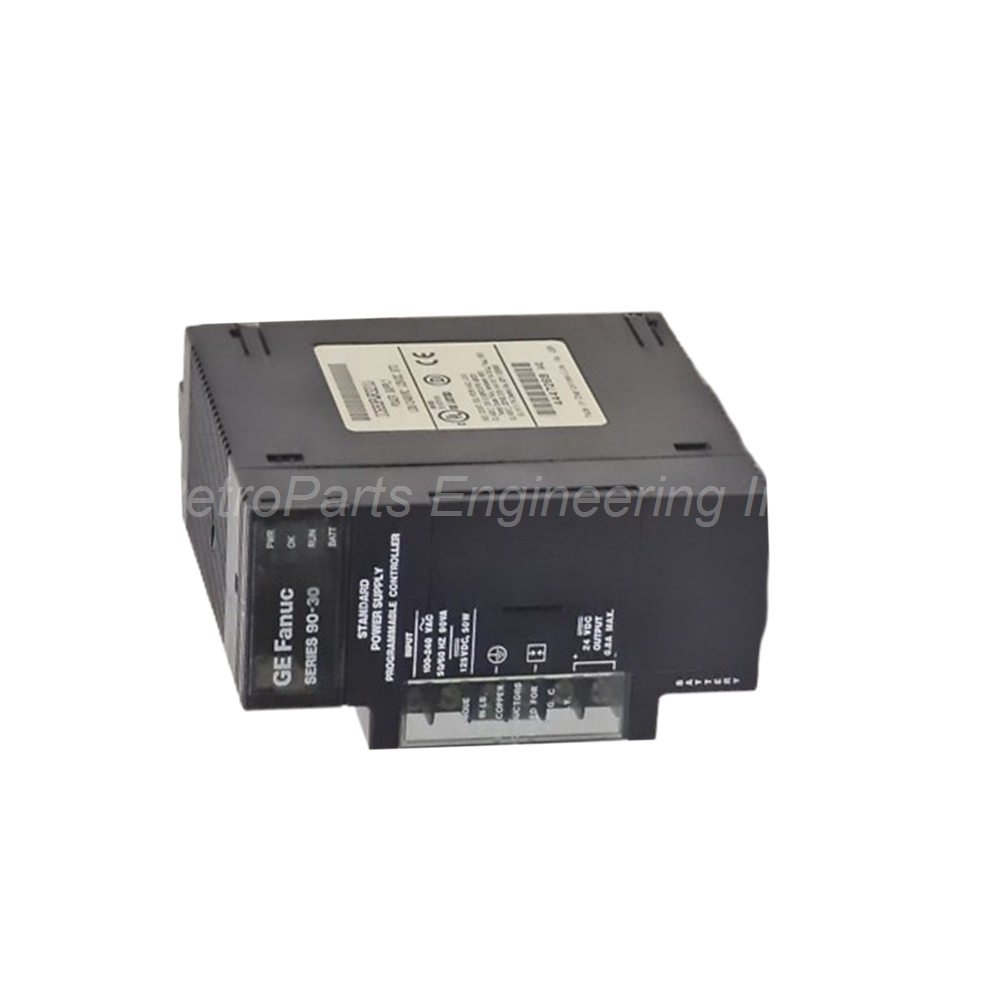

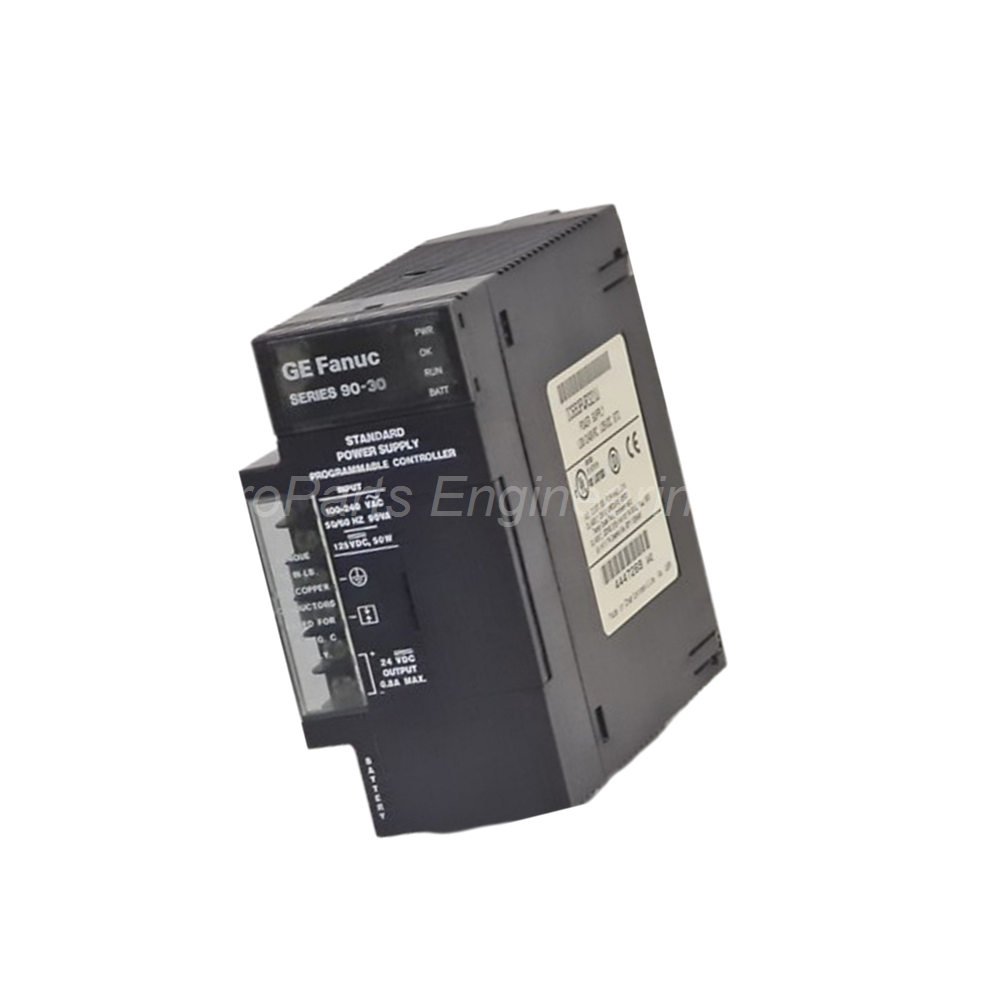

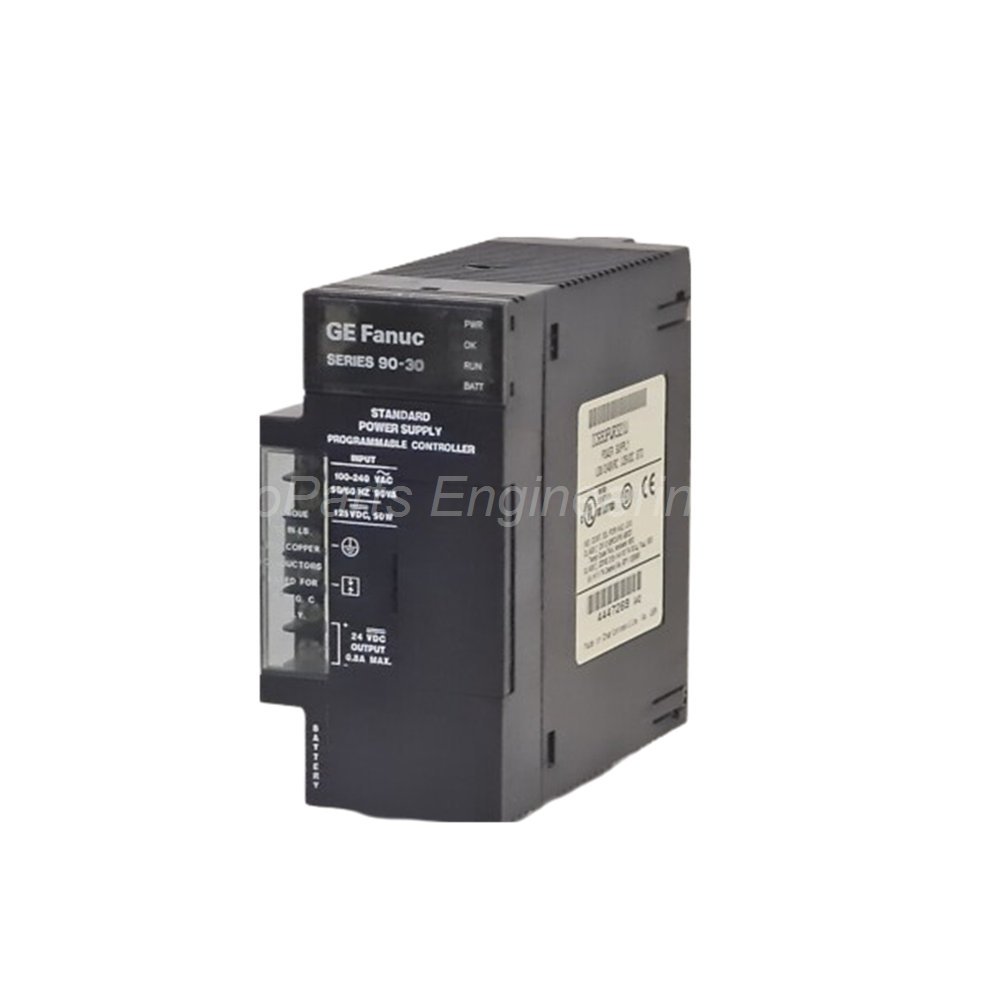

GE Fanuc IC693PWR321 Standard Power Supply for Series 90-30 PLC Systems

The GE Fanuc IC693PWR321 is a standard power supply module. It belongs to the Series 90-30 platform from GE Fanuc (now Emerson). This module provides 30 Watts of total load capacity. The IC693PWR321 accepts both AC and DC input voltages. It installs in the leftmost slot of the baseplate.

Technical Specifications of the IC693PWR321 Power Supply

This GE Fanuc IC693PWR321 module delivers three regulated output voltages. It includes overvoltage and overcurrent protection for safe operation.

Input Specifications:

• Nominal Input Voltage (AC): 120 to 240 VAC.

• Input Voltage Range (AC): 85 to 264 VAC.

• Nominal Input Voltage (DC): 125 VDC.

• Input Voltage Range (DC): 100 to 300 VDC.

• Input Power (AC): 90 VA maximum.

• Input Power (DC): 50 Watts maximum.

• Inrush Current: 4 Amps peak, 250 milliseconds maximum.

Output Specifications:

• Total Output Power: 30 Watts maximum.

• Output 1 (+5 VDC): 15 Watts maximum (5.0 to 5.2 VDC nominal 5.1V).

• Output 2 (+24 VDC Isolated): 20 Watts maximum (21.5 to 28 VDC).

• Output 3 (+24 VDC Relay): 15 Watts maximum (24 to 28 VDC).

• Overvoltage Protection: 6.4 to 7 VDC (trip point).

• Overcurrent Protection: 4 Amps maximum.

• Hold-Up Time: 20 milliseconds minimum.

Communication Port:

• Port Type: RS-485 serial port.

• Connector: One (1) 9-pin sub-D connector.

• Protocol Support: RS485 for peripheral device connection.

Protection and Diagnostics:

• Short Circuit Protection: Power supply limiting feature activates during direct short.

• Fuse: Internal fuse (GE part 44A724627-109 or equivalent: Bussman 215-002, Littlefuse 239-002).

• Smart Switch Fusing: Built-in as protection measure.

• Enhanced Diagnostics: Tracks all events and updates.

Physical Specifications:

• Product Weight: 1.13 lbs (0.51 kg).

• Shipping Weight: 2 pounds.

• Shipping Dimensions: 8 x 8 x 5 inches.

• Installation Location: Leftmost slot of the baseplate.

• Terminals: Six (6) terminals for operator connections.

Environmental Certifications:

• Hazardous Location Rating: Class 1 Division 2.

• Certifications: cULus and CE standards.

• Operating Temperature: 0°C to 60°C (32°F to 140°F) typical.

• Storage Temperature: -40°C to 85°C (-40°F to 185°F).

Battery:

• Battery Included: Yes (for memory backup).

• Compatibility: Works with any CPU model in the Series 90-30 family.

Product Lifecycle:

• Status: Discontinued / Obsolete by manufacturer.

• Availability: We supply surplus and refurbished IC693PWR321 units as replacements.

AC and DC Input Flexibility

The GE Fanuc IC693PWR321 offers outstanding input flexibility. You can power it from standard AC mains (85 to 264 VAC). This covers 120VAC and 240VAC systems worldwide. You can also power it from a DC source (100 to 300 VDC). This is perfect for battery-backed or DC-only industrial sites. The IC693PWR321 automatically handles either input type. No jumpers or switches are required.

Output Power Distribution

This GE Fanuc IC693PWR321 provides three distinct output voltages. The +5 VDC output (15W) powers the CPU and backplane logic. The +24 VDC isolated output (20W) provides external power for certain I/O modules. The +24 VDC relay output (15W) powers relay circuits. Each output has protection against overcurrent and overvoltage. The hold-up time of 20 milliseconds keeps the system running through brief power dips.

Installation and Wiring Guidelines

Proper installation of the GE Fanuc IC693PWR321 ensures reliable system operation. Follow these key points.

• Baseplate Location: Install the power supply in the leftmost slot. This is the only valid position for Series 90-30 power supplies.

• AC Wiring: Connect line and neutral to the appropriate terminals. Use proper wire gauges for 85-264 VAC.

• DC Wiring: Connect positive and negative leads for 100-300 VDC input.

• Grounding: Connect the ground terminal to a good earth ground.

• RS485 Port: Use the 9-pin sub-D connector for programming and peripheral connections. Connect to a CPU or computer.

• Fuse Replacement: Use a Bussman 215-002 (GDC-2) or Littlefuse 239-002 as a replacement fuse.

• Compatibility: This power supply works with any Series 90-30 CPU model.

Packing List

• One GE Fanuc IC693PWR321 standard power supply module.

• One internal fuse (installed).

• One battery (installed).

• Basic installation instruction sheet.

Frequently Asked Questions (FAQ)

1. What are the input voltage options for the IC693PWR321?
The GE Fanuc IC693PWR321 accepts 85 to 264 VAC (120/240VAC nominal) or 100 to 300 VDC (125VDC nominal). This makes it very versatile.

2. What is the total output power of this power supply?
This module provides 30 Watts total output power. The IC693PWR321 distributes this as 15W at 5VDC, 20W at isolated 24VDC, and 15W at 24VDC relay.

3. Does the IC693PWR321 include communication capabilities?
Yes, the GE Fanuc IC693PWR321 has a built-in RS-485 serial port. It uses a 9-pin sub-D connector for connecting to peripheral devices and a CPU.

4. What happens if there is a short circuit on an output?
The IC693PWR321 has a power supply limiting feature. This protects the hardware immediately when a direct short occurs. A smart switch fuse provides additional protection.

5. Is this power supply still manufactured by GE Fanuc?
No, the IC693PWR321 is discontinued and obsolete. However, we specialize in obsolete parts. We supply tested surplus and refurbished units as direct replacements.
