Product Overview

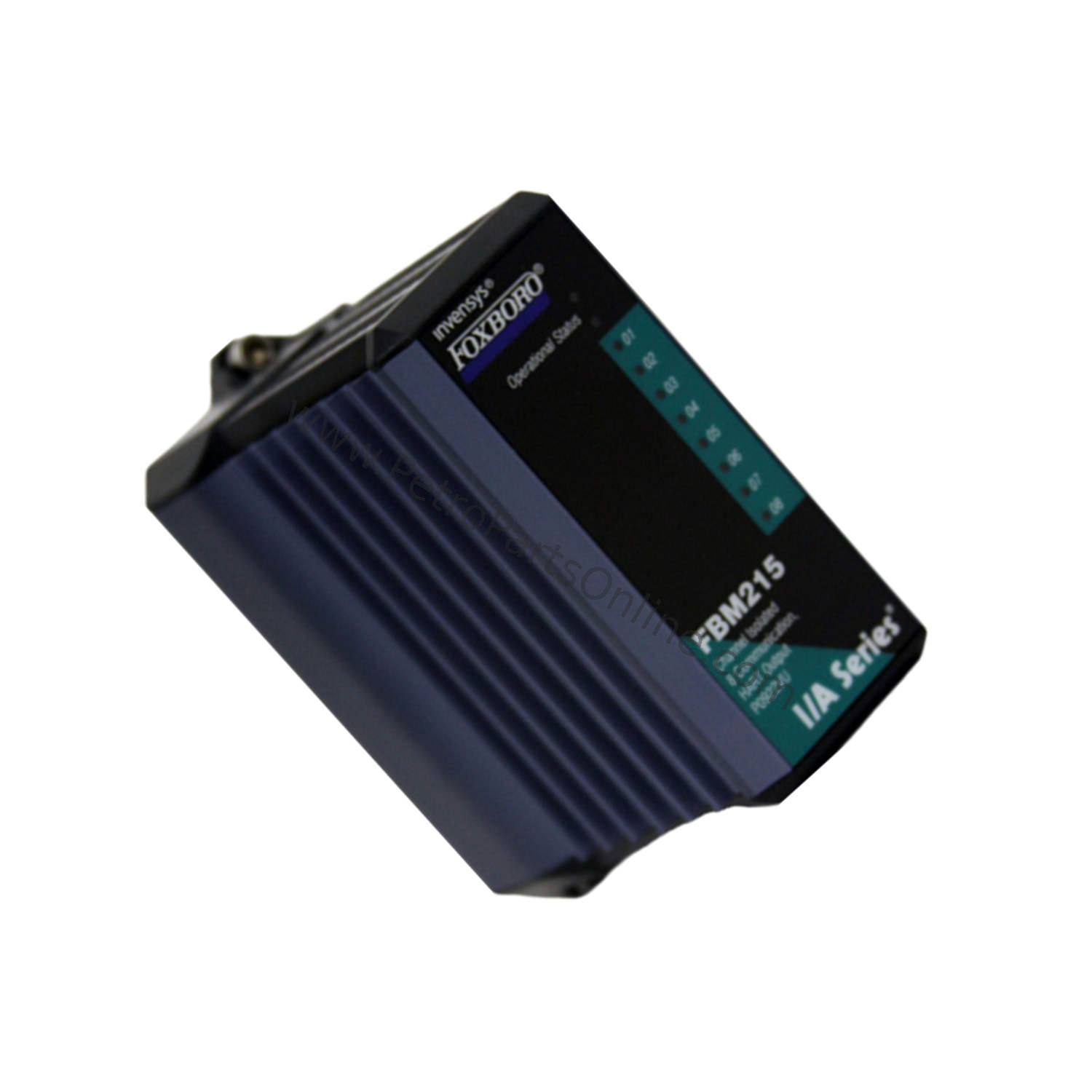

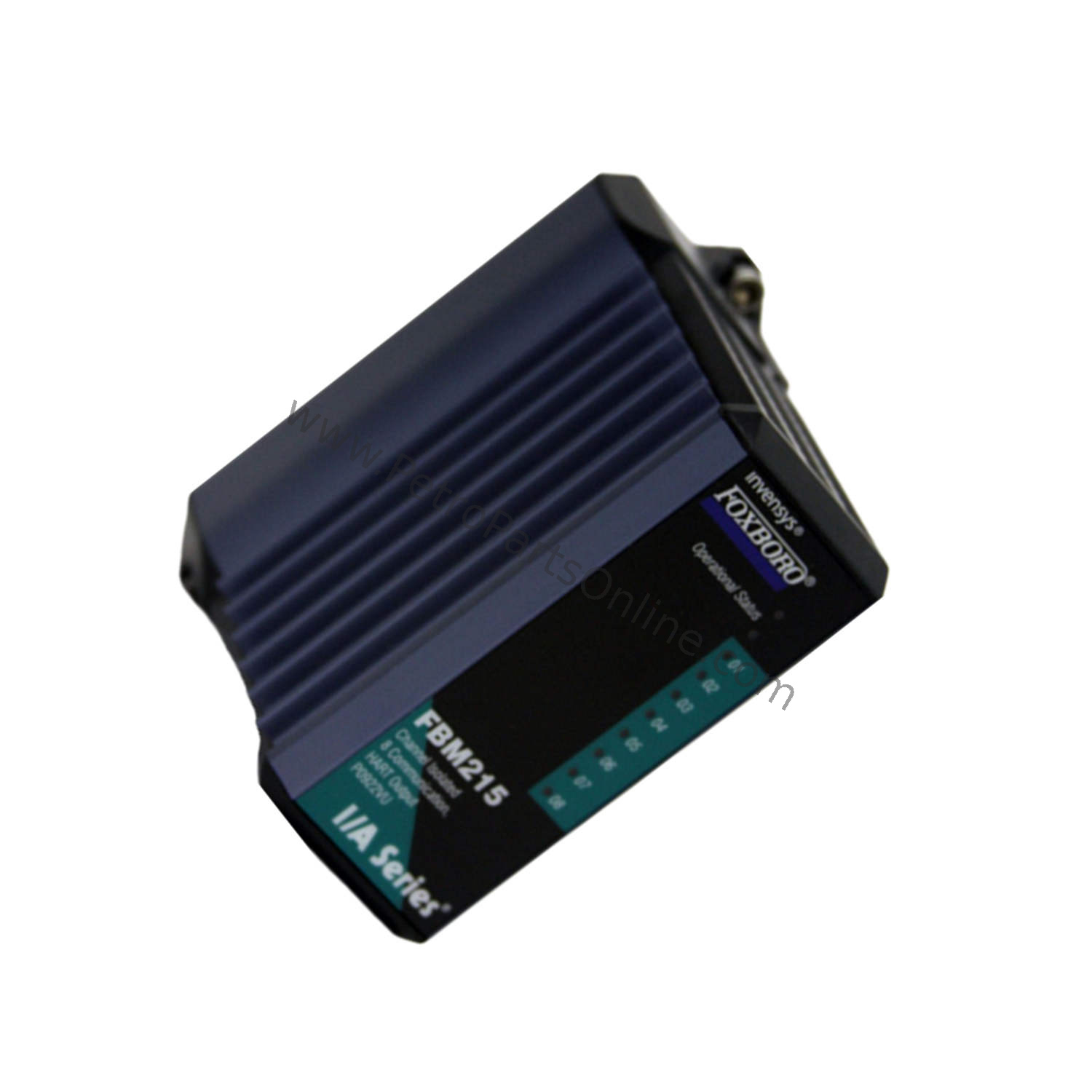

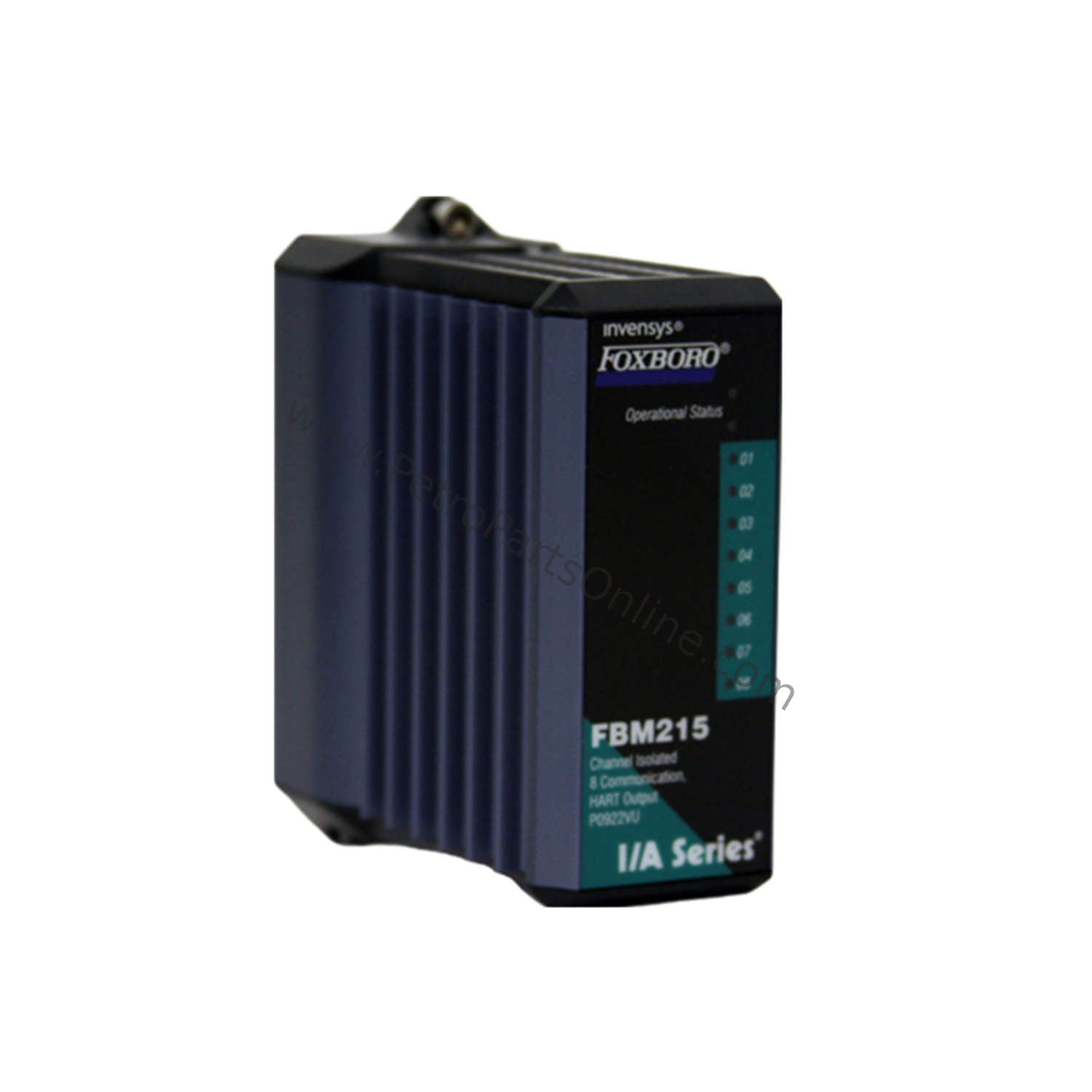

The FBM215 is a high-performance HART Communication Output Interface Module from Foxboro. Designed for industrial process control, this module provides eight isolated output channels for precise analog current control and digital HART communication. It integrates seamlessly into Foxboro DCS systems, ensuring reliable signal transmission in demanding environments.
Technical Specifications Analysis
The FBM215 delivers analog accuracy of ±0.05% of span between 4 mA and 20 mA, with a resolution of 13 bits. It supports HART instruments compliant with Versions 5, 6, or 7. The module communicates at 1200 baud using point-to-point, master/slave, asynchronous, half-duplex protocol. Each output channel handles a maximum load of 750 Ω and can change output at a maximum rate of 20 mA in 60 milliseconds. The loop power supply provides channel-to-channel galvanic isolation, current limiting, and voltage regulation. Power input is 24 VDC +5% redundant, with maximum consumption of 7 W and heat dissipation of 5 W.
Application Scenarios & Usage Methods
This module is ideal for controlling valve positioners, smart actuators, and I/P transducers in oil and gas refineries, chemical plants, and power generation facilities. Use the FBM215 to send 4-20 mA control signals while simultaneously reading HART digital data for diagnostics and configuration. The module supports up to 3030 m (10000 ft) distance to field devices when using appropriate wiring and barriers.
Installation Guide & Packing List
Mount the module in a suitable enclosure rated for the environment. Connect the redundant 24 VDC power supply and the module fieldbus to the associated FCM or FCP. Wire each output channel to the field device following HART FSK physical layer specifications. The package includes one FBM215 module and installation documentation. Termination assemblies are sold separately.
Purchasing Advice
When selecting the FBM215, verify that your control processor supports this module and that your field devices are HART-compatible. For applications requiring intrinsic safety, consider the impact on maximum cable length. PetroPartsOnline offers genuine Foxboro modules with fast shipping and expert support.
Repair & Maintenance Tips
The FBM215 requires no calibration. Periodically inspect connections for corrosion or looseness. Keep the module clean and dry, operating within -20 to +60°C and 5 to 95% noncondensing humidity. Store between -40 and +70°C. Check loop power supply voltages regularly.
Frequently Asked Questions (FAQs)
Q: What is the output load capability of the FBM215?
A: The module supports a maximum output load of 750 Ω per channel.
Q: Does the FBM215 require calibration?
A: No, calibration of the module and termination assembly is not required.
Q: What HART protocol versions does the FBM215 support?
A: It supports HART instruments compliant with Versions 5, 6, or 7 of the HART specifications.
Q: What is the maximum distance between the FBM215 and a field device?
A: The module meets HART FSK physical layer specification up to 3030 m (10000 ft), though this decreases with intrinsic safety barriers.
Q: What power supply does the FBM215 need?
A: It requires a redundant 24 VDC +5% input, with maximum consumption of 7 W.
