Product Overview

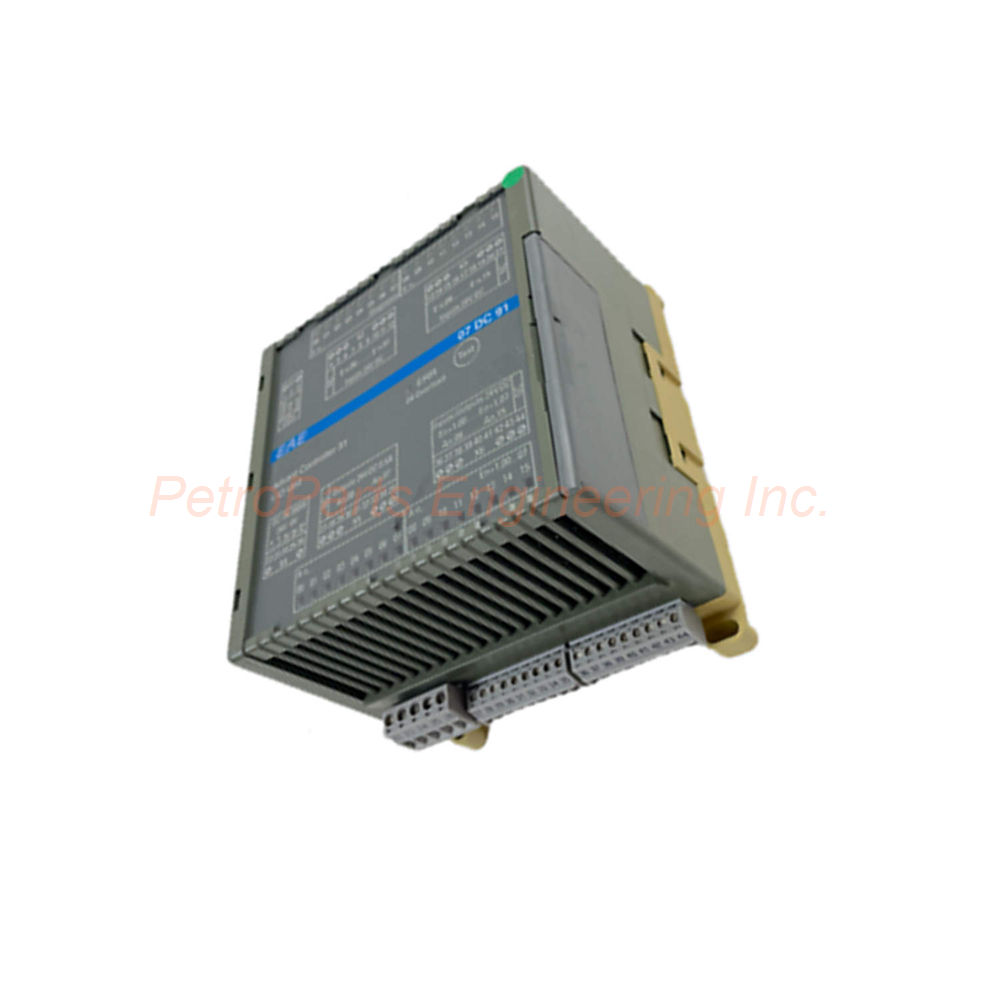

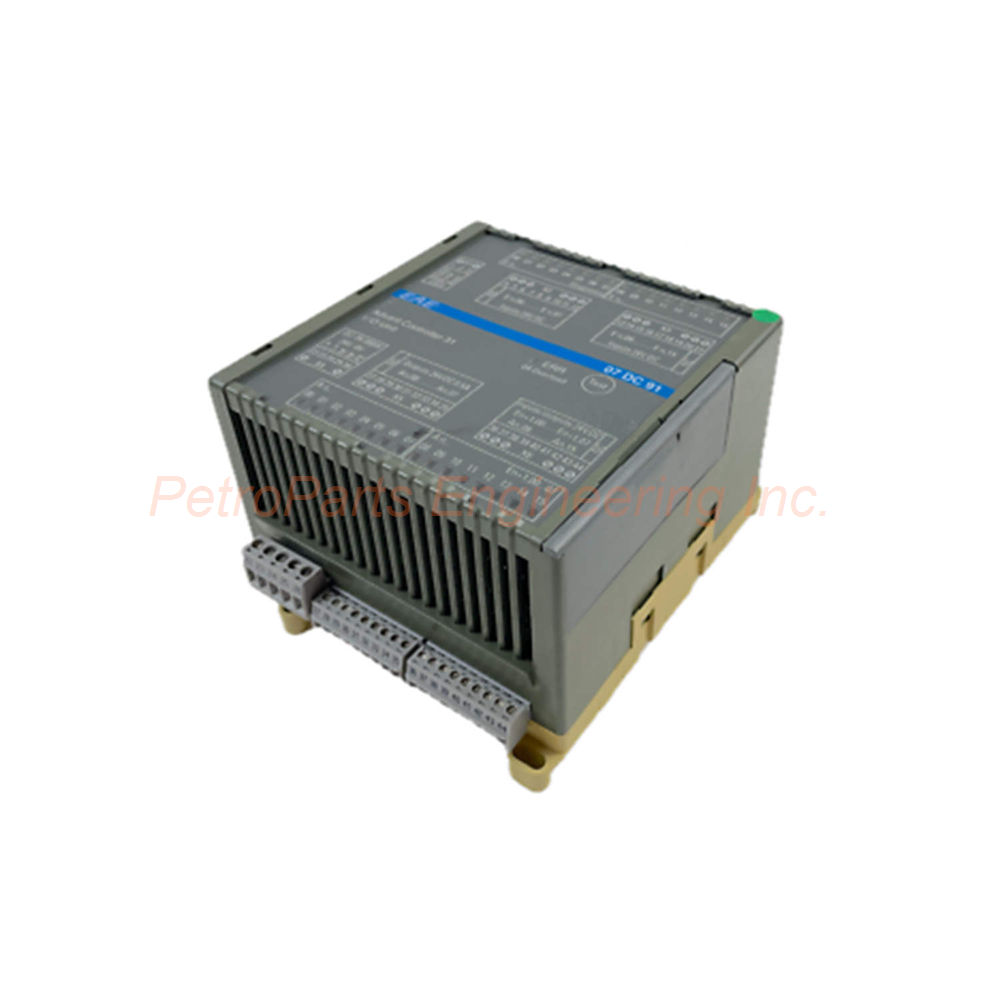

The 07DC91 is an ABB digital input/output module designed for remote use on the CS31 system bus. It combines 16 digital inputs, 8 digital outputs, and 8 configurable channels in a single unit, all operating at 24 V DC. This module provides reliable signal processing and diagnosis functions for industrial control systems.

Technical Specifications Analysis

The module operates at a rated supply voltage of 24 V DC and consumes a maximum of 0.15 A without load. It features 16 binary inputs in two groups of eight, with a typical input delay of 7 ms. The 8 transistor outputs deliver a nominal current of 500 mA each, with a total group current limit of 4 A. The 8 configurable channels can be set as inputs, outputs, or re-readable outputs. The module supports a permissible temperature range of 0 to 55 °C during operation. Protection against reversed polarity is included, and the system bus connection is electrically isolated from the rest of the unit.

Application Scenarios & Usage Methods

In manufacturing plants, the 07DC91 connects sensors and actuators to a central controller via the CS31 bus. Use the 16 inputs to monitor limit switches or proximity sensors, the 8 outputs to drive small relays or indicator lights, and the 8 configurable channels for flexible I/O expansion. In material handling systems, configure the configurable channels as re-readable outputs to verify actuator status without extra wiring.

Installation Guide & Packing List

Mount the module on a DIN rail (15 mm high) according to DIN EN 50022-35, or use four M4 screws for panel mounting. Ensure vertical installation with connectors pointing up and down for proper natural convection cooling. The package includes the digital input/output module 07 DC 91, one 5-pin connector (grid space 5.08 mm), one 3-pin connector (grid space 5.08 mm), and four 9-pin connectors (grid space 3.81 mm).

Purchasing Advice

When selecting the 07DC91, verify that your system uses a CS31 system bus and requires 24 V DC I/O. The module’s 32 channels (16 fixed inputs, 8 fixed outputs, 8 configurable) provide flexibility for mixed I/O needs. For reliable supply, purchase from PetroPartsOnline, a trusted source for industrial automation and oil/gas parts.

Repair & Maintenance Tips

Regularly inspect the 33 LEDs on the front panel for error indications. Keep the DIN rail and connectors clean and free of dust. Ensure the ambient temperature stays within 0 to 55 °C to avoid overheating. Check conductor cross sections: power input up to 2.5 mm², CS31 bus up to 2.5 mm², and signal terminals up to 1.5 mm².

Frequently Asked Questions (FAQs)

Q: What is the operating voltage of the 07DC91?

A: The operating voltage is 24 V DC.

Q: How many digital inputs and outputs does the module have?

A: It has 16 digital inputs, 8 digital outputs, and 8 configurable inputs/outputs.

Q: What is the maximum power dissipation under load?

A: The maximum power dissipation under load is 10 W.

Q: Does the module protect against short circuits?

A: Yes, the outputs are protected against short circuits and overload, with automatic reactivation.

Q: What is the weight of the 07DC91?

A: The module weighs 450 g.
