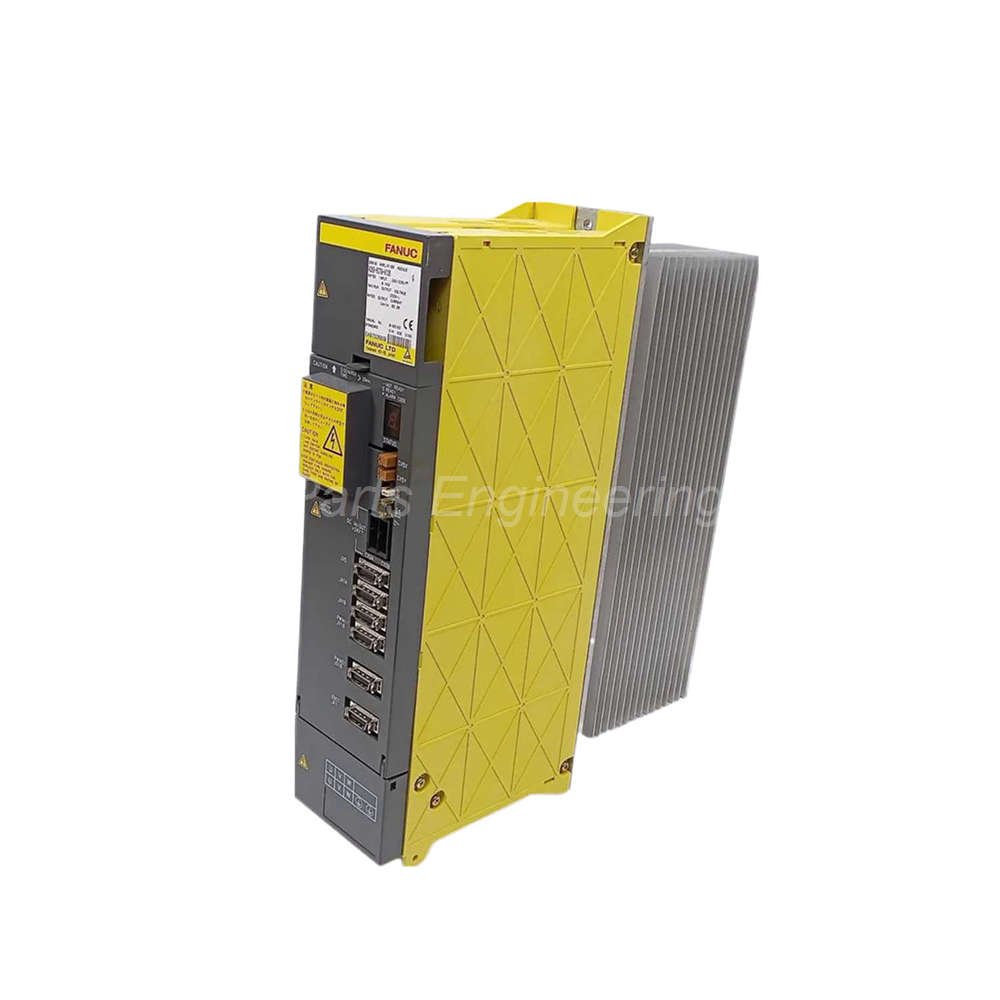

FANUC A06B-6079-H106 Servo Amplifier for CNC Systems

The FANUC A06B-6079-H106 is a high-performance servo amplifier. It belongs to the A06B product line from FANUC. This servo drive is specifically engineered for CNC systems. The A06B-6079-H106 uses an air-cooled design for optimal thermal management. It provides precise motion control for demanding machining applications.

Technical Specifications of the A06B-6079-H106 Servo Amplifier

This FANUC A06B-6079-H106 servo amplifier delivers reliable power and control. Its robust design ensures long service life in industrial environments.

Input Specifications:

• Input Voltage Range: 283 to 325 Volts.

• Frequency: 50 or 60 Hz.

• Rated Current: 52.2 Amps.

Control and Interface:

• Control Type: PWM (Pulse Width Modulation) interface.

• Control Method: Precise servo motion control.

• Application: CNC systems (Computer Numerical Control).

Cooling and Mounting:

• Cooling Method: Air cooled.

• Mounting Type: Vertical or wall-mounted.

• Mounting Orientation: Vertical only for proper airflow.

Protection Features:

• Overload Protection: Yes.

• Overcurrent Protection: Yes.

• Overvoltage Protection: Yes.

Environmental Specifications:

• Operating Temperature: 0°C to 55°C (32°F to 131°F).

• Storage Temperature: -20°C to 70°C (-4°F to 158°F) typical.

• Humidity: 95% non-condensing typical.

Physical Specifications:

• Product Weight: 15.00 lbs (6.80 kg).

• Shipping Weight: 18 pounds.

• Shipping Dimensions: 16 x 12 x 10 inches.

• Cooling: Air cooled (no external fans required for normal operation).

Air Cooled Design for Reliable Operation

The FANUC A06B-6079-H106 uses an air cooling system for heat dissipation. This design eliminates the need for liquid cooling systems. Air cooling reduces maintenance requirements and installation complexity. The A06B-6079-H106 maintains optimal thermal performance during continuous operation. Proper vertical mounting ensures natural convection airflow. Leave adequate clearance around the unit for air circulation.

PWM Interface for Precise Servo Control

This FANUC A06B-6079-H106 servo amplifier features a PWM (Pulse Width Modulation) interface. PWM control provides precise regulation of motor speed and torque. This allows smooth acceleration and deceleration of CNC axes. The A06B-6079-H106 delivers accurate positioning for machining operations. The PWM interface also improves energy efficiency compared to older control methods.

Protection Features for System Reliability

The FANUC A06B-6079-H106 includes multiple protection features. Overload protection prevents damage from excessive mechanical loads. Overcurrent protection safeguards against short circuits or motor stalls. Overvoltage protection shields the drive from input power spikes. These built-in protections enhance the reliability of your CNC system. The A06B-6079-H106 automatically shuts down when a fault occurs. This prevents damage to the amplifier, motors, and connected machinery.

Installation and Mounting Guidelines

Proper installation of the FANUC A06B-6079-H106 ensures reliable operation. Follow these key points.

• Mounting Orientation: Mount the unit vertically only. Horizontal mounting blocks proper airflow.

• Mounting Surface: Use a flat, rigid metal panel. Ensure the surface can support the 6.8 kg weight.

• Clearance: Leave at least 100 mm (4 inches) above and below the unit. This allows natural air convection.

• Ambient Temperature: Keep the operating environment between 0°C and 55°C.

• Input Voltage: Verify your supply voltage is within 283 to 325 Volts AC.

• Wiring: Use appropriately sized cables for 52.2 Amps rated current.

• Grounding: Connect a proper earth ground to the grounding terminal.

• Ventilation: Ensure no obstructions block the cooling air paths.

Compatibility and System Integration

The FANUC A06B-6079-H106 is designed for FANUC CNC systems. It works with compatible FANUC servo motors and CNC controllers. The A06B-6079-H106 is commonly used in machining centers, lathes, and other CNC equipment. Verify compatibility with your specific CNC control model before installation.

Packing List

• One FANUC A06B-6079-H106 servo amplifier.

• One basic installation instruction sheet.

Note: Mounting hardware and connecting cables are sold separately.

Frequently Asked Questions (FAQ)

1. What is the rated current of the A06B-6079-H106 servo amplifier?
The FANUC A06B-6079-H106 has a rated current of 52.2 Amps. This provides substantial power for CNC axis drives.

2. What type of cooling does this servo drive use?
This unit uses an air-cooled design. The A06B-6079-H106 does not require liquid cooling. Proper vertical mounting ensures natural airflow.

3. Does the A06B-6079-H106 include overcurrent protection?
Yes, the FANUC A06B-6079-H106 has overload, overcurrent, and overvoltage protection. These features automatically protect the drive and connected motors.

4. What is the input voltage range for this servo amplifier?
The A06B-6079-H106 accepts an input voltage range of 283 to 325 Volts. It operates at either 50 Hz or 60 Hz frequency.

5. Can I mount this servo amplifier horizontally?
No, you must mount the FANUC A06B-6079-H106 vertically or on a wall. Horizontal mounting blocks proper air flow and may cause overheating.
