Product Summary

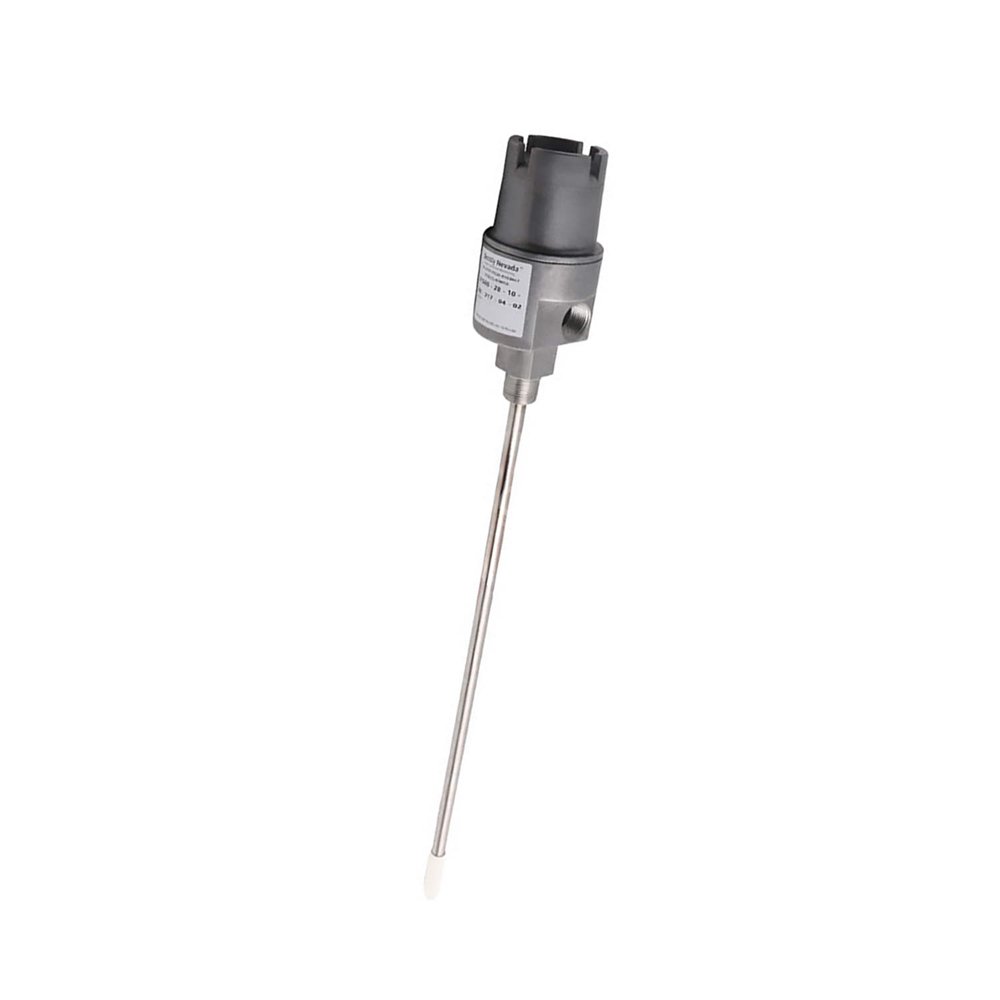

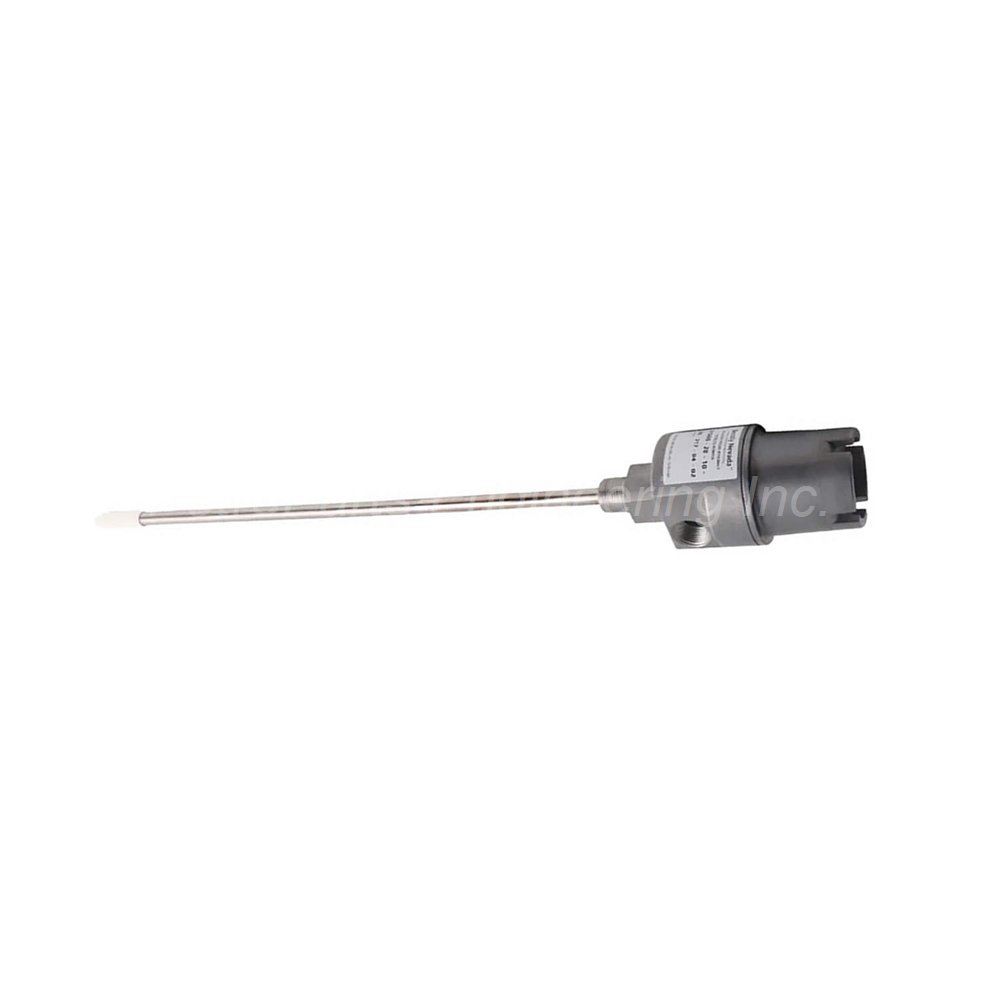

• The 24701-16-10-00-090-03-02 is a rugged mechanical protection system for proximity sensors.
• It is specifically engineered for Bently Nevada 3300 XL 8mm reverse-mount probes.
• The 303/304 Stainless Steel construction ensures maximum corrosion resistance.
• This assembly features a 9-inch penetration depth for precise internal monitoring.
• Ideal for high-pressure or contaminated environments in turbines and compressors.

Configuration Breakdown

• 24701 — Base Model: Proximity Probe Housing Assembly
  • -16 — Probe Option: 3300 XL 8mm probe with connector included
  • -10 — Cable Length: 1.0 meter (39 inches) probe cable
  • -00 — Standoff: No standoff adapter included
  • -090 — Penetration: 9.0-inch sleeve insertion depth
  • -03 — Fittings: Multi-size cable seal grip and NPT reducers
  • -02 — Thread: 3/4-14 NPT mounting thread

Technical Engineering Data

• Brand: Bently Nevada
• Model: 24701-16-10-00-090-03-02
• Main Material: 303 Stainless Steel body
• Sleeve Material: 304 Stainless Steel sleeve
• Max Dimension: Total (C+D) reach up to 29.2 inches
• Seal System: High-grade O-rings and thread seals included
• Net Weight: Approximately 1.8 kg (4.1 lbs)
• Protection: Explosion-proof conduit port compatibility

Diagnostic and Installation Advantages

• Reverse Mount: Replace the probe without removing the entire housing assembly.
• Self-Contained: The dome cover protects internal wiring from oil and moisture.
• Adjustable Seals: The -03 kit fits cable diameters from 1/8 to 3/8 inches.
• Stability: Heavy-duty threads prevent vibration-induced loosening of the sensor.
• Compatibility: Fully matched for 3300 XL series signal linearity requirements.

Logistics and Quality Policy

• Condition: 100% Brand New, Original Factory Packing.
• Warranty: Guaranteed 12-month factory warranty.
• Express Shipping: Global priority via FedEx, UPS, and DHL.
• Packing: Industrial-grade protection for secure international transit.

Professional FAQ & Buying Guide

• How do I verify the 9-inch penetration depth for my site?
  Measure the distance from the machine’s external port to the shaft. The -090 suffix ensures the probe reaches exactly 9 inches into the casing.
• Why choose the -16 probe option instead of a separate probe?
  Buying the 24701-16 ensures the internal probe seat and connector are factory-aligned, reducing signal noise and installation errors.
• What if my cable diameter is non-standard?
  The -03 Fittings Option provides three different grommet sizes. This covers almost all Bently Nevada cable types from 1/8″ to 3/8″.
• Is a standoff adapter required for this specific model?
  No. The -00 code means this is a direct-mount version. Use this when the probe sleeve length matches your casing thickness perfectly.
• How does this housing handle high-vibration machinery?
  The stainless steel body provides high mass and rigidity. This prevents the probe from resonating, which ensures a clean vibration signal.
