Product Overview

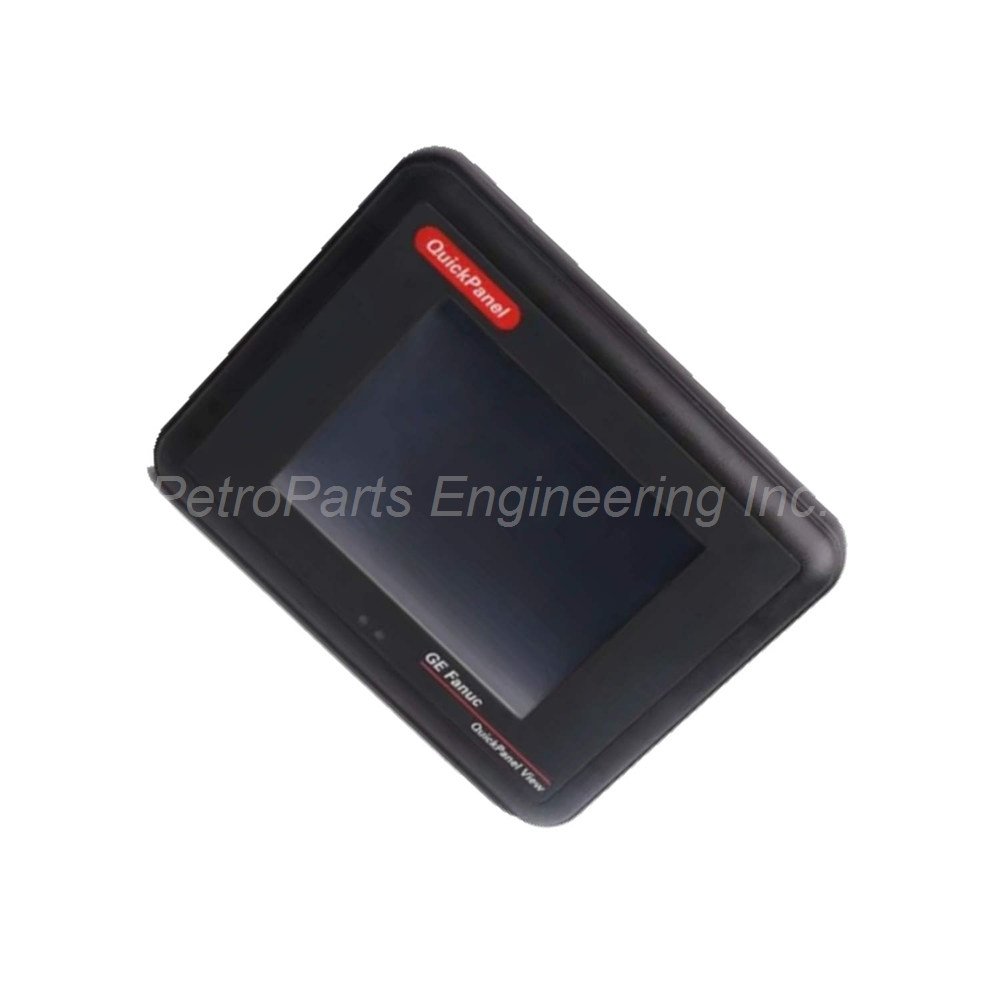

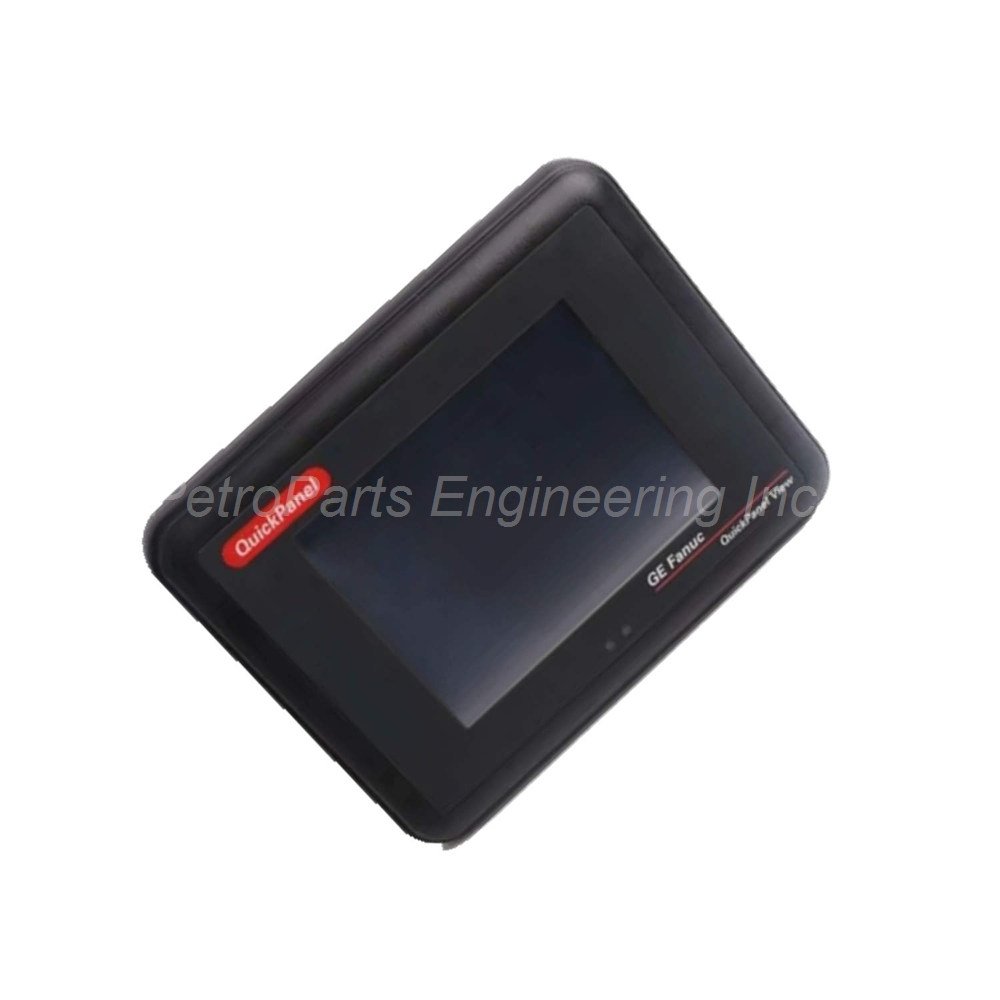

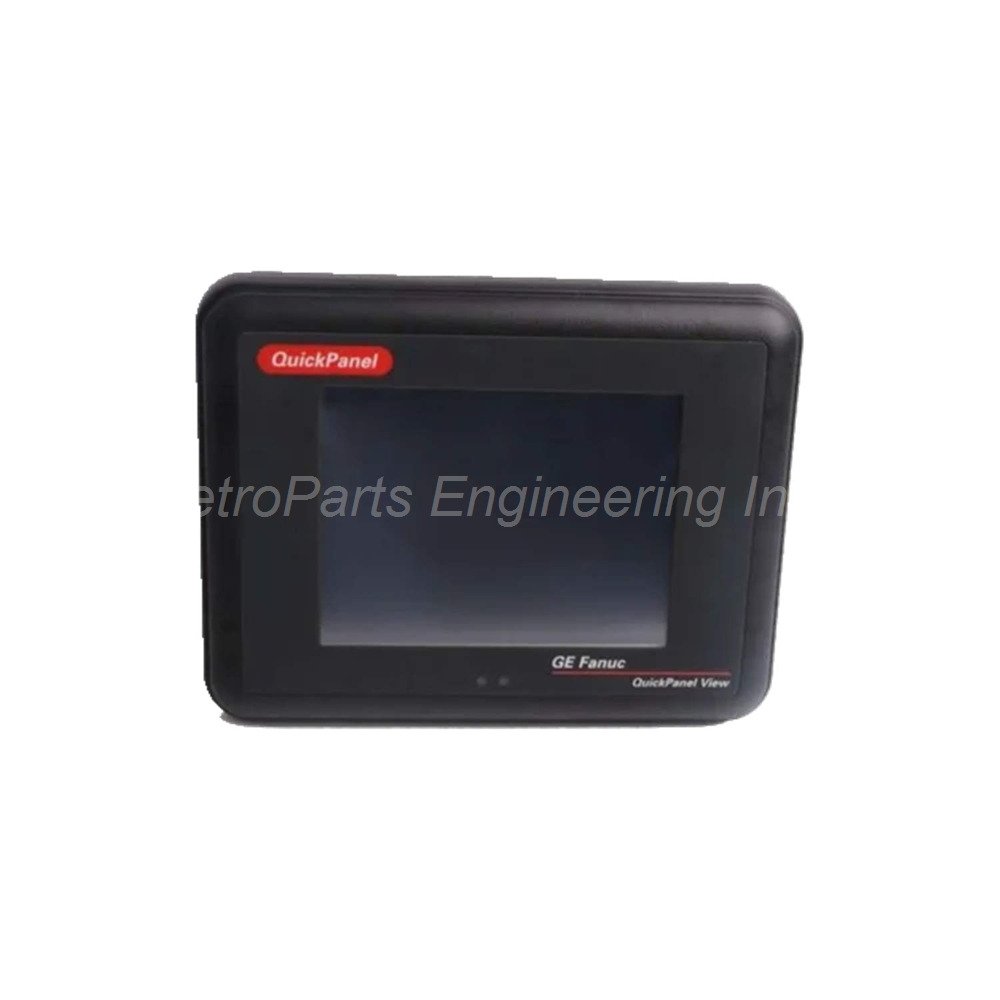

The GE Fanuc IC754VBI06MTD is a QuickPanel View operator terminal for industrial HMI tasks. This device functions as a Human Machine Interface paired with a PLC. Operators use the IC754VBI06MTD to monitor machines and control automation processes. Its monochrome display shows 256 shades of gray for clear data visibility. This terminal suits applications that need reliable visualization without color graphics.

Technical Specifications

The GE Fanuc IC754VBI06MTD provides essential HMI features in a compact package.

• Display Size & Type: 5.75-inch (approx 6-inch) Passive FSTN monochrome display.
• Display Resolution: 320 x 240 pixels (QVGA).
• Gray Shades: 256 shades of gray for detailed monochrome graphics.
• Backlight Half-Life: 50,000 hours of continuous operation.
• Processor: Intel XScale PXA255 running at 300 MHz.
• Integral Memory: 32 MB Flash, 512 KB SRAM (battery-backed), 32 MB DRAM, and 512 KB Boot ROM.
• Operating System: Microsoft Windows CE pre-installed.
• Power Supply: 12 to 30 VDC (24 VDC nominal) with 12 Watts real power consumption.
• Bezel Material: Valox 3706 (Valox 357U on front panel).
• Membrane Material: Lexan HP60.

Touchscreen Design and Operator Interface

The GE Fanuc IC754VBI06MTD uses a resistive 12-bit analog touchscreen system. This screen has 320 touch-sensitive cells arranged horizontally across the display. It also has 240 cells mounted vertically along the screen area. Operators can monitor and control processes directly through simple touch actions. The touch interface works with fingers or a stylus for precise input. This design eliminates the need for external keyboards or mice. The IC754VBI06MTD provides a clean and sealed front panel for industrial environments.

Communication Ports and Network Integration

This operator terminal offers several communication options for PLC connectivity.
It has one (1) RJ45 port that supports Ethernet/IP communication.
The Ethernet port transmits data at 10/100 Mbps speeds automatically.
Maximum cable distance per segment reaches up to 100 meters.
For serial connections, the IC754VBI06MTD includes an RS232 point-to-point interface.
This RS232 port communicates at speeds up to 115200 kbps.
Maximum cable distance for RS232 is 15 meters.
The terminal also supports RS485 for multi-drop networks (sharing same port).
For a communication cable, use GE part number HMI-CAB-C67.
These ports allow the IC754VBI06MTD to connect with different PLC brands.

Memory Architecture and Data Retention

The GE Fanuc IC754VBI06MTD contains four distinct memory sections for reliable operation.
The 32 MB non-volatile Flash memory stores the operating system and application.
The 512 KB battery-backed SRAM retains critical data when main power is off.
This SRAM retention depends on the internal battery life.
The 32 MB DRAM handles active screen objects and real-time process variables.
The 512 KB Read-Only Memory (ROM) functions as the boot loader partition.
The XScale PXA255 CPU manages all memory access and program execution smoothly.
This memory architecture supports both HMI-only or combined HMI-control applications.

Installation Guidelines

Mount the GE Fanuc IC754VBI06MTD into a standard panel cutout for 6-inch HMIs.
Provide a clean 24 VDC power source with at least 12 watts capacity.
Do not exceed 30 VDC input voltage to prevent permanent circuit damage.
Keep Ethernet cables away from high-voltage AC power lines.
Limit RS232 cable length to 15 meters for reliable communication.
Calibrate the touchscreen after installation for accurate touch response.
The 50,000-hour backlight suits continuous 24/7 operation for nearly 6 years.
Back up your application file before replacing the internal battery.

Package Contents

When you unbox the GE Fanuc IC754VBI06MTD, you will find these items:

• 1 x GE Fanuc IC754VBI06MTD QuickPanel View operator terminal.
• 1 x Power connector plug (Phoenix Contact type).
• 1 x Installation and setup guide (printed).
• 1 x Panel mounting gasket for environmental seal.
• 4 x Mounting clips with retaining screws.

Frequently Asked Questions (FAQ)

Is the GE Fanuc IC754VBI06MTD still in production?

No, the manufacturer has discontinued the **IC754VBI06MTD** model. We supply tested refurbished and surplus units as direct replacements for existing systems.

What is the display resolution of this QuickPanel View terminal?

The IC754VBI06MTD provides a display resolution of 320 x 240 pixels. This QVGA resolution displays 256 shades of gray on its monochrome screen.

Can I connect this HMI to an Allen-Bradley PLC?

Yes, you can connect via the Ethernet port using Ethernet/IP protocol. The RS232 port also supports many serial PLC protocols with proper configuration.

What software do I need to program the IC754VBI06MTD?

You typically need Proficy Machine Edition or QuickDesigner software. Please check your software version for Windows CE and monochrome display support.

How long does the backlight last on the IC754VBI06MTD?

The backlight has a rated half-life of 50,000 hours. This equals nearly 6 years of continuous 24/7 operation before brightness drops by 50%.
