Product Overview

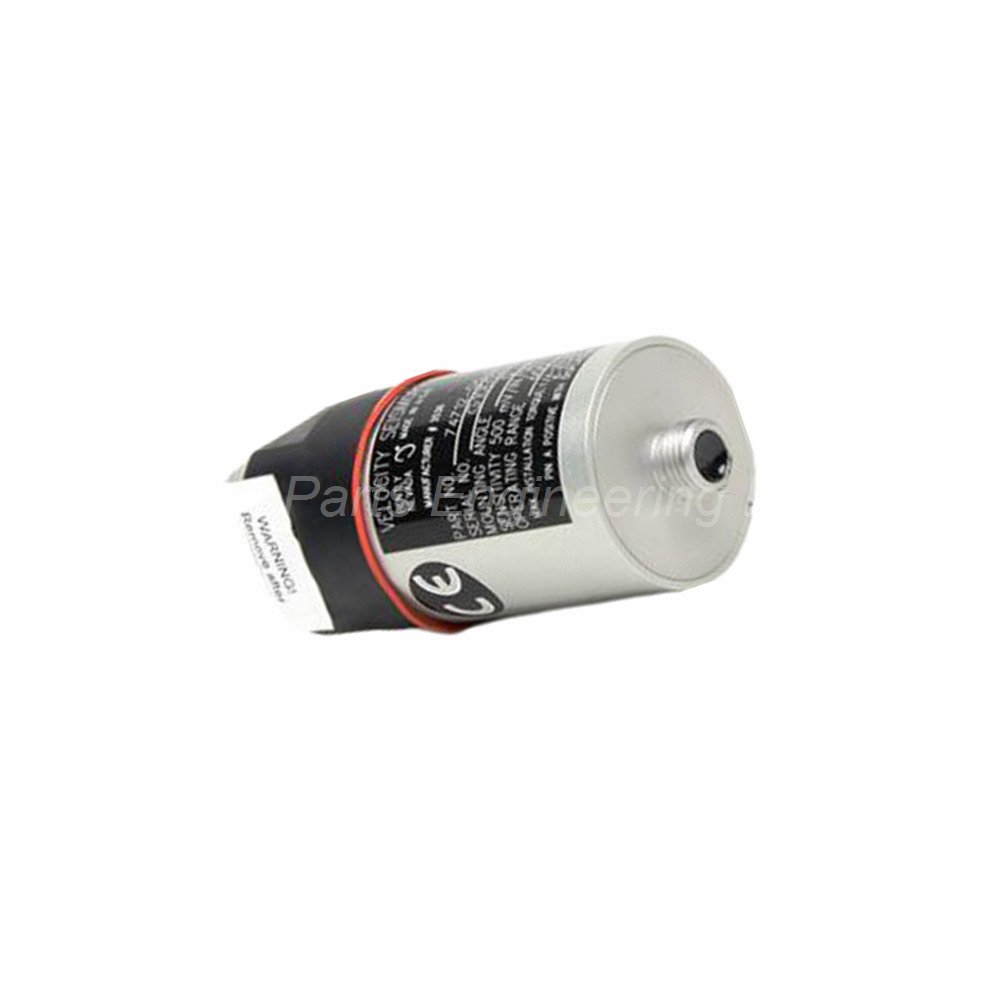

The Bently Nevada 9200-03-01-10-00 is a specialized two-wire velocity seismoprobe transducer. This device measures absolute casing vibration on industrial machinery. It features a 90 degree mounting angle for horizontal surfaces. The 9200-03-01-10-00 uses a top mount terminal block without an integral cable. Engineers choose this version for vertical shaft machines or tight clearance areas.

Key Technical Specifications

The Bently Nevada 9200-03-01-10-00 delivers accurate vibration data at a 90 degree orientation. Below are the core technical parameters.

Sensitivity and Range

• Sensitivity: 20 mV/mm/s (500 mV/in/s) ±5% at calibration angle

• Velocity Range: 25 mm/s (1 in/s) at +22°C with 10 kΩ load

• Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak max displacement

• Frequency Response: 90° ±2.5° at 4.5 Hz (270 cpm) minimum

Electrical Characteristics

• Coil Resistance: 1.25 kΩ ±5% between terminals A and B

• Locked Coil Inductance: 125 mH typical

• Temperature Coefficient of Sensitivity: 0.2% per °C

• Calibration Load: 10 kΩ across terminals A and B

Mechanical Specifications

• Connector Option: 01 – Top mount terminal block (no cable)

• Mounting Base Option: 10 – Circular with M10x1 stud

• Mounting Angle Option: 03 – 90° ±2.5° at 4.5 Hz (270 cpm)

• Case Material: Anodized aluminum A204

• Gasket Material: Neoprene

• Height: 102 mm (4 in) typical

• Diameter: 41 mm (1.6 in) typical

• Weight: 300 grams (10.5 ounces) typical

Environmental Specifications

• Operating Temperature: -29°C to +121°C (-20°F to +250°F)

• Storage Temperature: -29°C to +121°C (-20°F to +250°F)

• Relative Humidity: Up to 95% non-condensing

• Environmental Protection: Dust and moisture resistant

• Agency Approval Option: 00 – No approvals required

The Bently Nevada 9200-03-01-10-00 uses a 90 degree calibrated orientation. This differs from standard 0 degree models like the 9200-01-05-10-00.

90 Degree Mounting Angle Advantage

This 9200-03-01-10-00 model features a 90° ±2.5° mounting angle. This design serves specific installation needs.

• Vertical shaft machines – measure horizontal casing vibration correctly

• Tight clearance areas – mount on side walls or bulkheads

• Horizontal bearing housings – place transducer on top or bottom surface

• Standardized orientation – matches many OEM machine specifications

• Simplified retrofits – replaces older 90 degree sensors directly

The 90 degree angle means the transducer’s sensitive axis runs perpendicular to the mounting surface. Install this Bently Nevada unit on a horizontal surface to measure vertical vibration. Install it on a vertical surface to measure horizontal vibration.

Terminal Block Design Features

This 9200-03-01-10-00 uses a top-mounted terminal block instead of an integral cable. This offers several practical benefits.

• No fixed cable length – choose exactly what your installation needs

• Easy field termination – standard screw terminals accept 16-22 AWG wire

• Lower replacement cost – keep existing field wiring when changing sensors

• Simplified conduit connections – wire directly into junction boxes

• Faster troubleshooting – access terminals without removing the transducer

Use shielded twisted-pair cable for the 9200-03-01-10-00. Belden 8760 or 8770 works well for runs up to 305 meters. Connect the shield only at the monitor end to avoid ground loops.

Installation Guide

Follow these steps to install the 9200-03-01-10-00 correctly.

1. Identify Vibration Direction: Determine which machine axis needs measurement. The 90 degree sensor measures perpendicular to its mounting surface.

2. Prepare Mounting Point: Clean the machine surface thoroughly. Remove old gasket material and debris.

3. Install M10x1 Stud: Screw the stud into a threaded hole on the machine. Apply medium strength thread locker.

4. Mount the Transducer: Screw the Bently Nevada 9200-03-01-10-00 onto the stud. Hand tighten plus one quarter turn only.

5. Wire Terminal Block: Connect two wires to terminals A and B. Use a 10 kΩ load resistor at the receiving device.

6. Route and Secure Cable: Run shielded cable away from power cables. Use cable ties every 30 cm for support.

7. Verify Installation: Measure coil resistance across terminals A and B. A good unit reads 1.25 kΩ ±5%.

Do not exceed 15 Nm torque on the mounting stud. The 9200-03-01-10-00 requires the 90° ±2.5° orientation for rated sensitivity.

Package Contents

The box includes the following items for the Bently Nevada 9200-03-01-10-00.

• One Bently Nevada 9200 Two-Wire Velocity Seismoprobe Transducer (90° angle, top terminal)

• One circular mounting base (M10x1 stud, pre-attached)

• One neoprene gasket (installed between case and base)

• One terminal block cover (snap-on plastic cap)

• Two spare terminal screws (M3 size)

• One quick start guide (wiring and torque specifications)

Note: This package does not include field wiring cable, load resistor, or mounting tools. You must provide these separately for installation.

Common FAQs

1. When should I use the 9200-03-01-10-00 instead of the 0 degree version?
Use this Bently Nevada model when machine access requires a 90 degree mounting angle. Typical applications include vertical pumps and turbine side covers where horizontal mounting is impossible.

2. Does the 90 degree angle affect sensitivity compared to a 0 degree sensor?
No, the 9200-03-01-10-00 provides the same 20 mV/mm/s sensitivity. The internal coil assembly is simply rotated 90 degrees during factory calibration.

3. What is the maximum cable length for this 9200 model?
Keep cable length under 305 meters (1000 feet) for the 9200-03-01-10-00. Longer runs increase resistance and reduce signal amplitude.

4. Can I use this CEV58M transducer in a vertical down position?
Yes, the 9200-03-01-10-00 works in any orientation. The internal spring-mass system handles vertical, horizontal, or inverted mounting without performance loss.

5. How do I convert the velocity output to acceleration?
Multiply the 9200-03-01-10-00 output by 2πf, where f is frequency in Hz. For example, at 100 Hz, multiply by 628 to get mm/s².

Typical Applications

The Bently Nevada 9200-03-01-10-00 serves many rotating machinery monitoring needs with its 90 degree angle.

• Vertical turbine pumps – measure horizontal casing vibration on round housings

• Paper machine rolls – mount on bearing housings with limited top access

• Cooling tower fan drives – install on gearbox side surfaces

• Centrifugal compressors – replace older 90 degree sensors without rewiring

• Wind turbine gearboxes – mount on inclined surfaces at standard orientation

• Marine propulsion shafts – install on bulkheads with perpendicular measurement

This transducer connects to Bently Nevada 1900/65 monitors or 3500 series racks. It also works with any device accepting a 20 mV/mm/s velocity input.

Compliance and Quality

The Bently Nevada 9200-03-01-10-00 receives factory calibration at 100 Hz with a 10 kΩ load. Each unit undergoes sensitivity testing at its 90 degree orientation. The anodized aluminum case meets IP66 for dust and water resistance. This model has agency approval option 00, meaning no ATEX, CSA, or IECEx certifications. Use it only in non-hazardous, non-explosive locations.

Ordering Reference

Use the full part number 9200-03-01-10-00 when placing your order. This guarantees the 90 degree mounting angle, top terminal block, and M10x1 stud base. Stock is new and original in factory packing.
