Introduction to the Bently Nevada 3300/12 Power Supply

The Bently Nevada 3300/12-02-20-00 serves as the fundamental power source for the 3300 series machinery monitoring system. As the primary energy hub, this module converts high-voltage AC mains into the precise DC voltages required by the rack’s internal electronics and external sensors. Bently Nevada designed the 3300 series for extreme reliability in heavy industrial environments, and the 3300/12 power supply maintains this standard by providing consistent, filtered power to critical protection monitors.

In the world of rotating machinery, a power failure in the protection system can lead to catastrophic unmonitored events. The 3300/12-02-20-00 mitigates this risk through robust engineering and high-quality components. It supports the full range of 3300 series monitors, including vibration, position, and temperature modules. Whether installed in a power plant or a petrochemical refinery, this power supply ensures that your machinery protection system remains vigilant 24/7.

Detailed Technical Specifications

The 3300/12-02-20-00 configuration offers specific electrical parameters tailored for high-voltage regions. The following table details the core specifications:

Input Voltage and Field Versatility

The Option 02 designation indicates that this unit leaves the factory configured for 190-250 Vac operation. This makes it the ideal choice for international markets or industrial facilities utilizing 220V or 230V power grids.

One of the most practical features of the 3300/12 series is its field-changeable design. While the model number defines the factory setting, technicians can modify the input voltage range in the field by adjusting internal jumpers or fuses. This flexibility allows maintenance teams to repurpose modules across different sites with varying power standards. The power supply handles frequency fluctuations between 50Hz and 60Hz without any loss in performance, ensuring global compatibility.

Powering the Transducer Network

Beyond powering the internal rack monitors, the 3300/12-02-20-00 provides the essential 24 Vdc output for external proximity transducers. Proximitor sensors require a highly stable and noise-free DC voltage to measure shaft vibration and position accurately.

The 3300/12 module incorporates advanced filtering circuitry to remove electrical noise from the AC input. This clean power output prevents “ghost” signals or false alarms in the vibration monitors. By maintaining a steady voltage supply to the Proximitors, the power supply directly contributes to the overall accuracy and integrity of the machinery protection data.

Robust Design and Installation

Bently Nevada engineered the 3300/12 for longevity. The module occupies the dedicated “Power Supply” slot on the far left of the 3300 rack. The Option 20 Standard Power Input Module provides a secure interface for the AC mains wiring, typically featuring rugged terminal blocks that withstand industrial vibrations.

• Heat Dissipation: The non-ferrous alloy faceplate and internal heat sinks allow for natural convection cooling. This fanless design increases the Mean Time Between Failures (MTBF) by eliminating mechanical moving parts.
• Protection Circuitry: The module includes primary and secondary fuses to protect the rack against over-current conditions. In the event of an external power surge, the 3300/12 acts as a sacrificial barrier, protecting the more expensive monitor modules installed in the rack.

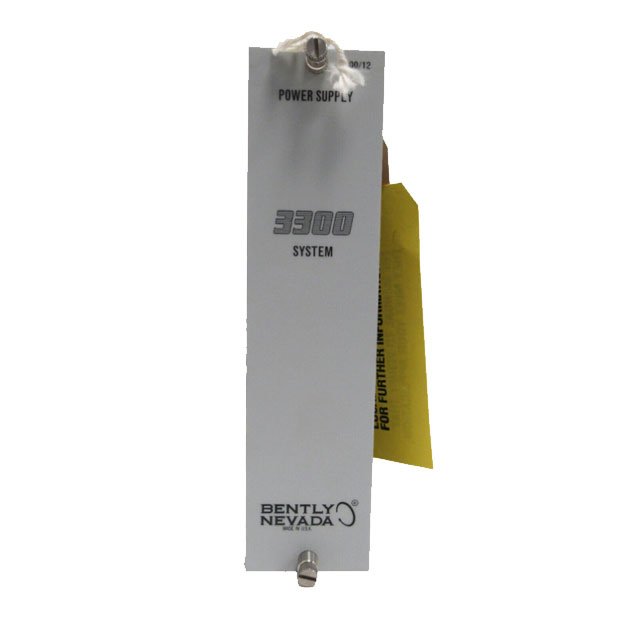

• Status Indicators: The front panel features a “Power OK” LED. This indicator gives operators immediate visual confirmation that the supply is functioning and the rack is receiving power.

Legacy Support and Reliability

The 3300 series remains one of the most successful machinery protection systems in history. While the 3500 series has largely succeeded it, thousands of 3300 racks continue to protect critical assets worldwide. The 3300/12-02-20-00 is a vital spare part for these legacy systems.

Replacing an aging or faulty power supply is a cost-effective way to extend the life of an existing 3300 rack. Because Bently Nevada built these units to such high standards, a new 3300/12 module can provide another decade or more of reliable service, delaying the need for a full system upgrade to newer platforms.
