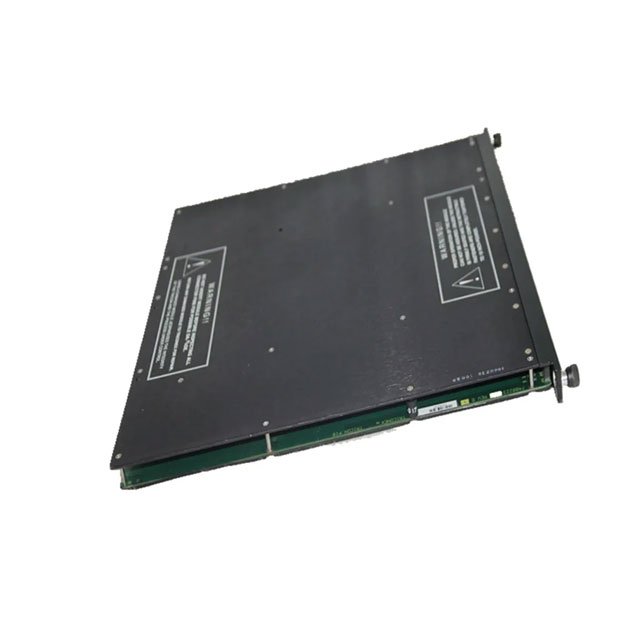

Triconex 4200 Remote Extender Module | Multi-mode Fiber RXM Primary

Name: Triconex 4200 Remote Extender Module | Multi-mode Fiber RXM Primary
Brand: Triconex
Price: 238 CNY
Availability: InStock

Introduction:

The Triconex 4200 is a Primary Remote Extender Module (RXM) designed to expand the physical reach of the Tricon safety system. It utilizes multi-mode fiber-optic technology to extend the I/O bus up to 7.5 miles (12 kilometers). This module is essential for locating I/O points far from the main control room while maintaining signal integrity and ground loop isolation.

Customer Reviews

UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.

Product Attributes:

Manufacturer: Triconex

Series: Triconex 4200 Series

Part Number: 4200

Type: Remote Extender Module

Condition: In Stock

Origin: U.S.A

Shipping Port: Xiamen

Warranty: one year

Notice: For real-time prices and inventory, please click the button below to contact us.

Inquiry Now

Tags: 4200 Triconex Triconex 4200

Description

Inquiry

The Triconex 4200 is a specialized Remote Extender Module (RXM) designed for the Tricon safety system. It allows I/O modules to be located several kilometers away from the main chassis. This capability is crucial for large industrial plants where sensors and actuators are distant from the control room.

RXM sets, consisting of three identical modules, serve as repeaters and extenders of the Tricon I/O bus. They also provide essential ground loop isolation. A primary RXM set supports three remote locations. It connects to three remote RXM sets housed in a remote chassis.

The Triconex 4200 is specifically the “Primary” unit. It initiates the connection to the remote sites. This module is part of a redundant set to ensure the highest level of availability and reliability.

🛡️ Technical Architecture

The module utilizes multi-mode fiber-optic cables for communication. This provides a communication rate of 375 kilobits per second. Fiber optics offer maximum immunity against electro-static and electro-magnetic interference (EMI/RFI). This makes the system robust in electrically noisy environments like power plants or refineries.

Remote sites can be located as far as 7.5 miles (12 kilometers) from the primary site. The system uses uni-directional cabling for the three channels of a remote location. For each channel, one cable carries data transmitted from the primary RXM to the remote RXM. The other cable carries data received by the primary RXM from the remote RXM.

A pair of modules must be wired for each of the three channels. This amounts to a total of six cables for each remote location. This redundancy ensures that data transmission remains reliable even in harsh conditions.

📊 Technical Specifications

The Triconex 4200 is built for long-distance industrial communication. Below are the detailed technical parameters for this unit.

表格

Parameter	Specification
Model Number	4200
Manufacturer	Triconex
Type	Remote Extender Module (RXM)
Chassis Location	Primary
Cable Type	Multi-mode Fiber Optic
Cable Length Limit	7.5 miles (12 kilometers)
Connectors	6 per remote site
Remote Sites Supported	3
Modem Ports	Fiber Optic with ST connectors
Comm. Rate	375 kilobits per second
Diagnostic Indicators	PASS, FAIL, ACTIVE, TX, RX1, RX2, RX3

🔧 Installation and Usage

The module is installed in the primary chassis. It connects to remote chassis via multi-mode fiber-optic cables. You must use a specific cabling configuration to support the three channels.

Important Note: This module is designed for multi-mode fiber. Ensure that your cabling infrastructure matches this specification. The ST connectors provide a secure and reliable connection for the fiber cables.

📦 Package Contents

When you order this product, we ensure it is packed securely for transit.

1 x Triconex 4200 Remote Extender Module
Protective anti-static packaging
Standard manufacturer documentation (if available)

❓ Frequently Asked Questions

Q: What is the maximum distance for the Triconex 4200?
A: It supports distances up to 7.5 miles (12 kilometers) using multi-mode fiber.

Q: How many remote sites can one primary set support?
A: A primary RXM set supports up to 3 remote locations.

Q: What type of fiber does it use?
A: The Triconex 4200 uses multi-mode fiber optic cable with ST connectors.

Q: Does it provide noise immunity?
A: Yes, fiber optics provide maximum immunity against EMI and RFI interference.

Q: Is this module for the remote site or the main site?
A: The 4200 is the “Primary” module, meaning it is installed at the main site to connect to remote sites.
