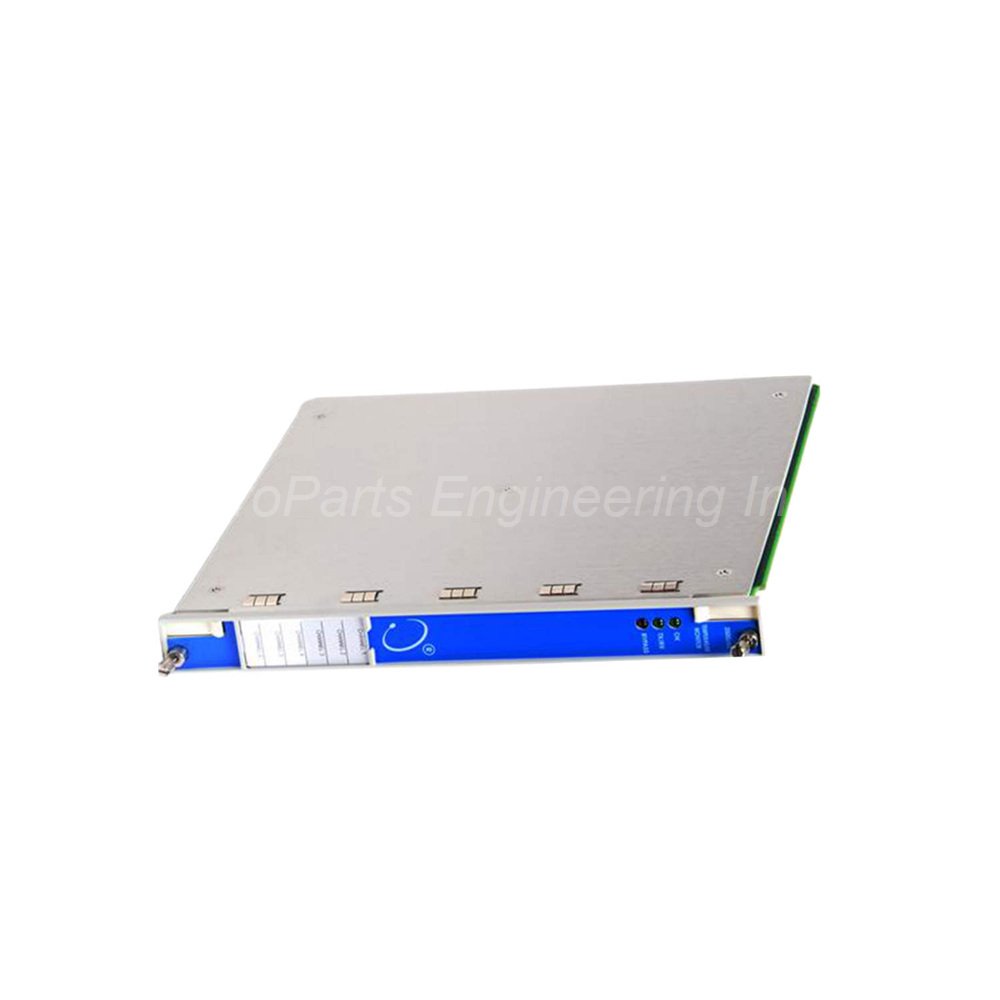

Hazardous Area Approval
The 3500/60-01-02 holds CSA NRTL/C certification. This approval covers Class 1, Division 2 locations. You can safely install this module in risky environments.

Multi-Sensor Support
This temperature monitor accepts various sensor types. Choose from thermocouples or RTDs. The module handles up to 6 independent channels.

Low Power Design
The monitor consumes only 7 watts nominal power. This low draw leaves room for other modules. Your 3500 rack stays within its power budget.

Technical Specifications
Input Specifications
Signal inputs: Accepts 1 to 6 RTD or TC transducer signals

Input impedance: 10 MΩ for each lead input

RTD current source: 925 ±15 µA at 25°C per transducer

4-wire RTD: Single supply

3-wire RTD: Two supplies

• Thermocouple Types and Ranges
  Type E: -100°C to +1000°C (-148°F to +1832°F)
• Type J: -18°C to +760°C (0°F to +1400°F)
• Type K: -18°C to +1370°C (0°F to +2498°F)
• Type T: -160°C to +400°C (-256°F to +752°F)

RTD Types and Ranges
100Ω platinum RTD (alpha 0.00385): -200°C to +850°C

With external barriers: -50°C to +850°C

100Ω platinum RTD (alpha 0.00392): -200°C to +700°C

With external barriers: -50°C to +260°C

120Ω nickel RTD: -80°C to +260°C

With external barriers: -50°C to +260°C

10Ω copper RTD: -100°C to +260°C

With external barriers: -50°C to +260°C

Output Specifications
Front panel LEDs:

OK LED: Indicates proper monitor operation

TX/RX LED: Shows communication with other rack modules

Bypass LED: Lights when monitor is in Bypass Mode

Recorder outputs: +4 to +20 mA per channel

Values: Proportional to monitor full-scale

Protection: Short circuits do not affect monitor operation

Environmental Limits
Operating temperature:

With internal/external termination: -30°C to +65°C

With internal barrier I/O: 0°C to +65°C

Storage temperature: -40°C to +85°C

Physical Dimensions
Monitor module:

Size: 241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in)

Weight: 0.91 kg (2.0 lb)

I/O module (standard):

Size: 241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in)

Weight: 0.45 kg (1.0 lb)

I/O module (internal barrier):

Size: 241.3 x 24.4 x 163.1 mm (9.50 x 0.96 x 6.42 in)

Weight: 0.46 kg (1.01 lb)

Rack space:

Monitor module: 1 full-height front slot

I/O module: 1 full-height rear slot

Installation Guide
Rack Mounting Steps
Insert the 3500/60-01-01 monitor into any front slot. Place the matching I/O module into the rear slot. Push both modules firmly until they lock. Secure them using the locking tabs.

Wiring Instructions
Connect your RTD or TC wires to the I/O module terminals. Use shielded cables for better noise immunity. Keep wire runs as short as possible. Follow the termination label on your I/O module.

Software Setup
Open the 3500 Configuration Software. Select each channel and choose your sensor type. Set the measurement range for every channel. Save the configuration to the rack.

• Package Contents
  1 x 3500/60-01-01 Temperature Monitor Module
• 1 x Non-isolated I/O Module with internal terminations
• 1 x Quick start installation guide
• 1 x Termination label for wiring reference

Frequently Asked Questions (FAQ)
Question 1: How many sensors can the 3500/60-01-01 connect to?
This module accepts up to 6 RTD or thermocouple sensors. Each channel works completely independently.

Question 2: What makes the 3500/60-01-01 different from the 3500/60-01-00?
The 3500/60-01-01 adds CSA NRTL Class 1 Div 2 hazardous area approval. The -00 version has no agency approval.

Question 3: Can I mix RTD and TC sensors on the same module?
Yes, you can mix different sensor types freely. Configure each channel separately in the software.

Application Scenarios
Gas Turbine Bearing Monitoring
Use the 3500/60-01-01 for thrust and journal bearings. Early detection prevents costly bearing failures.

Generator Winding Temperature
Monitor stator and rotor winding temperatures closely. Prevent insulation damage from overheating.

Compressor Discharge Gas
Track discharge gas temperatures in real time. Optimize compressor performance and maintain safety.

Steam Turbine Casing
Measure casing temperature gradients accurately. Avoid thermal stress and potential cracking issues.

Why Choose This Module
The Bently Nevada 3500/60-01-01 gives you hazardous area compliance. You get 6 channels of precise temperature monitoring. The low 7W power draw saves rack capacity. Front panel LEDs show status at a glance. Short circuit protection keeps your system safe. This module integrates seamlessly with 3500 racks.
