Bently Nevada 200150-07-05 Accelerometer CSA ATEX IECEx
Introduction:

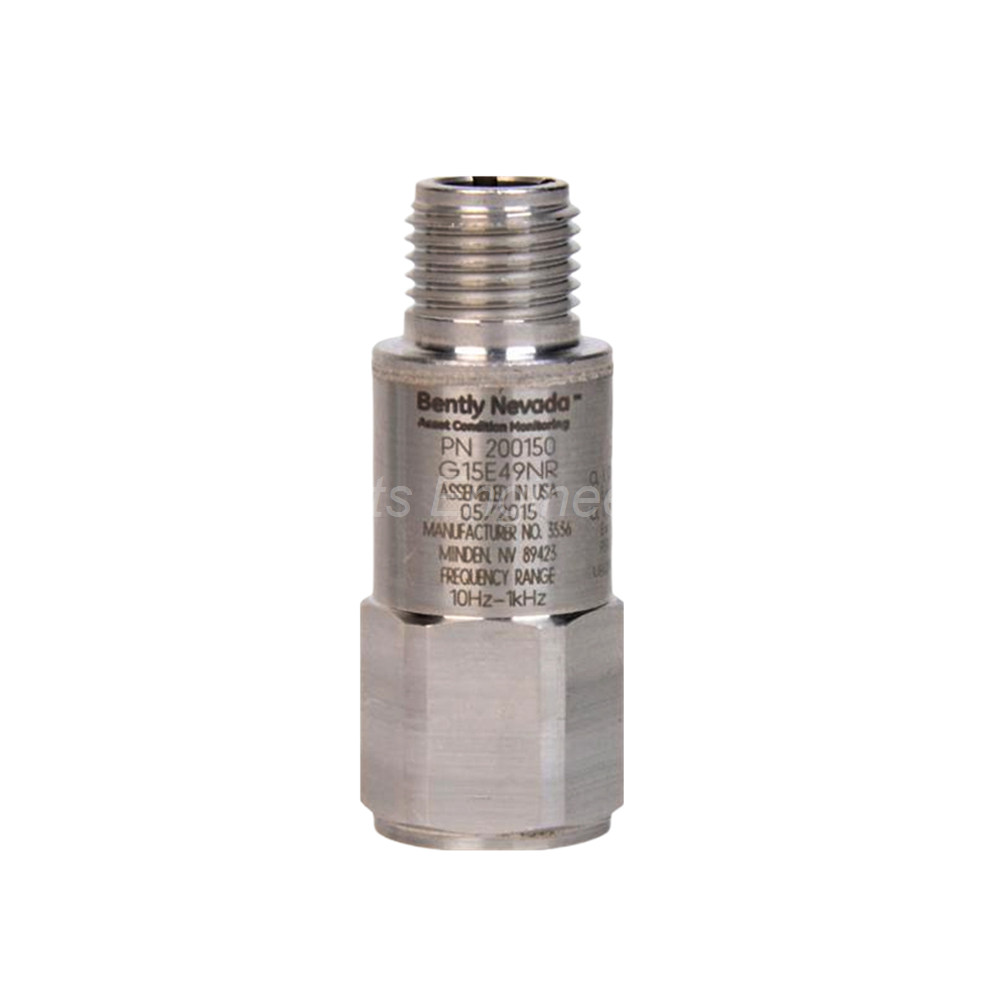

The Bently Nevada 200150-07-05 is a general purpose accelerometer for Trendmaster systems. It features multiple approvals including CSA, ATEX, and IECEx for hazardous areas. Sensitivity is 10.2 mV/(m/s²) or 100 mV/g at 80 Hz. The mounting stud option is 3/8-24 to 3/8 NPT with a 3/4 inch hex stud.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Technical Specifications
The Bently Nevada 200150-07-05 delivers reliable vibration measurements for general applications. This accelerometer works with ProTIM Option Standard Acceleration-to-Velocity channel type (-01). The sensing element uses ceramic material with shear sensing geometry. Housing and connector material is 316L stainless steel for corrosion resistance.
Electrical Specifications
| Parameter | Value |
|---|---|
| Sensitivity @ 80 Hz (±12%) | 10.2 mV/(m/s²) (100 mV/g) |
| Measurement Range | ±245 m/s² (±25 g) |
| Excitation Voltage | 4.7 to 5.5 Vdc |
| Quiescent Current | <800 µA |
| Output Bias Voltage | +2.5 ± 0.23 Vdc |
| Polarity | SIG+ positive with respect to SIG- |
Frequency Response
Frequency Range Referenced to 80 Hz (±10%): 10 to 1000 Hz (600 to 60,000 cpm).
Mounted Resonant Frequency: >20 kHz (>1200 kcpm) for wide bandwidth.
Amplitude Linearity (1 to 10g pk): ±2% for accurate measurements.
Transverse Sensitivity: ≤7% minimal cross-axis error.
Settling and Response
Settling Time (Within 5% of Bias): ≤300 ms.
Measurement Range (Low End): 14.7 mm/s² (1.5 mg) for low level signals.
Mounting Specifications
Mounting Stud Option: 07 = 3/8-24 to 3/8 NPT, 3/4 inch hex stud.
Mounting Thread: 3/8-24 female on the accelerometer.
Mounting Torque: 2.7 to 6.8 N•m (2 to 5 ft•lbf).
Environmental Specifications
Axial Shock Limit: 49,050 m/s² pk (5,000 g pk) for high impact survival.
Temperature Range: -40°C to +105°C (-40°F to +221°F).
Hermetic Sealing: 5x10⁻⁸ atm•cc/s (3.1x10⁻⁹ atm•in³/s) maximum.
Relative Humidity: 100% relative, condensing, non-submerged.
Hazardous Area Approvals
The -05 approval option provides multiple certifications for global use.
CSA – Certified for North American hazardous locations.
ATEX – Approved for European explosive atmospheres.
IECEx – International certification for gas and dust hazards.
Physical Specifications
| Parameter | Value |
|---|---|
| Size (Hex x Height) | 17.5 mm x 45.7 mm (11/16 in x 1.8 in) |
| Weight | 58 g (2.0 oz) typical |
| Housing Material | 316L stainless steel |
| Connector Material | 316L stainless steel |
| Sensing Element | Ceramic |
| Sensing Geometry | Shear |
Storage and Curing
Storage Temperature Range: -55°C to +121°C (-67°F to +250°F).
Cure Time: 24 hours for sealant compounds if applied.
Installation Guidelines
Follow these steps to install your Bently Nevada 200150-07-05 accelerometer correctly.
Prepare Mounting Surface – Clean and flatten the mounting area on the machine.
Install the Stud – Screw the 3/8-24 to 3/8 NPT stud into the machine first.
Tighten the Stud – Use the 3/4 inch hex feature at 2.7 to 6.8 N•m torque.
Attach Accelerometer – Screw the 200150-07-05 onto the 3/8-24 stud threads.
Connect the Cable – Attach a compatible Bently Nevada accelerometer cable.
Verify Polarity – Ensure SIG+ connects to positive input on the monitor.
Apply Excitation – Provide 4.7 to 5.5 Vdc to the accelerometer.
Check Bias Voltage – Verify output bias is +2.5 ± 0.23 Vdc before use.
Do not exceed 6.8 N•m mounting torque. Overtightening may damage the accelerometer or stud threads.
Hazardous Area Installation Precautions
The 200150-07-05 carries CSA, ATEX, and IECEx certifications. Follow these additional steps for hazardous locations.
Verify Area Classification – Confirm your zone matches the certification.
Use Certified Barriers – Install approved isolators between sensor and monitor.
Follow Local Codes – Comply with all regional electrical safety requirements.
Ground Properly – Connect the housing to system earth per certification rules.
Package Contents (No Certificates or Warranty Terms)
Your shipment for product number 200150-07-05 includes the following items:
1 x Bently Nevada 200150-07-05 General Purpose Accelerometer
1 x Mounting stud (3/8-24 to 3/8 NPT, 3/4 inch hex)
1 x Installation instruction sheet (printed)
1 x Anti-static protective bag for storage
Frequently Asked Questions (FAQ)
1. Which Trendmaster systems work with the Bently Nevada 200150-07-05?
This 200150 accelerometer works with Trendmaster 2000 and Trendmaster Pro systems. It pairs with ProTIM Option Standard Acceleration-to-Velocity channel type (-01).
2. What hazardous area approvals does the -05 option include?
The -05 approval option includes CSA, ATEX, and IECEx certifications. You can use this accelerometer in gas and dust hazardous locations worldwide.
3. What is the sensitivity of the 200150-07-05 at 80 Hz?
Sensitivity is 10.2 mV/(m/s²) or 100 mV/g at 80 Hz with ±12% tolerance. This standard sensitivity suits most general purpose vibration monitoring.
4. Can this accelerometer survive high shock events?
Yes. The axial shock limit is 49,050 m/s² (5,000 g) peak. Your sensor survives most industrial impact events without damage.
5. What is the settling time for this accelerometer?
Settling time is ≤300 milliseconds within 5% of bias voltage. The sensor stabilizes quickly after power is applied.
6. Is the 200150-07-05 suitable for condensing humidity environments?
Yes. The 200150 handles 100% relative humidity with condensation. The hermetic sealing prevents moisture ingress. Do not submerge the sensor in liquid.
Why Choose This Model?
The Bently Nevada 200150-07-05 offers certified safety for hazardous area vibration monitoring. Its 100 mV/g sensitivity provides standard scaling for most Trendmaster systems. The 316L stainless steel housing resists corrosion in harsh chemical environments. The ceramic shear sensing element delivers stable, repeatable measurements. The -40°C to +105°C temperature range suits outdoor and high heat applications. The multiple approvals (CSA, ATEX, IECEx) allow global installation without recertification. Choose this 200150-07-05 for pumps, fans, compressors, and general rotating machinery in refineries, chemical plants, oil & gas facilities, and power generation stations.
