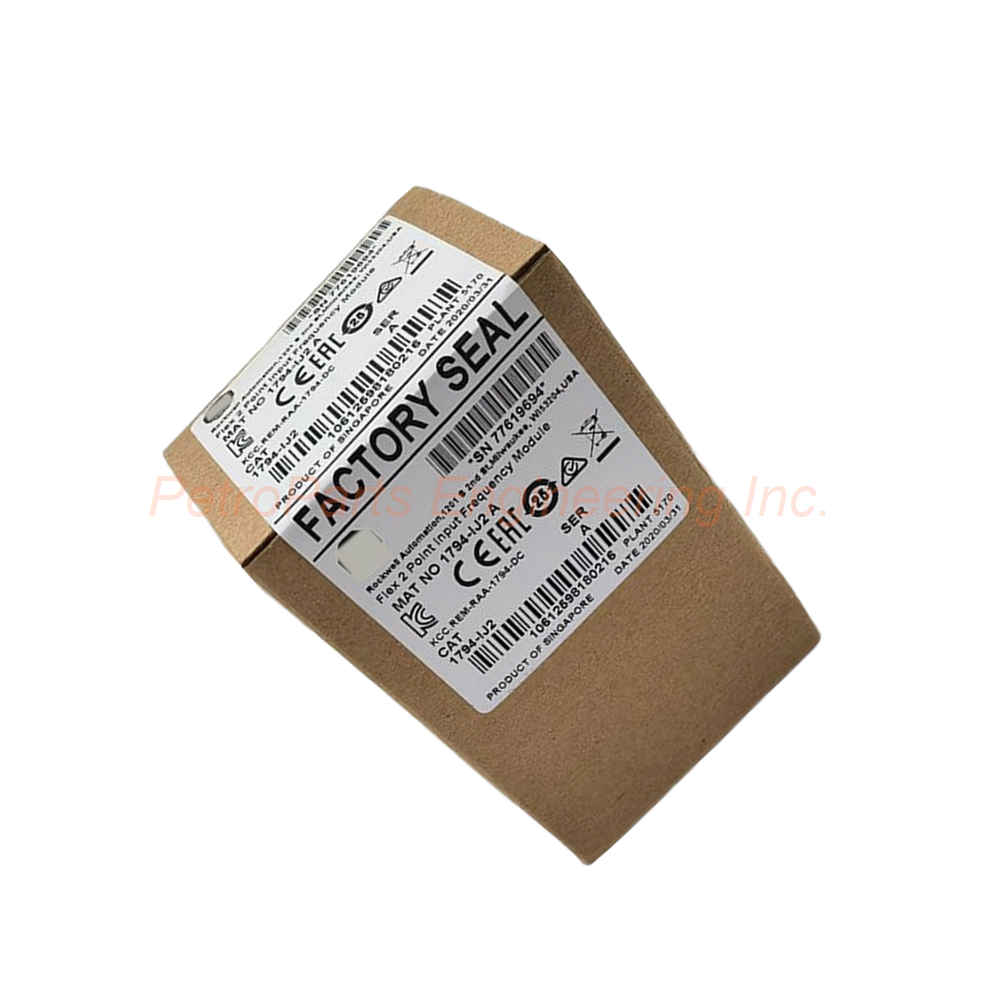

Allen-Bradley 1794-IJ2 Flex I/O Frequency Input Module 2 Channel


Introduction:
The 1794-IJ2 is a 2-channel frequency input module. It accepts 1-32 kHz sine or square waves. This module also provides 2 isolated outputs.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview of the Allen-Bradley 1794-IJ2
The Allen-Bradley 1794-IJ2 is a specialized Flex I/O frequency input module. Specifically, it belongs to the versatile 1794 Flex I/O system. This module features two (2) high-resolution frequency input channels. Furthermore, each channel includes both frequency and gate inputs. Therefore, the 1794-IJ2 measures speed, flow, and position accurately. It also provides two (2) isolated 24V DC outputs. Consequently, this module suits high-speed monitoring and control applications.
Frequency Input Specifications
First, let us examine the frequency input capabilities. The 1794-IJ2 accepts input frequencies from 1 to 32 kHz. It works with both sine wave and square wave inputs. Therefore, this module supports various sensor types. The input pulse width is 20 microseconds. As a result, the module captures very short pulses reliably. The raw frequency value maximum is 32,767 or 3,276.7. This range depends on your selected configuration.
Input Channel Configuration
Each channel on the 1794-IJ2 has two dedicated inputs. The first input receives the frequency signal. Similarly, the second input serves as a gate input. Therefore, you can enable counting only during specific periods. This gating feature improves measurement accuracy significantly. The module processes high-speed algorithms for real-time analysis. Consequently, it measures acceleration, direction, and reporting frequency effectively.
Output Specifications and Capabilities
The 1794-IJ2 includes two (2) isolated outputs. The nominal output voltage is 24V DC. Minimum output voltage is 10V DC. Similarly, the maximum output voltage reaches 31.2V DC. The typical on-state current is 9.0mA per output. However, the maximum on-state current is 1.0A per channel. Therefore, these outputs can drive small loads directly. The surge current reaches 2A for 50 ms. This surge can repeat every 2 seconds as needed.
Output Configuration and Switching Times
The output channels are individually assignable to different alarms. For example, you can configure them for Frequency alarms. Similarly, they work with % Full Scale or Acceleration alarms. Therefore, the 1794-IJ2 provides flexible alert capabilities. The output switching time depends on the trigger source. Turn-on time is 0.5 ms from OFF to ON. Turn-off time is 1.0 ms from ON to OFF. Consequently, the module responds quickly to alarm conditions.
Resolution and Sampling Accuracy
The module resolution varies with sample frequency. Resolution ranges from 0.01% to 0.00002%. This range corresponds to sample frequencies from 2 ms to 1000 ms. Therefore, slower sampling gives better resolution. The sampling accuracy follows a similar pattern. Accuracy ranges from +/- 0.02% to +/- 0.00004%. As a result, the 1794-IJ2 delivers exceptional measurement precision. Choose your sample rate based on your application needs.
Power Consumption and Thermal Characteristics
The 1794-IJ2 draws a Flexbus current of 30 mA at 5V DC. Its maximum power dissipation is 4.6W at 31.2V DC. Similarly, maximum thermal dissipation reaches 15.6 BTU/hr at 31.2V DC. Therefore, this module generates moderate heat. Ensure proper ventilation in your control cabinet. The external DC supply range is 19.0 to 31.2V DC. This range includes 5% AC ripple allowance.
Compatible Terminal Base Units
The 1794-IJ2 requires a specific terminal base unit. Specifically, it works with 1794-TB3G or 1794-TB3GS terminal bases. Therefore, verify your existing base before purchasing. The module mounts on a standard DIN rail. Alternatively, you can use screw mounting with a 1794-NM1 mounting kit. The Flexbus connector must be fully inserted into the terminal unit. Consequently, proper insertion ensures reliable communication.
Status Indicators and Diagnostics
The front panel of the 1794-IJ2 includes several useful indicators. First, input indicators show the status of each frequency channel. Second, output indicators display the state of each isolated output. Third, a power status indicator shows applied power to the module. Additionally, a wire-off fault indicator helps detect broken connections. An insertable label allows you to write individual I/O assignments. Therefore, troubleshooting and maintenance become much easier.
Communication and Network Options
The 1794-IJ2 works with various network adapters. For example, you can use Profibus for industrial communication. Similarly, Ethernet options provide standard networking capabilities. ControlNet and DeviceNet are also available. Therefore, this module integrates into almost any automation architecture.
Environmental and Installation Requirements
The operating temperature range is 0 to 55 degrees Celsius. The maximum starting current is 10A momentarily. Install the 1794-IJ2 in a clean, dry environment. The wire size is determined by your installed terminal base. Always follow local electrical codes for wiring practices. Furthermore, use shielded cables for frequency inputs. This practice reduces electrical noise interference significantly.
Typical Applications for the 1794-IJ2
The 1794-IJ2 excels in motion and flow monitoring applications. For example, it measures rotational speed from encoders. Similarly, it monitors flow rates from turbine flow meters. The module also works with magnetic pickups and proximity sensors. Therefore, it suits conveyor systems, pumps, and rotating machinery. Acceleration monitoring helps predict equipment failures. Consequently, the 1794-IJ2 supports predictive maintenance programs.
Installation Guidelines for the 1794-IJ2
First, mount the compatible terminal base on a DIN rail. Second, fully insert the Flexbus connector into the terminal unit. Third, snap the 1794-IJ2 onto the terminal base. You can install or remove this module under power. However, always exercise caution during hot insertion. Fourth, connect your frequency sensors to the input terminals. Connect the gate inputs if you need gating functionality. Fifth, wire the isolated outputs to your alarm devices. Finally, verify all LED indicators respond correctly to input signals.
Package Contents
One Allen-Bradley 1794-IJ2 Flex I/O Frequency Input Module
One product information sheet with wiring diagrams
One insertable label for channel identification
No terminal base unit included (sold separately)
Frequently Asked Questions (FAQ)
Q1: What types of input signals does the 1794-IJ2 accept?
A: The 1794-IJ2 accepts both sine wave and square wave inputs. The frequency range is 1 to 32 kHz for both signal types.
Q2: What terminal base units work with the 1794-IJ2?
A: The 1794-IJ2 requires 1794-TB3G or 1794-TB3GS terminal bases. Therefore, ensure you have the correct base before installation.
Q3: Can the outputs on the 1794-IJ2 drive loads directly?
A: Yes, the 1794-IJ2 provides isolated outputs up to 1.0A per channel. Therefore, you can drive small relays and indicator lights directly.
Q4: What is the purpose of the gate input on the 1794-IJ2?
A: The gate input enables frequency counting only during specific periods. Consequently, the 1794-IJ2 provides more accurate measurements for rotational applications.
Q5: How do I know if the 1794-IJ2 is working correctly?
A: The 1794-IJ2 has input, output, power, and wire-off fault indicators. Therefore, a quick visual inspection confirms proper operation.
