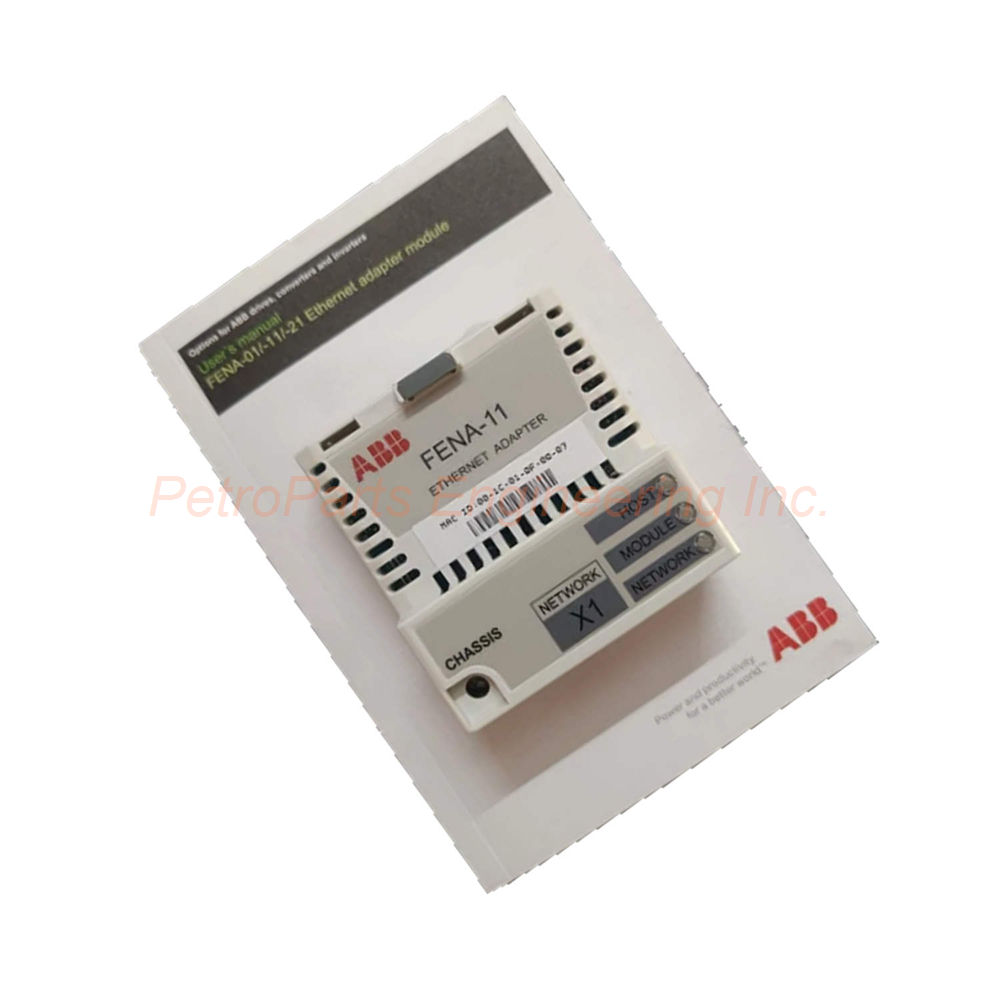

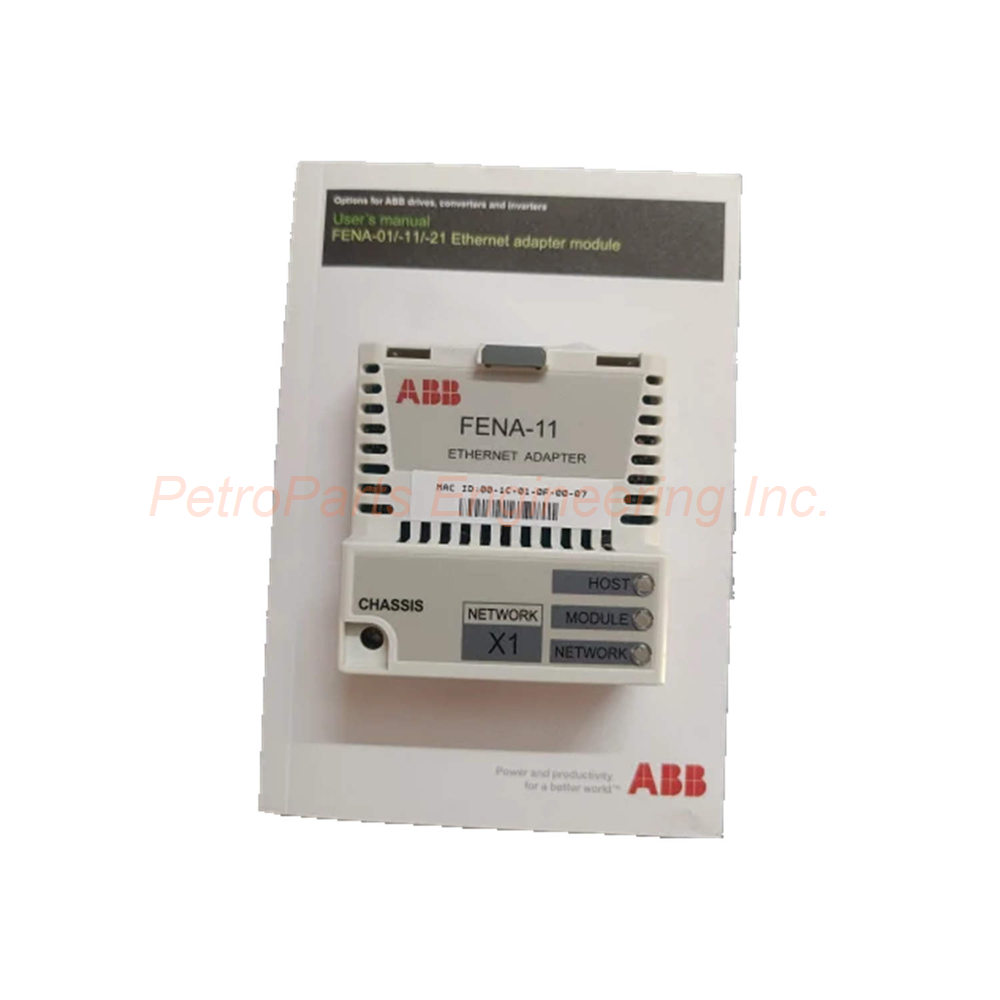

ABB FENA-11 Ethernet Adapter Module for ACS880 Drives

Overview of the ABB FENA-11 Ethernet Adapter

The ABB FENA-11 is a 1-port Ethernet adapter module for ACS880 drives.
This 3AUA0000089107 FieldBus Kit enables network connectivity for变频器.
The FENA-11 supports three major industrial Ethernet protocols simultaneously.
Protocol selection is completed through a single parameter within the drive.
Specifically, you can choose between PROFINET IO, EtherNet/IP, or Modbus TCP.
This flexibility makes the ABB FENA-11 suitable for diverse automation networks.

Technical Specifications of the FENA-11 Module

Below are the complete technical parameters for this Ethernet adapter.

PROFINET IO Communication Features

The ABB FENA-11 supports PROFINET IO DP-V1 communication standard.
PROFINET networks can use PROFIdrive profile through the FENA-01/-11 module.
Alternatively, you can use the ABB drives profile for specific applications.
Additionally, two transparent modes are available for data exchange.
These modes support 16-bit and 32-bit word structures respectively.
Thus, the 3AUA0000089107 provides flexible PROFINET integration options.
Real-time cyclic data exchange is fully supported by this adapter.

EtherNet/IP Communication Features

The FENA-11 Ethernet adapter operates as an EtherNet/IP server.
This module supports ODVA AC/DC Drive profile for standard integration.
You can also use the ABB drives profile for enhanced functionality.
A Transparent profile is available for custom application requirements.
Explicit messaging supports setting each attribute individually.
Implicit messaging uses input and output instances for fast data exchange.
Consequently, the ABB FENA-11 meets all EtherNet/IP requirements.

Modbus TCP Communication Features

The FENA-11 adapter module also functions as a Modbus TCP server.
Both ABB drives profile and Transparent profile are supported.
Common function codes for reading and writing single registers work.
Multi-register function codes are also fully supported.
Therefore, integration with Modbus TCP networks is straightforward.
The 3AUA0000089107 responds to standard Modbus commands seamlessly.
Legacy Modbus systems can easily connect to modern ACS880 drives.

Protocol Selection and Configuration

The ABB FENA-11 simplifies network integration through easy protocol selection.
A single parameter in the ACS880 drive chooses the active protocol.
You do not need different hardware modules for different networks.
This design reduces spare part inventory and simplifies ordering.
Configuration tools remain consistent regardless of protocol choice.
The FENA-11 automatically adapts to the selected protocol's requirements.
Thus, commissioning time is significantly reduced for system integrators.

Compatibility with ACS880 Drives

The 3AUA0000089107 is specifically designed for ABB ACS880 drives.
This FieldBus kit mounts directly onto the drive control unit.
All ACS880 drive sizes accept the ABB FENA-11 adapter module.
The adapter communicates with the drive via the internal bus.
Parameter settings in the drive configure the adapter's behavior.
Firmware updates for the adapter are available through ABB tools.
Always verify your drive firmware version before installation.

Network Topology and Wiring

The FENA-11 provides a single Ethernet port for network connection.
You can use this port for line or star topology configurations.
For line topology, connect the adapter to a switch or another device.
The 3AUA0000089107 supports standard Ethernet cabling (Cat5e or higher).
Auto-negotiation and auto-crossover features simplify wiring.
LED indicators show link status and network activity.
Proper grounding is essential for reliable Ethernet communication.

Installation Guidelines for the FENA-11 Module

Follow these steps for correct installation of the ABB FENA-11.

1. Disconnect power from the ACS880 drive completely.

2. Locate the option slot on the drive control unit.

3. Insert the FENA-11 firmly into the designated slot.

4. Tighten the mounting screws to secure the adapter.

5. Connect the Ethernet cable to the RJ-45 port.

6. Restore power to the ACS880 drive.

7. Navigate to the drive parameters for protocol selection.

8. Set the appropriate protocol parameter for your network.

9. Configure IP address and communication settings.

10. Verify network communication with the PLC or master.

Only qualified drive technicians should install this Ethernet adapter.

LED Indicators and Diagnostics

The ABB FENA-11 includes diagnostic LED indicators.
These LEDs show module status, network link, and activity.
A green LED indicates normal operation of the adapter.
A flashing LED typically signifies active communication.
Use the diagnostic LEDs to troubleshoot connection issues.
The 3AUA0000089107 reports detailed status via the drive interface.
Drive parameters display the current adapter operating state.

Package Contents for the ABB FENA-11

• One ABB FENA-11 Ethernet adapter module

• Mounting screws for drive installation

• 3AUA0000089107 identification label

• Anti-static transport bag for protection

• Quick installation guide

Common FAQs About This ABB FENA-11 Adapter

Q1: Which ABB drives work with the FENA-11 adapter?
A1: The ABB FENA-11 is designed specifically for ACS880 drives. Other drive series may require different FieldBus adapter modules.

Q2: Can I change the protocol after installation?
A2: Yes, the 3AUA0000089107 allows protocol changes through a drive parameter. No hardware modification is required for protocol switching.

Q3: Does the FENA-11 support daisy-chain connections?
A3: The ABB FENA-11 has a single Ethernet port only. For daisy-chain topology, use an external Ethernet switch.

Q4: What is the difference between FENA-11 and FENA-01?
A4: The FENA-11 is a 1-port version of the Ethernet adapter. The FENA-01 offers similar functionality with different ordering codes.

Q5: Is external power required for this adapter module?
A5: No, the ABB FENA-11 receives power from the ACS880 drive. No separate external power supply is necessary.

Typical Applications for the ABB FENA-11

The ABB FENA-11 excels in multi-protocol drive network applications.
You can use it for PROFINET networks in automotive manufacturing.
The adapter works well for EtherNet/IP networks in material handling.
It is suitable for Modbus TCP networks in building automation.
Process industries benefit from the flexible protocol selection.
The 3AUA0000089107 provides reliable drive connectivity for any network.

Ordering and Logistics Information

This ABB FENA-11 ships from our global distribution center.
We use anti-static packaging for this sensitive electronic module.
Contact our team for volume pricing on ABB FieldBus kits.
Always verify your ACS880 drive firmware version before ordering.
Express shipping options are available for urgent network upgrades.
