Product Overview

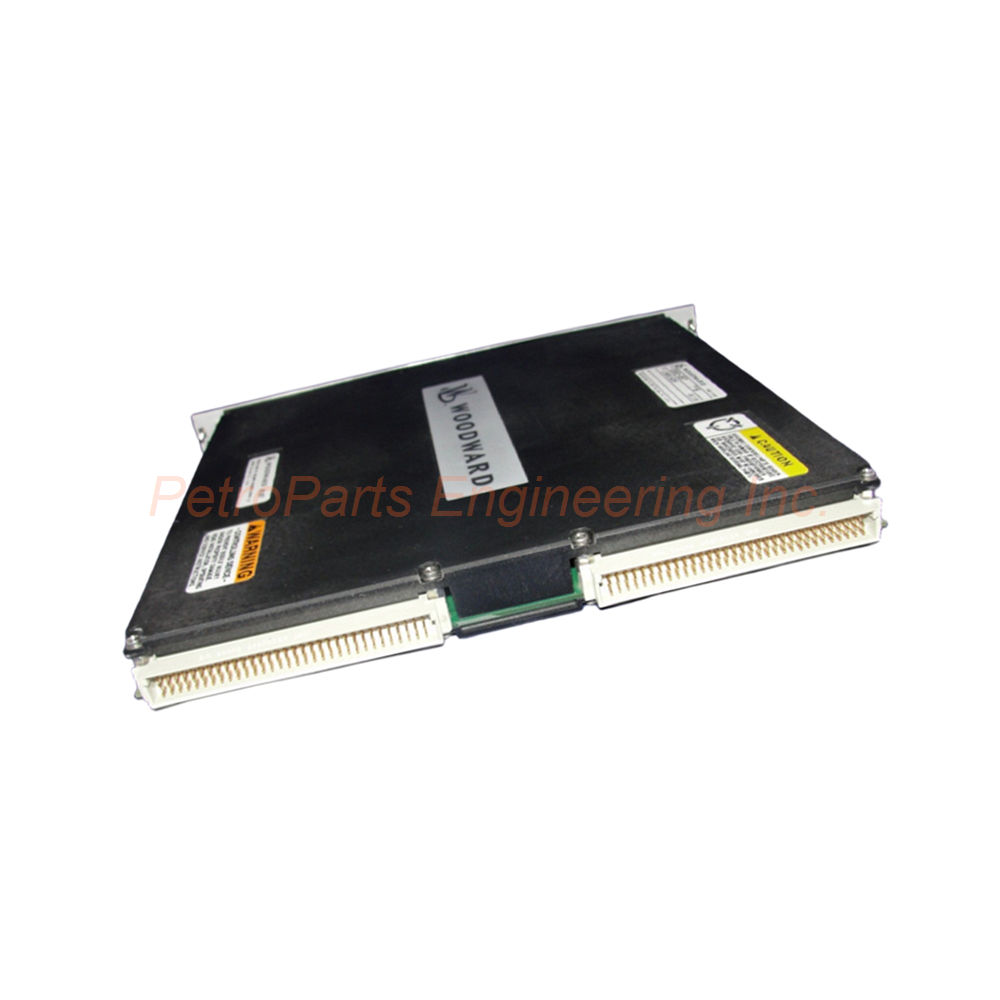

The Woodward 5503-335 is a MicroNet 5200 CPU Module for gas turbine control systems.
It is manufactured and designed by Woodward for industrial automation applications.
This embedded computing system includes a CPU, memory, and various I/O interfaces.
The module operates at 400 megahertz for balanced processing performance.
It includes 64 MB of flash memory and 128 MB of RAM for data handling.
For use with a Power PC, this module offers high processing capability.
Therefore, the 5503-335 suits demanding turbine and generator control applications.

Technical Specifications

Processor and Memory

The Woodward 5503-335 is based on an Intel Atom processor.
This processor provides a strong balance of performance and power efficiency.
Up to 4GB of DDR3 memory is available for complex computational tasks.
Consequently, the module handles real-time control algorithms effectively.

Dimensions and Weight

Dimensions measure 16 cm x 16 cm x 12 cm for compact installation.
Weight equals 1.82 kg for secure mounting in racks.
The compact size allows easy integration into various systems.

Environmental Ratings

Operating temperature ranges from 0 to +55°C (+32 to +131°F) .
Storage temperature spans –20 to +45°C (–4 to +113°F) .
Maximum altitude reaches 4000 m for high-elevation installations.
Protection rating is IP20 as defined in IEC 529.
Overvoltage rating is Cat 2 for industrial power systems.
Sound level remains less than 70 dBA during operation.
Humidity testing follows Lloyd's Register standards (2 cycles at 20–55°C with 95% RH non-condensing over 48 hours).

Extended Temperature Note

Some documentation mentions wider operating limits from -40°F to +185°F .
However, the standard specification remains 0 to +55°C.
Verify your specific application requirements before installation.
The 5503-335 includes rugged connectors for harsh environments.
Shock and vibration resistance make it suitable for industrial use.

I/O Interfaces and Protocols

The Woodward 5503-335 includes multiple serial ports for connectivity.
Ethernet ports enable high-speed network communication.
USB ports provide flexible peripheral connections.
CAN ports support real-time device networking.
Real-Time Network (RTN) ports enable synchronized control.
Therefore, the module connects to various sensors and actuators easily.

Supported Communication Protocols

Modbus protocol is supported for industrial device communication.
CANbus protocol enables controller area network integration.
PROFIBUS provides fieldbus connectivity for automation systems.
Consequently, the 5503-335 integrates into existing control architectures.

Operating System Support

The module supports Windows Embedded Standard for flexible applications.
Windows Embedded Compact is also compatible with this CPU.
Linux operating systems run on the 5503-335 as well.
Therefore, developers can choose their preferred software environment.

LED Indicators

The Woodward 5503-335 has ten LEDs on the front faceplate.
These LEDs provide at-a-glance status monitoring for operators.
The TX/RX LED indicates transmit and receive activity.
LINK shows Ethernet connection status.
STANDBY indicates standby mode operation.
SYSCON shows system controller status.
RUN confirms normal processor operation.
IOLOCK indicates an I/O lock condition in the VMEbus or CPU.
LVCC monitors logic voltage supply status.
WATCHDOG confirms watchdog timer operation.
CAN #1 and #2 show communication activity on each CAN port.
The FAULT LED lights red to indicate a CPU fault with flashing.

System Requirements

The Woodward 5503-335 must be used with an expansion chassis.
This chassis requires a Remote RTN module for proper operation.
As a CPU-based system, it cannot function standalone.
VMEbus backplane connectivity is essential for I/O expansion.
Therefore, plan your system architecture before purchasing the 5503-335 .

Installation Guidelines

First, mount the Woodward 5503-335 in a compatible MicroNet chassis.
Ensure the expansion chassis includes a Remote RTN module.
Insert the module firmly into the VMEbus backplane slot.
Secure the module with front panel retaining screws.
Connect all required communication and I/O cables.
Verify the operating temperature stays within 0 to +55°C.
Keep the installation altitude below 4000 meters.
Ensure adequate airflow around the module for cooling.
Do not exceed IP20 protection rating for environmental exposure.
After installation, check all ten LED indicators for proper status.

Package Contents

• 1 x Woodward 5503-335 MicroNet 5200 CPU Module

• 1 x Front panel with 10 integrated LEDs

• 1 x Installation and configuration manual

• 1 x Software driver CD (Windows Embedded)

• 1 x Anti-static shipping tray

Frequently Asked Questions (FAQ)

1. Is the 5503-335 obsolete or still supported?

The Woodward 5503-335 is considered obsolete according to manual 26166V1. Woodward manuals 26166V3 provide additional information for existing users.

2. What chassis works with this CPU module?

The 5503-335 requires a MicroNet expansion chassis with Remote RTN module. The module cannot operate as a standalone CPU.

3. What does the IOLOCK LED indicate on this module?

The IOLOCK LED lights red to indicate an I/O lock condition. This occurs in the VMEbus or within the 5503-335 CPU itself.

4. Can I use Linux on the 5503-335?

Yes, the Woodward 5503-335 supports Linux operating systems. It also supports Windows Embedded Standard and Windows Embedded Compact.

5. What is the maximum altitude for this CPU module?

The 5503-335 operates at altitudes up to 4000 meters. Above this altitude, cooling efficiency may be compromised.
