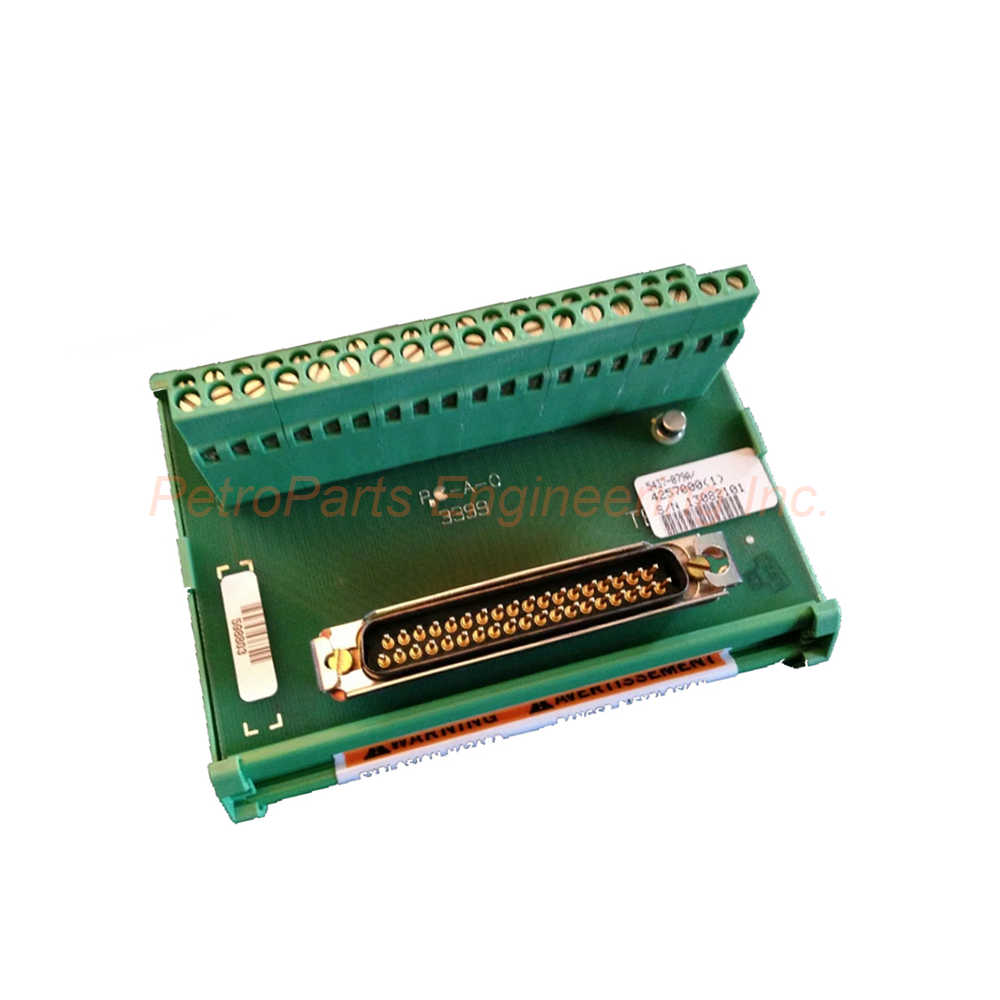

Woodward 5437-080 NetCon Field Terminal Module Overview

The Woodward 5437-080 is a NetCon field terminal module. Specifically, it belongs to the 5400 Series from Woodward. Therefore, this module is used in turbine control systems. Consequently, users select the 5437-080 to connect field wiring to MicroNet I/O modules. In addition, the unit features a 37-pin connector and relay outputs. Moreover, a 24-character LED display shows operational status. Finally, an emergency stop button provides immediate shutdown capability.

Technical Specifications of 5437-080

The Woodward 5437-080 has a part number of 5437-080. Specifically, the product type is NetCon field terminal module. Furthermore, the input voltage is 24 VDC for relay operation. The physical size is 14 inches by 11 inches by 4 inches. Additionally, the module includes a 37-pin D-sub connector. Likewise, a 24-character LED display shows system messages. Finally, an emergency stop button is mounted on the front panel.

The module provides cage-clamp terminal connection points. As a result, these terminals accept field wiring directly. Moreover, shield termination points are included for noise reduction. Consequently, EMI protection prevents electromagnetic interference. Furthermore, all FTMs can be placed on 35 mm DIN rails. Thus, the unit serves as a terminal block for field wiring.

Relays inside the 5437-080 control electrical circuits safely. Specifically, these relays interface low-voltage controls with high-power equipment. In addition, the 37-pin connector allows efficient signal transmission. As a result, this design supports a wide range of equipment connectivity. Furthermore, advanced networking capabilities enable real-time monitoring. Likewise, data analysis and remote control are both supported.

The module features a robust industrial build. Therefore, it withstands challenging environmental conditions. Moreover, modular adaptability allows integration into various setups. However, this product is discontinued by the manufacturer. Consequently, contact your supplier for availability and details. Finally, the relay module includes precision control features.

Installation Guidelines for Woodward 5437-080

First, mount the 5437-080 on a 35 mm DIN rail inside a cabinet. Then, snap the module onto the rail until it clicks. After that, secure the module with end stops on both sides. Next, connect the 37-pin cable to the MicroNet I/O module. Subsequently, tighten the connector screws by hand only. Finally, connect field wires to the cage-clamp terminals.

First, strip each wire to 8 mm before insertion. Then, push the wire into the clamp until fully seated. After that, connect shield wires to the dedicated shield terminals. Next, apply 24 VDC power to the relay module inputs. However, do not exceed the rated voltage on any terminal. Finally, test the emergency stop button before system operation.

Package Contents of 5437-080

Your shipment includes these items:

One Woodward 5437-080 NetCon field terminal module

One 37-pin D-sub connector cable (1 meter)

Two DIN rail end stops for mounting

One emergency stop button label

One installation instruction manual

However, the package does not include the MicroNet I/O module. Therefore, you must purchase that separately. Also, no cage-clamp terminal tools are provided with this module.

Frequently Asked Questions about 5437-080

1. Is the Woodward 5437-080 still in production?

No, the Woodward 5437-080 is discontinued by the manufacturer. Specifically, Woodward no longer produces this model. Therefore, contact your supplier for remaining stock availability. However, some distributors may have new old stock units.

2. What systems use the 5437-080 module?

The 5437-080 connects field wiring to MicroNet control I/O modules. Specifically, it is designed for turbine control systems. Furthermore, the module works with 5400 Series components only. As a result, it provides relay outputs for controlling high power equipment.

3. Can I mount the 5437-080 on a standard DIN rail?

Yes, the Woodward 5437-080 mounts on a 35 mm DIN rail. Specifically, this is a standard industrial rail size. Therefore, use end stops to secure the module in place. Also, the DIN rail must be grounded properly for EMI protection.

4. What does the emergency stop button do on this module?

The emergency stop button on 5437-080 immediately shuts down relay outputs. As a result, this provides a hardwired safety stop function. Specifically, pressing the button removes power to connected equipment. Then, twist the button clockwise to reset after an emergency.

5. What is the purpose of the 24-character LED display?

The LED display on Woodward 5437-080 shows module status messages. Specifically, it indicates normal operation or fault conditions. Furthermore, the display helps troubleshoot wiring and communication issues. Therefore, refer to the manual for specific message codes.

Compatibility and Application Notes

The Woodward 5437-080 works exclusively with MicroNet control systems. Specifically, it connects field wiring to the front of I/O modules. Furthermore, the 37-pin connector mates with subminiature D-type connectors. Additionally, shield termination and EMI protection are built into the module. However, this product is a discontinued spare part for legacy systems. Therefore, for new installations, consult Woodward for replacement options. The HS code for customs is 85369000. Finally, store the module in a static-free environment before installation.
