Product Abstract

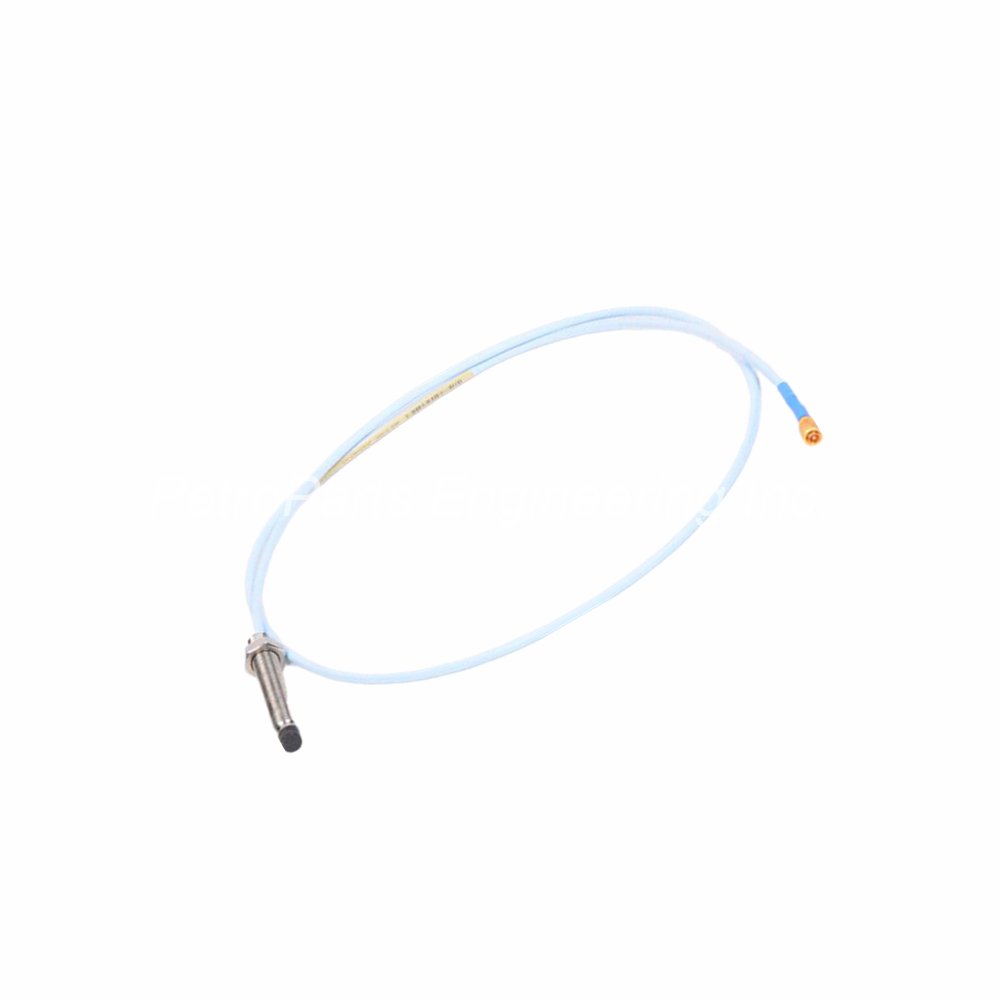

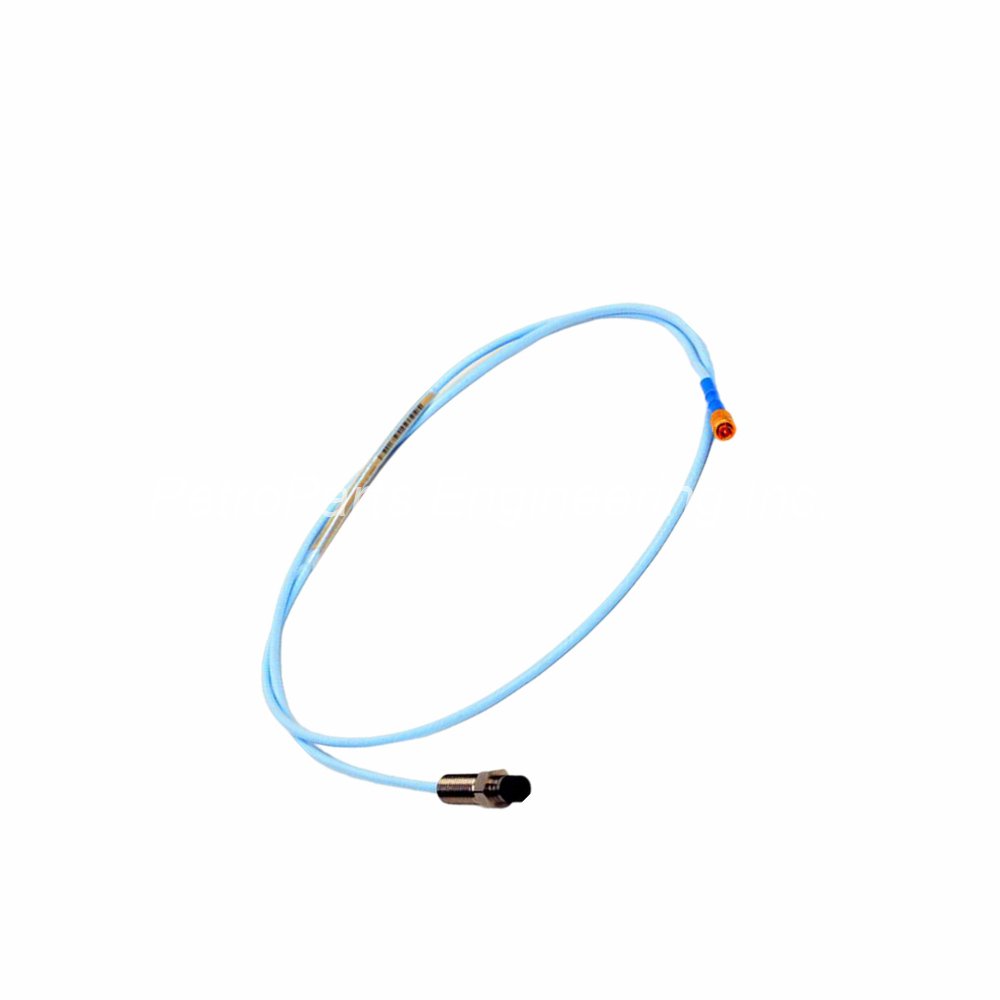

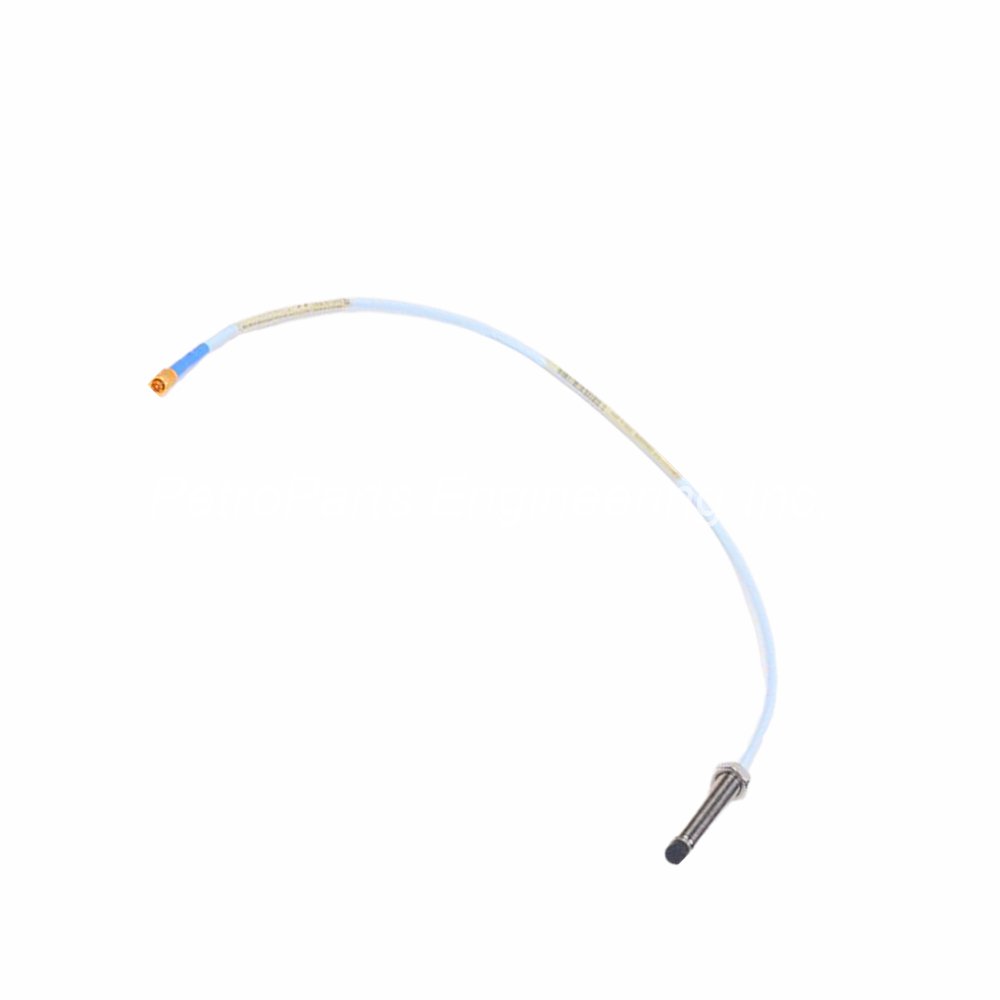

The 330105-02-12-05-02-01 is a specialized 8mm Reverse Mount Proximity Probe within the Bently Nevada 3300 XL series. Engineered for non-contacting displacement and vibration measurements, it provides industry-leading accuracy for fluid-film bearing machinery. This model features a 3/8-24 UNF threaded case and a ClickLoc coaxial connector, ensuring stable signal transmission in extreme temperatures from -52°C to +177°C.

Oiltech Controls Limited’s Insight

The 330105-02-12-05-02-01 is a critical asset for Reverse Mount configurations, allowing for external installation through machine casings. From an engineering reliability perspective, the 3300 XL 8mm system offers superior moisture resistance. The ClickLoc connector is a major upgrade, preventing the common signal “chatter” found in legacy designs. For pressurized environments in turbines or compressors, the integrated Viton O-ring seal makes the 330105-02-12-05-02-01 an exceptionally robust solution.

Configuration Breakdown & Suffix Tree

• 📦 330105 — 3300 XL 8 mm Reverse Mount Probe
• ┗ 📂 -02 — Unthreaded Length: 2.0 inches
• ┗ 📂 -12 — Overall Case Length: 1.2 inches
• ┗ 📂 -05 — Total Length: 0.5 meter (1.6 feet)
• ┗ 📂 -02 — Connector: Miniature ClickLoc Coaxial
• ┗ 📂 -01 — Agency Approval: Not Required

Technical Specifications

• Brand: Bently Nevada
• Model: 330105-02-12-05-02-01
• Tip Material: Polyphenylene sulfide (PPS)
• Case Material: AISI 303/304 Stainless Steel
• Thread Size: 3/8-24 UNF
• DC Resistance: 7.45 Ω ± 0.50 Ω
• Cable Type: 75Ω Triaxial, FEP Insulated
• Tensile Strength: 330 N (75 lbf) Probe Case to Lead
• Operating Temp: -52°C to +177°C (-62°F to +350°F)
• Pressure Seal: Viton® O-ring included
• Relative Humidity: < 3% ASF change at 93% humidity

Application & Diagnostic Capability

• Radial Vibration: Real-time monitoring of shaft motion in fluid-film bearings.
• Axial Position: Critical detection of shaft “drift” in steam and gas turbines.
• Keyphasor Tracking: Once-per-turn timing signals for phase and speed measurement.
• Diagnostic Compatibility: Pairs with 3300 XL Proximitor sensors for 7.87 V/mm (200 mV/mil) output.
• Core Equipment: Centrifugal compressors, high-speed pumps, and power generators.

Logistics & Warranty

• Warranty: 12-Month Replacement Warranty included.
• Shipping Partners: Express delivery via FedEx, UPS, and DHL.
• Origin: Genuine high-quality product, Made in U.S.A.

Professional FAQ & Procurement Guide

• Question: When should I use the 330105-02-12-05-02-01 instead of a standard probe?

  Answer: This reverse mount model is required when the mounting hole is only accessible from the exterior of the bearing housing or machine casing.

• Question: Does the 0.5m length require a specific extension cable?

  Answer: Yes. For a standard 5m calibrated system, you must pair this 0.5m probe with a 4.5m extension cable. For 9m systems, use an 8.5m cable.

• Question: Is the Viton O-ring suitable for extreme cold?

  Answer: While the probe operates at -52°C, the Viton seal may harden below -34°C. For cryogenic sealing, consult our engineering team for custom options.

• Question: What are the benefits of the ClickLoc connector?

  Answer: The ClickLoc mechanism (Option -02) provides a vibration-proof lock, preventing signal degradation and intermittent “spike” errors in noisy environments.

• Question: Procurement Tip: Is it possible to add armor to this model?

  Answer: This specific configuration is non-armored. If your application involves high mechanical risk or abrasive paths, we suggest upgrading to an armored lead version.
