Product Overview

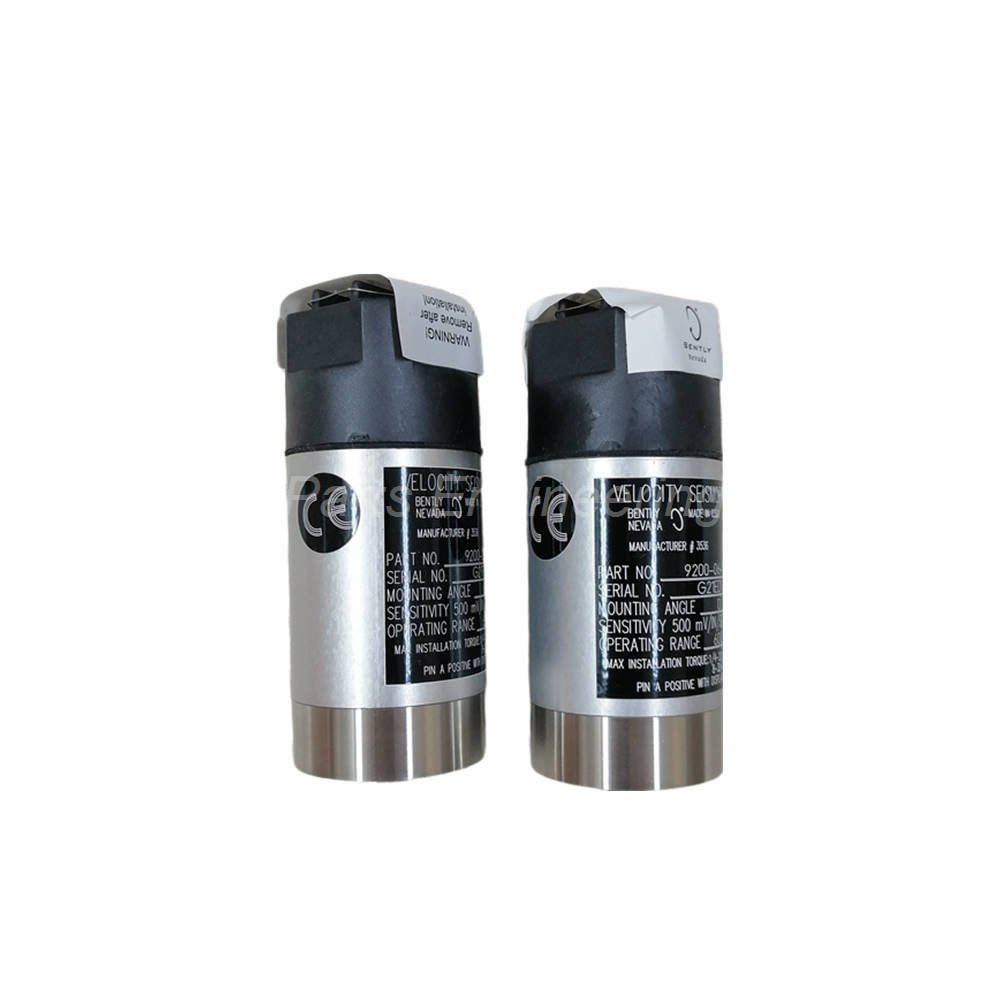

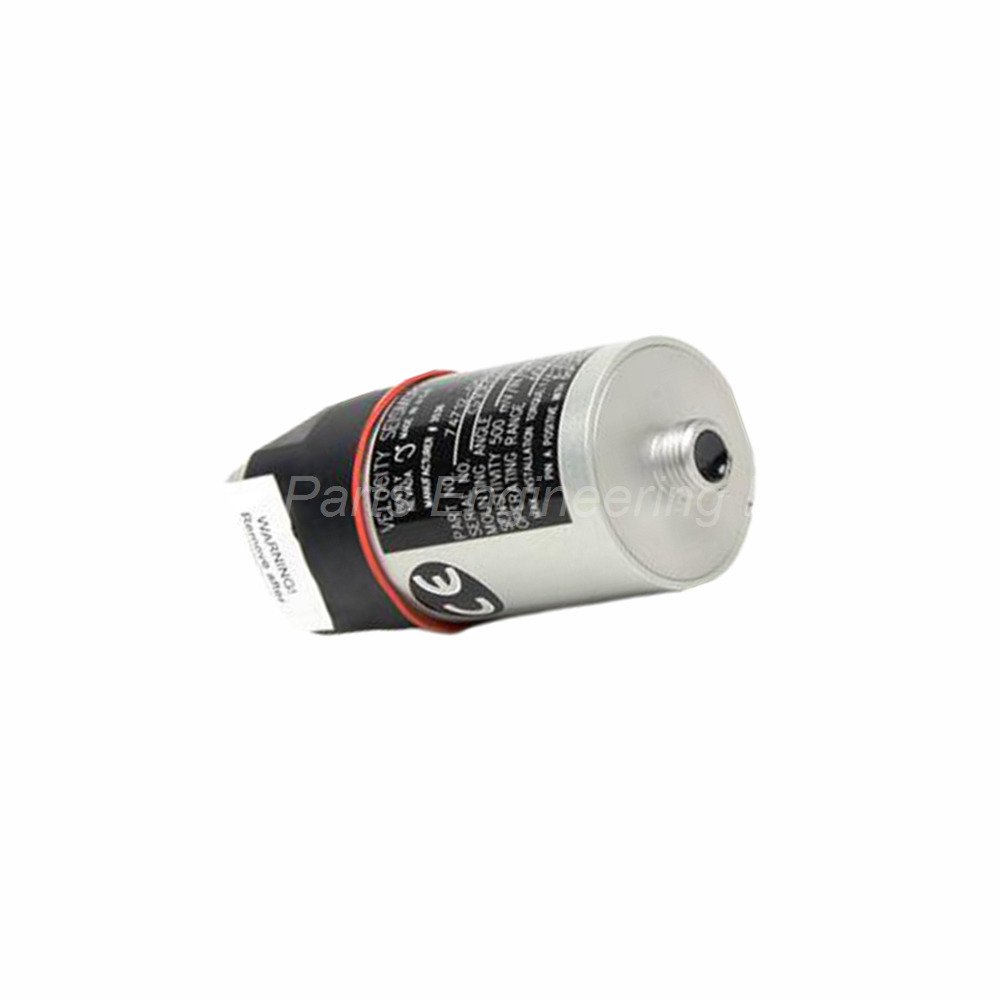

The Bently Nevada 9200-03-06-10-00 is a specialized two-wire velocity seismoprobe transducer. This device measures absolute casing vibration on industrial machinery. It combines a 90 degree mounting angle with a side mount terminal block. The 9200-03-06-10-00 works perfectly for vertical shaft machines with limited top access. Engineers choose this version for tight clearance areas where side wiring is necessary.

Key Technical Specifications

The Bently Nevada 9200-03-06-10-00 delivers accurate vibration data with a unique configuration. Below are the core technical parameters.

Sensitivity and Range

• Sensitivity: 20 mV/mm/s (500 mV/in/s) ±5% at calibration angle

• Velocity Range: 25 mm/s (1 in/s) at +22°C with 10 kΩ load

• Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak max displacement

• Frequency Response: 90° ±2.5° at 4.5 Hz (270 cpm) minimum

Electrical Characteristics

• Coil Resistance: 1.25 kΩ ±5% between terminals A and B

• Locked Coil Inductance: 125 mH typical

• Temperature Coefficient of Sensitivity: 0.2% per °C

• Calibration Load: 10 kΩ across terminals A and B

Mechanical Specifications

• Connector Option: 06 – Side mount terminal block (no cable)

• Mounting Base Option: 10 – Circular with M10x1 stud

• Mounting Angle Option: 03 – 90° ±2.5° at 4.5 Hz (270 cpm)

• Case Material: Anodized aluminum A204

• Gasket Material: Neoprene

• Height: 102 mm (4 in) typical

• Diameter: 41 mm (1.6 in) typical

• Weight: 300 grams (10.5 ounces) typical

Environmental Specifications

• Operating Temperature: -29°C to +121°C (-20°F to +250°F)

• Storage Temperature: -29°C to +121°C (-20°F to +250°F)

• Relative Humidity: Up to 95% non-condensing

• Environmental Protection: Dust and moisture resistant

• Agency Approval Option: 00 – No approvals required

The Bently Nevada 9200-03-06-10-00 handles harsh industrial conditions. Its anodized aluminum case resists corrosion effectively.

90 Degree Mounting Angle Advantage

This 9200-03-06-10-00 model features a 90° ±2.5° mounting angle. This design serves specific installation needs.

• Vertical shaft machines – measure horizontal casing vibration correctly

• Tight clearance areas – mount on side walls or bulkheads

• Horizontal bearing housings – place transducer on top or bottom surface

• Standardized orientation – matches many OEM machine specifications

• Simplified retrofits – replaces older 90 degree sensors directly

The 90 degree angle means the transducer’s sensitive axis runs perpendicular to the mounting surface. Install this Bently Nevada unit on a horizontal surface to measure vertical vibration. Install it on a vertical surface to measure horizontal vibration.

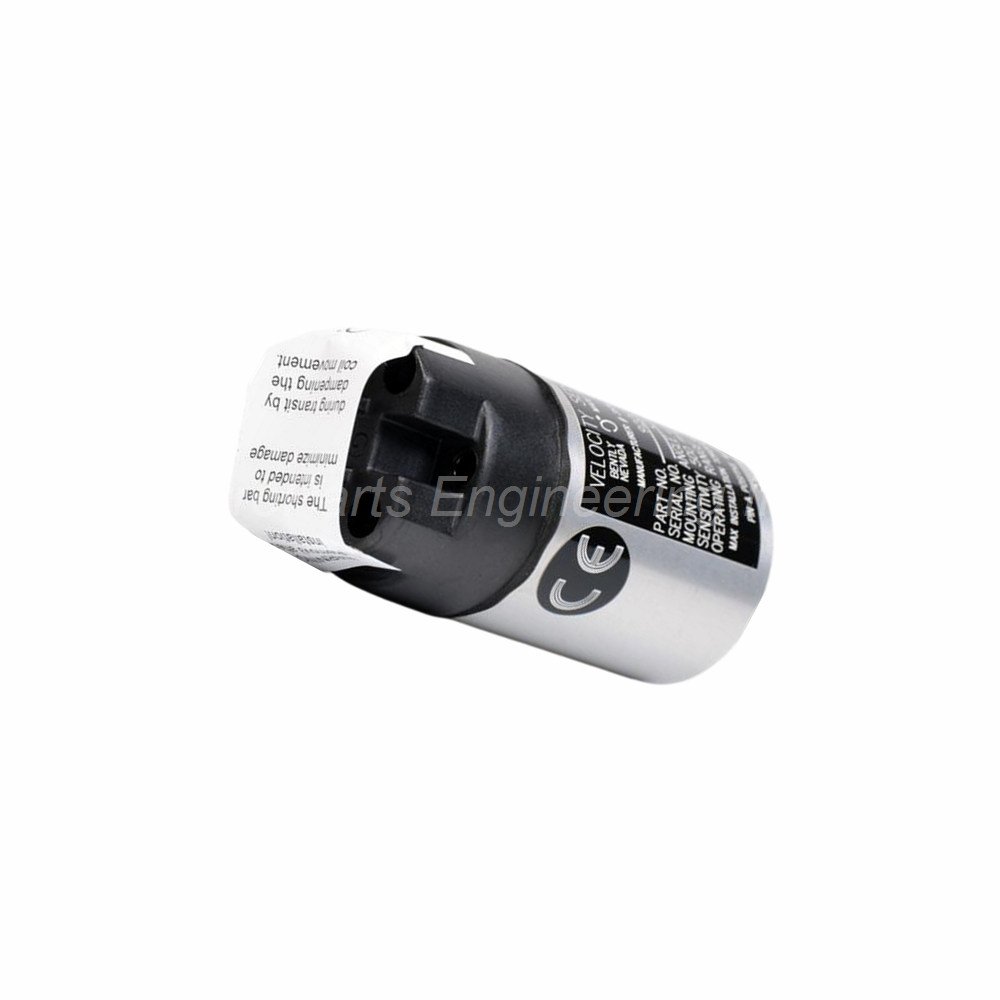

Side Mount Terminal Block Design

This 9200-03-06-10-00 uses a side-mounted terminal block instead of a top mount. This offers specific installation benefits.

• Lower profile height – fits in tight vertical clearances above the sensor

• Easier wiring access – terminals face sideways for better tool access

• Cable strain relief – wires exit horizontally, reducing bending stress

• Protective cover included – snap-on cap seals the terminal area

• Standard screw terminals – accept 16 to 22 AWG shielded wire

The side mount design of the 9200-03-06-10-00 works well inside junction boxes or conduit hubs. Use shielded twisted-pair cable like Belden 8760 for best signal integrity.

Installation Guide

Follow these steps to install the 9200-03-06-10-00 correctly.

1. Identify Vibration Direction: Determine which machine axis needs measurement. The 90 degree sensor measures perpendicular to its mounting surface.

2. Prepare Mounting Surface: Clean the bearing housing or casing area. Remove rust, paint, or old gasket material.

3. Install M10x1 Stud: Thread the stud into a prepared hole. Apply medium strength thread locker for security.

4. Mount the Transducer: Screw the Bently Nevada 9200-03-06-10-00 onto the stud. Hand tighten plus one quarter turn only.

5. Access Side Terminal: Remove the side cover to expose terminal screws. Connect wires to terminals A and B.

6. Route Shielded Cable: Run cable away from variable frequency drives. Ground the shield only at the monitor end.

7. Close and Seal: Replace the side terminal cover. Ensure the gasket seals properly against moisture.

Do not exceed 15 Nm torque on the M10x1 stud. The 9200-03-06-10-00 requires the 90° ±2.5° orientation for specified sensitivity.

Package Contents

The box includes the following items for the Bently Nevada 9200-03-06-10-00.

• One Bently Nevada 9200 Two-Wire Velocity Seismoprobe Transducer (90° angle, side terminal)

• One circular mounting base (M10x1 stud, factory installed)

• One neoprene gasket (between case and mounting base)

• One side terminal cover (with sealing gasket)

• Two spare terminal screws (M3 x 6 mm)

• One installation datasheet (wiring diagram included)

Note: This package does not include field wiring cable, the 10 kΩ load resistor, or mounting tools. These items must be purchased separately.

Common FAQs

1. When should I use the 9200-03-06-10-00 over other configurations?
Use this Bently Nevada model when you need both a 90 degree mounting angle and side cable exit. Typical applications include vertical pumps with overhead obstructions.

2. Does the side terminal affect the transducer’s temperature rating?
No, the 9200-03-06-10-00 maintains the full -29°C to +121°C range. The side terminal cover provides the same environmental protection as the top mount version.

3. What is the minimum machine speed for accurate measurement?
The 9200-03-06-10-00 has a 4.5 Hz (270 cpm) minimum frequency. Machines running below 270 rpm may produce inaccurate amplitude readings.

4. Can I replace an existing 0 degree transducer with this 90 degree model?
Yes, but you must verify the vibration measurement axis matches. The 9200-03-06-10-00 measures perpendicular to its mounting surface, not parallel like a 0 degree unit.

5. How do I clean the side terminal area during maintenance?
Remove the side cover and use dry compressed air below 30 psi. Do not use liquid cleaners on the 9200-03-06-10-00 terminal block. Replace the cover before restarting the machine.

Typical Applications

The Bently Nevada 9200-03-06-10-00 serves many rotating machinery monitoring needs with its 90 degree angle and side mount design.

• Vertical turbine pumps – measure horizontal casing vibration with side wiring

• Paper machine rolls – mount on bearing housings with limited top access

• Cooling tower fan drives – install on gearbox side surfaces away from fan blades

• Centrifugal compressors – replace older sensors without changing conduit runs

• Wind turbine gearboxes – mount on inclined surfaces at standard orientation

• Overhead cranes – install on wheel housings where top access is impossible

This transducer connects to Bently Nevada 1900/65 monitors or 3500 series racks. It also works with any device accepting a 20 mV/mm/s velocity input.

Compliance and Quality

The Bently Nevada 9200-03-06-10-00 receives factory calibration at 100 Hz with a 10 kΩ load. Each unit undergoes sensitivity testing at its 90 degree orientation. The anodized aluminum case meets IP66 for dust and water resistance. This model has agency approval option 00, meaning no ATEX, CSA, or IECEx certifications. Use it only in non-hazardous, non-explosive industrial locations.

Ordering Reference

Use the full part number 9200-03-06-10-00 when placing your order. This guarantees the 90 degree mounting angle, side mount terminal block, and M10x1 stud base. Stock is new and original in factory packing.
