Executive Summary

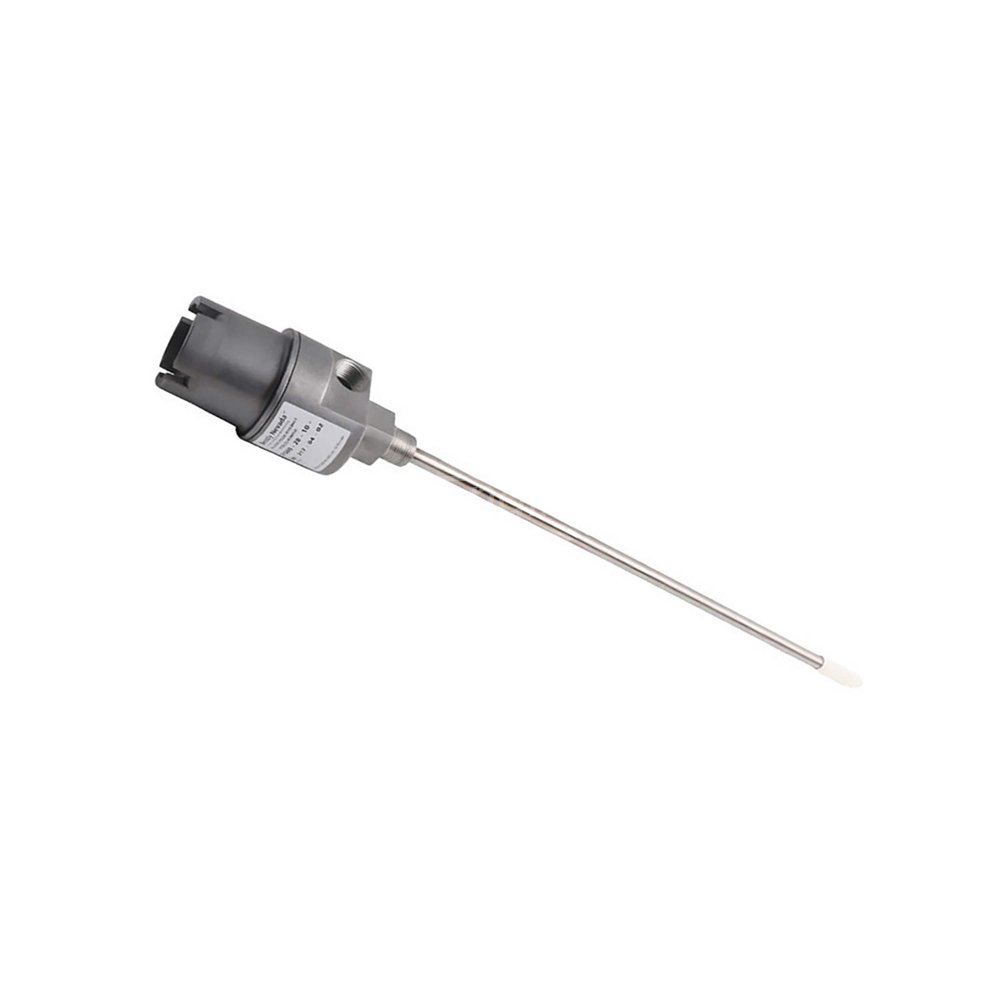

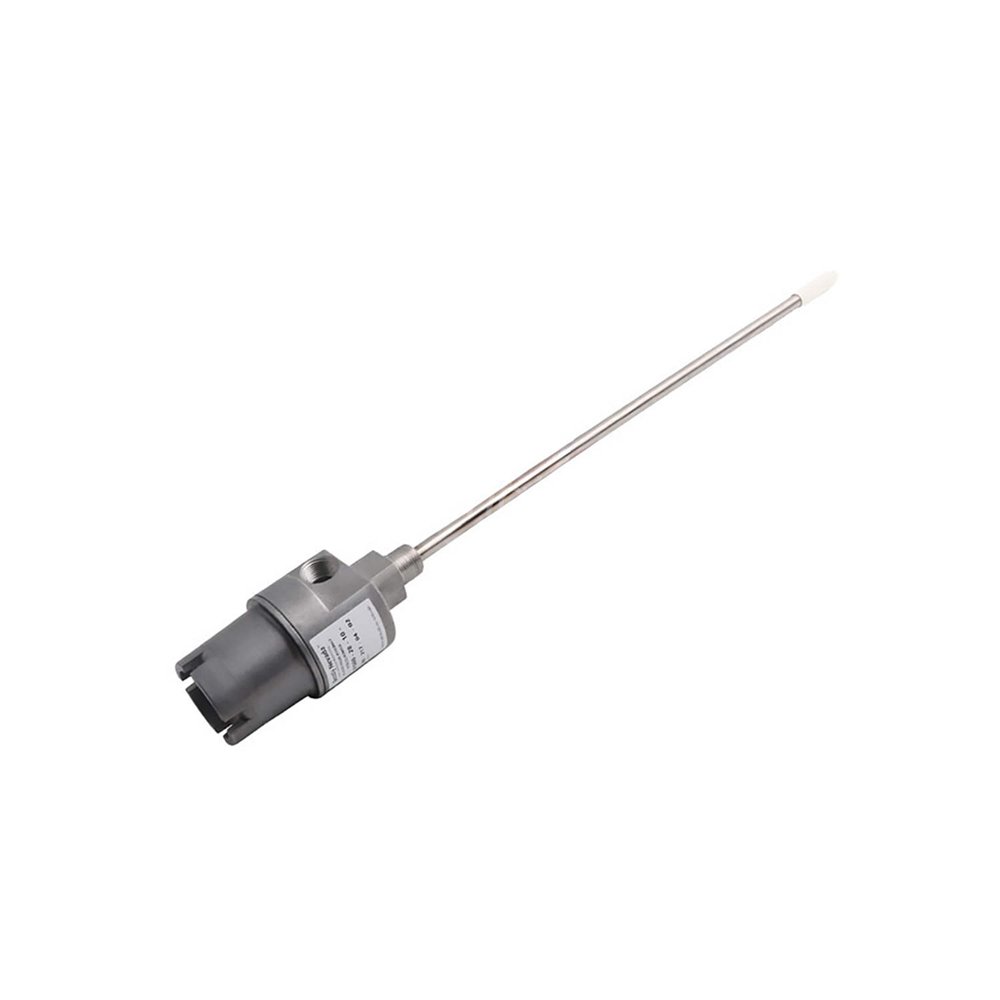

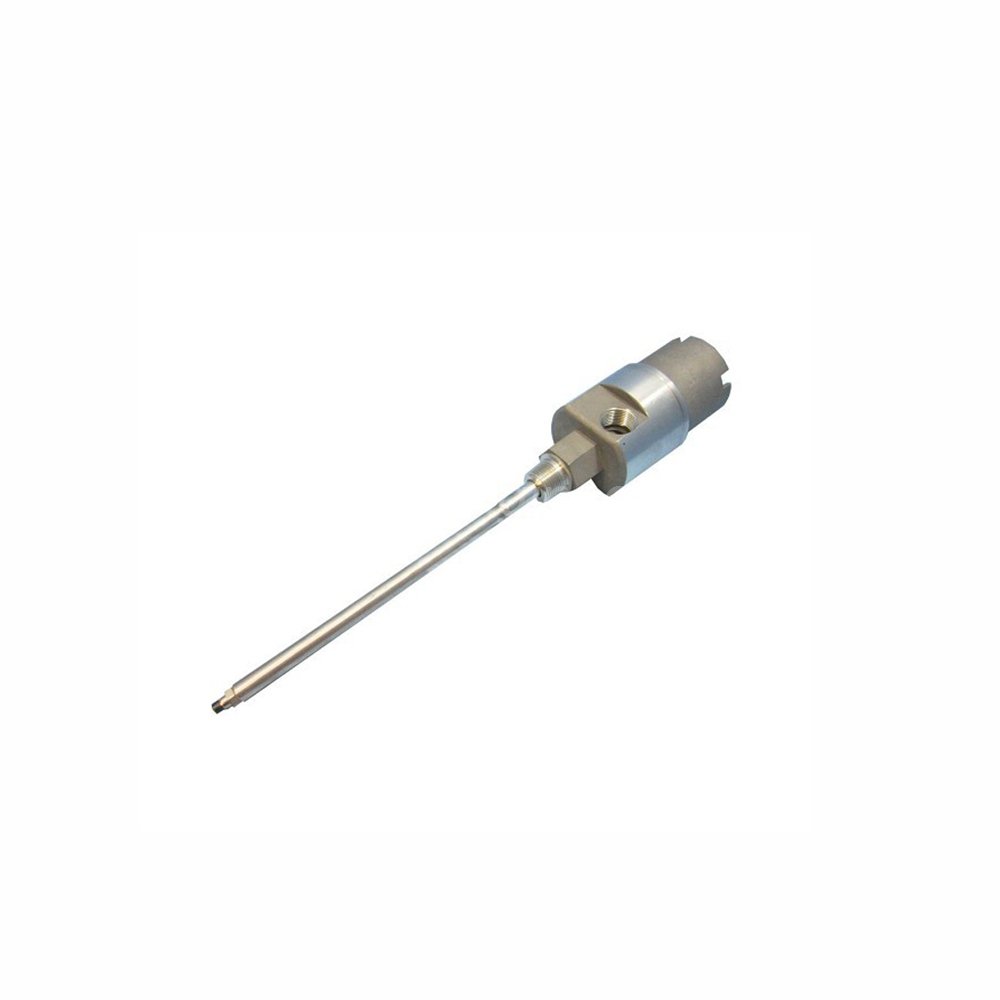

The 24701-00-00-20-060-00-02 is a professional-grade Bently Nevada 24701 series Proximity Probe Housing Assembly. This heavy-duty enclosure protects reverse-mount probes in critical machinery monitoring applications. Built with a 303 stainless steel body, it ensures maximum durability in corrosive environments. This specific 24701 configuration provides precise 6-inch penetration for accurate vibration and axial position sensing on high-speed rotating equipment.

Configuration Breakdown & Suffix Logic

• 24701 — Base Series: Proximity Probe Housing Assembly
  • ↳ -00 (Probe Option): No probe included in this assembly
    • ↳ -00 (Cable Option): No probe cable included
      • ↳ -20 (Standoff): 2.0 inch Standoff Adapter length
        • ↳ -060 (Penetration): 6.0 inch Probe Sleeve depth
          • ↳ -00 (Fittings): Standard version without extra conduit fittings
            • ↳ -02 (Mounting): 3/4-14 NPT Threaded interface

Technical Data & Environmental Specs

• Manufacturer: Bently Nevada
• Model Number: 24701-00-00-20-060-00-02
• Body Material: High-grade 303 Stainless Steel
• Sleeve Material: 304 Stainless Steel for superior protection
• Mounting Thread: 3/4-14 NPT (Required for standoff configuration)
• Assembly Weight: Approx 1.8 kg (4.1 lb)
• Max Dimension (C+D): 13.5 inches (34.3 mm)
• Seal Integrity: Includes high-temp O-rings and thread seals
• Diagnostic Support: Compatible with all Bently Nevada reverse-mount probes

Installation & Engineering Guidance

• The reverse-mount design allows probe maintenance without housing disassembly.
• The dome cover must be tightened securely to maintain the environmental seal.
• Designed for direct conduit connection via dual threaded ports.
• Adjust probe penetration carefully to prevent contact with the target shaft.
• Use the 3/4-14 NPT mounting thread for rigid attachment to the machine casing.

Typical Application Scenarios

• Protection for 3300 XL proximity sensors in steam turbines.
• Oil and Gas centrifugal compressor vibration monitoring.
• Harsh offshore platform environments requiring stainless steel housing.
• Hydroelectric generator shaft position and eccentricity measurement.

Shipping & Warranty Terms

• Condition: 100% Brand New and Original in Factory Box.
• Quality Guarantee: Full 12-month warranty from date of purchase.
• Global Express: Rapid delivery via FedEx, UPS, and DHL.
• Package Contents: Dome cover, housing body, sleeve, O-rings, and seals.

Expert FAQ & Purchasing Tips

Q: Why does the 24701 model require a standoff adapter for this penetration?
A: The 2.0-inch standoff (Option -20) provides the necessary mechanical clearance for the housing to clear external machine insulation or cooling fins while maintaining the 6-inch sleeve depth.

Q: Does this specific part number include the proximity probe?
A: No. Suffixes -00-00 indicate “Probe not required.” This assembly is the protective hardware; the sensor must be selected based on your monitoring system (e.g., 8mm or 11mm).

Q: How do I select the correct mounting thread?
A: This unit uses 3/4-14 NPT (Option -02). Always match your machine casing port threads or use a certified adapter to ensure an explosion-proof seal.

Q: Can the sleeve be shortened in the field?
A: Field modification is not recommended as it may damage the thread seal or internal alignment. It is best to order the exact penetration length (060 = 6 inches) for your application.

Q: Is the dome cover compatible with conduit fittings?
A: The dome cover protects the probe head. Conduit connections are made through the threaded ports on the housing body, ensuring wires are protected from moisture and debris.
