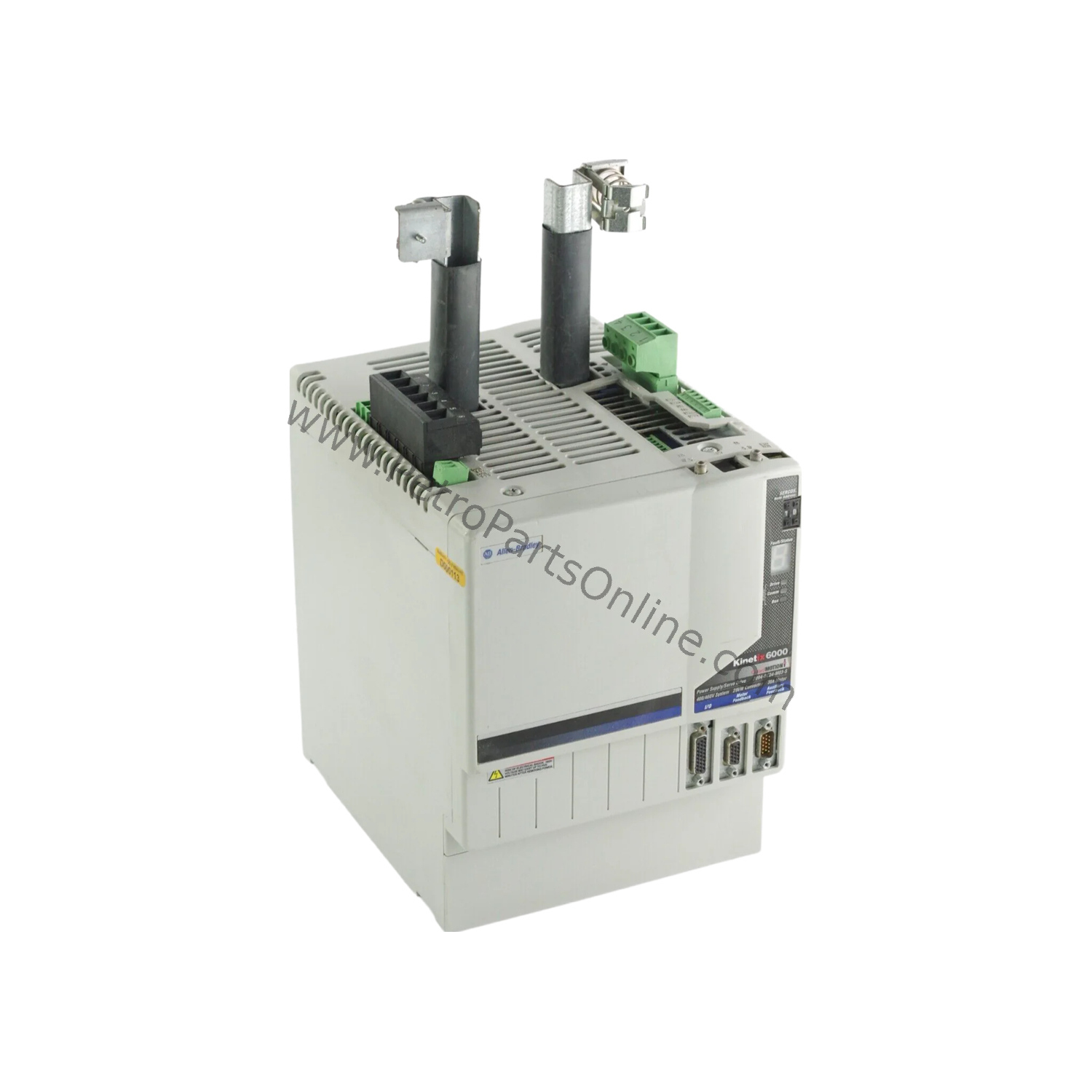

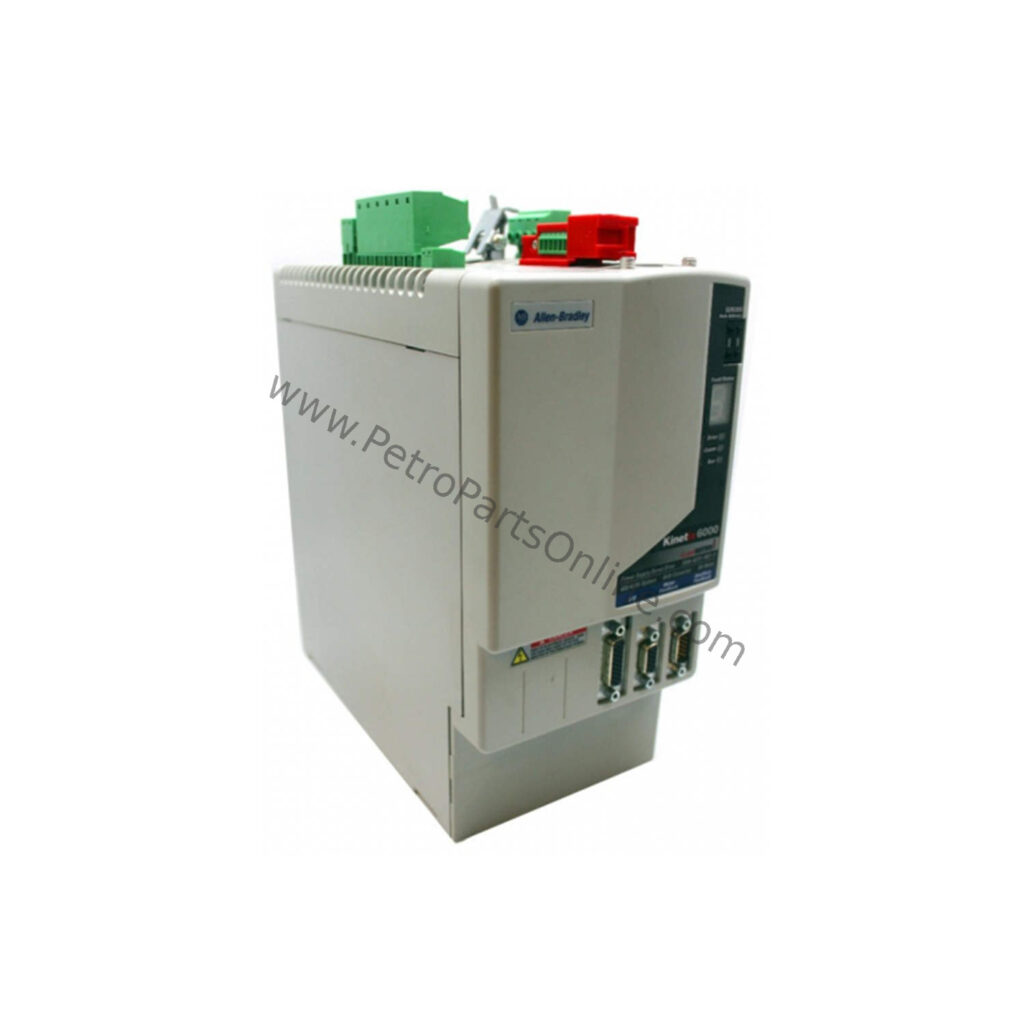

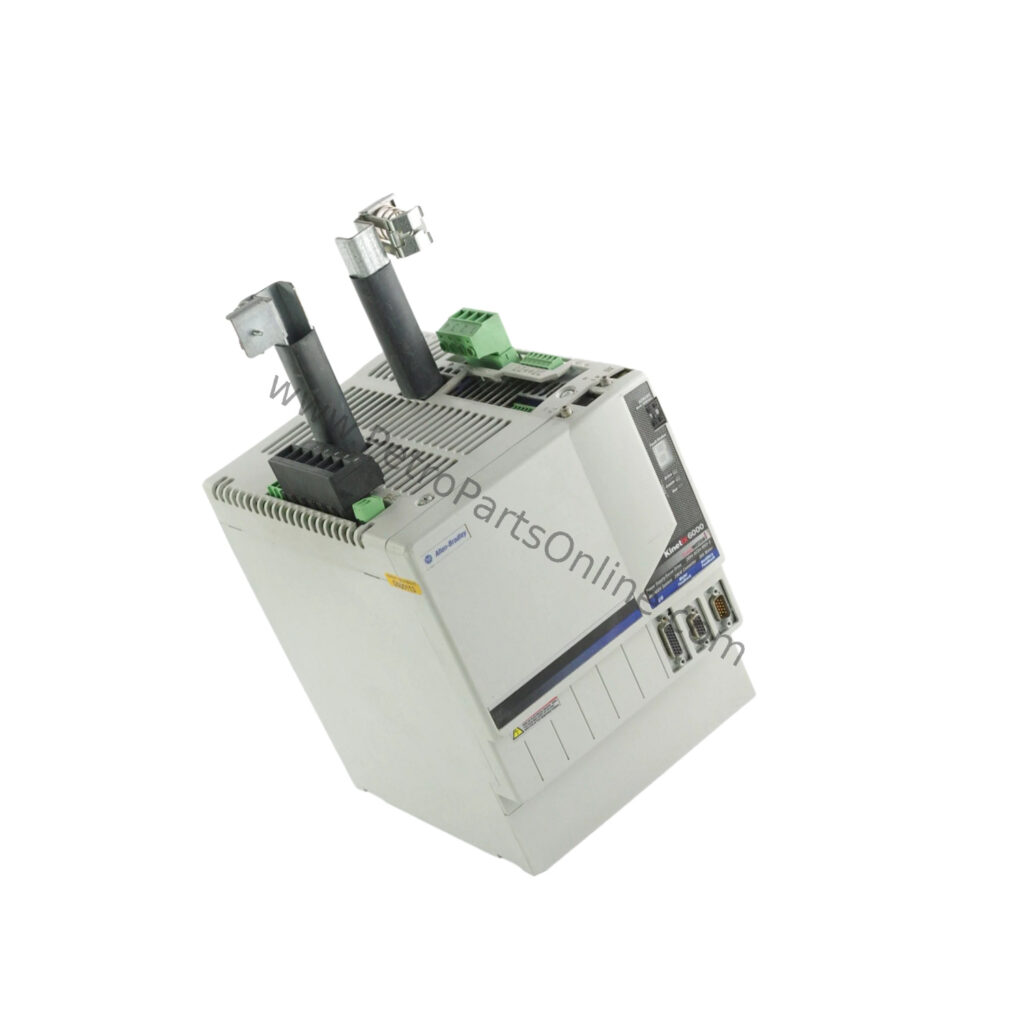

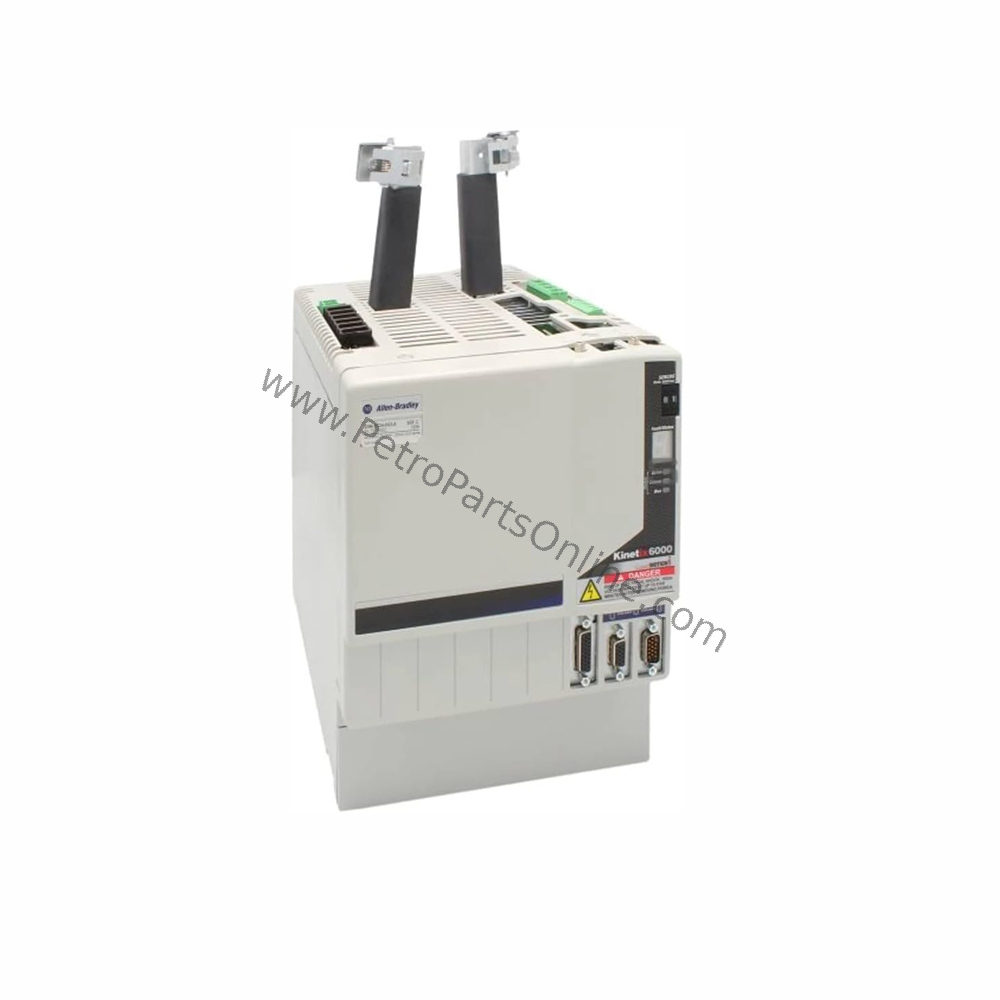

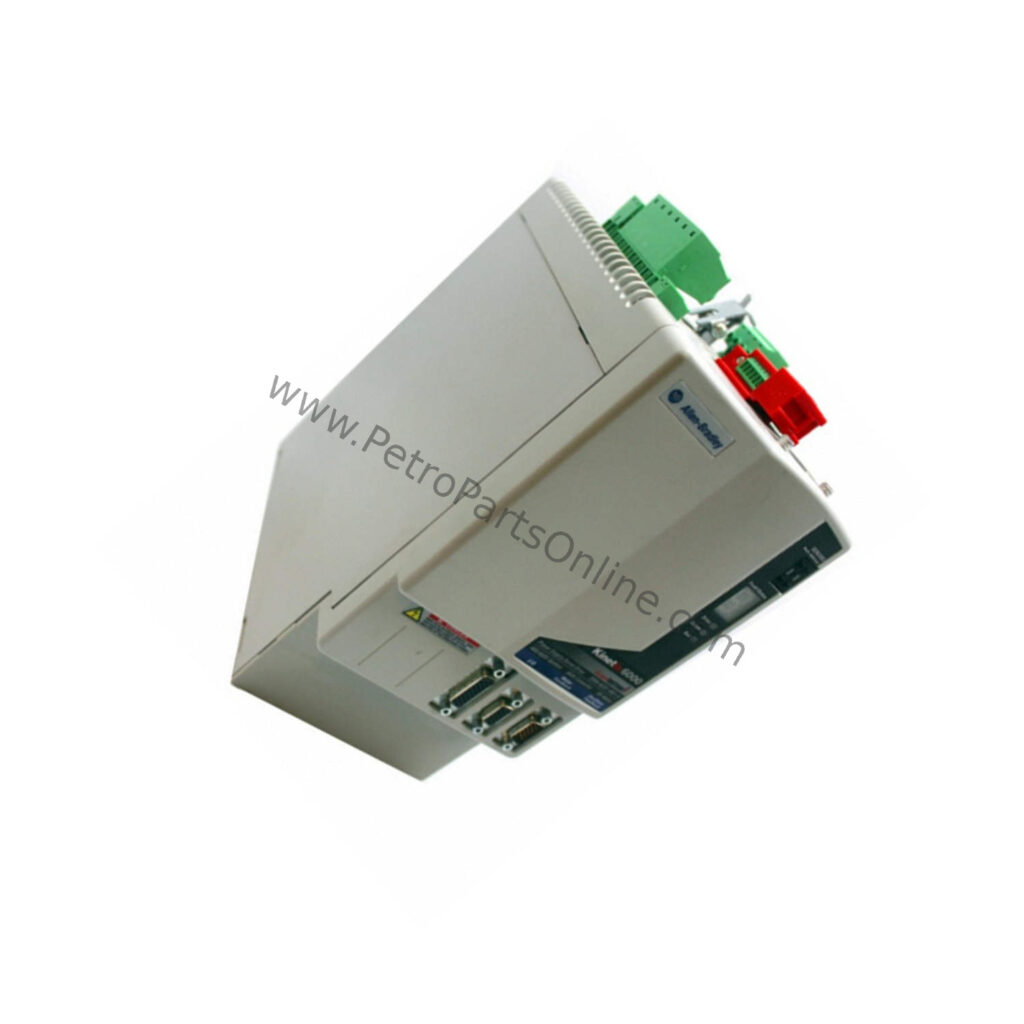

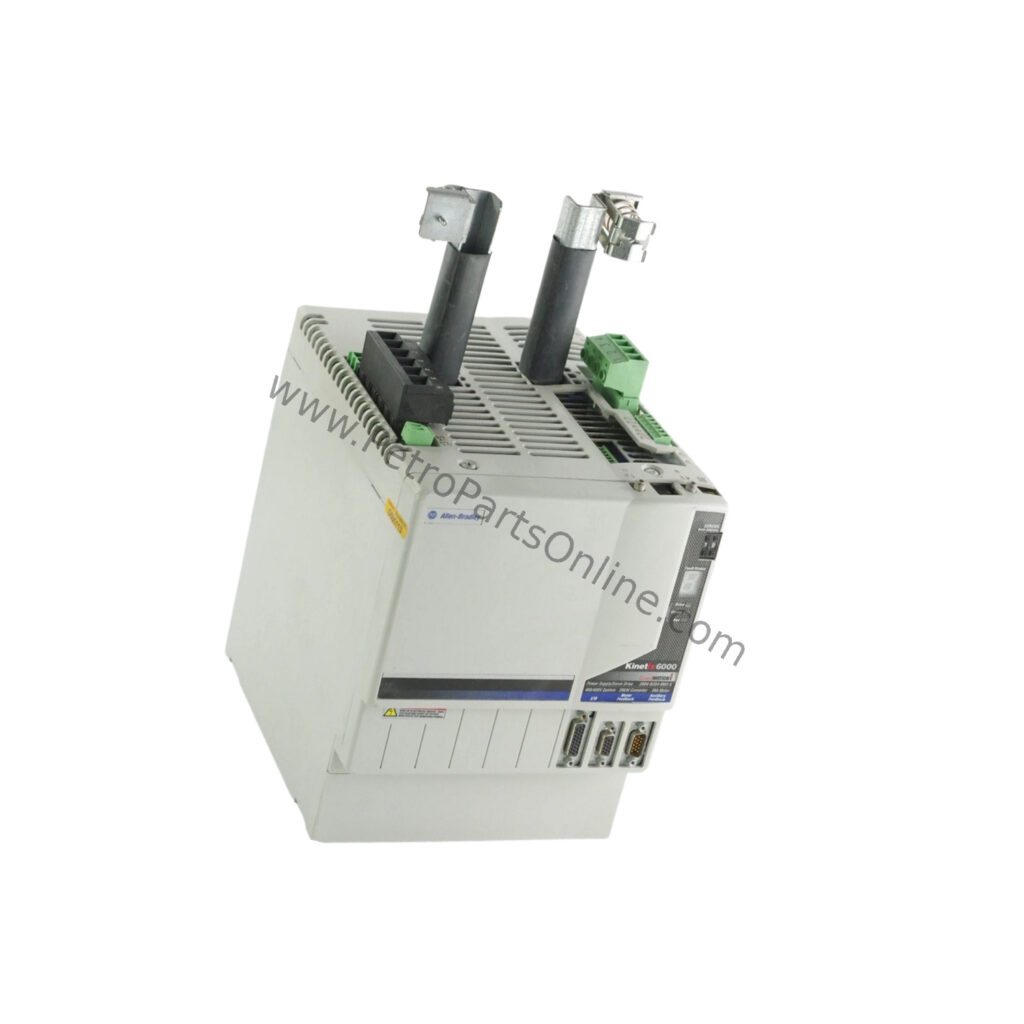

What Is the 2094-BC04-M03-S?

When high-performance motion control is required, the 2094-BC04-M03-S from Allen-Bradley provides a robust solution. This Integrated Axis Module (IAM) is part of the Kinetix 6000 drive system. It operates with 400/460V AC input power and includes Safe Torque Off functionality for enhanced safety. The module combines a converter and inverter section in one unit.

Manufactured by Rockwell Automation, this module is designed for demanding industrial automation tasks. It handles a wide input voltage range and delivers consistent power output. Engineers rely on the 2094-BC04-M03-S for precise axis control in multi-axis systems.

Key Features and Technical Specs

• The 2094-BC04-M03-S accepts AC input voltage from 324-528 Volts rms 3-phase (360-480 Volts nominal).
• Its converter section delivers 28 kW of output power.
• The inverter section provides 30 A of output current.
• Operating temperature range is 32-122 F (0-50 C).
• Power dissipation varies from 94 to 255 Watts depending on load.
• Velocity loop bandwidth is 500 Hz; current loop bandwidth is 1300 Hz.
• PWM frequency is 4 kHz.
• Internal shunt continuous power is 200 Watts; peak power is 22.5 kW.
• Efficiency reaches 97%.
• Weight is 21.1 lbs (9.60 kg).

A distinctive spec is the internal shunt peak power of 22.5 kW. This allows the module to handle regenerative energy from decelerating motors effectively, reducing the need for external braking resistors.

Installation and Setup

Mount the 2094-BC04-M03-S at the leftmost position of the power rail. Install the IAM first, then add other modules to the right. The module includes a ground jumper for ungrounded or high impedance power configurations. By default, the jumper is set for grounded systems. For ungrounded setups, modify the jumper position by removing the module from the rail and adjusting P18 and P19 terminals. Always follow the manufacturer's manual for safe installation.

Maintenance and Reliability

Regular inspection of the 2094-BC04-M03-S helps ensure long service life. Check for dust accumulation on cooling surfaces and verify that all connections remain tight. The module operates reliably within its 0-50 C temperature range. Its high 97% efficiency reduces heat generation, lowering cooling costs over time. This efficiency contributes to lower total cost of ownership.

Compatibility and Integration

The 2094-BC04-M03-S integrates seamlessly into Kinetix 6000 drive systems. It works with compatible axis modules, shunt modules, and slot filler modules. The module is designed for 400V-class AC input power systems. It supports common bus follower configurations with DC input voltage from 458-747 Volts. For detailed integration guidelines, refer to the official Allen-Bradley documentation.

FAQs about the 2094-BC04-M03-S

Q: What is the AC input frequency range for the 2094-BC04-M03-S?

A: The AC input frequency range is 47-63 Hertz.

Q: What is the nominal AC input current of this module?

A: The nominal RMS AC input current is 44.0 Amperes.

Q: Does the 2094-BC04-M03-S include Safe Torque Off functionality?

A: Yes, the module is safety equipped with Safe Torque Off functionality.

Q: What is the internal shunt resistance value?

A: The internal shunt resistor is 28.75 Ohms.

Q: Can this module be used in ungrounded power systems?

A: Yes, but the ground jumper must be set to the ungrounded position by modifying P18 and P19 terminals.

Q: What is the weight of the 2094-BC04-M03-S?

A: The module weighs 21.1 lbs (9.60 kg).

Product Support and Availability

The 2094-BC04-M03-S is available from PetroPartsOnline. In stock and ready to ship, this module supports your motion control needs. Contact PetroPartsOnline for current lifecycle status and ordering details.
