Product Overview

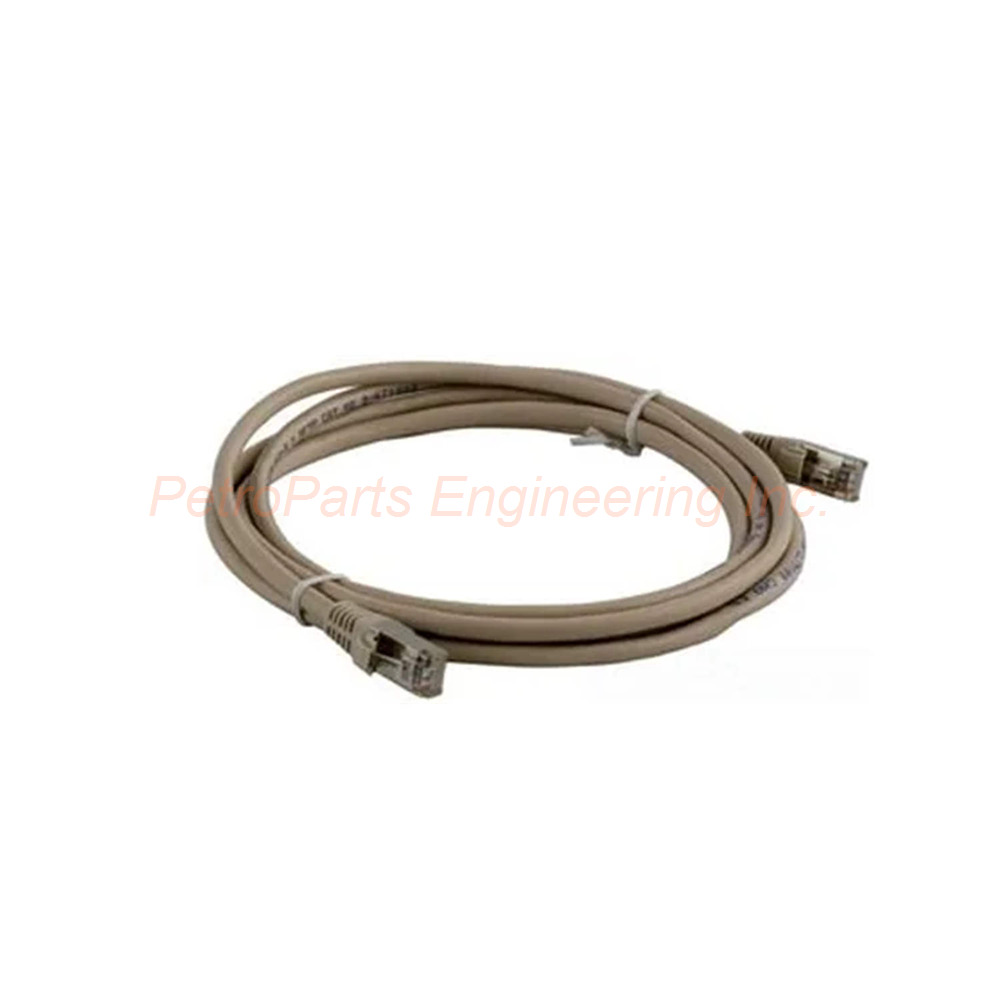

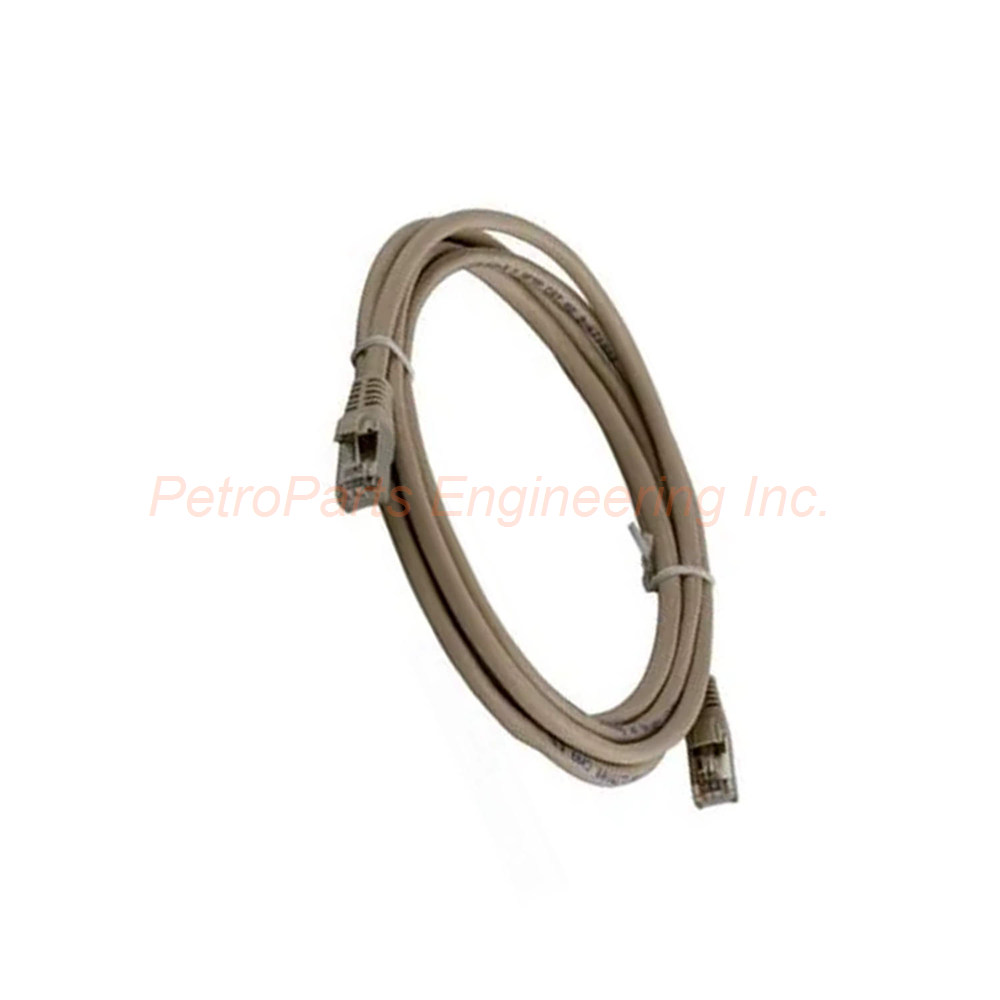

The 170MCI02110 is a communication cable from Schneider Electric. This device is part of the Modicon Momentum series. It serves crucial connection purposes between I/O bases. The cable enables proprietary MODBUS and Momentum I/O communication. Consequently, it is essential for building Momentum automation systems.

Connector Specifications

Connector Types
The 170MCI02110 has a 20-pin male connector on one end. The other end features a 20-pin female connector. Therefore, the cable connects directly between Momentum I/O bases.

Use Case
The primary use case is Momentum I/O base to base connection. Specifically, the 170MCI02110 links multiple I/O modules in a chain. This creates a cohesive automation system.

Electrical Specifications

Voltage and Current
The voltage rating is 30 V. The current rating is 1A. Therefore, the 170MCI02110 handles typical I/O signal levels safely.

Wire Gauge and Material
The wire gauge is 26 AWG. The conductor material is copper. Consequently, the 170MCI02110 provides low resistance for reliable signal transmission.

Cable Construction

Cable Type
The 170MCI02110 is a round shielded cable. The shielding type includes both foil and drain. Therefore, electromagnetic interference is effectively minimized.

Jacket Material
The jacket material is PVC. This provides durability and flexibility during installation. Consequently, the 170MCI02110 withstands typical industrial handling.

Shielding Benefits
The foil and drain shielding contributes to signal integrity. This is critical for reliable communication between I/O bases. Therefore, the 170MCI02110 performs well in electrically noisy environments.

Physical Specifications

Cable Length
The typical length is 2 meters. This provides ample reach for various industrial setups. Consequently, the 170MCI02110 offers flexibility in panel layout.

Operating Temperature
The operating temperature range is -10°C to +60°C. This supports diverse environmental conditions. Therefore, the 170MCI02110 works in both cold and warm industrial settings.

Compliance and Standards

RoHS Compliance
The 170MCI02110 is RoHS compliant. Therefore, it meets environmental regulations restricting hazardous substances. This makes it suitable for environmentally-conscious applications.

Interface Type
The interface type is proprietary MODBUS/Momentum I/O. Consequently, the 170MCI02110 is specifically designed for Schneider Electric systems.

Installation Guidelines

Cable Routing
First, plan the cable route between I/O bases. Keep the 170MCI02110 away from high voltage power cables. Avoid sharp bends that could damage the internal conductors.

Connector Mating
Next, align the 20-pin male connector with the female port on the I/O base. Press firmly until the connector seats completely. Do not force the connection.

Strain Relief
Then, secure the 170MCI02110 cable using cable ties or clips. Provide strain relief near both connectors. This prevents tension on the connector pins.

Environmental Considerations
Ensure the operating temperature stays between -10°C and +60°C. Do not install the 170MCI02110 in areas with direct sunlight or heat sources. Keep the cable away from moisture and chemicals that may damage the PVC jacket.

Package List

• 1 x Schneider Electric 170MCI02110 Communication Cable (2 meters)

• 1 x Product information sheet

Frequently Asked Questions (FAQ)

Q1: What is the primary use of the 170MCI02110 cable?
The cable connects Modicon Momentum I/O bases together. Specifically, the 170MCI02110 links multiple modules in a daisy-chain configuration.

Q2: What type of shielding does this cable have?
The cable features both foil and drain shielding. Therefore, the 170MCI02110 minimizes electromagnetic interference for reliable communication.

Q3: Is this cable RoHS compliant?
Yes, the 170MCI02110 is RoHS compliant. Consequently, it meets environmental standards for restricted hazardous substances.

Q4: What is the maximum operating temperature for this cable?
The maximum operating temperature is +60°C. Therefore, the 170MCI02110 should not be installed in areas exceeding this limit.

Q5: Can this cable be used for non-Momentum applications?
The interface is proprietary MODBUS/Momentum I/O. Therefore, the 170MCI02110 is specifically designed for Schneider Electric Momentum systems only.
