Product Overview

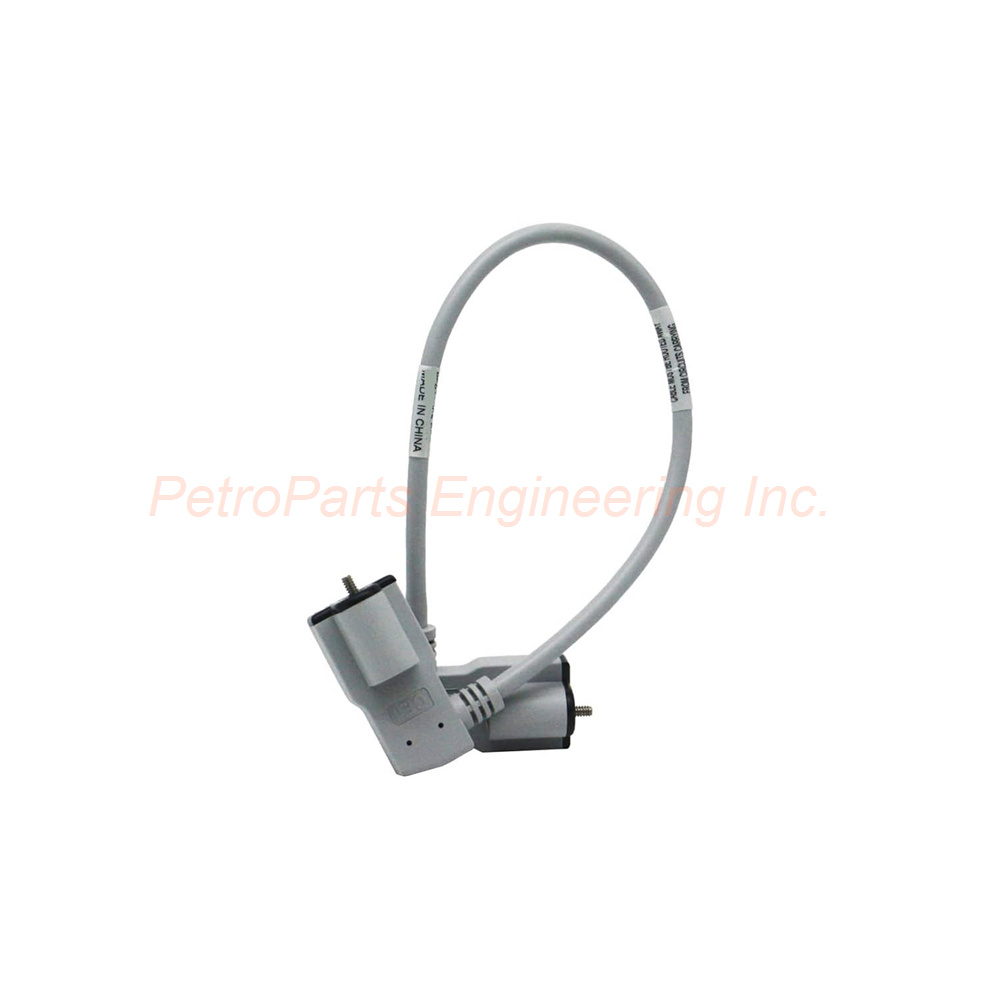

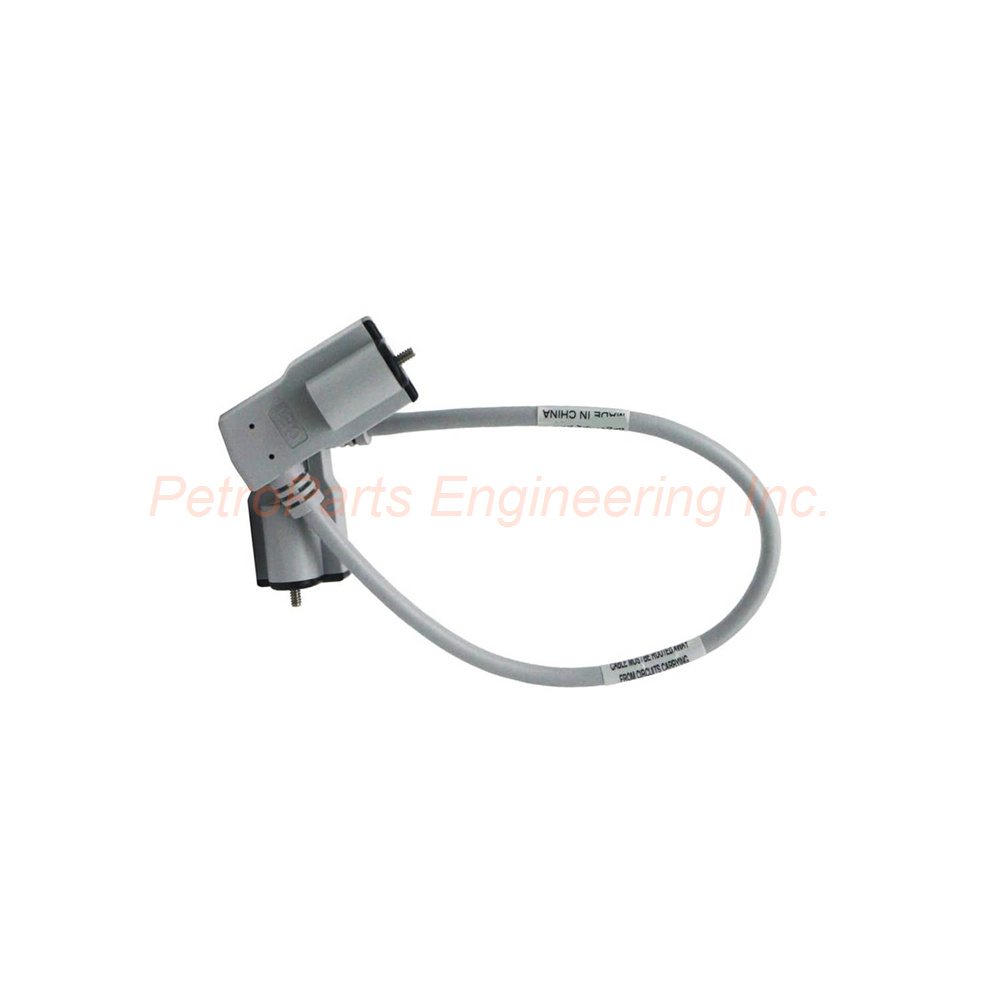

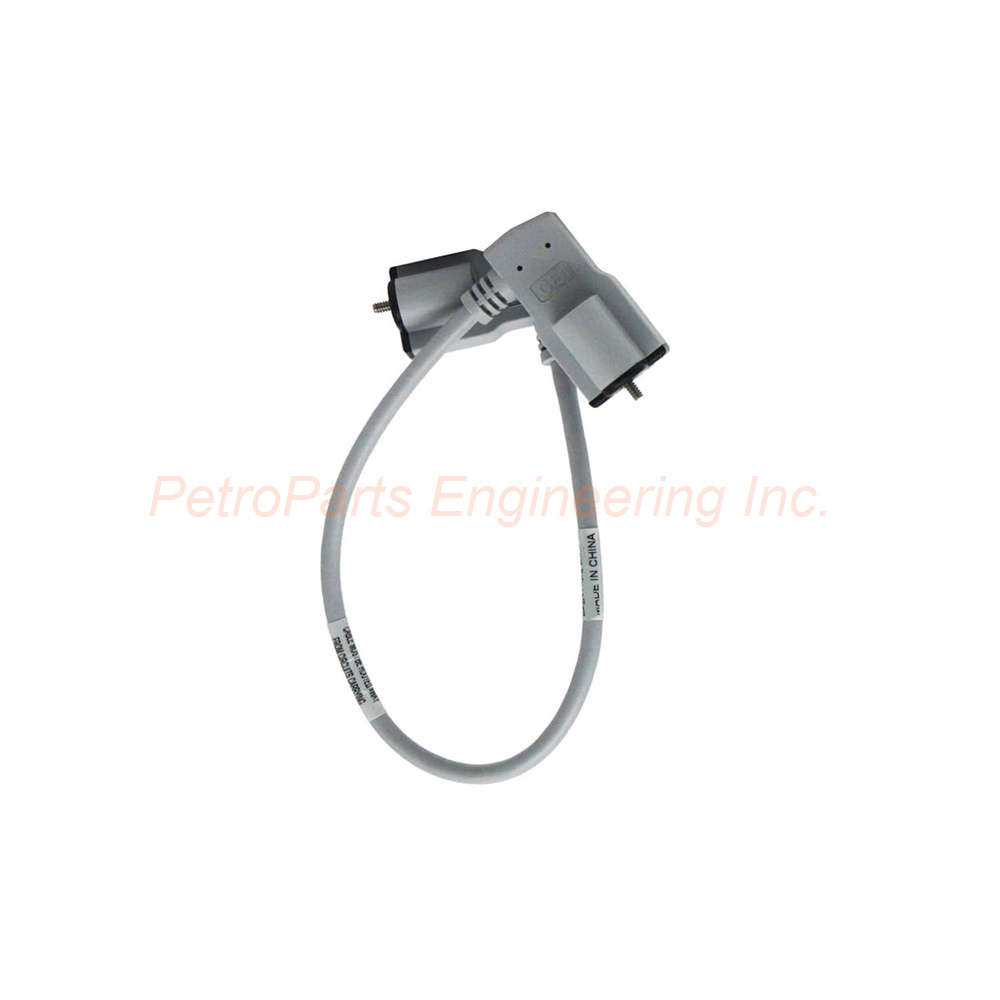

The 1794-CE1 is a FlexBus cable from Allen-Bradley. It connects FLEX I/O modules to a communication adapter. This cable supports reliable data transfer in industrial automation systems. It is a passive accessory used for module interconnection.

Application Scenarios

This cable is used in distributed control systems. It links I/O modules in a FLEX I/O chassis. Typical applications include manufacturing lines and process control. It is suitable for both new installations and system expansions. The cable operates in standard industrial environments.

Technical Specifications

• Product Type: FlexBus Cable
• Compatibility: FLEX I/O modules and adapters
• Length: 1 meter
• Connector Type: 20-pin D-shell
• Operating Temperature: 0 to 60 degrees Celsius
• Weight: 0.1 kg

Installation & Maintenance Guide

Ensure power is off before connecting the cable. Align the connector pins correctly. Tighten the screws to secure the connection. Do not bend the cable beyond its minimum radius. Inspect the cable regularly for wear or damage. Replace if any physical defect is found.

Frequently Asked Questions (FAQ)

What is the primary function of 1794-CE1?

It serves as a FlexBus cable to connect FLEX I/O modules to a communication adapter.

What is the length of the 1794-CE1 cable?

The cable is 1 meter long.

Is the 1794-CE1 compatible with all FLEX I/O modules?

It is designed for Allen-Bradley FLEX I/O modules and adapters.

What is the operating temperature range for the 1794-CE1?

The cable operates between 0 and 60 degrees Celsius.

How should I install the 1794-CE1 cable?

Turn off power, align the connector, and secure with screws.
