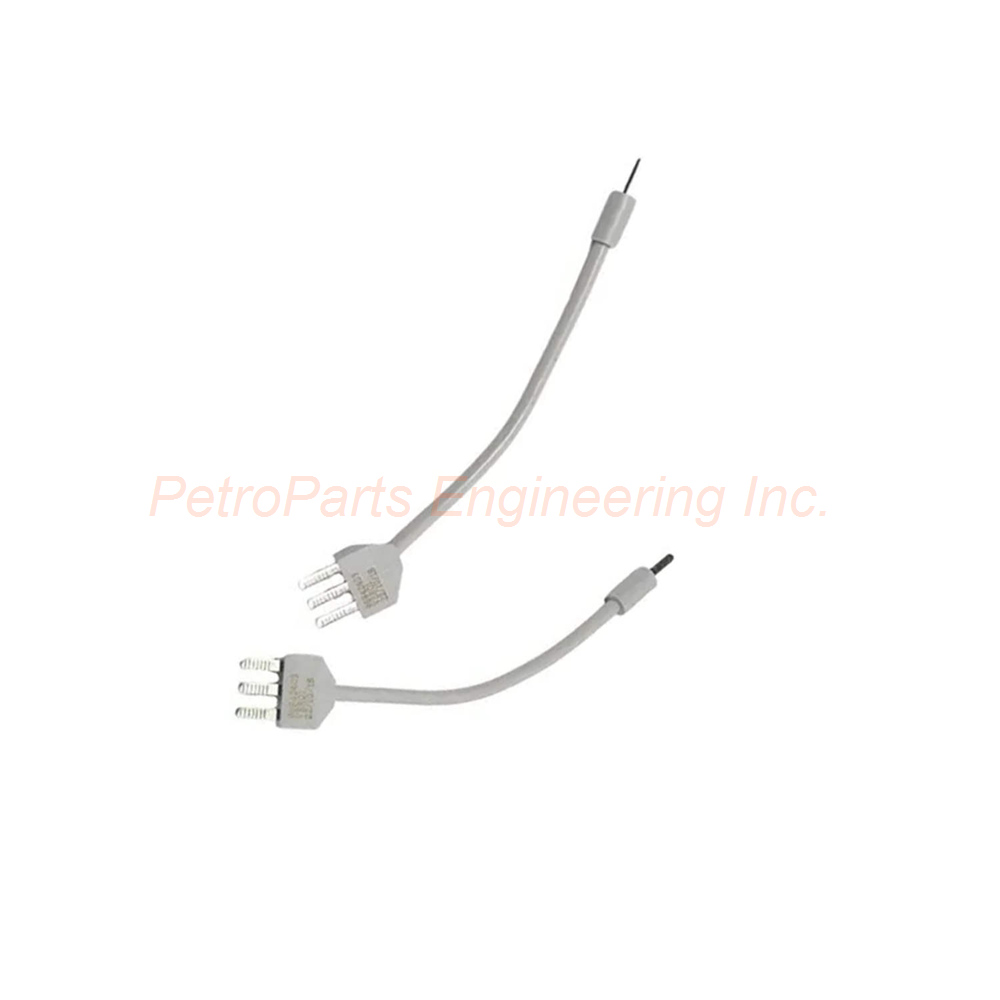

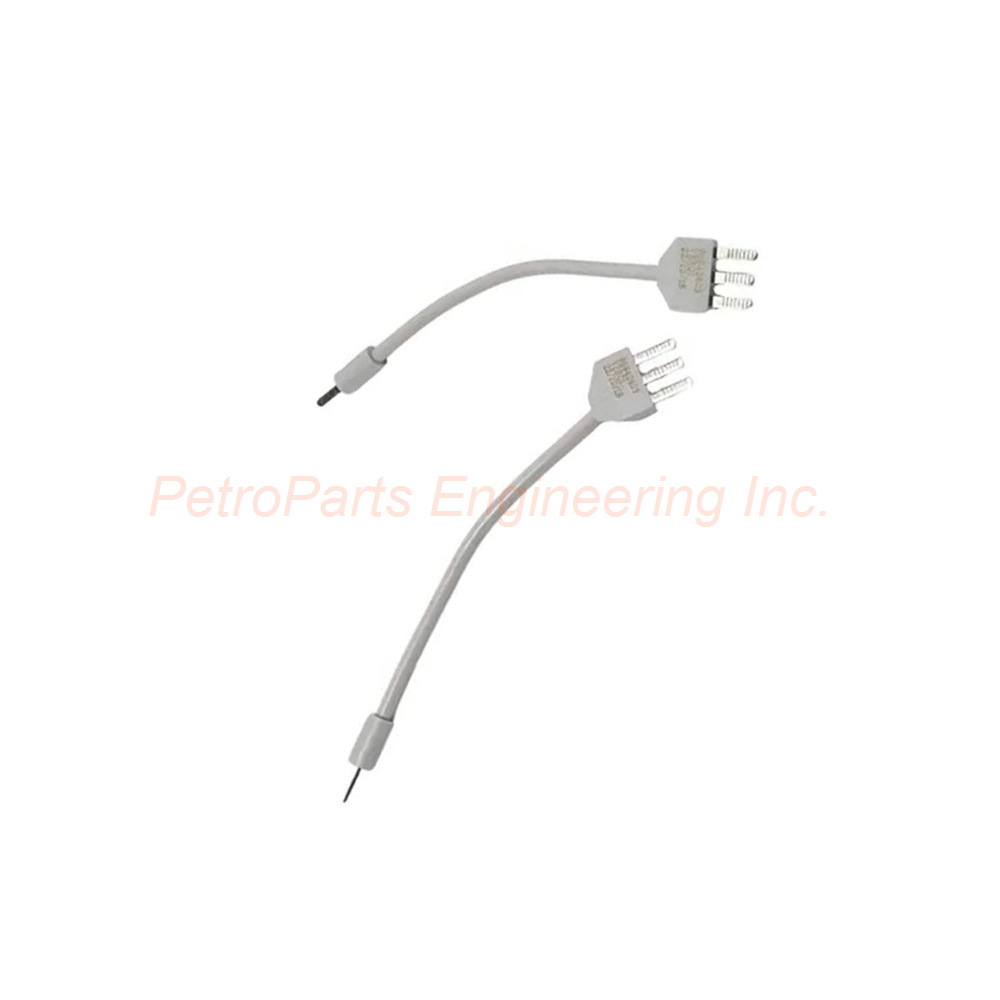

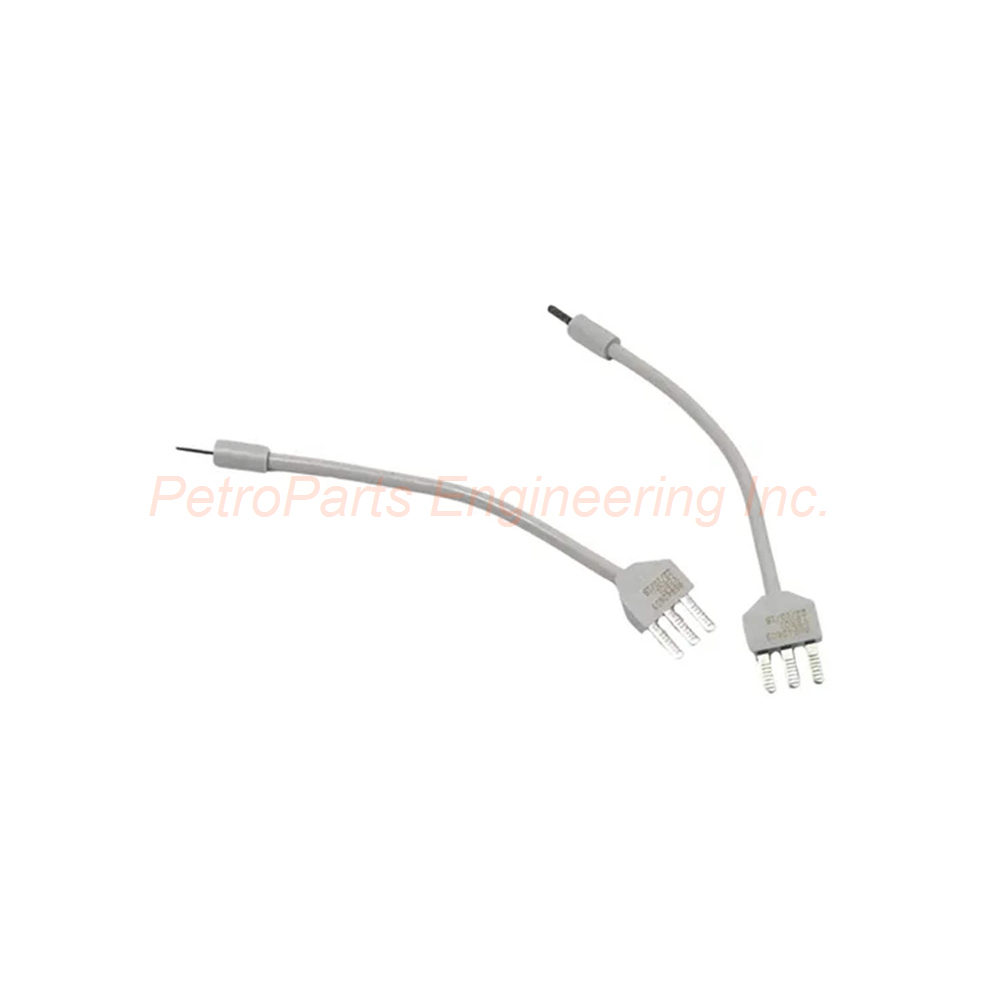

1794-CJC2 | Allen-Bradley Flex I/O Cold Junction Module
Introduction:
Cold junction compensation module for Flex I/O thermocouple input modules. Ensures accurate temperature measurement in industrial automation.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The 1794-CJC2 is a Cold Junction Compensation module from the Allen-Bradley Flex I/O series. It is designed to provide accurate temperature reference for thermocouple input modules. This module ensures reliable signal conditioning in industrial automation systems.
Application Scenarios
This module is used in applications requiring precise temperature measurement. Common sectors include process control, manufacturing, and material handling. It integrates with Flex I/O thermocouple modules to improve overall system accuracy.
Technical Specifications
- Product Type: Cold Junction Compensation Module
- Series: Flex I/O
- Compatibility: 1794 series thermocouple input modules
- Operating Temperature: Standard industrial range
- Mounting: DIN rail mount
Installation & Maintenance Guide
Install the module on a standard DIN rail. Ensure proper connection to the thermocouple input module. Follow the manufacturer wiring diagram for correct polarity. Regular inspection of connections is recommended. Replace the module if damaged or if calibration is lost.
Frequently Asked Questions (FAQ)
What is the primary function of 1794-CJC2?
It provides cold junction compensation for thermocouple input modules in the Flex I/O system.
Which modules are compatible with 1794-CJC2?
It is compatible with 1794 series thermocouple input modules.
What is the operating environment for this module?
It operates within standard industrial temperature and humidity ranges.
How is the 1794-CJC2 installed?
It mounts on a standard DIN rail and connects directly to the thermocouple input module.
Is the module hot-swappable?
No, power should be removed before installation or removal of the module.
