Product Overview

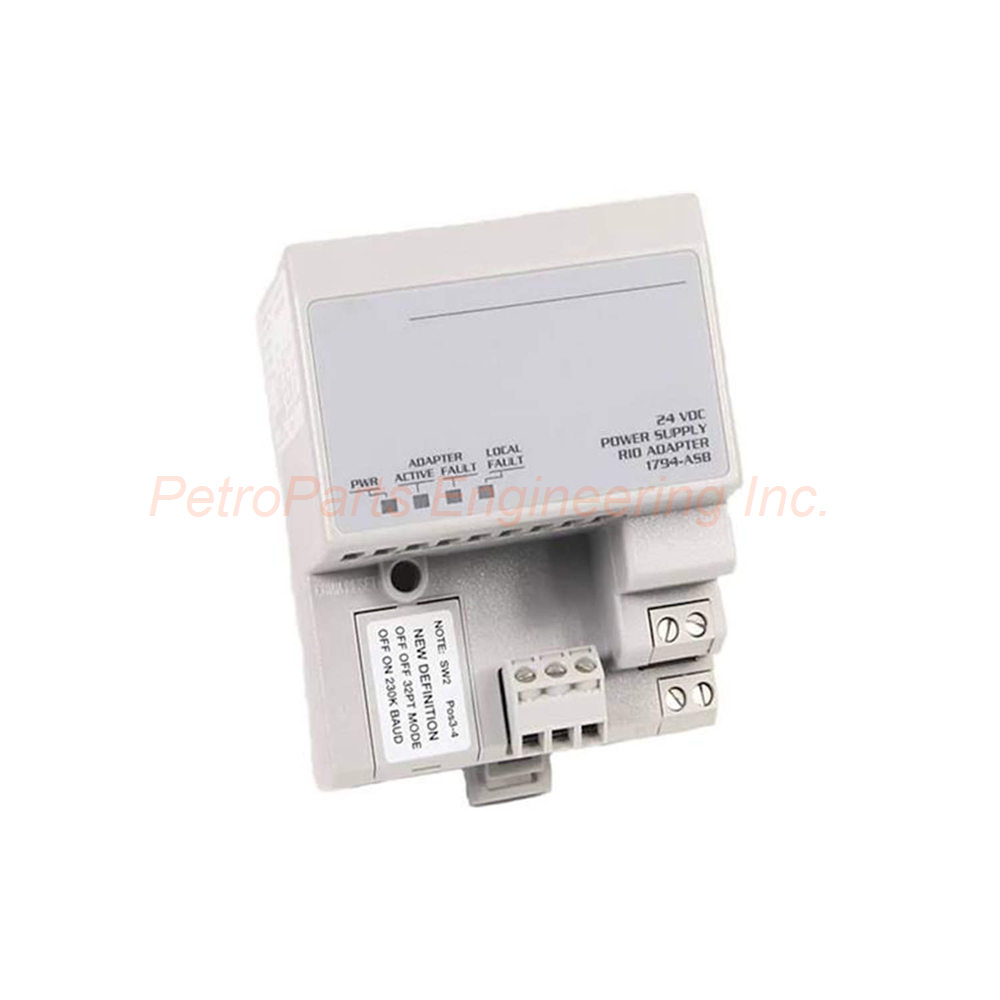

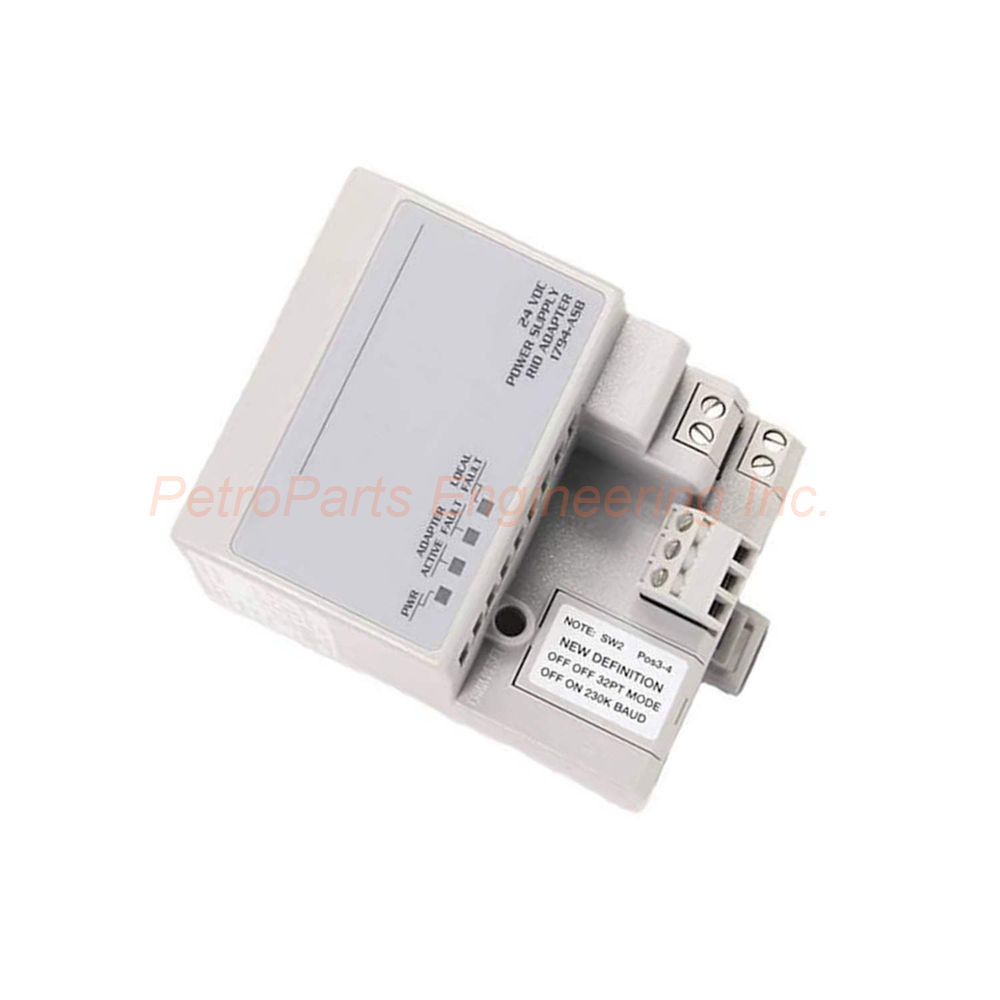

The 1794-ASB is an Allen-Bradley Flex I/O adapter module. It connects I/O modules to a network. This adapter supports remote I/O applications. It ensures reliable data transfer between controllers and field devices. The module is a key part of the Flex I/O system. It simplifies wiring and reduces installation costs. The adapter is designed for industrial environments. It offers robust performance and easy configuration. The module works with various Flex I/O modules. It provides seamless integration into existing systems. The 1794-ASB enhances system flexibility and scalability. It is a cost-effective solution for distributed I/O. The adapter supports high-speed communication. It ensures accurate data acquisition and control. The module is built for long-term reliability. It meets the demands of harsh industrial settings. The 1794-ASB is a trusted choice for automation engineers. It simplifies network architecture and reduces downtime.

Application Scenarios

This adapter module is used in manufacturing plants. It connects sensors and actuators to a control system. The module is ideal for material handling systems. It works well in packaging and assembly lines. The adapter is suitable for process control applications. It is used in water treatment facilities. The module supports remote monitoring of equipment. It is applied in oil and gas industries. The adapter is used in automotive production lines. It enables efficient data collection from field devices. The module is perfect for warehouse automation systems. It supports conveyor control and sorting applications. The adapter is used in food and beverage processing. It ensures precise control of production parameters. The module is employed in pharmaceutical manufacturing. It maintains strict quality standards. The adapter is versatile for many industrial sectors. It supports both discrete and analog I/O modules. The module enhances system reliability and uptime.

Technical Specifications

• Product Type: Flex I/O Adapter Module
• Communication Protocol: Remote I/O (RIO)
• Number of I/O Modules Supported: Up to 8
• Power Supply: 24V DC
• Operating Temperature: 0 to 55 °C
• Storage Temperature: -40 to 85 °C
• Relative Humidity: 5 to 95% non-condensing
• Enclosure Type: Open-style
• Wiring: Removable terminal blocks
• Indicators: Module status and network status LEDs
• Mounting: DIN rail or panel mount
• Dimensions: 87 x 94 x 69 mm
• Weight: 0.2 kg

Installation & Maintenance Guide

Mount the module on a DIN rail. Ensure proper grounding for noise immunity. Connect the power supply to the correct terminals. Wire the communication cable to the network port. Install I/O modules on the same backplane. Configure the adapter using the appropriate software. Check the status LEDs for proper operation. Perform regular inspections for dust and debris. Keep the module in a clean, dry environment. Follow all local electrical codes during installation. Use shielded cables for long-distance runs. Test the network communication after setup. Replace the module if the status LED shows a fault. Document the configuration for future reference. Train operators on basic troubleshooting steps. Keep spare modules on hand for quick replacement. Use only approved replacement parts from the manufacturer. Follow the manufacturer's guidelines for maintenance intervals. The adapter is designed for minimal maintenance. Regular checks ensure long service life. Always disconnect power before servicing the module.

Frequently Asked Questions (FAQ)

What is the primary function of the 1794-ASB adapter module?

The 1794-ASB serves as a communication adapter for Allen-Bradley Flex I/O systems. It connects up to eight I/O modules to a remote I/O network. This allows controllers to communicate with field devices efficiently.

Which I/O modules are compatible with the 1794-ASB?

The adapter works with all standard Flex I/O modules. These include discrete input, discrete output, analog input, and analog output modules. The adapter supports a mix of module types on the same backplane.

What is the maximum distance for the remote I/O communication cable?

The maximum cable length depends on the network configuration and cable type. For typical installations using Belden 9463 cable, the maximum distance is 3048 meters (10000 feet). Always refer to the network design guidelines for specific limits.

Can the 1794-ASB be used in hazardous locations?

The standard module is not rated for hazardous locations. For such environments, use the 1794-ASBx variant with appropriate hazardous location certifications. Always verify the module's approval markings before installation.

How do I troubleshoot a communication fault with the adapter?

First, check the module status and network status LEDs. A steady green status LED indicates normal operation. If the LED is flashing or red, verify the power supply and cable connections. Ensure the network terminator is properly set. Consult the user manual for detailed troubleshooting steps.
