Product Overview

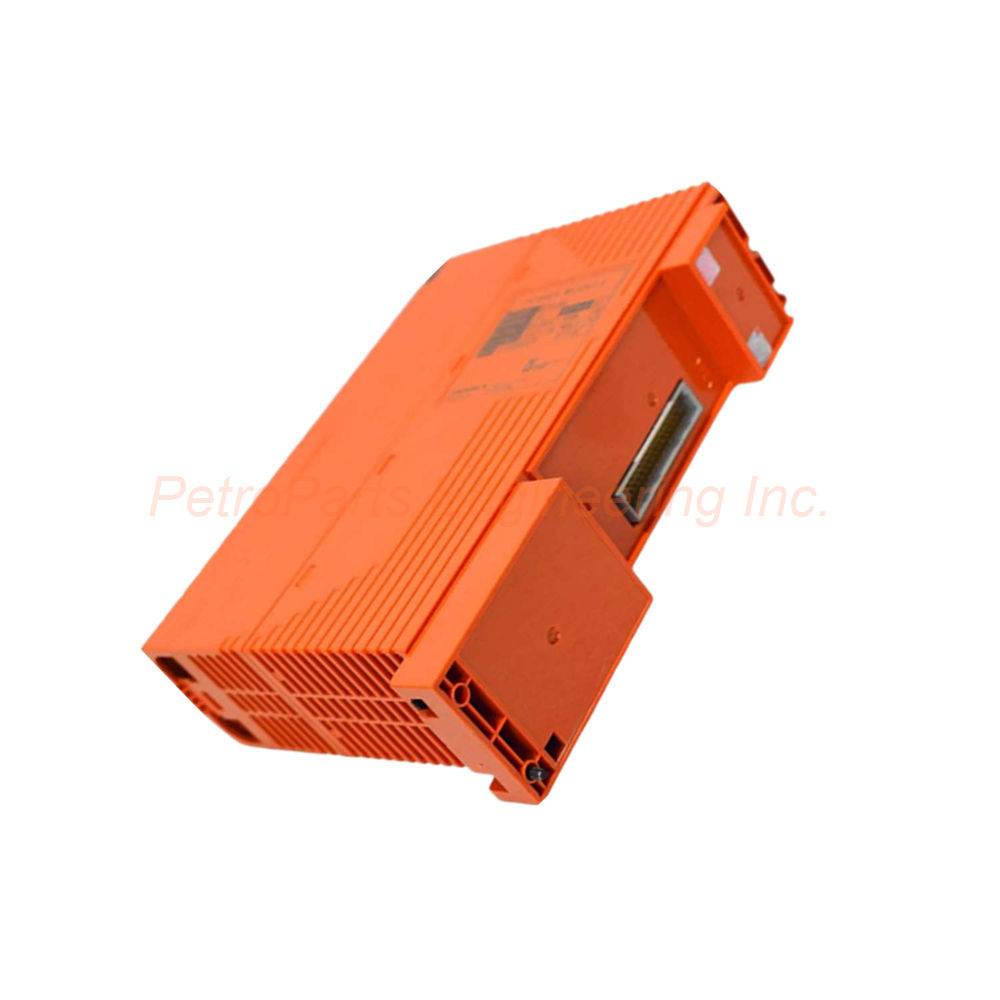

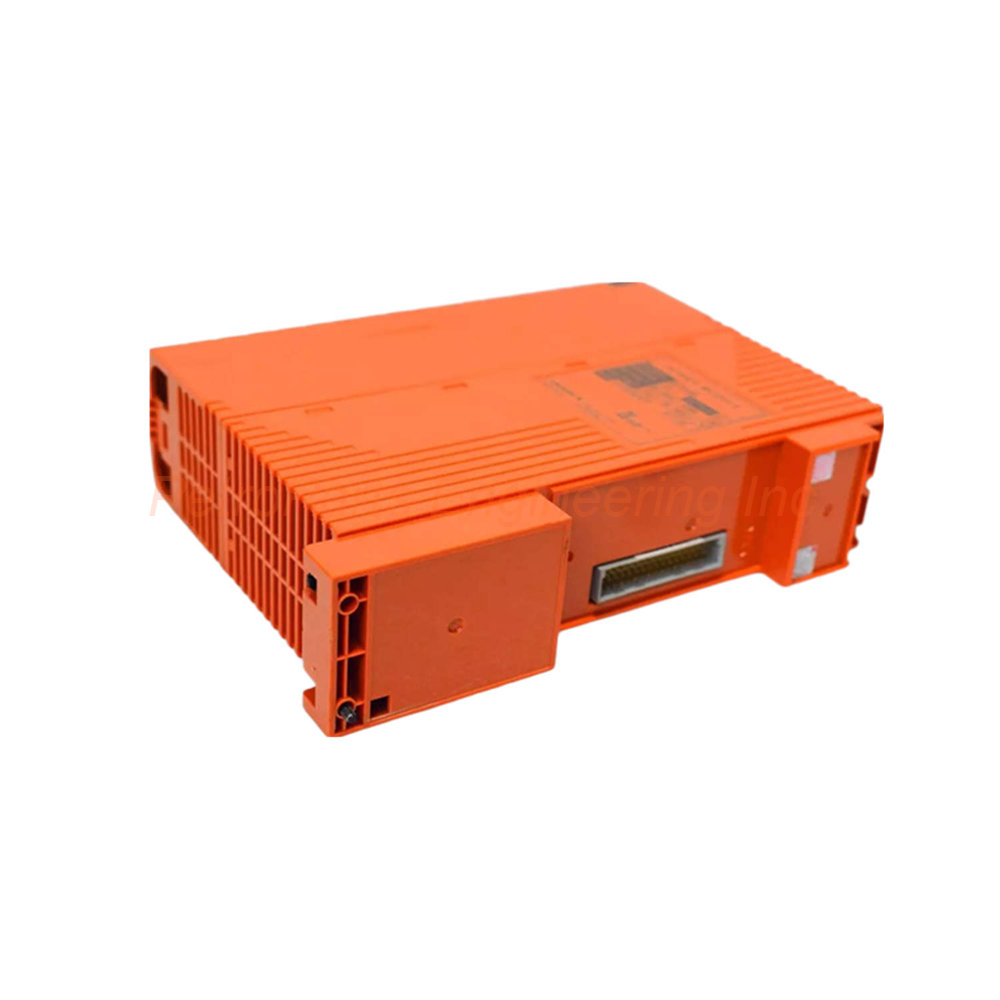

The Yokogawa SPW482-53 is a power supply module for Field Control Units. It connects to a 100-120V AC or 220-240V AC main source. The unit also accepts 24V DC input for flexible installation. The Yokogawa SPW482-53 supplies insulated +5V and +24V to each I/O module through the backboard. Users trust this module for reliable power distribution in Yokogawa systems.

Technical Specifications

The SPW482-53 delivers robust power with dual-redundant capability. Below are the complete technical details.

General Specifications

• Manufacturer: Yokogawa for industrial automation reliability.

• Product Type: Power Supply Module for Field Control Unit and Node Unit.

• Product Number: SPW482-53 for precise identification.

• Product Code Breakdown: SPW482 = Power Supply Module for FCU and Node Unit.

• Type Code (5): Standard type with no explosion protection.

• Option Code (3): With ISA Standard G3 and temperature (-20 to 70°C).

• Weight: 0.34 Kg for lightweight installation.

Input Power Specifications

• Input Source: 100 to 120V AC or 220 to 240V AC or 24V DC.

• Terminal L (+): Line connection for power input.

• Terminal N (-): Neutral connection for power input.

• Grounding Terminal: For proper earth grounding.

Output Power Specifications

• Output Voltage 1: Insulated +5V to each installed I/O module.

• Output Voltage 2: Insulated +24V to each installed I/O module.

• Output Distribution: Through the backboard to all I/O modules.

• Redundancy Feature: Supports dual-redundant insulated output operation.

• Redundancy Benefit: Two modules can work together for high availability.

Status LEDs

• SYS LED (System): Lamp is ON when +5V is output properly.

• SYS LED OFF: Indicates +5V output is not functioning correctly.

• FLD LED (Field): Lamp is ON when +24V is output properly.

• FLD LED OFF: Indicates +24V output is not functioning correctly.

• Visual Diagnostics: Quick status check at a glance.

Check Terminal for Maintenance

• Check Terminal Function: Measure output voltages for maintenance purposes.

• +5V DC Measurement: Available at the designated check terminal.

• +24V DC Measurement: Available at the designated check terminal.

• Maintenance Benefit: Easy voltage verification without disconnecting wires.

Environmental Specifications (Option 3)

• ISA Standard G3: Compliant with harsh environment protection.

• Operating Temperature: -20°C to +70°C for extended range.

• Application Suitability: Ideal for demanding industrial locations.

Installation Guide

Follow these steps to install the Yokogawa SPW482-53 correctly.

1. Power Down the System: Turn off all power to the Field Control Unit.

2. Locate the Slot: Find the designated power supply slot in the FCU or Node Unit.

3. Insert the Module: Slide the SPW482-53 into the slot until it seats properly.

4. Secure the Module: Fasten any retaining screws or latches.

5. Connect AC Power: Wire the Line (L+) and Neutral (N-) to the input terminals.

6. Connect Ground: Attach a grounding wire to the grounding terminal.

7. Apply Main Power: Turn on the 100-240V AC or 24V DC source.

8. Check Status LEDs: Verify the SYS and FLD LEDs both turn ON.

9. Measure Check Terminal: Use a voltmeter at the check terminal to confirm +5V and +24V.

10. Test Redundancy (if dual): For redundant systems, install a second SPW482 module.

11. Verify I/O Power: Confirm all I/O modules receive proper power.

Installation Notes

• The standard type has no explosion protection (code 5).

• This unit includes ISA Standard G3 protection for harsh environments.

• Operating temperature range is -20°C to +70°C for this option.

• The check terminal allows maintenance without disconnecting wires.

• Dual-redundant operation requires two power supply modules.

Packaging List

This unit ships as a new and original product.

• Yokogawa SPW482-53 Power Supply Module

• Terminal connector block

• Product data sheet

• Anti-static factory packaging box

Frequently Asked Questions (FAQ)

1. What input voltages does the SPW482-53 accept?
The Yokogawa SPW482-53 accepts 100 to 120V AC, 220 to 240V AC, or 24V DC. This flexibility suits various industrial power configurations.

2. What output voltages does this power supply provide?
The SPW482-53 provides insulated +5V and +24V outputs. These supply power to I/O modules through the system backboard.

3. What does the SYS LED indicate on this module?
The SYS LED on Yokogawa SPW482-53 turns ON when the +5V output is proper. If the lamp is OFF, the +5V output has failed.

4. What is the operating temperature range for this model?
The SPW482-53 with option code 3 operates from -20°C to +70°C. It also complies with ISA Standard G3 for harsh environments.

5. Can I use two SPW482-53 modules for redundancy?
Yes, the Yokogawa SPW482-53 supports dual-redundant insulated output operation. Two modules can work together for high system availability.
