Product Overview

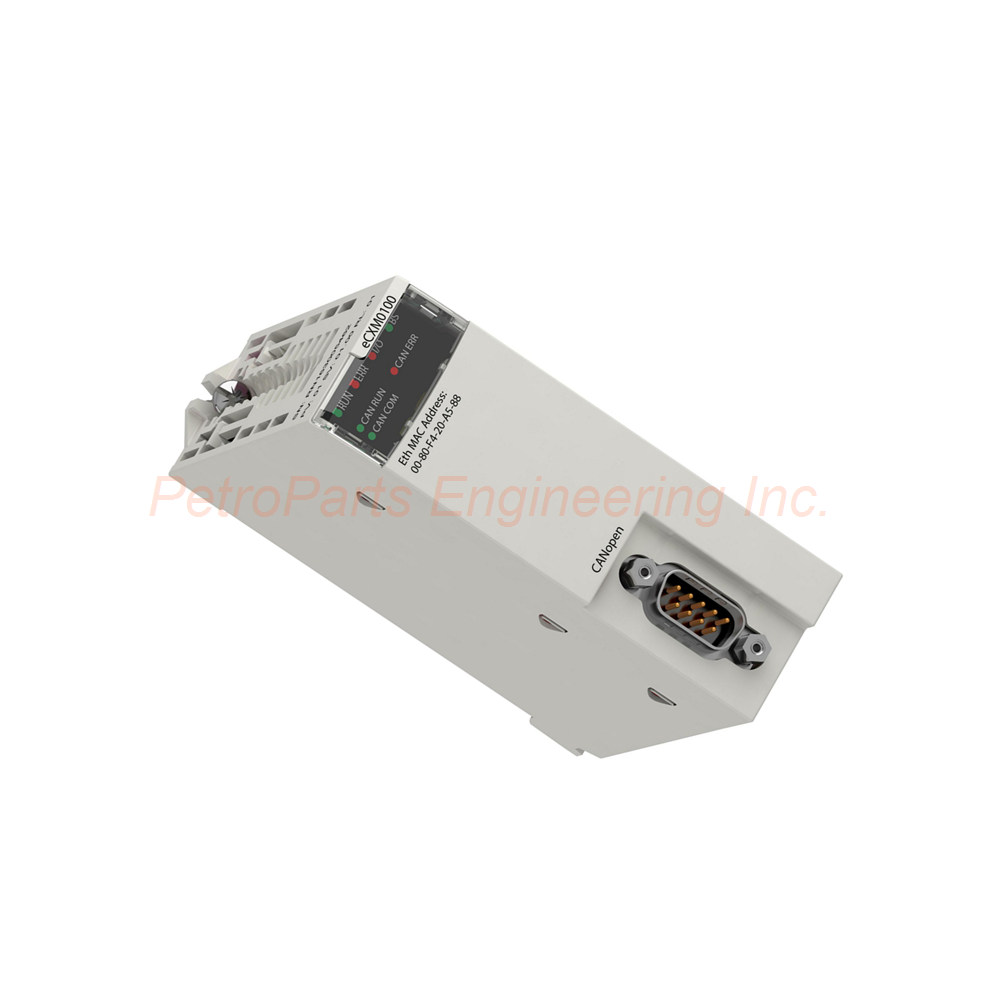

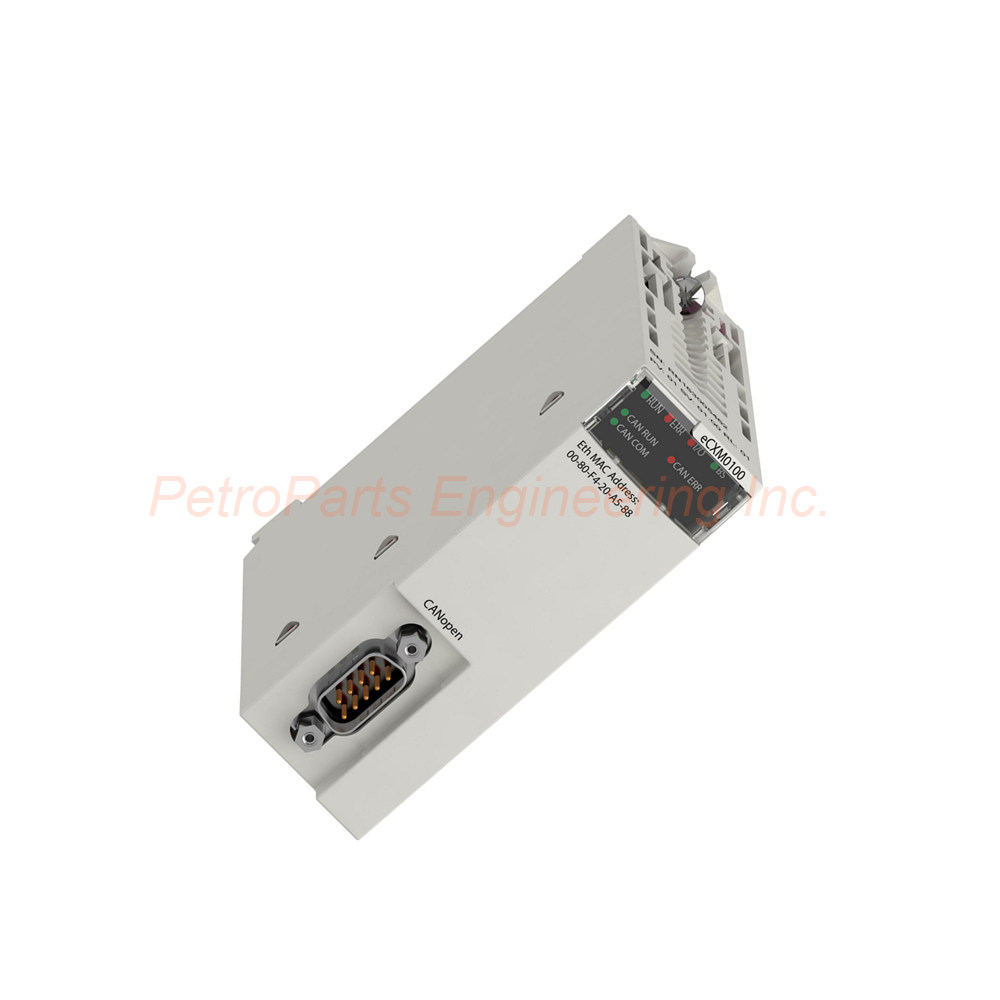

The Schneider BMECXM0100H belongs to the Modicon X80 range of automation products. This module provides open industrial fieldbus communication for M580 PLCs. The Schneider BMECXM0100H uses NRZ transmission mode for reliable data exchange. You get a Profibus DP twisted shielded pairs cable as the transmission support medium. The module supports up to 63 server devices on the network. The Schneider BMECXM0100H has conformal coating for harsh environment protection.

Technical Specifications

The Schneider BMECXM0100H delivers reliable CANopen and Profibus DP communication for Modicon systems. All parameters follow the official datasheet.

Communication Specifications

• Structure type: Open industrial fieldbus

• Physical interface: DB9 connector

• Mode of transmission: NRZ

• Transmission support medium: Profibus DP twisted shielded pairs cable

• Number of server devices: 63

• Communication service: Implicit exchange of process data at -20°C to 70°C

• Integrated connection type: Profibus DP - 1 SUB-D 9-pin female

Transmission Rates & Distances

The Schneider BMECXM0100H supports multiple baud rates with corresponding maximum distances:

• 9.6 kbit/s: 1200 m (3937 ft)

• 19.2 kbit/s: 1200 m (3937 ft)

• 93.75 kbit/s: 1200 m (3937 ft)

• 187.5 kbit/s: 1000 m (3281 ft)

• 500 kbit/s: 400 m (1312 ft)

• 1.5 Mbit/s: 200 m (656 ft)

• 3 Mbit/s: 100 m (328 ft)

• 12 Mbit/s: 100 m (328 ft)

Power & Current

• Rated supply voltage: 24 V DC internal

• Current consumption: 70 mA

• Module format: Standard

• The Schneider BMECXM0100H draws power directly from the backplane.

Environmental Specifications

• Ambient air temperature for operation: -25°C to 70°C (-13°F to 158°F)

• Ambient air temperature for storage: -45°C to 85°C (-49°F to 185°F)

• Relative humidity: 10 to 95 percent

• Operating altitude: ≤ 2000 m (6562 ft)

• Protective treatment: Conformal coating

Certifications & Directives

• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC), 2014/34/EU (ATEX)

• Product certifications: CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, IECEx zone 2/22

• Standards: EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5 interface type 1 and type 2, EN/IEC 61850-3 location G, EN/IEC 60079-0

Environmental Characteristics

• Gas resistant class: Gx ISA S71.04, 3C4 IEC 60721-3-3

• Dust resistant class: 3S4 IEC 60721-3-3

• Sand resistant class: 3S4 IEC 60721-3-3

• Salt resistant level: 2 IEC 68252

• Mold growth resistant class: 3B2 IEC 60721-3-3

• Fungal spore resistant class: 3B2 IEC 60721-3-3

• Hazardous location: Class I division 2

Physical Specifications

• Product weight: 0.4 lb (0.2 kg) net

• Country of origin: CA (Canada)

• GTIN: 3606485407159

• Returnability: No

Packaging Details

• Unit type of package 1: PCE (1 unit per package)

• Package 1 height: 2.17 in (5.500 cm)

• Package 1 width: 4.45 in (11.300 cm)

• Package 1 length: 4.65 in (11.800 cm)

• Package 1 weight: 6.843 oz (194.000 g)

• Unit type of package 2: S02 (15 units)

• Package 2 height: 5.91 in (15.000 cm)

• Package 2 width: 11.81 in (30.000 cm)

• Package 2 length: 15.75 in (40.000 cm)

• Package 2 weight: 7.130 lb (3.234 kg)

Installation Guide

Follow these steps to install the Schneider BMECXM0100H correctly.

1. Power down your Modicon M580 or X80 rack before insertion.

2. Align the BMECXM0100H with the correct slot in the rack.

3. Slide the module firmly into place until fully seated.

4. Connect the Profibus DP cable to the SUB-D 9-pin female DB9 connector.

5. Set the transmission rate between 9.6 kbit/s and 12 Mbit/s for your network.

6. Verify total cable length does not exceed the distance for your baud rate.

7. Apply power and configure up to 63 server devices on the Schneider BMECXM0100H.

Packing List

This package for the Schneider BMECXM0100H includes the following items.

• Schneider BMECXM0100H CANopen communication module (one unit)

• SUB-D 9-pin female DB9 connector (pre-installed)

• Product documentation and quick start guide

• Anti-static protective bag

Frequently Asked Questions (FAQ)

1. What PLCs are compatible with the BMECXM0100H?
The Schneider BMECXM0100H is compatible with M580 PLCs. It belongs to the Modicon X80 range of automation products.

2. What is the maximum number of server devices on the BMECXM0100H?
The Schneider BMECXM0100H supports up to 63 server devices. This provides ample capacity for most industrial fieldbus networks.

3. What is the maximum transmission rate of the BMECXM0100H?
The maximum transmission rate is 12 Mbit/s for the Schneider BMECXM0100H. At this rate, the maximum cable length is 100 meters.

4. What certifications does the Schneider BMECXM0100H hold?
The Schneider BMECXM0100H holds CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX zone 2/22, and IECEx zone 2/22 certifications.

5. What is the operating temperature range for the BMECXM0100H?
The Schneider BMECXM0100H operates from -25°C to 70°C (-13°F to 158°F). Storage temperature ranges from -45°C to 85°C (-49°F to 185°F).
