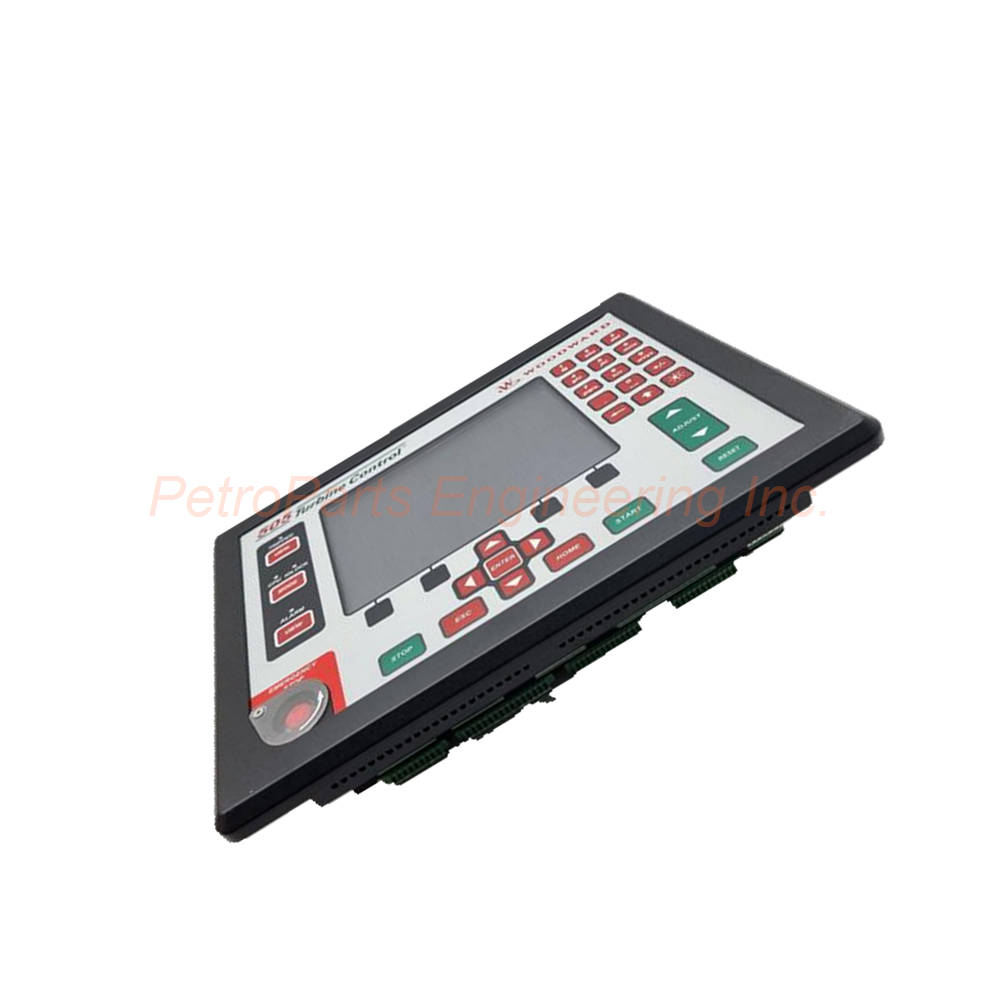

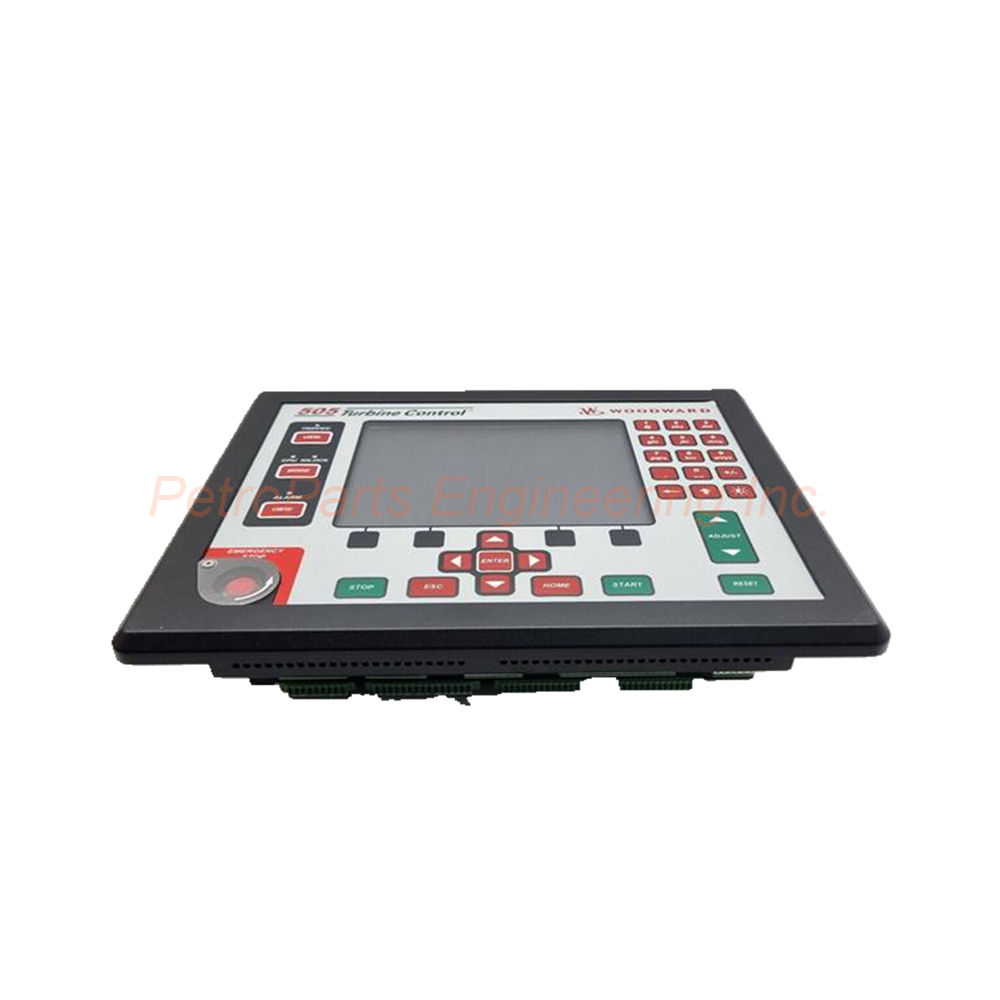

Woodward 8200-1302 Flex505 Controller Overview

The Woodward 8200-1302 is a significant upgrade to the existing 505 product line. This Flex505 controller features an enhanced CPU, graphical display, and improved communications. The Woodward 8200-1302 has the same installation and mounting as the current 505 series. It is compliant with Marine and ATEX standards for hazardous environments. This controller supports expanded I/O options when using Woodward CAN distributed I/O nodes. Compatible distributed I/O nodes include RTCnet and LINKnet HT. The Woodward 8200-1302 operates reliably from -30°C to +70°C with display active.

Technical Specifications

General Specifications

• Model: 8200-1302.

• Product Series: Flex505 (505 Product Line Upgrade).

• Compliance: Marine and ATEX.

• Display: 8.4" LCD with 800x600 resolution and keypad.

• Operating Temperature: -30°C to +70°C (with display).

• Mounting: Same as current 505 series.

Power Supply Options

The Woodward 8200-1302 offers two isolated input power options:

• LV (Low Voltage) Input Power: 18-36 Vdc input, isolated.

• HV (High Voltage) Input Power: 88-264 Vac / 90-150 Vdc, isolated.

• LVDC Operating Range: 18-32 Vdc for marine/ATEX compliance.

Communication Ports (All Isolated)

• Ethernet Ports: 4 ports, 10/100 Mbit, isolated.

• CAN Ports: 4 ports, 1 Mbit, isolated (supports RTCnet and LINKnet HT).

• RS-232/RS-485 Port: 1 port, isolated.

• RS-232 Service Port: 1 port, isolated.

I/O Circuits

• Configurable Update Rates: GAP configurable from 5 ms to 160 ms.

• Speed Sensor Inputs: 2 inputs (MPU/Prox with Prox Power).

• Analog Inputs: 8 channels, 4-20 mA (with Loop Power).

• Analog Outputs: 6 channels, 4-20 mA.

• Actuator Output Channels: 2 channels (configurable 4-20 mA / 20-200 mA).

• Discrete Inputs: 20 channels (with Contact Power).

• Relay Outputs: 8 outputs (form-c).

Physical Specifications

• Product Net Weight: 3.8 kg.

• Gross Weight: 4.5 kg (with packaging).

• Display Size: 8.4 inches diagonal.

• Display Resolution: 800 x 600 pixels.

Installation Guide

Follow these steps to install the Woodward 8200-1302 correctly:

1. Ensure all power sources are disconnected before starting installation.

2. Mount the Woodward 8200-1302 using the same mounting pattern as existing 505 controllers.

3. Connect LV power supply (18-36 Vdc) or HV power (88-264 Vac) to isolated inputs.

4. Wire speed sensors to the 2 MPU/Prox input channels.

5. Connect analog and discrete field devices to the I/O terminals.

6. Configure Ethernet and CAN communication ports for network integration.

7. Set I/O update rates between 5 ms and 160 ms using GAP configuration.

8. Test all 20 discrete inputs and 8 relay outputs on the Woodward 8200-1302 before operation.

Packaging List

• Woodward 8200-1302 Flex505 controller (1 unit)

• 8.4" LCD display with keypad (integrated)

• Installation and configuration manual (1 copy)

• Communication cable kit (1 set)

• Terminal block connectors for I/O (1 set)

Frequently Asked Questions (FAQ)

1. What is the operating temperature range of the Woodward 8200-1302?
The Woodward 8200-1302 operates reliably from -30°C to +70°C with the display active.

2. Does this controller support distributed I/O expansion?
Yes, this controller supports expanded I/O using Woodward CAN distributed I/O nodes including RTCnet and LINKnet HT.

3. How many Ethernet communication ports does the Flex505 have?
The Woodward 8200-1302 provides 4 isolated Ethernet 10/100 communication ports.

4. What are the low voltage input power options?
The LV input power range is 18-36 Vdc isolated, with marine/ATEX compliance at 18-32 Vdc.

5. Is the 8200-1302 backward compatible with existing 505 mounting?
Yes, the Woodward 8200-1302 has the same installation and mounting pattern as the current 505 series.
