Product Overview

The Woodward 5464-648 is an analog 8-channel output module. This device generates 4-20mA current signals for process control. It works in gas turbine control systems from Woodward. The module interfaces with PLCs or DCS systems. You can use it to control valves, positioners, and actuators.

Technical Specifications

The Woodward 5464-648 has eight independent analog output channels. Each channel provides a 4-20 mA current signal. The module dimensions are 16cm x 16cm x 12cm. It weighs 0.91 kg and comes from the United States.

Key technical parameters include:

• Number of Channels: 8 (independent)

• Signal Type: 4-20 mA current loop

• Voltage Range Alternative: 0-10V (configurable)

• Communication Protocols: Modbus, Profibus, EtherCAT

• Electrical Isolation: Yes (between channels and system)

The module provides defined resolution for fine control. Higher resolution means more precise output adjustments.

Functional Features

The 5464-648 offers configurable output ranges. You can set scaling factors for each channel independently. The module supports both current and voltage signals. This flexibility suits many field devices and applications.

Key functional features include:

• 8 independent channels: Control up to eight devices

• Configurable output ranges: Match your field devices

• Scaling factors: Engineering units conversion

• Diagnostic features: Signal quality and fault detection

• Status LEDs: Visual indication of module health

The module includes diagnostic features for output monitoring. Signal quality checks ensure reliable operation. Fault detection alerts you to any channel problems.

Communication and Integration

The Woodward 5464-648 supports standard industrial protocols. Modbus works for most PLC and SCADA systems. Profibus integrates with Siemens and other automation platforms. EtherCAT provides high-speed communication for demanding applications.

Programming happens through manufacturer software tools. You can set output ranges and scaling factors digitally. The module integrates easily into Woodward gas turbine systems. It also works with third-party PLC and DCS controllers.

Electrical Isolation and Protection

The 5464-648 provides electrical isolation for safety. Isolation exists between input power and output signals. It also separates the control system from field wiring. This prevents voltage spikes from damaging your controller. Ground loops are eliminated through proper isolation design.

Isolation benefits include:

• Protection for your PLC or DCS inputs

• Elimination of ground loop errors

• Improved signal integrity in noisy plants

• Safety for maintenance personnel

Installation Guidelines

Follow these steps for proper installation:

1. Mount the 5464-648 in a clean, dry control cabinet.

2. Connect the module to your PLC or DCS via Modbus or Profibus.

3. Wire each 4-20mA channel to your field device (valve, actuator, etc.).

4. Configure output ranges and scaling factors using Woodward software.

5. Test each channel with a current meter before connecting to loads.

6. Verify diagnostic LEDs show normal operation after startup.

Use shielded twisted-pair cables for analog outputs. Ground the shield only at the module end. Do not exceed the maximum loop resistance for 4-20mA operation.

Package Contents

The box includes the following items:

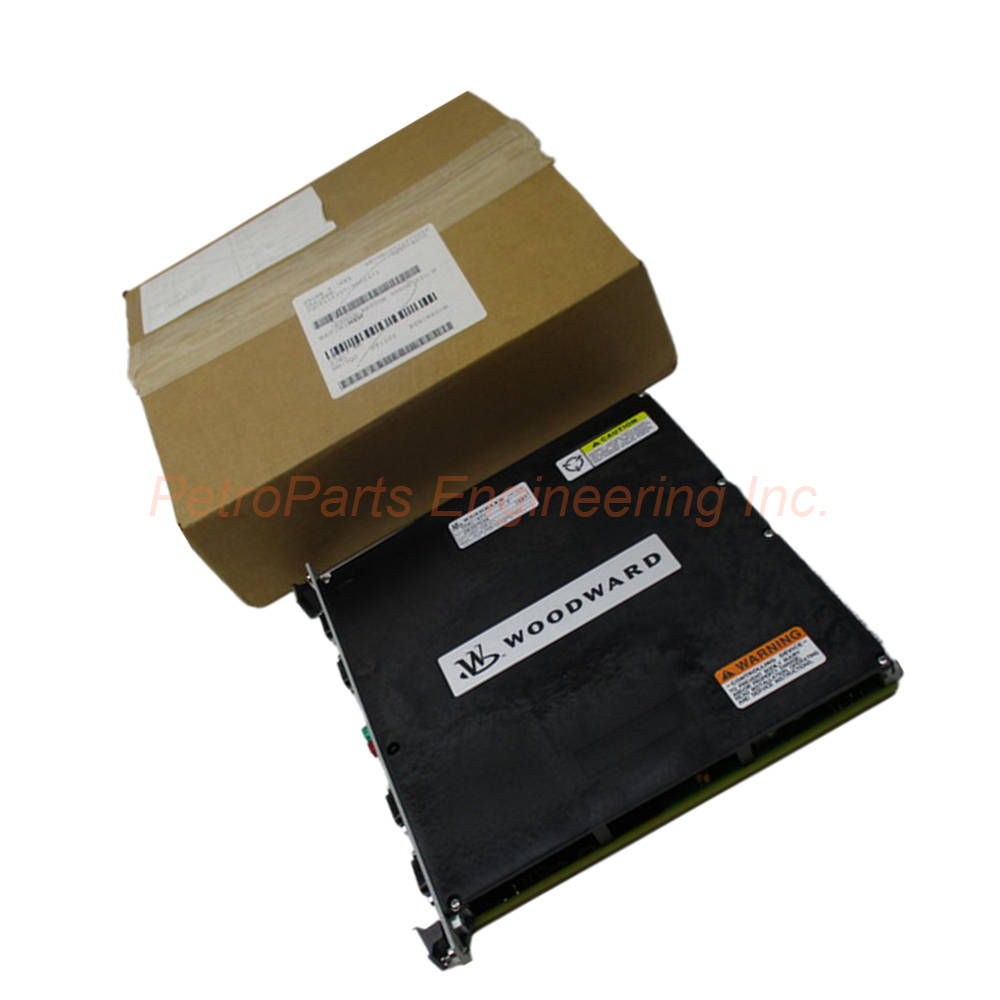

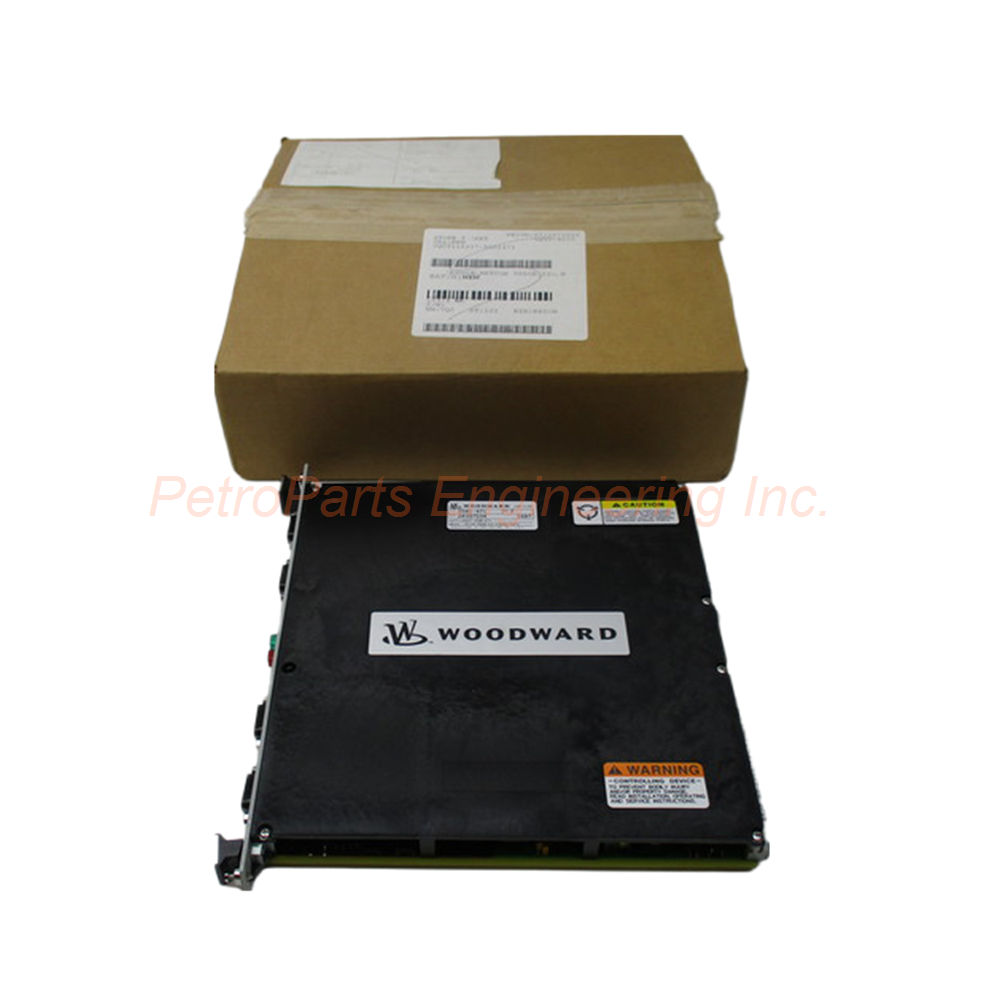

• Woodward 5464-648 analog 8-channel output module

• Mounting brackets and screws

• Terminal block connectors for all eight channels

• Configuration software CD (or download card)

• Quick start guide (printed)

• Cable shielding clamp kit

Common FAQs

Q1: What types of signals does the 5464-648 produce?
A: The 5464-648 produces 4-20 mA current signals. It can also generate 0-10V voltage outputs if configured for that mode.

Q2: How many channels does this analog output module have?
A: This module provides 8 independent analog output channels. Each channel controls a separate field device or process loop.

Q3: What communication protocols work with the 5464-648?
A: The 5464-648 supports Modbus, Profibus, and EtherCAT. This allows integration with most PLC and DCS systems.

Q4: Does this module provide electrical isolation between channels?
A: Yes, the 5464-648 includes electrical isolation. This protects your control system from field wiring faults and noise.

Q5: What application is this module designed for?
A: The 5464-648 is designed for gas turbine control systems. It also works in general industrial automation applications.

Dimensions and Environment

The product has these physical specifications:

• Part Number: 5464-648

• Manufacturer: Woodward

• Dimensions: 16cm x 16cm x 12cm

• Weight: 0.91 kg

• Country of Origin: United States

• Signal Type: 4-20 mA (8 channels)

• Communication: Modbus, Profibus, EtherCAT

• Configuration: Software programmable

The Woodward 5464-648 analog output module delivers reliable 4-20mA control. Its eight channels and electrical isolation suit gas turbine applications. Order the 5464-648 for your Woodward control system expansion.
