VFD4A2MS43ANSAA | Delta MS300 Drive Supplier
Introduction:

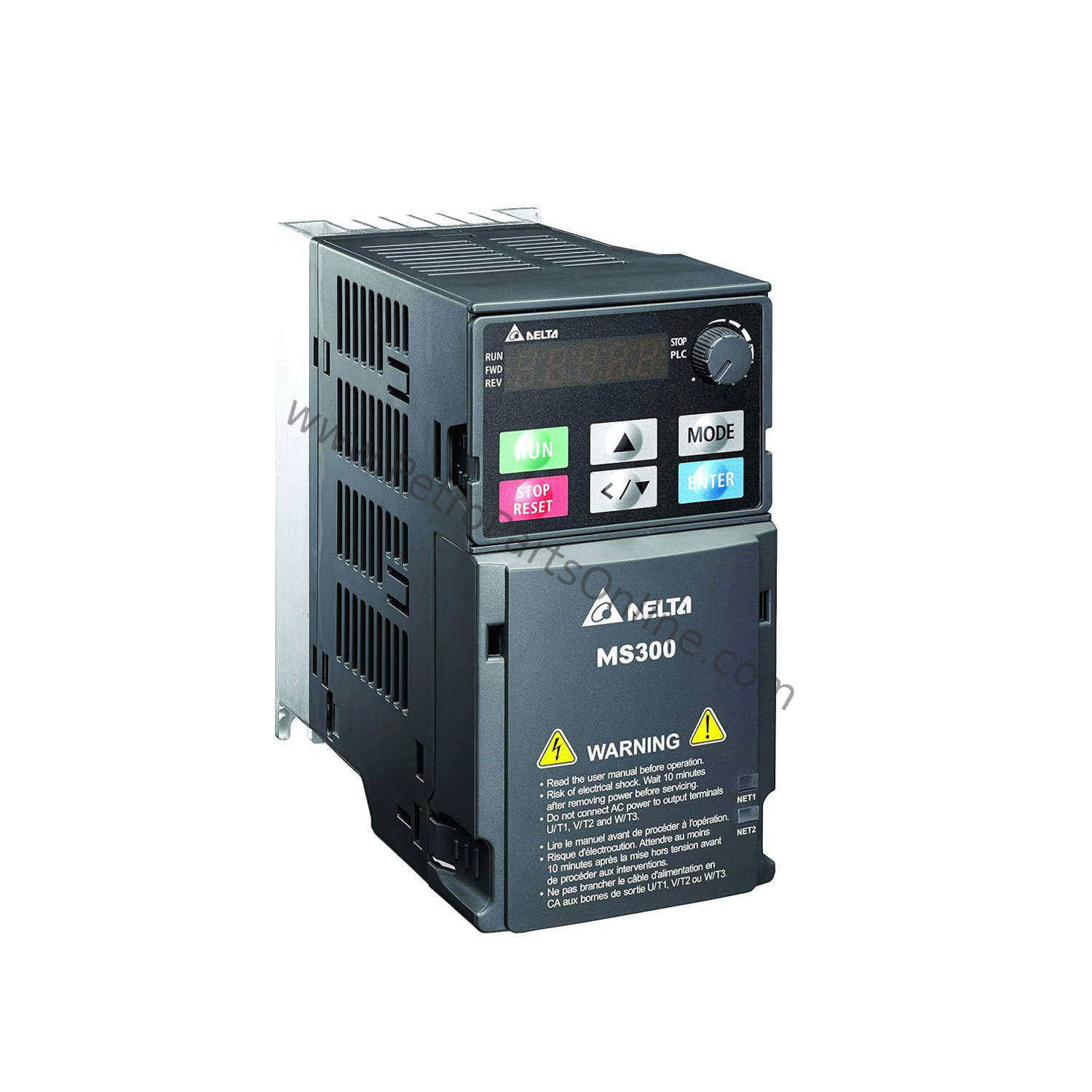

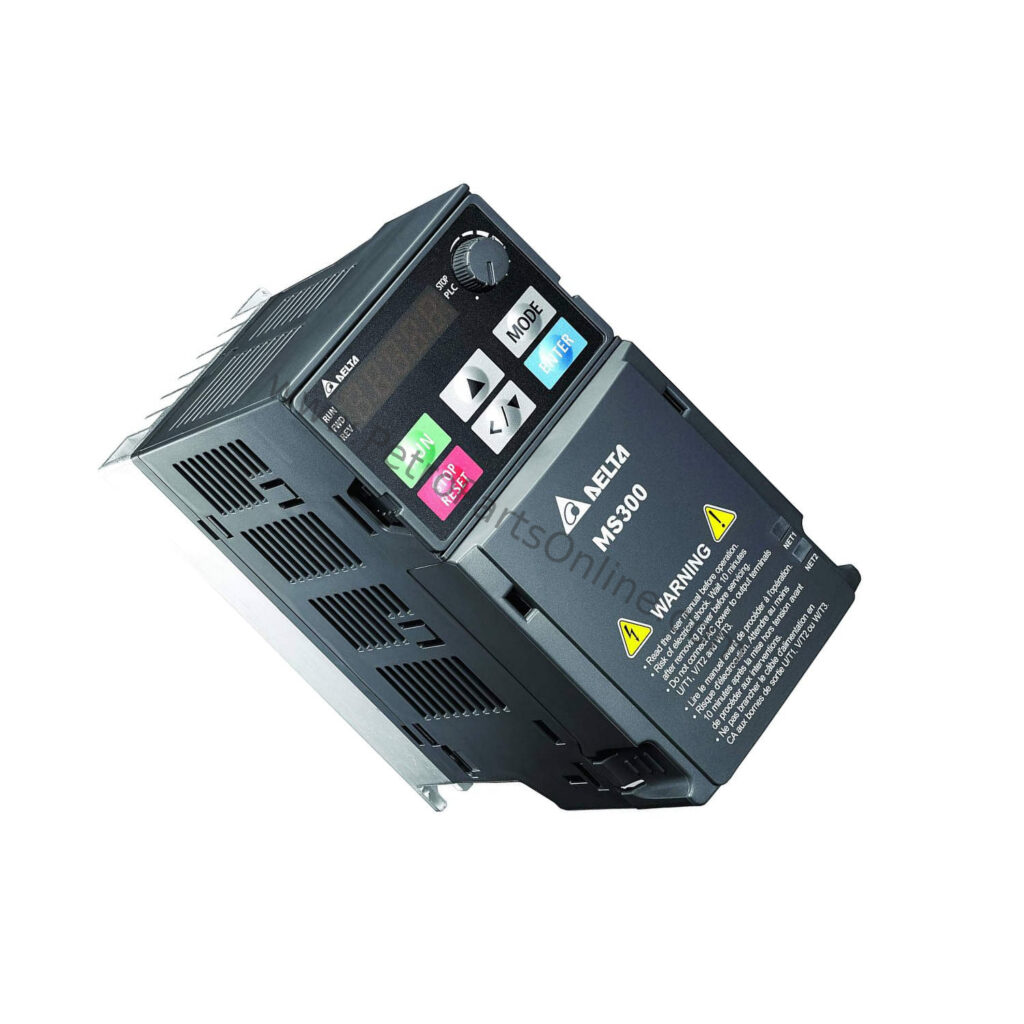

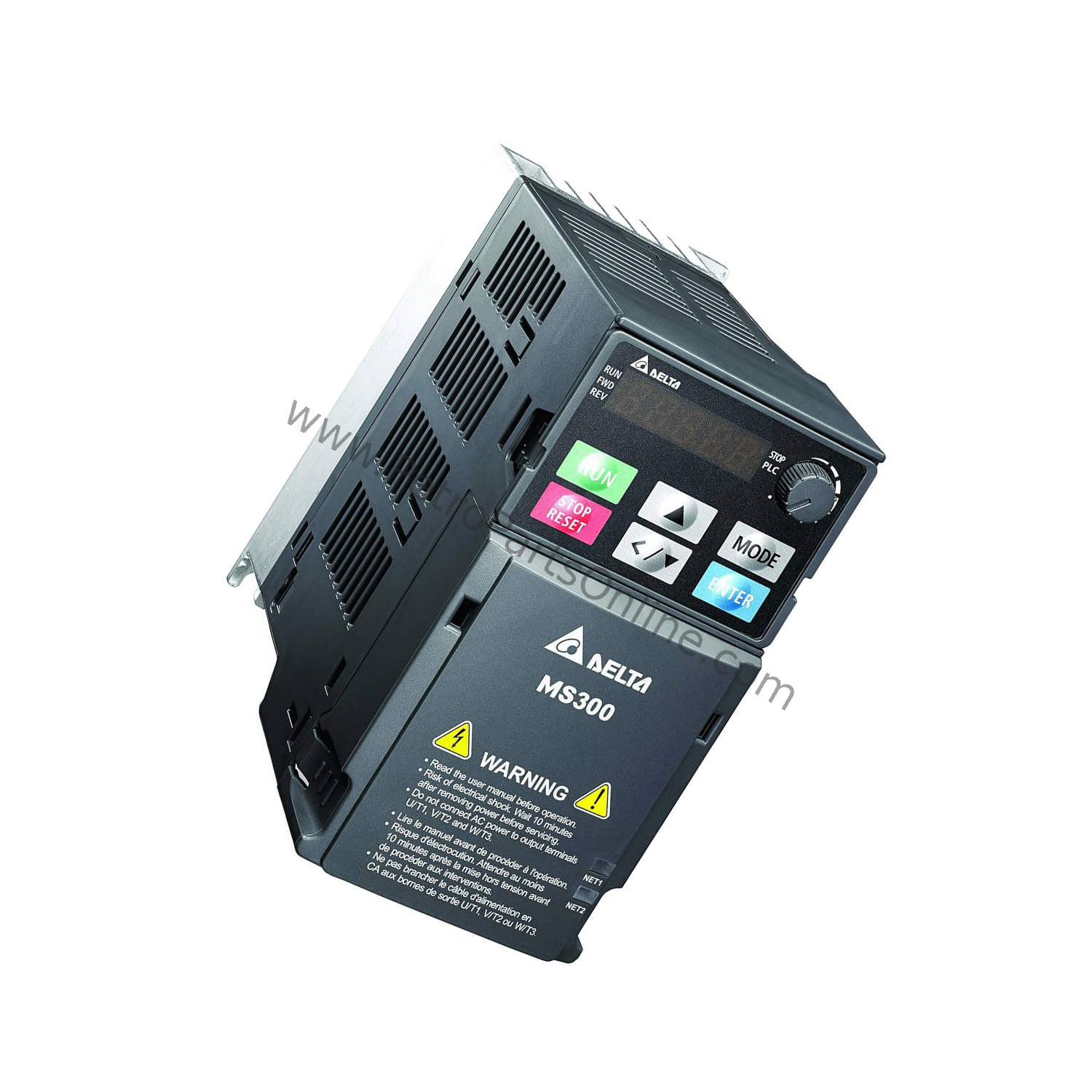

The VFD4A2MS43ANSAA Delta MS300 drive delivers reliable motor control for industrial applications, featuring a compact design and robust performance.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Introduction to the VFD4A2MS43ANSAA
When industrial operations demand efficient motor control, the VFD4A2MS43ANSAA from Delta provides a dependable solution. This drive is part of the MS300 series, engineered for compact vector control. It supports both induction and permanent magnet motors, making it versatile for various automation needs. With a power range of 2 HP (1.5 kW), it handles moderate loads effectively. The drive operates on 460 V three-phase input, ensuring compatibility with standard industrial power systems.
Key Features and Technical Specs
- The VFD4A2MS43ANSAA offers a frequency range of 0 to 599 Hz for flexible speed control.
- Heavy duty output current is 4.2 A, while normal duty output reaches 4.6 A.
- IP20 protection allows indoor use in clean environments.
- Frame size B1 ensures a compact footprint for space-constrained panels.
- Built-in RS-485 Modbus communication supports easy integration with control systems.
- Optional EMC filter reduces electromagnetic interference in sensitive installations.
A standout feature is the high starting torque, which enables reliable motor startup under load. This is critical for applications like conveyors or mixers that require immediate torque.
Applications and Use Cases
The VFD4A2MS43ANSAA excels in rewinding and slitting machines, where precise speed control is essential. For example, in a printing press, this drive maintains consistent tension across the web. It also suits woodworking tools that need variable speed for different materials. Additionally, textile machines benefit from its fast response to load changes, reducing material waste.
Installation and Setup
Mount the VFD4A2MS43ANSAA side-by-side with other drives to save panel space. Ensure adequate ventilation around the IP20 enclosure to prevent overheating. Connect the 460 V three-phase input per local electrical codes. Use the removable 5-digit LED keypad for initial parameter configuration. For remote operation, wire the RS-485 port to a PLC or HMI.
Maintenance and Reliability
Regularly inspect the drive for dust buildup on the heatsink, as IP20 offers limited protection. Check all power connections annually for tightness. The built-in brake chopper enhances reliability during deceleration, reducing wear on mechanical brakes. This design lowers long-term maintenance costs by minimizing component stress.
Compatibility and Integration
The VFD4A2MS43ANSAA integrates with various communication networks via optional cards, including CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, and PROFINET. The built-in PLC function enables simple logic control without an external controller. It also supports multi-motor control for coordinated drives in complex machinery.
Troubleshooting and Common Issues
If the drive trips on overvoltage, verify that the deceleration time matches the load inertia. For undervoltage faults, check the input power quality. The LED keypad displays fault codes for quick diagnosis. Always consult the Delta manual for specific error resolution steps.
FAQs about the VFD4A2MS43ANSAA
Q: What is the maximum frequency output of the VFD4A2MS43ANSAA?
A: The drive supports a frequency range of 0 to 599 Hz, suitable for high-speed applications.
Q: Can this drive control permanent magnet motors?
A: Yes, the MS300 series supports both induction and permanent magnet motors.
Q: What is the difference between heavy duty and normal duty ratings?
A: Heavy duty output is 4.2 A, while normal duty output is 4.6 A, allowing flexibility for varying load conditions.
Q: Does the VFD4A2MS43ANSAA include a built-in brake chopper?
A: Yes, it has a built-in brake chopper for enhanced braking capability.
Q: What communication protocols are supported?
A: It features built-in RS-485 Modbus and optional cards for CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, and PROFINET.
Product Support and Availability
The VFD4A2MS43ANSAA is available from PetroPartsOnline, a trusted supplier of industrial automation parts. It is in stock and ready to ship. Contact their team for lifecycle status and ordering assistance.
