TC-FCCN01 | Honeywell ControlNet Gateway - PetroPartsOnline
Introduction:

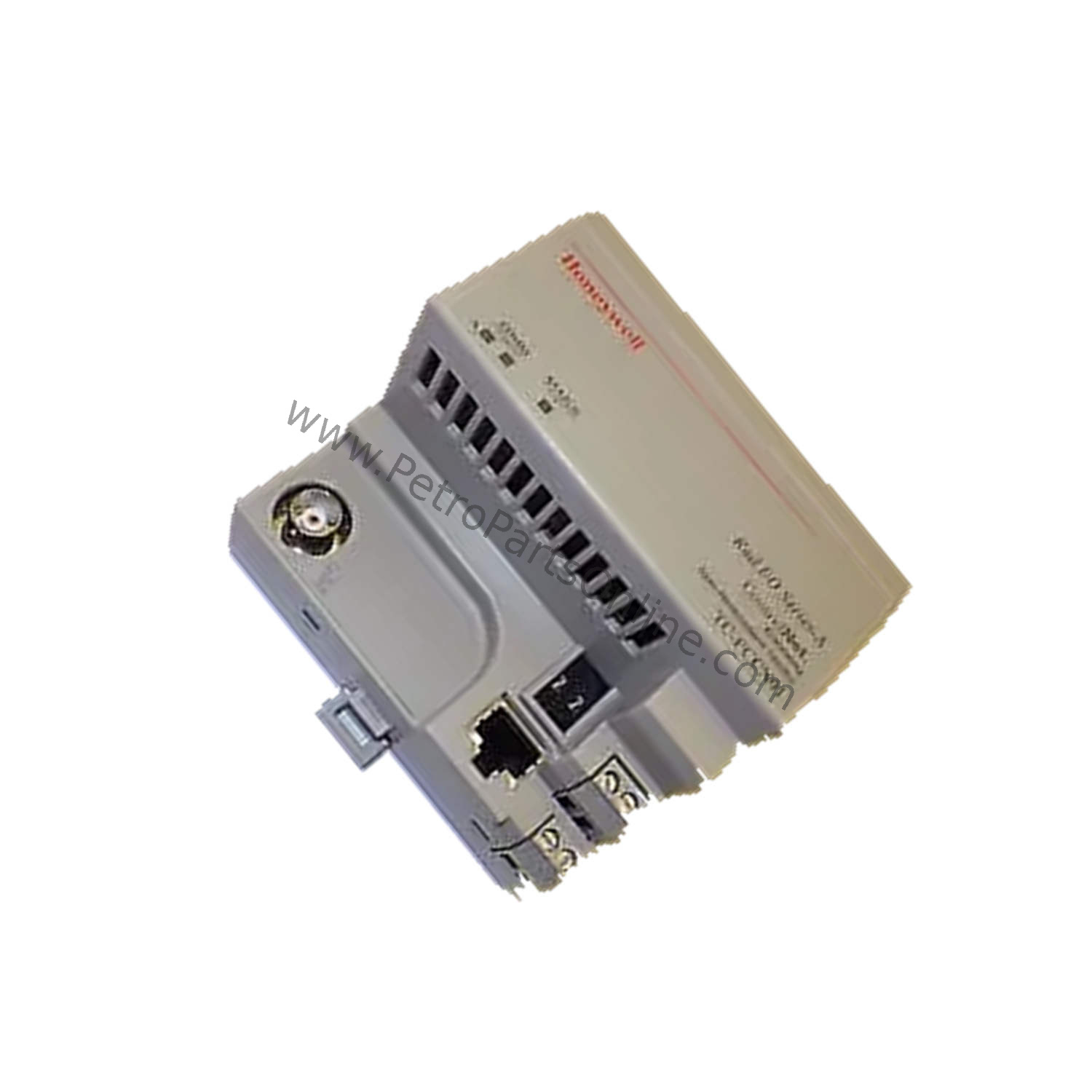

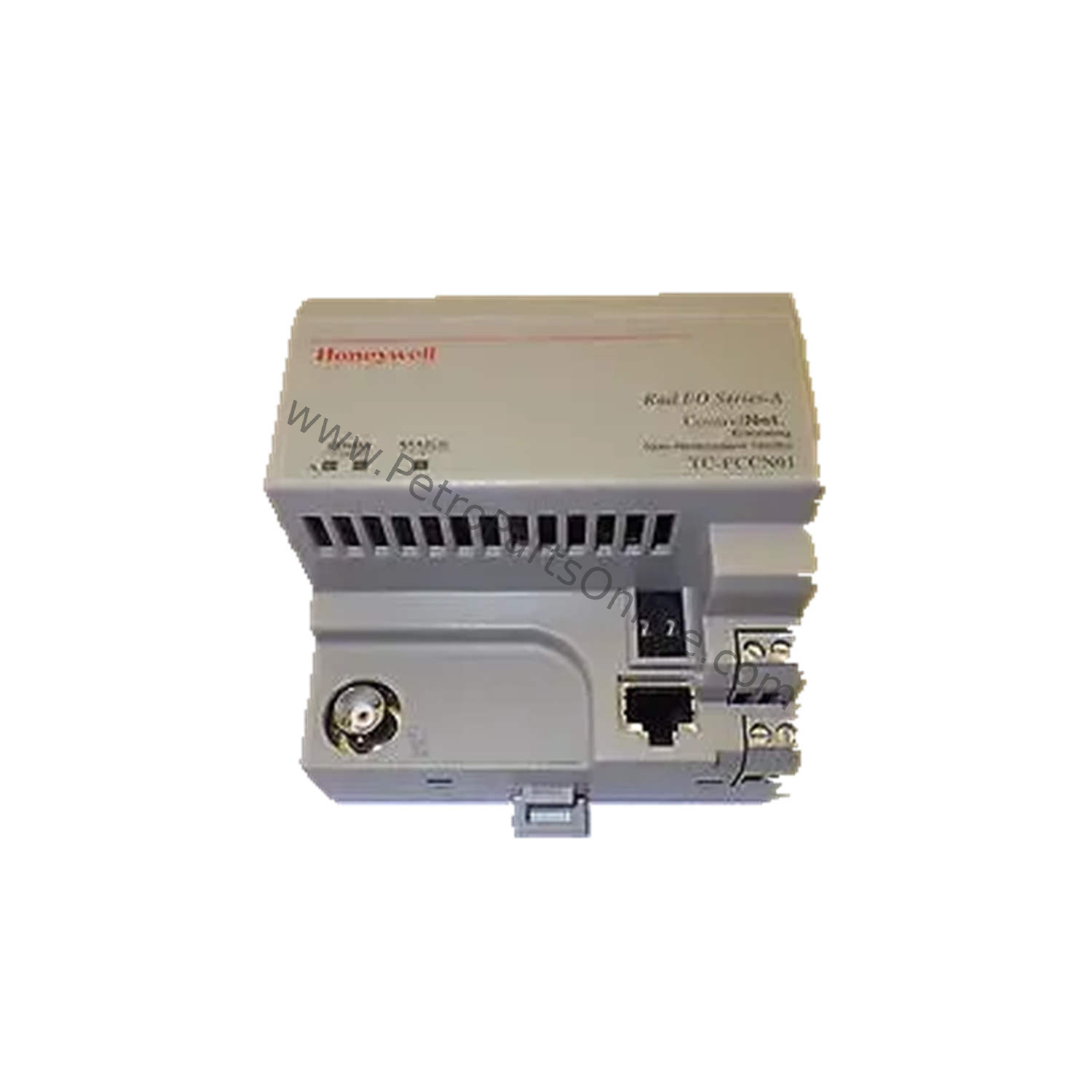

The Honeywell TC-FCCN01 is a non-redundant ControlNet gateway with 5M bit/s communication rate and 8-module I/O capacity. Ideal for industrial automation.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The TC-FCCN01 is a Honeywell ControlNet Gateway designed for non-redundant media applications. This gateway supports 5M bit/s communication rate and provides an I/O capacity of 8 modules. It operates on a 24V dc nominal input voltage with a range of 19.2V to 31.2V dc, including 5% ac ripple. The TC-FCCN01 is built for reliable data transfer in industrial automation environments.
Technical Specifications Analysis
The TC-FCCN01 features a 12 gauge (4mm2) wire size for power conductors, with a maximum of 3/64 (1.2mm) inch insulation. It consumes 400mA maximum from an external 24V supply and dissipates 4.6W maximum at 19.2V dc. Thermal dissipation is 15.7 BTU/hr at 19.2V dc. The gateway offers 500V ac isolation between user power and flexbus. It supports a flexbus output current of 640mA maximum at 5V dc. Communication is via ControlNet cabling with Belden RG-6/U Quad Shield cable. The unit includes one RJ-45 Network Access Port (NAP) for programming. Environmental tolerance includes operational temperature from 0 to 55 C and storage temperature from -40 to 85 C. It also withstands 30g peak acceleration shock and 5g vibration at 10-500Hz per IEC 68-2-6.
Application Scenarios & Usage Methods
In oil and gas facilities, the TC-FCCN01 connects remote I/O modules to a ControlNet backbone for real-time monitoring. Operators use the NAP port for configuration and diagnostics. In manufacturing plants, this gateway integrates 8 modules into a centralized control system, reducing wiring complexity. The non-redundant media design suits cost-sensitive applications where network redundancy is not critical. Always use a SELV or PELV power supply to comply with CE Low Voltage Directives.
Installation Guide & Packing List
Mount the gateway on a DIN rail or panel using the provided slots. Connect power via copper stranded or solid conductors of 12 gauge maximum. Torque screw connectors to 7-9 inch-pounds. Use Belden RG-6/U Quad Shield cable for ControlNet connections. The package includes the TC-FCCN01 gateway, mounting hardware, and a quick-start guide. No additional cables or power supplies are included.
Purchasing Advice
Verify your system requires non-redundant media before selecting the TC-FCCN01. This gateway supports 8 modules, so plan your I/O count accordingly. For reliable sourcing, PetroPartsOnline offers genuine Honeywell parts with fast delivery. Check your power supply meets SELV or PELV requirements to ensure safe operation.
Repair & Maintenance Tips
Inspect connectors annually for corrosion or loose wires. Clean the unit with a dry cloth; avoid solvents. Store in a dry environment within the -40 to 85 C storage temperature range. Monitor the Comm A and I/O Status indicators for red or green signals. Replace the unit if indicators show persistent faults.
