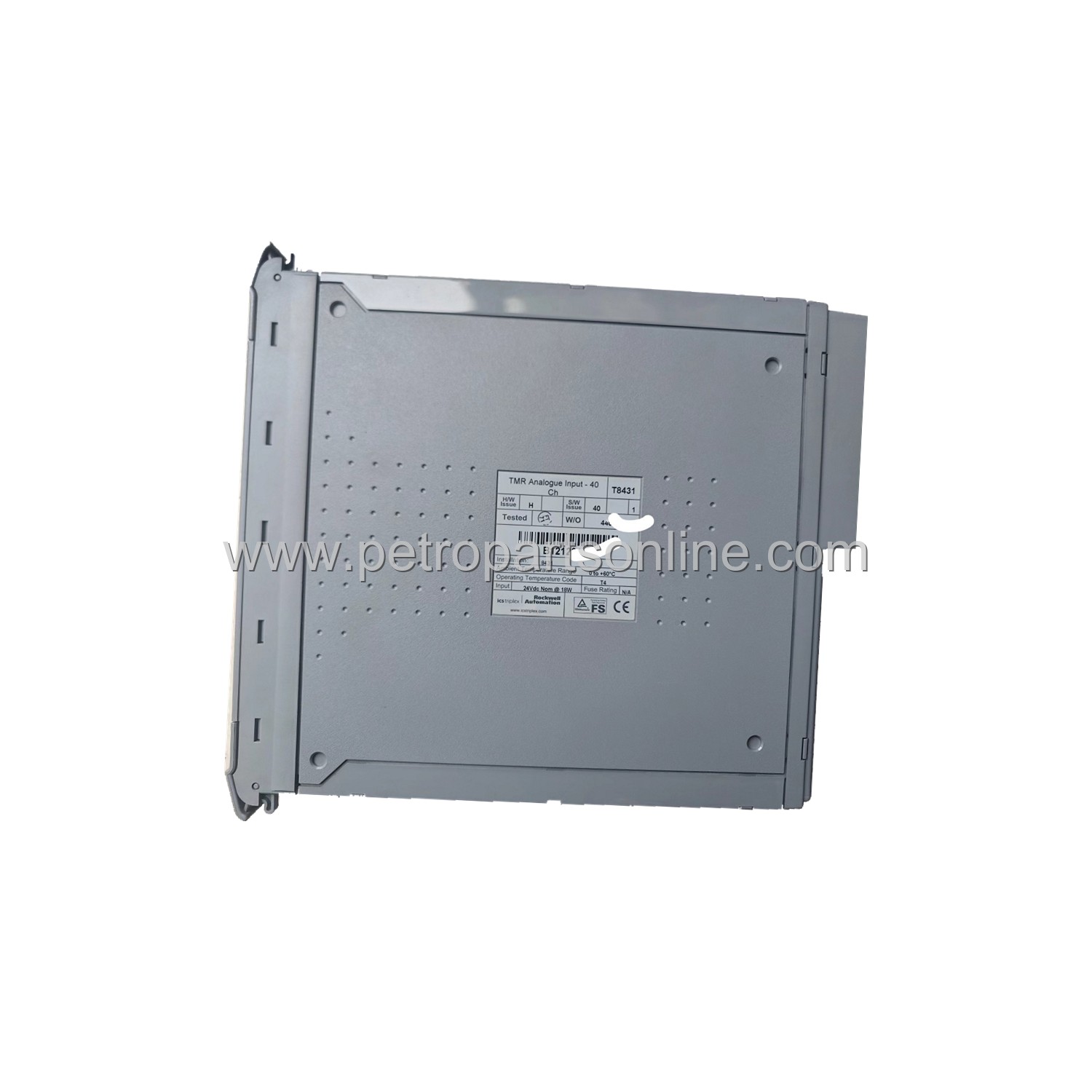

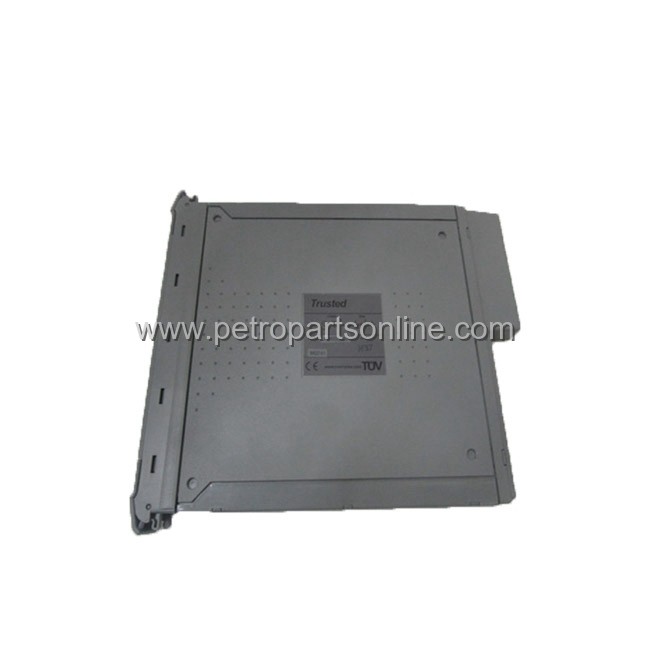

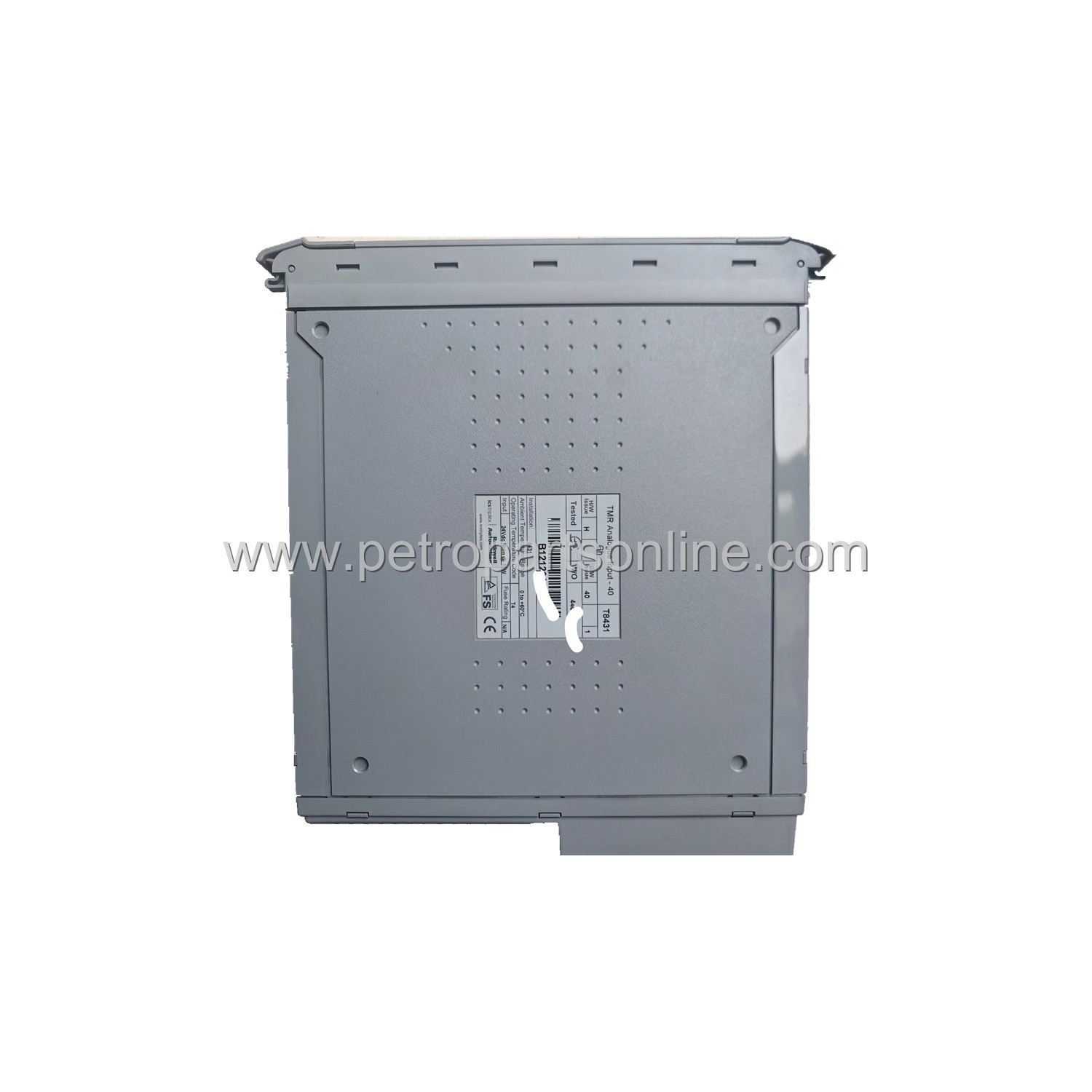

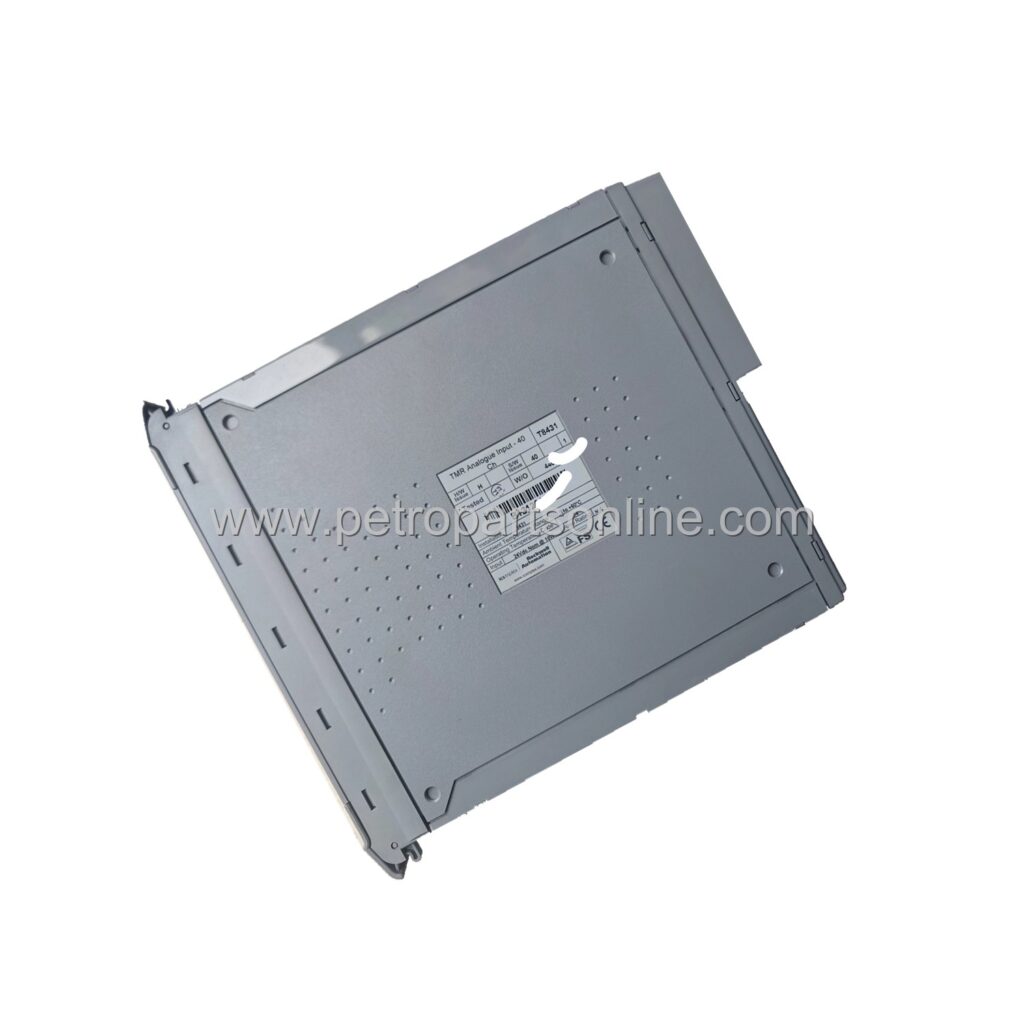

T8431 | Trusted TMR 24Vdc Analogue Output Module
Introduction:
Trusted TMR 24Vdc Analogue Output Module with triple redundancy for high-availability safety systems. In stock with 12-month warranty.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The T8431 is a Trusted Triple Modular Redundant (TMR) Analogue Output Module. It provides three identical 24Vdc analogue output channels. This module is part of the Trusted TMR system. It ensures high availability and safety in critical control applications. The T8431 performs continuous self-testing and diagnostics. It maintains output integrity even if one channel fails.
Application Scenarios
This module is designed for safety-critical industrial processes. It is used in oil and gas plants. It is also used in chemical processing facilities. Power generation stations use this module. It is ideal for turbine control systems. It works in emergency shutdown systems. It is also used in fire and gas safety systems. The T8431 operates in harsh environments. It requires high fault tolerance.
Technical Specifications
- Output Type: Analogue, Voltage
- Output Range: 0 to 10Vdc
- Output Resolution: 12 bits
- Number of Channels: 3 (TMR)
- Supply Voltage: 24Vdc
- Isolation: 1500Vrms channel-to-ground
- Operating Temperature: 0 to 60°C
- Storage Temperature: -40 to 85°C
- Humidity: 5% to 95% non-condensing
- Module Type: Triple Modular Redundant
- Diagnostics: Built-in self-test
Installation & Maintenance Guide
Install the module in a Trusted TMR chassis. Ensure the chassis is powered off before insertion. Align the module with the backplane connector. Push firmly until the locking mechanism engages. Secure the module with the retaining screws. Apply 24Vdc power to the module. Verify the power LED is green. Perform a channel test using the configuration software. Replace the module only with an identical unit. Do not hot-swap the module. Keep the module in a static-safe bag when not installed.
Frequently Asked Questions (FAQ)
What is the primary function of T8431?
The T8431 converts digital signals to three redundant 24Vdc analogue voltage outputs for safety-critical control.
What is the output voltage range of T8431?
The module provides a 0 to 10Vdc analogue output range with 12-bit resolution.
Can T8431 be hot-swapped?
No, the module does not support hot-swapping. Power down the system before removal or installation.
What is the operating temperature range for T8431?
The module operates reliably between 0°C and 60°C ambient temperature.
Does T8431 require external power?
Yes, it requires a 24Vdc external power supply to function.
