Product Overview

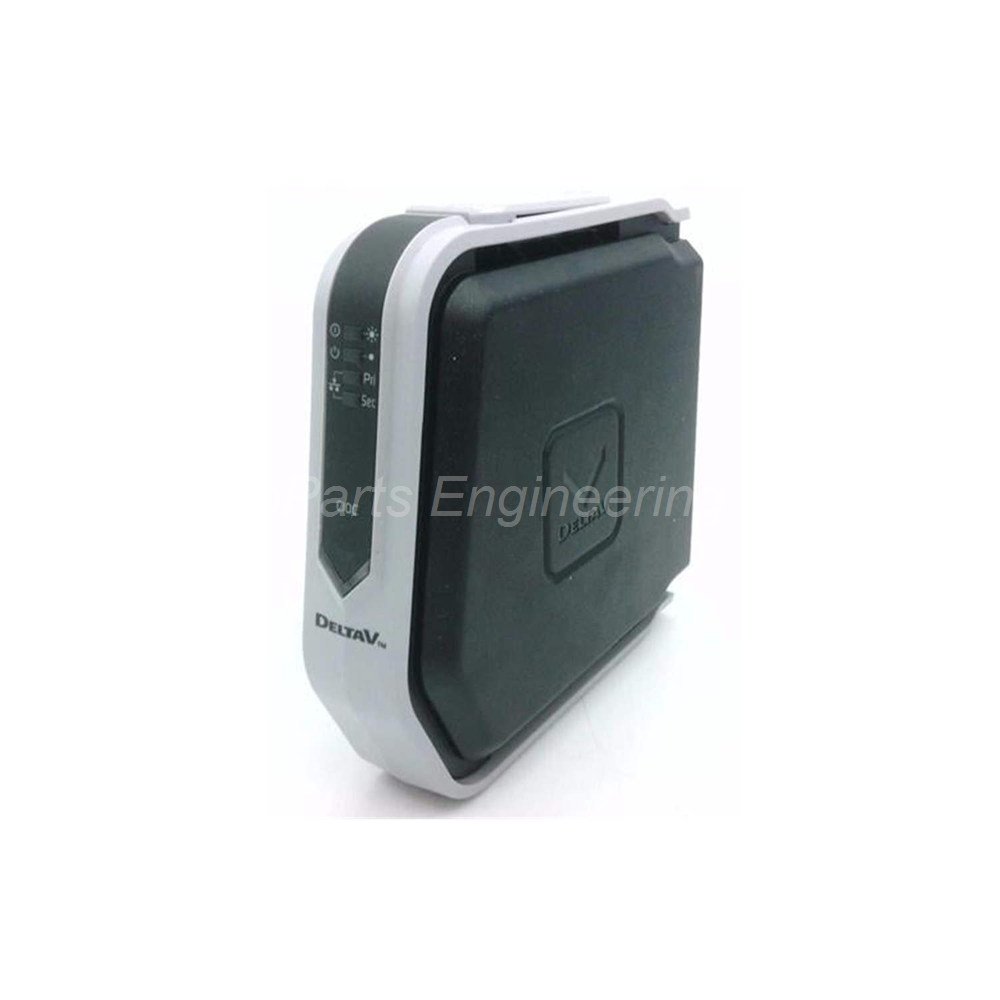

The KL2101X1-BA1 is a specialized Dry Contact CHARM (Component Healthcare Assembly of Real-time Modules) for the DeltaV S-series system. This I/O Card is engineered to detect discrete inputs from dry contacts while drawing minimal Bus Power (32mA). Its high-density electronic marshalling design reduces cabinet footprint and simplifies field wiring. Built for resilience, the KL2101X1-BA1 handles extreme temperature fluctuations and corrosive airborne contaminants typical in oil, gas, and chemical processing facilities.

Technical Engineering Data

• Brand: Emerson DeltaV
• Model Number: KL2101X1-BA1
• Module Type: Dry Contact CHARM I/O Card
• Bus Power Consumption: 32mA at 26.4VDC
• Field Circuit Rating: 24 VDC at 10mA
• Output Power Specs: 6.3 VDC at 3.25 A
• Ambient Operating Temp: -40 to +70 Degrees Celsius
• Protection Rating: ISA-S71.04 Class G3 (Corrosive)
• Mechanical Tolerance: 10g Shock / 0.7g Vibration
• Humidity Range: 5 to 95 Percent Non-Condensing

Global Hazardous Certifications

• ATEX Rating: II 3G Ex ec IIC Gc (FM19ATEX0173U)
• IECEx Standard: FMG 19.0019U
• North American Compliance: Class I Division 2 Groups A, B, C, D
• UKCA Certification: FM21UKEX0017U
• Zone Compliance: Class I Zone 2 AEx/Ex ec IIC Gc

Industrial Logistics & Support

• Service Life Protection: 12 Months Comprehensive Warranty
• Worldwide Express: FedEx, UPS, DHL
• Package Contents: One KL2101X1-BA1 CHARM Module, Factory Tested
• Lead Time: Ships in secure anti-static packaging for immediate deployment
