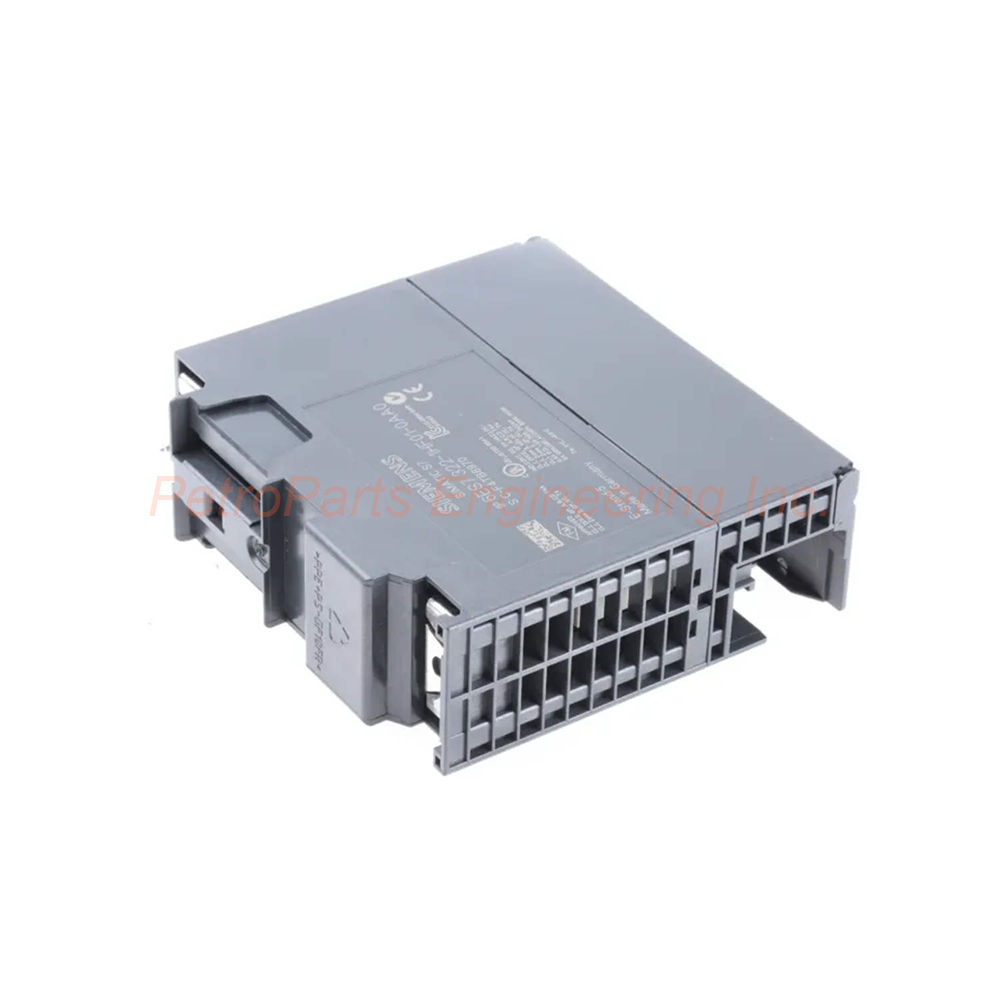

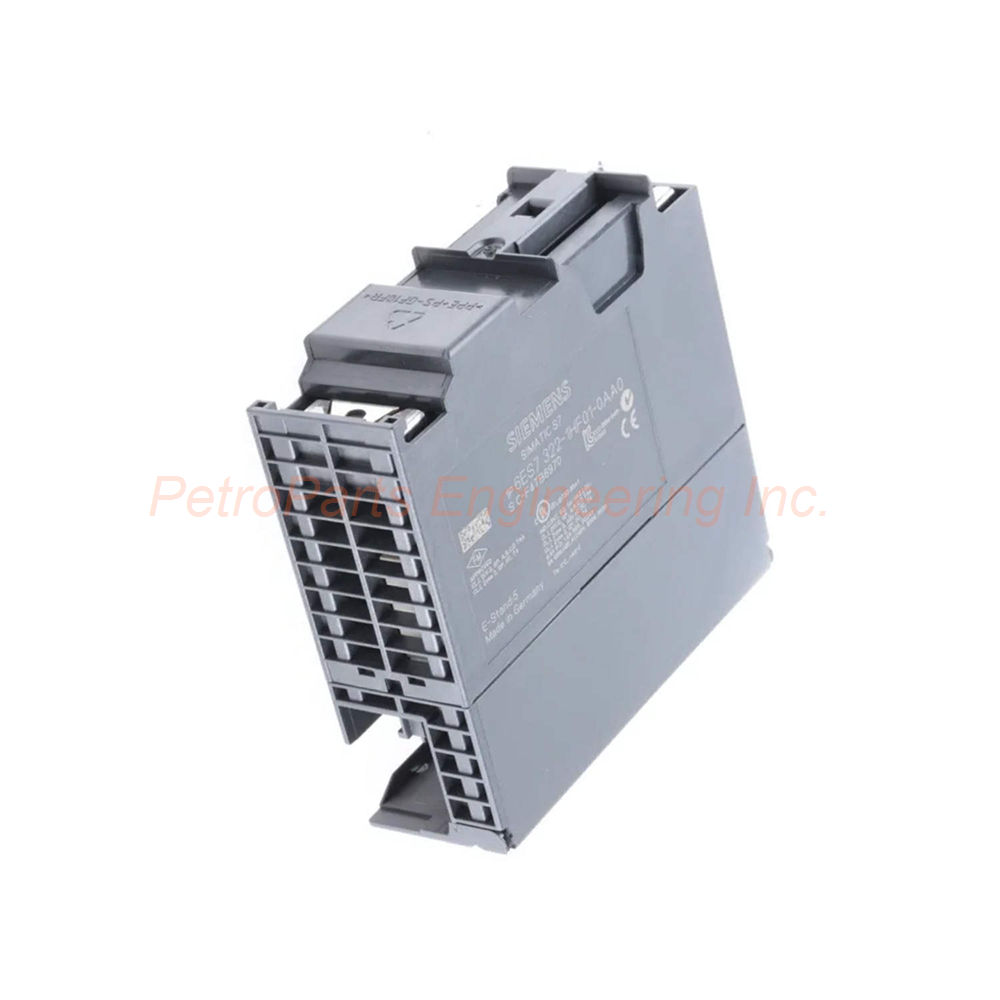

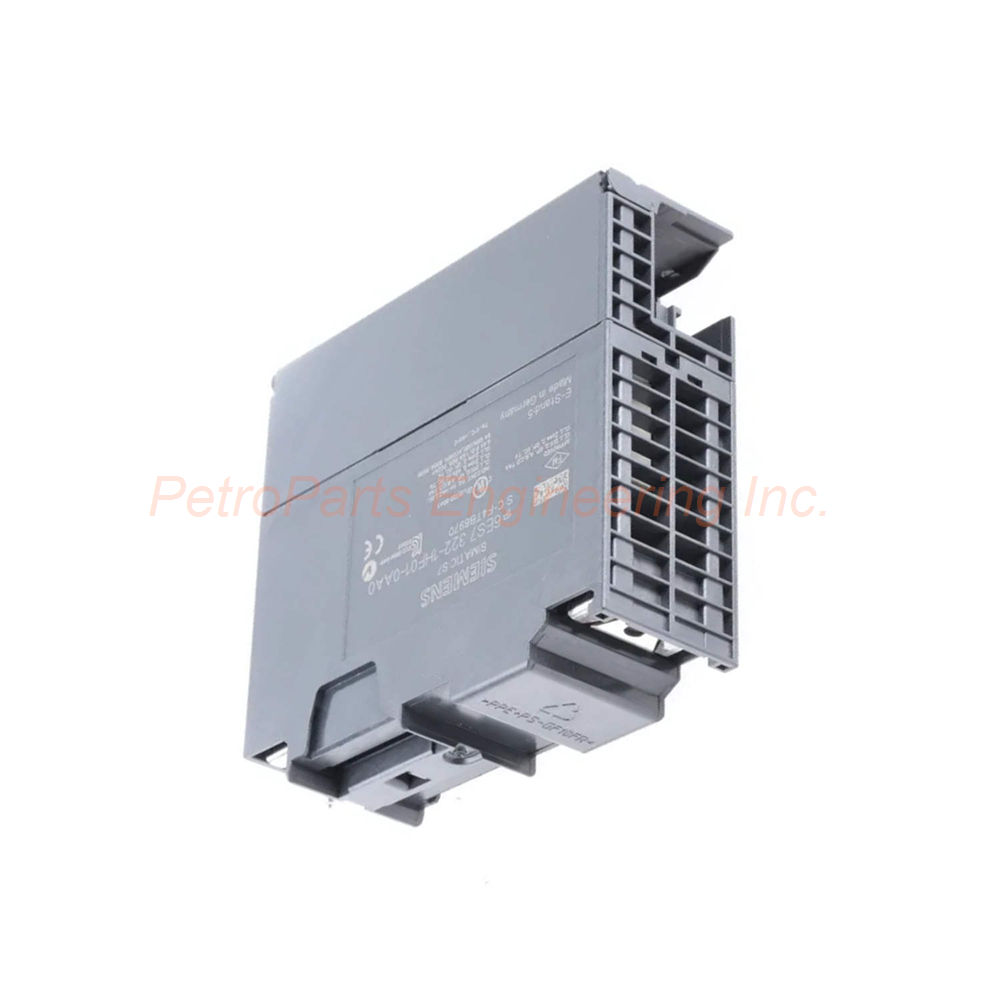

Siemens 6ES7322-1HF01-0AA0 – S7-300 Digital Output Module SM 322 with 8 Relay Outputs

The Siemens 6ES7322-1HF01-0AA0 is a digital output module. Specifically, this module belongs to the SIMATIC S7-300 series. It is designated as SM 322 and features 8 relay outputs. Furthermore, the outputs are optically isolated for enhanced protection. In addition, each output can switch 2A at either 24V DC or 230V AC. Consequently, this module suits applications requiring high-current switching with electrical isolation.

Ordering Configuration and Product Identification

• Manufacturer: Siemens.

• Product Type: Digital Output Module SM 322.

• Part Number: 6ES7322-1HF01-0AA0.

• Number of Outputs: 8 relay outputs.

• Isolation Type: Optically isolated.

• Output Voltage Options: 24V DC or 230V AC.

• Output Current Rating: 2A per channel.

• Front Connector: 20-pin required.

• Dimensions (W x H x D): 40 mm x 125 mm x 120 mm.

• Weight: Approximately 190 grams.

• Therefore, the Siemens 6ES7322-1HF01-0AA0 provides robust relay output capability in a compact S7-300 format.

Supply Voltage and Current Consumption

• Load Voltage L+ (Rated Value): 24 V DC.

• Input Current (from supply voltage L+): 160 mA maximum.

• Input Current (from backplane bus 5 V DC): 40 mA maximum.

• Power Loss (Typical): 3.2 W.

• Relay Coil Rated Supply Voltage: 24 V DC.

• Relay Coil Current: 110 mA.

• Power Supply Requirements: External 24V DC for relay coils.

• Thus, the 6ES7322-1HF01-0AA0 consumes moderate power for its relay outputs.

Output Specifications

• Number of Digital Outputs: 8 relay outputs.

• Switching Capacity (Lamp Load): 50 W maximum.

• Output Current (Signal "1" Rated Value): 2 A.

• Output Current (Signal "1" Minimum Load): 5 mA.

• Switching Frequency (Resistive Load): 2 Hz maximum.

• Switching Frequency (Inductive Load): 0.5 Hz maximum.

• Switching Frequency (Lamp Load): 2 Hz maximum.

• Switching Frequency (Mechanical): 10 Hz maximum.

• Contact Switching Capacity (Inductive Load): 2A at 230V AC or 24V DC.

• Contact Switching Capacity (Resistive Load): 2A maximum.

• Output Status: Green LED per channel.

• Consequently, the Siemens 6ES7322-1HF01-0AA0 handles moderate switching frequencies for relay outputs.

Relay Contact Life Expectancy

• Operating Cycles (24V DC at 2A): 300,000 cycles maximum.

• Operating Cycles (120V AC at 2A): 200,000 cycles maximum.

• Operating Cycles (230V AC at 2A): 100,000 cycles maximum.

• Total Cycles (All Voltages): 300,000 maximum at 24V DC.

• Contact Life: Depends on load type and switching frequency.

• Derating: Higher voltage reduces contact life expectancy.

• Application: Suitable for moderate cycling applications.

• Maintenance: Contact replacement requires module replacement.

• Therefore, the EL2911 provides predictable relay life based on operating conditions.

Cable Length Specifications

• Shielded Cable: 1,000 meters maximum length.

• Unshielded Cable: 600 meters maximum length.

• Wiring Consideration: Use shielded cable for noisy environments.

• Signal Integrity: Longer runs may require derating.

• Installation: Follow standard S7-300 wiring practices.

• Cable Type: Standard industrial control cable.

• Termination: Use proper strain relief on front connector.

• Thus, the 6ES7322-1HF01-0AA0 supports long cable runs for distributed outputs.

Diagnostics and Status Information

• Diagnostic Alarm: Not supported.

• Diagnostic Functions: Not available.

• Wire-Break Detection: Not supported.

• Short-Circuit Detection: Not supported.

• Fuse Blown Detection: Not supported.

• Missing Load Voltage Detection: Not supported.

• Rated Load Voltage PWR LED: Not available.

• Fuse OK FSG LED: Not available.

• Status Indicator Digital Output: Green LED per channel.

• Troubleshooting: Only output status monitoring via LEDs.

• Diagnostic Capability: Limited to channel state indication.

• Consequently, the Siemens 6ES7322-1HF01-0AA0 relies on external monitoring for fault detection.

Potential Separation and Isolation

• Isolation between Channels: Yes, individual channel isolation.

• Isolation in Groups: Channels isolated in groups of 2.

• Isolation between Channels and Backplane Bus: Yes, via optocoupler.

• Isolation Type: Optical isolation for safety.

• Isolation Test Voltage: 1500 V AC tested.

• Benefit: Protects backplane from field wiring faults.

• Noise Immunity: Reduces ground loop issues.

• Safety: Prevents fault propagation between channels.

• Therefore, the 6ES7322-1HF01-0AA0 provides excellent electrical isolation for industrial applications.

Installation Guide

First, verify that all system power sources are completely disconnected. Then, select an available slot in your S7-300 rack for the Siemens 6ES7322-1HF01-0AA0. After that, slide the module into the chosen slot. Push firmly until the backplane connector is fully seated. Next, attach a 20-pin front connector to the module front. Then, wire your field devices to the appropriate relay output terminals. Connect the 24V DC load voltage L+ to the module. Ensure supply current can handle 160 mA plus load currents. For AC applications, connect the appropriate AC supply to the relay common. Then, apply backplane power by turning on the S7-300 system. Download your output configuration to the module. Finally, test each output point using your control program. As a result, the Siemens 6ES7322-1HF01-0AA0 will provide reliable relay output control.

Packaging List

• One Siemens 6ES7322-1HF01-0AA0 digital output module

• One product identification label

• One installation and wiring guide

• 20-pin front connector (sold separately)

Common FAQs

Q1: How many outputs does the Siemens 6ES7322-1HF01-0AA0 provide?
A: This module provides 8 relay outputs. Therefore, each output can switch 2A at either 24V DC or 230V AC. Consequently, it suits high-current switching applications.

Q2: What is the switching frequency of the 6ES7322-1HF01-0AA0?
A: The maximum switching frequency is 2 Hz for resistive loads. For inductive loads, it is 0.5 Hz. Lamp load switching is also 2 Hz maximum. Therefore, it suits slow-speed switching applications.

Q3: Does the Siemens 6ES7322-1HF01-0AA0 have diagnostic capabilities?
A: No, this module does not support diagnostic functions. It does not detect wire-break, short-circuit, or missing load voltage. Only output status LEDs are available for monitoring.

Q4: What is the isolation type on the 6ES7322-1HF01-0AA0?
A: This module features optical isolation between outputs and the backplane bus. Channels are isolated in groups of 2. Tested isolation is 1500 V AC.

Q5: What is the expected relay contact life for the Siemens 6ES7322-1HF01-0AA0?
A: At 24V DC and 2A, contact life is 300,000 cycles. At 230V AC, it reduces to 100,000 cycles. Therefore, load voltage affects relay lifespan significantly.
