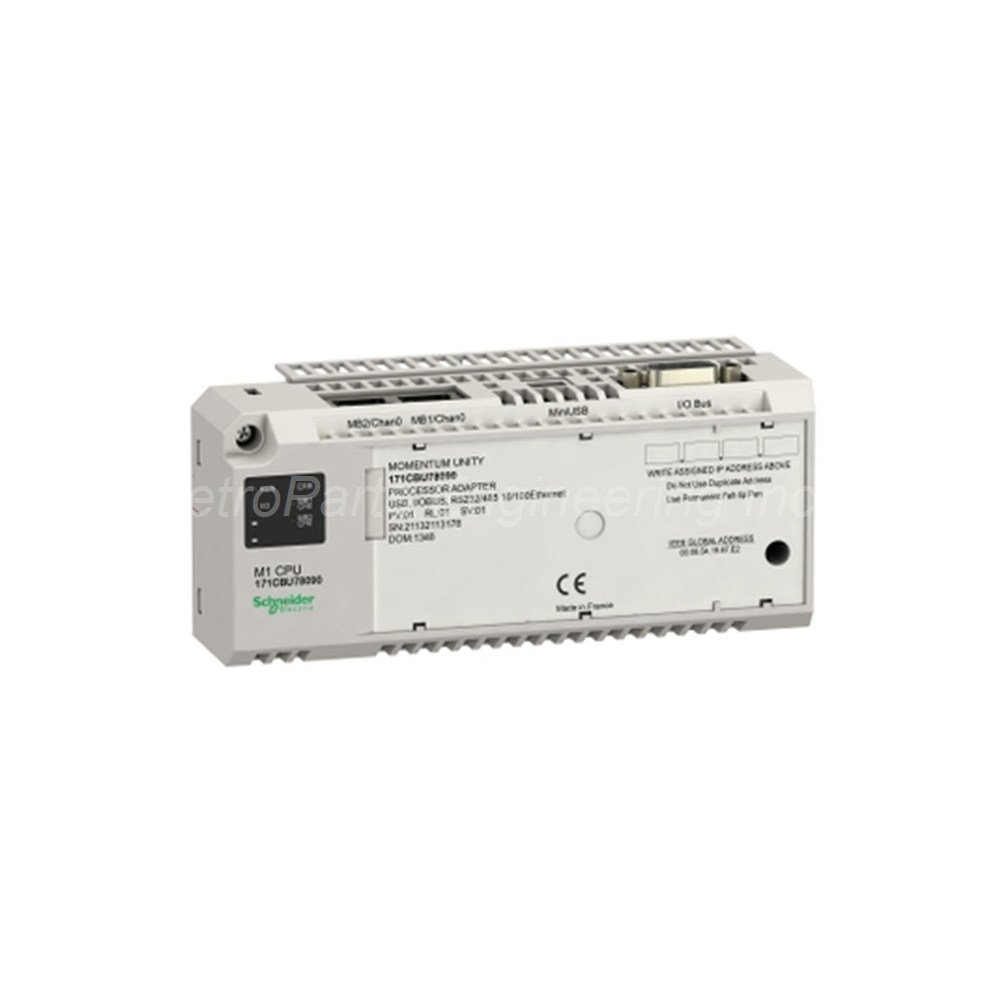

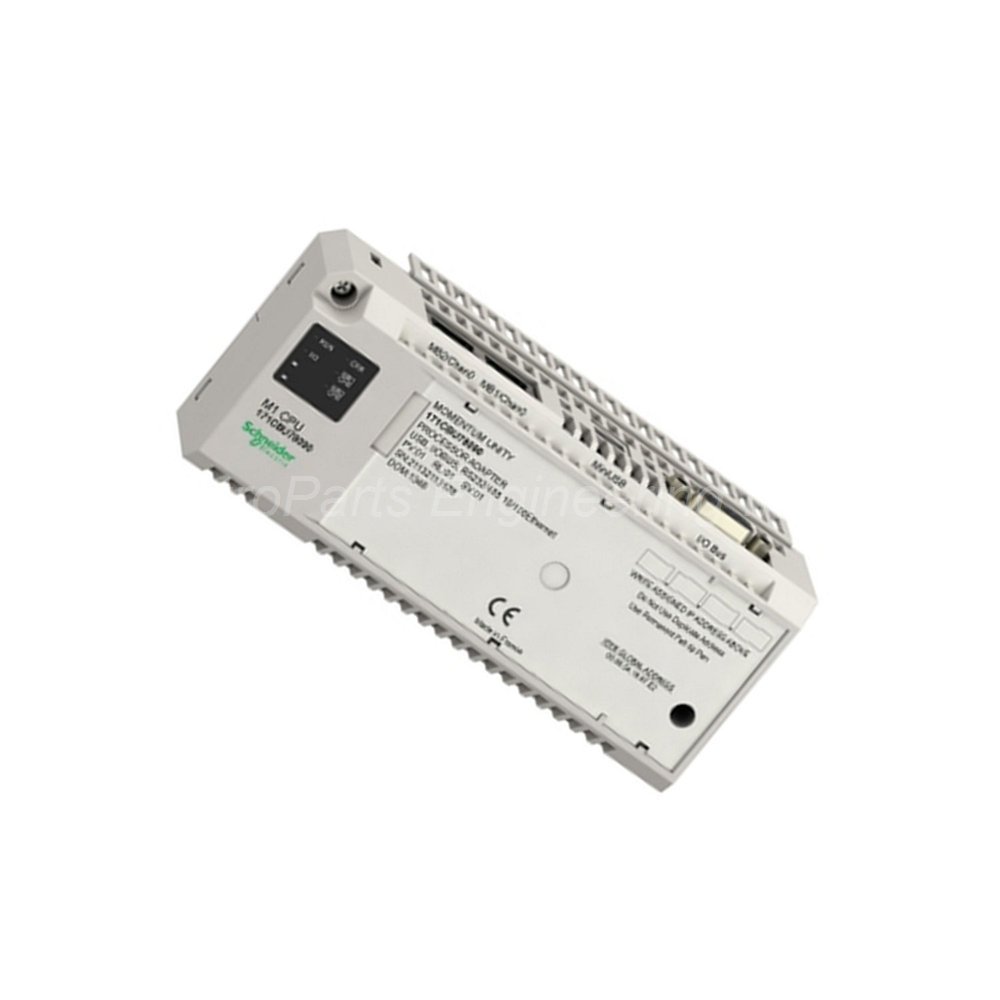

High-Speed Schneider Electric 171CBU78090 Processor for Advanced Control

The 171CBU78090 serves as the central brain for your Modicon Momentum automation system. Schneider Electric built this unit with a 32-bit word length to perform complex calculations with extreme accuracy. Engineers use the 171CBU78090 to manage high-speed data across large multidrop Modbus networks without any processing delays.

Key Technical Specifications

• Brand: Schneider Electric
• Model: 171CBU78090
• Core Technology: Spear 320s Architecture
• Clock Frequency: 333 MHz
• Instruction Speed: 83 ns per Kinstruction
• I/O Capacity: 2048 Inputs and 2048 Outputs
• Memory Slots: 26,048 Register Words
• Network Nodes: Supports 32 Modbus devices
• Supply Voltage: 4.75 V to 5.25 V
• Power Usage: 500 mA at 5 V DC
• Shock Resistance: 15 gn for 11 ms
• Physical Weight: 0.45 kg (1.00 lbs)
• Mounting Style: 35 mm DIN rail

Main Benefits and Selling Points

• The 32-bit Spear 320s architecture delivers superior computing power for modern industrial automation requirements.
• An ultra-fast 333 MHz clock frequency ensures your system reacts instantly to changing field conditions.
• Massive input and output limits allow for the expansion of very large control systems using one processor.
• Low power consumption helps reduce heat generation inside your electrical control cabinets during continuous operation.
• Rugged shock resistance protects the internal electronic components from damage in harsh manufacturing environments.

Installation and Mounting Guidelines

• Clip the unit onto a standard 35 mm symmetrical DIN rail to ensure a stable and secure installation.
• Verify that your power supply output stays within the safe 4.75 V to 5.25 V DC range.
• Clean all electrical contact points before connecting the processor to prevent any potential data transmission errors.
• Place the unit in an IP20 rated enclosure to shield the hardware from dust and solid debris.
• Organize your Modbus cabling to avoid electromagnetic interference with high-voltage power lines inside the panel.

Logistics and Package List

• Package Contents: One brand new Schneider Electric 171CBU78090 processor unit.
• Warranty Period: We provide a full 12-month quality guarantee for every unit purchased.
• Express Shipping: Our team sends orders globally via FedEx, UPS, or DHL express services.
• Packaging Standard: We use high-quality anti-static foam to prevent electronic damage during long-distance transit.

Frequently Asked Questions (FAQ)

• What is the processing speed of this model? This unit executes one thousand instructions in only 83 nanoseconds for rapid performance.
• How many Modbus devices can I connect? The 171CBU78090 supports a network configuration with up to 32 different Modbus devices.
• Does the package include a warranty? Every unit includes a standard 12-month warranty to ensure total customer satisfaction and reliability.
• Is this processor compatible with DIN rails? You can mount the device easily on any 35 mm symmetrical DIN rail system.
• How does the unit handle physical impact? The hardware withstands up to 15 gn of shock to maintain operation in vibrating environments.
