Product Overview

The Schneider Electric ABFM16S201 is a specialized cabled connector. It belongs to the Modicon Quantum series of automation components. This connector is designed specifically for analogue input signal transmission. You can use the ABFM16S201 to connect field sensors to Quantum analogue input modules. It features 16 channels in a single cable assembly. Consequently, this connector simplifies wiring and reduces installation time.

Technical Specifications

The ABFM16S201 delivers reliable analogue signal transmission with robust construction. Below are the core technical details.

General Specifications:

• Part Number: ABFM16S201.

• Manufacturer: Schneider Electric.

• Product Type: Cabled Connector.

• Product Line: Modicon Quantum.

• Accessory Type: Connector (connection accessories).

• Product Compatibility: 140ACI04000 analogue input module.

• EAN: 3389110956580.

Channel and Signal Specifications:

• Number of Channels: 16 channels.

• Signal Type: Analogue input.

Cable Specifications:

• Cable Length: 2 meters (6.6 ft).

• Cable Construction: Multi-conductor shielded cable.

• Insulation Material: PVC.

• AWG Gauge: AWG 24.

• Wire Section: 0.22 mm² (0.0003 in²).

Connector Specifications:

• Electrical Connection: 2 connectors.

• Connector Type: SUB-D.

• Number of Ways: 25 ways.

Electrical Ratings:

• Current Rating: 1A.

• Voltage Rating: 250V.

Environmental Specifications

The ABFM16S201 operates reliably in typical industrial environments.

Temperature Range:

• Operating Temperature: -20 to 60°C.

Weight:

• Net Weight: 0.62 kg (1.37 lbs).

Key Features

The ABFM16S201 offers several advantages for Quantum analogue input wiring.

High Channel Density:

• Provides 16 analogue input channels in one cable.

• Reduces the number of individual wires needed.

• Saves space in control cabinets.

Shielded Construction:

• Multi-conductor shielded cable minimizes interference.

• Protects sensitive analogue signals from noise.

• Ensures accurate signal transmission.

Dual Connector Design:

• Two SUB-D connectors for reliable connections.

• 25-way configuration matches Quantum modules.

• Simplifies field wiring terminations.

PVC Insulation:

• Durable insulation material resists damage.

• Provides protection from environmental factors.

• Suitable for industrial control panels.

Long Cable Length:

• 2 meter (6.6 ft) length offers installation flexibility.

• Allows separation between I/O module and field devices.

• Reduces the need for extension cables.

Modicon Quantum Integration

The ABFM16S201 is specifically compatible with the 140ACI04000 analogue input module. Therefore, it provides a complete pre-assembled cabling solution for Quantum analogue inputs. The SUB-D connectors mate directly with the module's front panel ports. Consequently, field wiring is reduced to connecting sensors to the cable's flying leads.

Installation Guidelines

Install the ABFM16S201 by connecting the SUB-D connectors to the Quantum analogue input module. Route the shielded cable away from high-voltage power lines. Secure the cable using proper cable ties or conduits. Connect the individual wires to field sensors according to the wiring diagram. Do not exceed the 1A current rating per conductor. Verify the operating temperature stays between -20 and 60°C. The 2m cable length provides adequate reach for most panel layouts.

What is in the Box

Please inspect all items upon delivery.

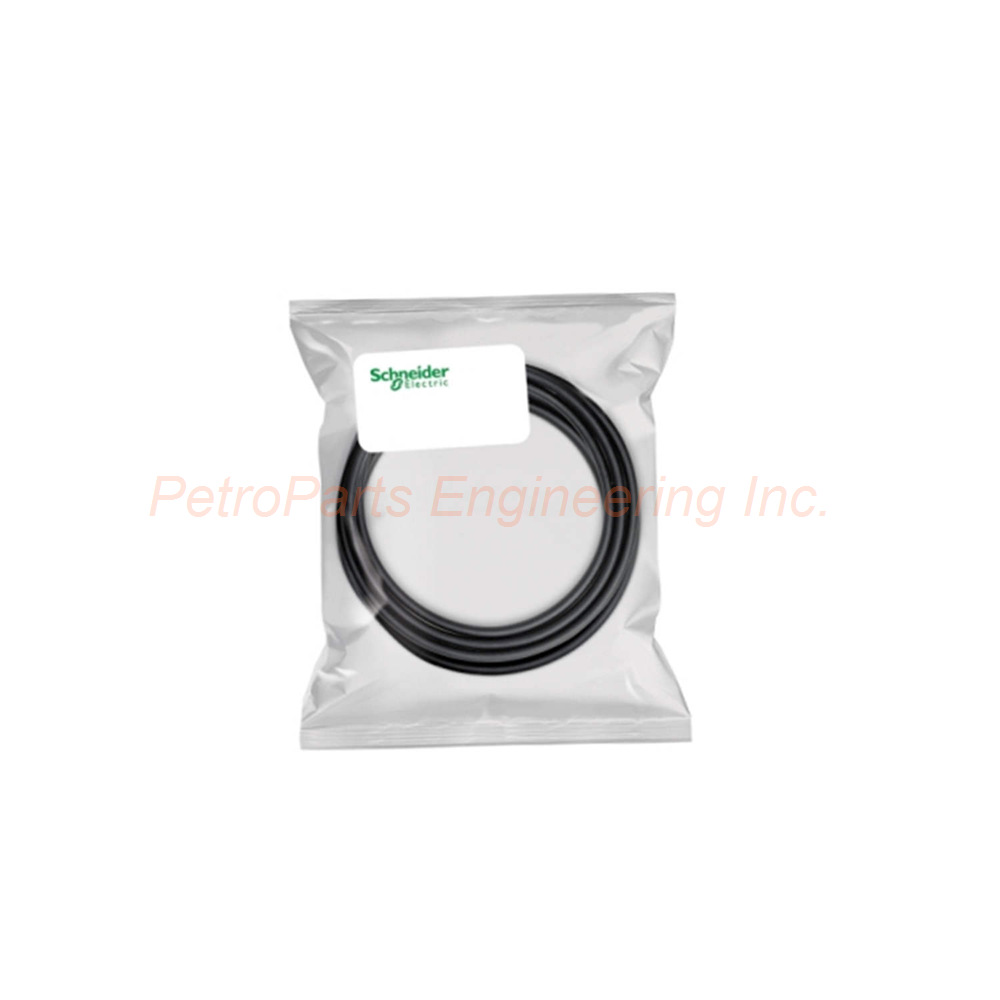

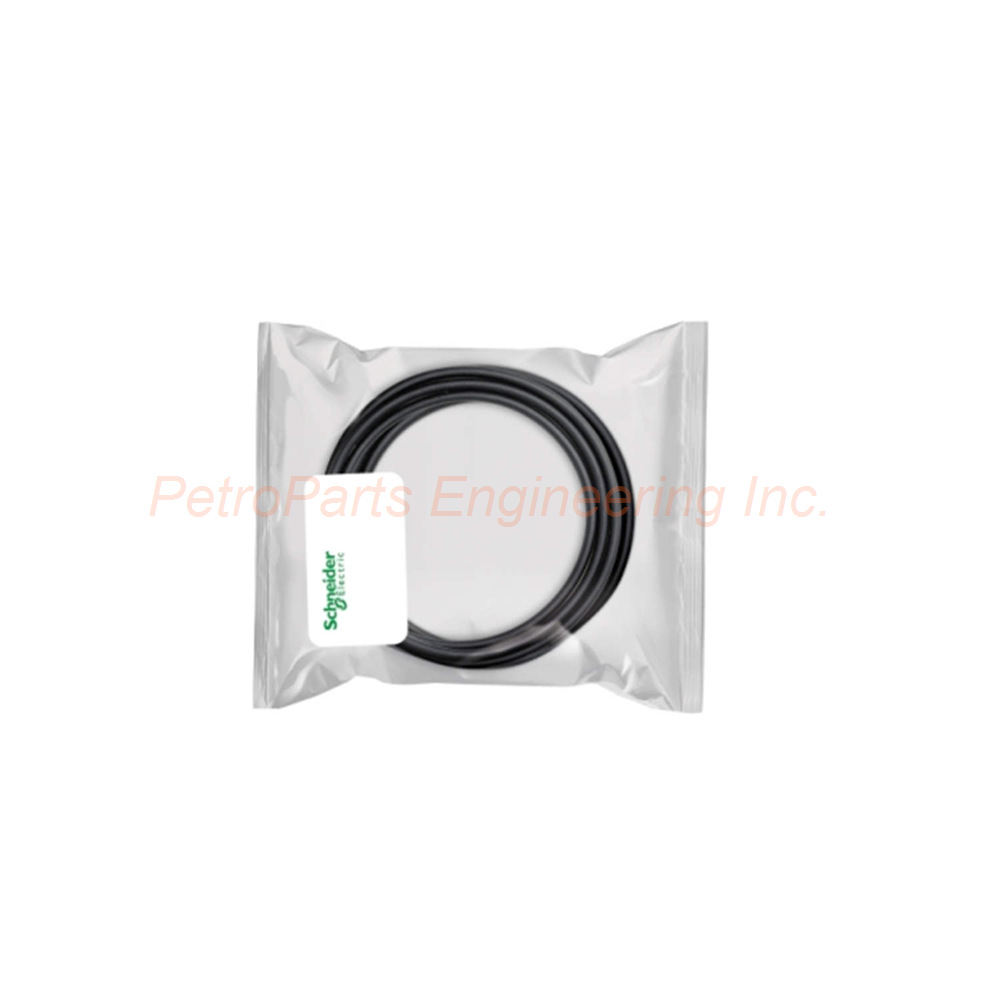

• Schneider Electric ABFM16S201 cabled connector assembly.

• 2m multi-conductor shielded cable with SUB-D connectors.

• Installation instruction sheet.

Frequently Asked Questions (FAQ)

1. Which module is the ABFM16S201 compatible with?
The ABFM16S201 is specifically designed for the 140ACI04000 analogue input module. It provides a complete cabling solution for that module.

2. How many channels does this cable support?
The ABFM16S201 supports 16 analogue input channels. This matches the channel count of the compatible Quantum analogue input module.

3. What type of connector does this cable use?
The ABFM16S201 uses SUB-D connectors with 25 ways. Two connectors are provided for complete electrical connection.

4. What is the length of this cable assembly?
The ABFM16S201 has a cable length of 2 meters (6.6 feet). This provides adequate flexibility for most control cabinet installations.

5. Is this cable shielded for noise protection?
Yes. The ABFM16S201 features multi-conductor shielded cable construction. This minimizes electromagnetic interference for sensitive analogue signals.
