=== Technical Specifications ===
--- Communication Protocol and Topology ---

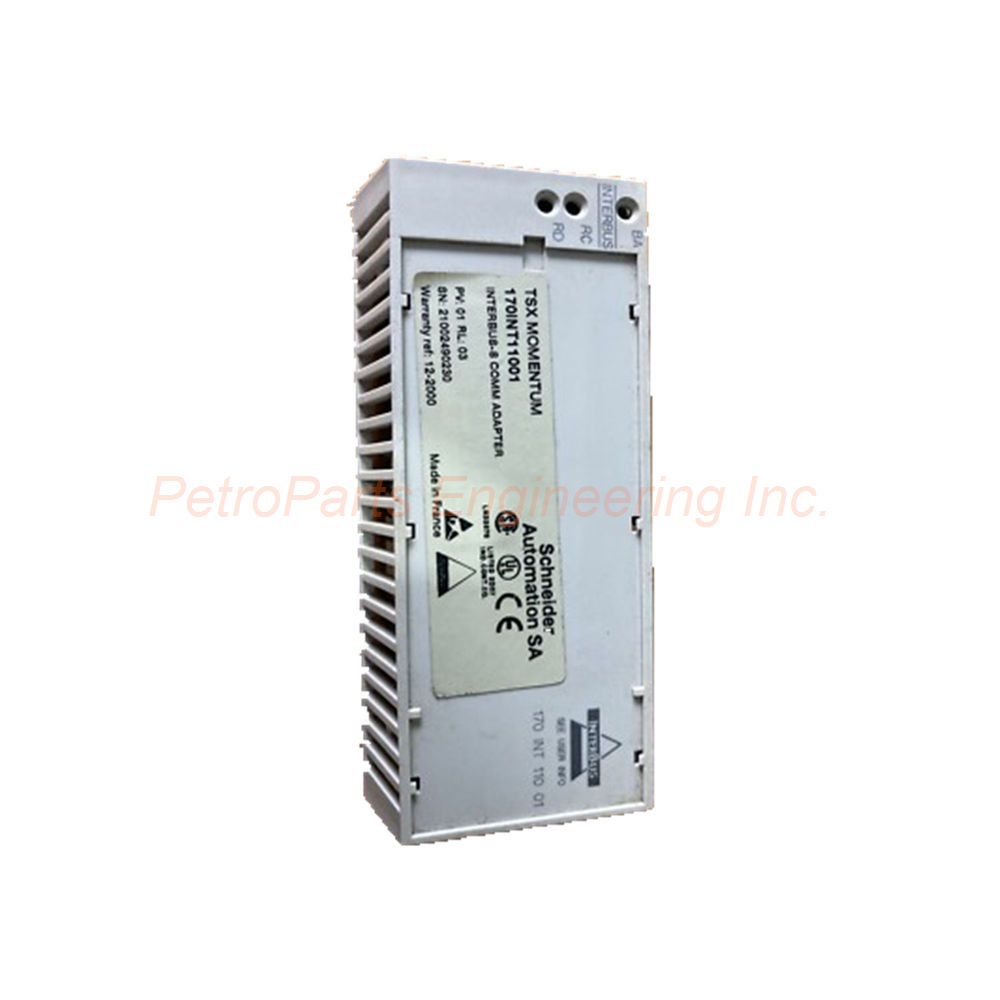

The Schneider Electric 170INT11001 operates on the INTERBUS-S communication protocol. Specifically, this protocol provides deterministic data exchange for real-time control. Furthermore, the adapter supports ring topology for flexible network configurations. This topology enhances reliability through automatic data rerouting. Thus, network faults cause minimal disruption to system operation.

--- Data Transmission Rate and Medium ---
The 170INT11001 transmits data at 500 kbps for efficient I/O updates. Specifically, the transmission medium uses standard twisted pair cable for cost-effective wiring. Furthermore, this cable type resists electrical noise in industrial environments. Thus, the adapter provides reliable communication without special coaxial cables.

--- Compatible Modules and Integration ---
The Schneider Electric 170INT11001 works specifically with Momentum I/O bases. Specifically, it mounts directly onto the I/O base for compact system design. Furthermore, the adapter handles both digital and analog I/O modules seamlessly. Thus, this creates a complete distributed I/O node on the INTERBUS-S network.

--- Operating Temperature Range ---
The 170INT11001 operates from 0°C to 55°C ambient temperature. Specifically, this range covers most indoor industrial control rooms and cabinets. Furthermore, the adapter requires no additional cooling within this range. Thus, installation remains simple without forced air requirements.

--- Storage Temperature Range ---
The Schneider Electric 170INT11001 tolerates storage from -20°C to 60°C. Specifically, this range supports warehousing in unheated facilities during winter. Furthermore, it handles summer storage in shipping containers without damage. Thus, spare adapters remain safe in typical storage conditions.

--- Altitude and Environmental Requirements ---
The 170INT11001 operates at altitudes up to 2000 meters without derating. Specifically, this covers most industrial sites worldwide including highland factories. Furthermore, the adapter requires an environment with no corrosive gases present. Thus, avoid installation near chemical processing vents or battery rooms.

--- Weight and Physical Characteristics ---
The Schneider Electric 170INT11001 weighs approximately 0.45 kg (1 pound) . Specifically, this lightweight design simplifies mounting on DIN rails. Furthermore, the compact Momentum form factor saves panel space. Thus, one person handles the adapter easily during installation.

--- Network Reliability Features ---
The 170INT11001 with ring topology offers enhanced network reliability. Specifically, the ring structure provides automatic fault bypass for broken cables. Furthermore, the INTERBUS-S protocol checks each frame for transmission errors. Thus, the system continues operating even with single cable faults.

=== Installation Guidelines ===
--- Mounting on Momentum I/O Base ---
To begin, attach the 170INT11001 directly to the Momentum I/O base. Next, align the adapter connector with the base interface pins. After that, press firmly until the adapter locks into place. Then, secure the adapter using the built-in retention clips. Finally, connect the INTERBUS-S network cable to the adapter ports.

--- Network Wiring Requirements ---
When wiring the Schneider Electric 170INT11001, use standard twisted pair cable. Specifically, follow the INTERBUS-S cabling guide for maximum segment lengths. Furthermore, maintain the ring topology by connecting both IN and OUT ports. Additionally, avoid running network cables parallel to high-power wiring. Thus, this prevents electromagnetic interference on the communication link.

--- Environmental Precautions ---
Given the 0°C to 55°C operating range, keep the 170INT11001 away from heat sources. Moreover, ensure the installation area has no corrosive gases present. Furthermore, maintain proper airflow around the adapter for cooling. Additionally, avoid mounting the adapter directly above hot equipment. Consequently, this maximizes adapter life and network reliability.

--- Baud Rate Configuration ---
The 170INT11001 automatically negotiates the 500 kbps data rate. Specifically, no manual baud rate switches exist on the adapter. Furthermore, the INTERBUS-S master determines the network speed. Thus, verify that your master device supports 500 kbps before installation.

=== Packing List ===

• Schneider Electric 170INT11001 Communication Adapter (1 unit)

• INTERBUS-S network connector cover

• Product identification and wiring label sheet

=== Frequently Asked Questions (FAQ) ===
1. Can the 170INT11001 work with non-Momentum I/O bases?
No, the Schneider Electric 170INT11001 only works with Momentum I/O bases. Specifically, it requires the specific Momentum form factor and bus interface. Furthermore, other Schneider series like Modicon M340 use different adapters. Thus, verify your I/O base compatibility before ordering.

2. What happens if I break the ring topology?
Breaking the ring on the 170INT11001 will cause a network fault. Specifically, INTERBUS-S requires the ring to be complete for normal operation. However, the protocol automatically bypasses single breaks for continued communication. Thus, the system remains functional but loses redundancy until repair.

3. Does this adapter support hot swapping?
No, the Schneider Electric 170INT11001 does not support hot swapping. Specifically, you must power down the Momentum I/O base before removing or installing the adapter. Furthermore, live removal may damage the adapter or the I/O base. Thus, always follow proper lockout-tagout procedures before servicing.

4. What is the maximum cable length for INTERBUS-S at 500 kbps?
The maximum segment length for the 170INT11001 at 500 kbps is approximately 400 meters. Specifically, this depends on cable quality and environmental noise levels. Furthermore, you can use repeaters to extend total network length. Thus, consult the INTERBUS-S installation guide for your specific layout.

5. Can I use this adapter with a PROFIBUS network?
No, the Schneider Electric 170INT11001 uses INTERBUS-S protocol only. Specifically, it does not support PROFIBUS, Modbus, or Ethernet protocols. For PROFIBUS networks, use the 170PNT11020 adapter instead. Thus, select the correct communication adapter for your network type.
