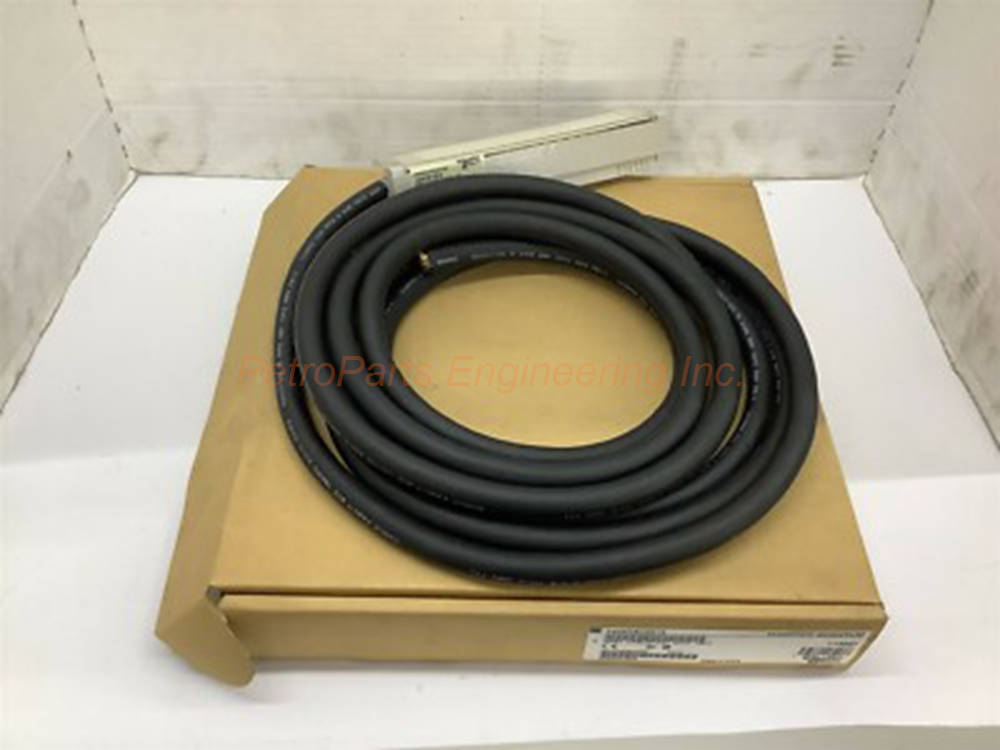

Product Overview: Schneider Electric 140XTS10215

The 140XTS10215 provides a secure connection between Quantum I/O modules and field devices. This cable uses a single Quantum I/O connector on one end. The other end features 40 distinct pigtail leads for easy termination. Each lead has a unique color code for quick identification. The 140XTS10215 is specifically designed for high-power applications.

Technical Specifications

The 140XTS10215 has a total length of 4.6 meters (approximately 15 feet). This length allows flexible routing inside large control panels. The cable type is pigtail, meaning each wire is exposed individually. The electrical connection uses one Quantum I/O connector. All 40 pigtail leads are color-coded for organized wiring.

• Manufacturer: Schneider Electric

• Product Line: Modicon Quantum

• Power Type: High power application rated

• Connector Type: 1 connector for Quantum I/O

• Number of Leads: 40 color-coded pigtail leads

• Net Weight: 4.50 lbs (2.04 kg)

The 140XTS10215 operates within an ambient temperature range of 0 to 40 degrees Celsius. It can function in environments with up to 80 percent humidity. This humidity rating applies to both operating and storage conditions. The humidity must be non-condensing for safe operation.

Environmental and Physical Attributes

This cable is built for standard industrial indoor environments. The maximum operating altitude is 1000 meters above sea level. At this altitude, no derating is required for performance. The 140XTS10215 maintains full specification compliance up to 1000 meters.

• Operating Temperature: 0°C to 40°C

• Operating Humidity: 80% max (non-condensing)

• Storage Humidity: 80% max (non-condensing)

• Altitude Rating: 1000 meters without performance derating

• Weight: 2.05 kg (gross), 2.04 kg (net)

The 140XTS10215 uses high-quality copper conductors for reliable signal transmission. The insulation material resists oil and common industrial chemicals. The outer jacket provides flexibility while maintaining structural integrity. This cable is not rated for direct burial or outdoor use.

Installation Guidelines

Installing the 140XTS10215 requires careful planning for cable routing. Connect the single Quantum I/O connector to the module firmly. Then strip each pigtail lead according to standard electrical practices. Match the color-coded leads to your field device terminals.

Key Installation Points for the 140XTS10215:

• Bend Radius: Do not bend tighter than 10 times the cable diameter

• Cable Ties: Use loosely fitted ties to avoid crushing the wires

• Labeling: Add additional labels to the pigtail leads for clarity

• Separation: Keep away from high-voltage AC power cables

The color-coded system of the 140XTS10215 reduces installation time significantly. Each lead has a unique color sequence for easy tracing. You do not need special tools beyond standard wire strippers. Always verify the pinout diagram before making final connections.

Applications and Use Cases

The 140XTS10215 is ideal for connecting Quantum I/O modules to terminal blocks. It works perfectly for discrete input and output field wiring. The high-power rating supports relay outputs and solenoid connections. Many users employ this cable for remote I/O drops.

Common Compatible Modules:

• Quantum digital input modules (140DAI series)

• Quantum digital output modules (140DDO series)

• Quantum analog modules with screw terminals

• Third-party termination panels with 40 points

The 140XTS10215 eliminates the need for individual wire preparation. The factory-installed pigtail leads are ready for immediate termination. This reduces labor costs during panel assembly. The cable also simplifies troubleshooting and maintenance tasks.

Package Contents

Your purchase of the 140XTS10215 includes:

• (1) Schneider Electric System Cable – 140XTS10215

• (1) Length of 4.6 meters with 40 pigtail leads attached

• (1) Standard manufacturer packaging box

Frequently Asked Questions (FAQ)

Q: What is the exact length of the 140XTS10215 cable?
A: The 140XTS10215 measures exactly 4.6 meters from end to end. This includes the connector housing and the exposed pigtail leads.

Q: Can the 140XTS10215 be cut to a shorter length?
A: Yes, you can cut the 140XTS10215 to a shorter length. However, cutting will void the factory warranty. You must re-terminate the cut ends properly.

Q: Are replacement pigtail connectors available for the 140XTS10215?
A: No, the 140XTS10215 comes as a complete assembly. The Quantum I/O connector is not available as a separate spare part.

Q: What is the wire gauge of each pigtail lead on the 140XTS10215?
A: The 140XTS10215 uses approximately 22 AWG stranded copper wire. This gauge is suitable for most control panel wiring applications.

Q: Is the 140XTS10215 suitable for analog signals?
A: The 140XTS10215 works best for digital and high-power signals. For sensitive analog signals, consider shielded cable alternatives.
