The Heart of Legacy Modicon Automation

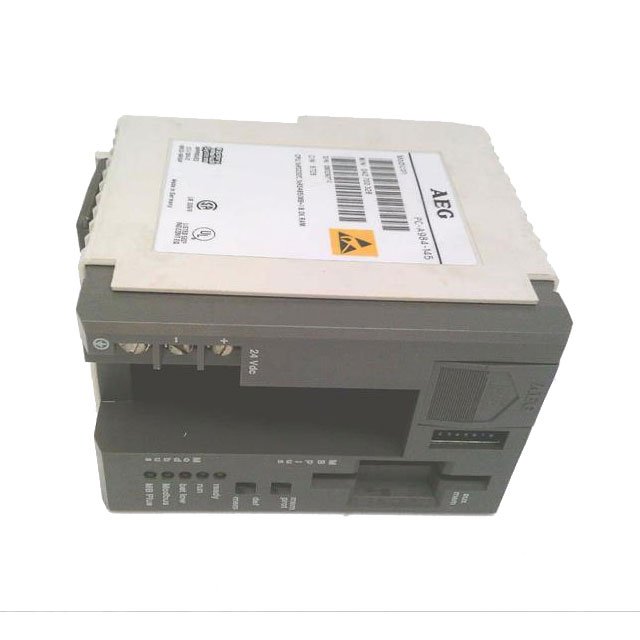

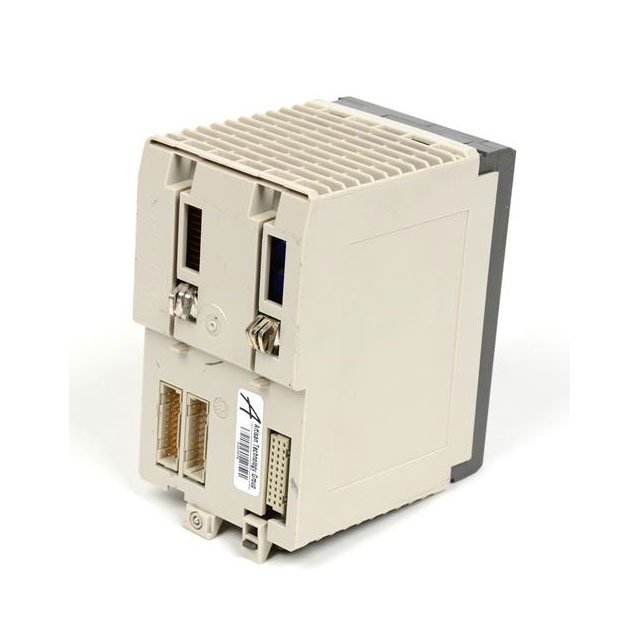

The Schneider Electric PC-A984-145 is a high-reliability Central Processing Unit (CPU) module from the legendary Modicon 984 series. For decades, the 984 family has served as the backbone of industrial automation, providing a rugged and deterministic control environment for factory floors, water treatment plants, and power distribution systems. This specific model, the 984-145, offers a balanced performance profile that fits perfectly into mid-sized control architectures.

Engineers and maintenance professionals continue to rely on the PC-A984-145 because of its exceptional longevity and stable execution. While newer platforms exist, the 984 series remains a critical asset for facilities that prioritize uptime and require a “set-and-forget” controller. This CPU ensures that your existing Modicon 800-series or 900-series I/O continues to function at peak efficiency, preventing the need for costly and time-consuming system overhauls.

Technical Specifications and Performance Data

The PC-A984-145 provides the necessary processing power to handle complex ladder logic and data manipulation. The following table details the core technical parameters of this CPU module:

Efficient Processing and Memory Management

Schneider Electric optimized the PC-A984-145 for rapid logic execution. With a scan time of 5 milliseconds per kilobyte, the CPU processes instructions quickly enough to manage high-speed machinery and complex process loops. The 8k of user memory provides ample space for storing extensive ladder logic programs, while the 2k of dedicated data memory handles variable storage without impacting program execution speed.

The module also features 1920 registers, which are essential for storing analog values, timer presets, counter values, and PID loop parameters. This high register count allows the CPU to manage sophisticated data-logging tasks and complex mathematical calculations, making it suitable for applications ranging from simple motor control to advanced chemical dosing.

Advanced Dual-Port Communication

Communication flexibility defines the utility of the PC-A984-145. The module includes two distinct ports to handle different networking requirements:

1. Modbus Port (RS232): This serial port serves as the primary interface for local programming, HMI (Human Machine Interface) connections, and point-to-point communication with serial devices. It supports the industry-standard Modbus RTU protocol, ensuring compatibility with thousands of third-party devices.
2. Modbus Plus Port: This high-speed, token-passing network port allows the PC-A984-145 to communicate with other Modicon controllers and remote I/O drops. Modbus Plus provides a deterministic network environment where data moves reliably between controllers, ensuring synchronized plant-wide operations.

Scalable I/O and System Expansion

The PC-A984-145 grows with your industrial needs. It supports up to 256 local I/O points, allowing for a high density of sensors and actuators within the main rack. For larger installations, the CPU manages a total of 512 inputs and 512 outputs across the entire system.

The module supports one local drop and can expand to include up to four racks. This scalability ensures that you can add I/O capacity as your production line evolves. Whether you are managing a single machine or a small production cell, the PC-A984-145 provides a stable and expandable foundation for your control logic.

Industrial Durability and Legacy Support

Modicon hardware is famous for its physical “over-engineering.” The PC-A984-145 weighs 3.00 lbs (1.36 kg), reflecting its heavy-duty construction and high-quality internal components. It features a robust metal housing that protects the internal electronics from electromagnetic interference (EMI) and physical vibration common in industrial settings.

As a legacy product, the PC-A984-145 is an essential spare part for maintaining the 984-series ecosystem. Facilities that use this CPU benefit from:

• Minimal Downtime: Quick replacement of aging CPUs without needing to rewrite code.
• Code Compatibility: Seamlessly runs existing LL984 (Ladder Logic 984) programs.
• Cost Savings: Extends the life of expensive I/O racks and field wiring.
