High-Efficiency Motor Control for Simple Machines

The Schneider Electric ATV312HU15N4 is a robust and versatile variable speed drive (VFD) from the Altivar 312 family. Designed specifically for three-phase asynchronous motors, this drive provides a reliable solution for “simple machines” in industrial applications. With a power rating of 1.5 kW (2 HP), it balances compact dimensions with powerful performance, making it a favorite for panel builders and system integrators worldwide.

The Altivar 312 series improves upon its predecessors by offering enhanced communication capabilities and a more intuitive user interface. This drive excels in applications requiring constant torque, such as conveyors, packaging machines, and small pumps. By utilizing sensorless flux vector control, the ATV312HU15N4 ensures precise speed regulation and high torque even at low frequencies, providing smooth operation across its entire 1:50 speed range.

Detailed Technical Specifications

The ATV312HU15N4 operates within a wide voltage window and offers comprehensive I/O options. The following table highlights the core electrical and mechanical parameters:

Advanced Motor Control and Connectivity

The ATV312HU15N4 utilizes a Pulse Width Modulation (PWM) signal with sensorless vector control. This technology allows the drive to maintain high torque levels (up to 170–200% transient overtorque) without the need for an encoder. Operators can adjust the switching frequency between 2 kHz and 16 kHz to balance motor noise and thermal performance.

Connectivity remains a core strength of the Altivar 312 range. The unit comes standard with Modbus RTU and CANopen protocols via an RJ45 connector. For facilities requiring different architectures, Schneider Electric offers optional communication cards for:

• Profibus DP
• DeviceNet
• Modbus TCP
• Fipio

These options allow the drive to integrate seamlessly into complex PLC networks, enabling remote monitoring, parameter adjustment, and real-time diagnostics.

Industrial Protection and Durability

Industrial environments demand hardware that can withstand electrical and mechanical stress. The ATV312HU15N4 includes a comprehensive suite of safety and protection features:

• Thermal Protection: The drive monitors both its internal temperature and the motor’s thermal state to prevent overheating.
• Electrical Safety: Integrated circuits protect against line supply overvoltage, undervoltage, and phase loss.
• Short-Circuit Protection: The drive detects short circuits between motor phases or between phases and earth during power-up.
• Braking Flexibility: It provides 150% braking torque without a resistor for short durations, or continuous braking with an optional external resistor.

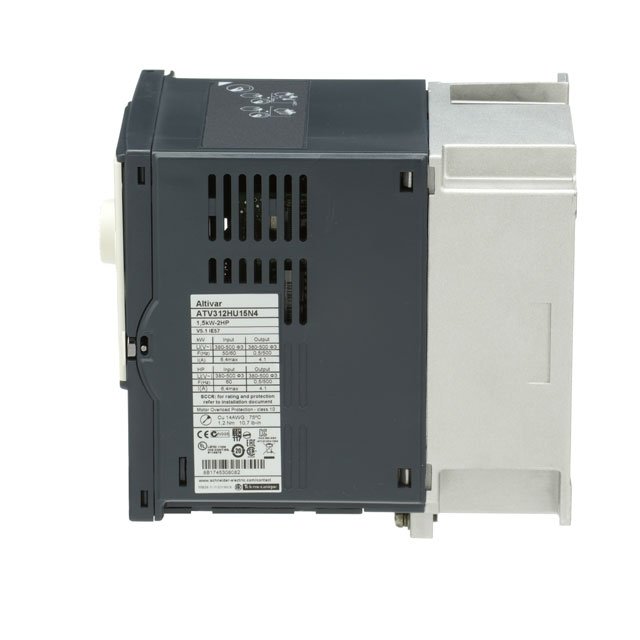

The mechanical design includes a high-efficiency heat sink, allowing the drive to operate in ambient temperatures up to 50°C (122°F) without derating. For even harsher conditions, users can operate the drive up to 60°C by removing the protective cover and applying appropriate current derating.

Versatile I/O and Programming

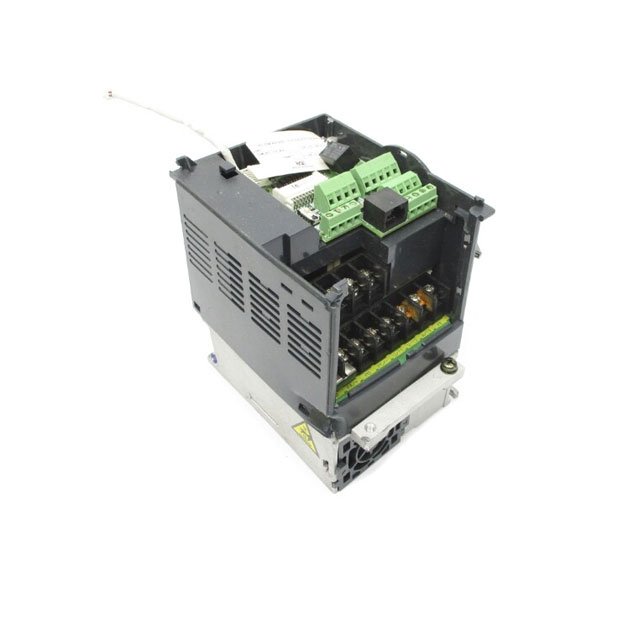

The ATV312HU15N4 features a rich set of I/O terminals to handle various control logic requirements:

• 6 Discrete Inputs: Programmable 24V inputs compatible with both positive and negative logic.
• 3 Analog Inputs: Configurable for 0-10V, +/- 10V, or 0-20mA signals.
• 1 Analog Output: Configurable voltage or current for speed or torque feedback.
• 2 Relay Outputs: Configurable logic for status signaling (e.g., “Fault” or “Running”).

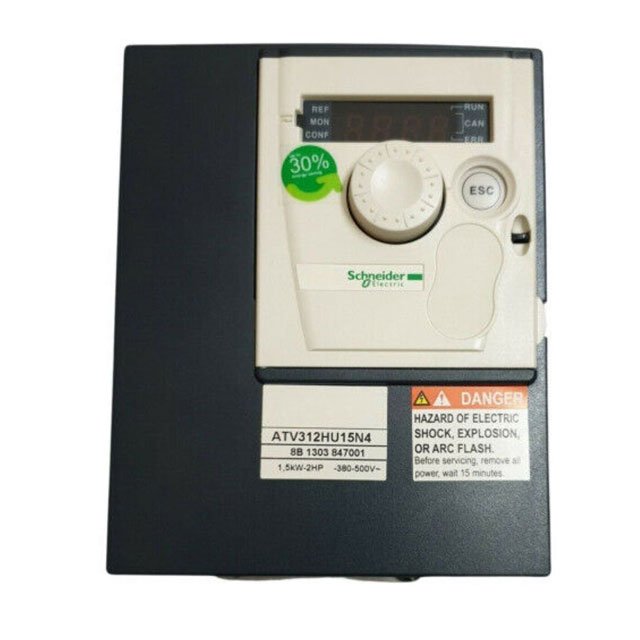

The front panel features a bright four-digit 7-segment display and a navigation dial. This interface allows technicians to configure parameters, monitor bus status, and troubleshoot faults quickly without needing external software.

Application Scenarios

Thanks to its robust design and flexible programming, the ATV312HU15N4 serves various industries:

1. Material Handling: Controls small conveyors and sorting systems with smooth acceleration and deceleration ramps.
2. Packaging: Manages labeling and wrapping machines where precise speed control is vital.
3. HVAC: Drives small fans and centrifugal pumps, utilizing the built-in PI regulator for pressure or flow control.
4. Food & Beverage: Operates mixers and agitators with consistent torque delivery.
