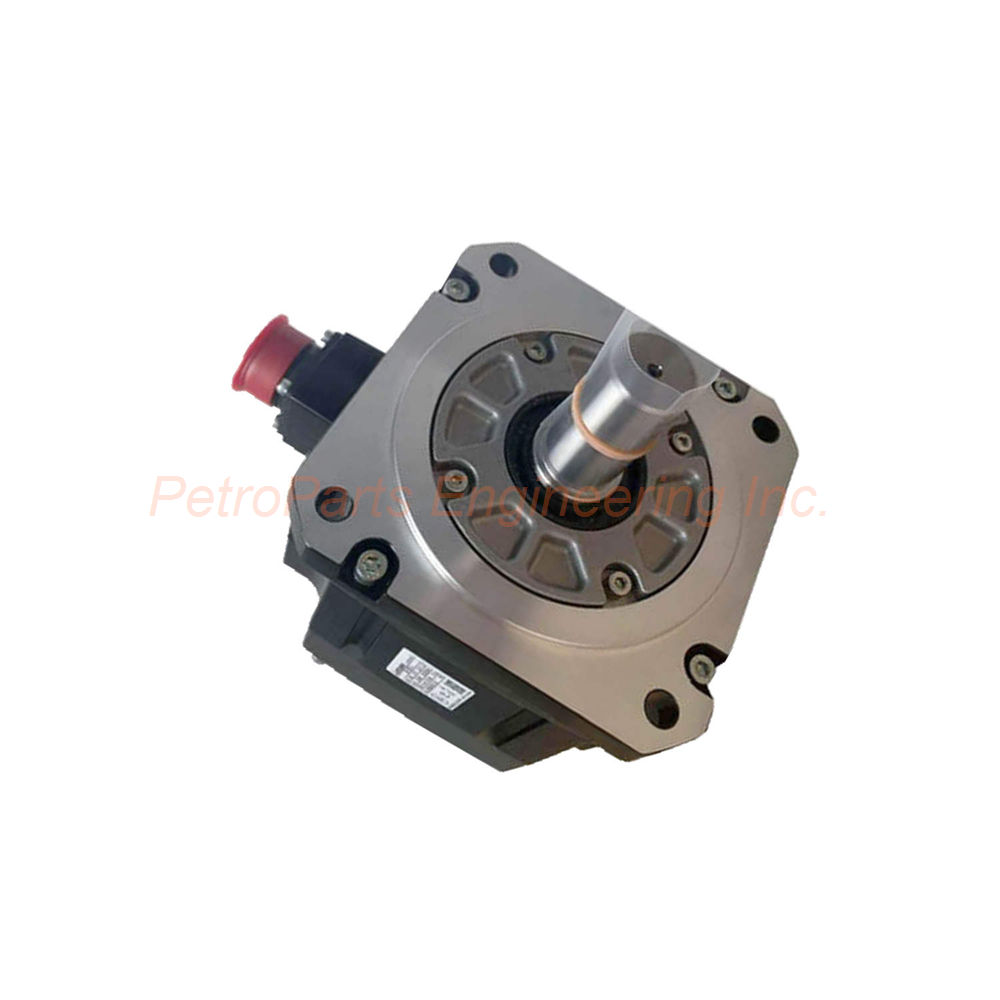

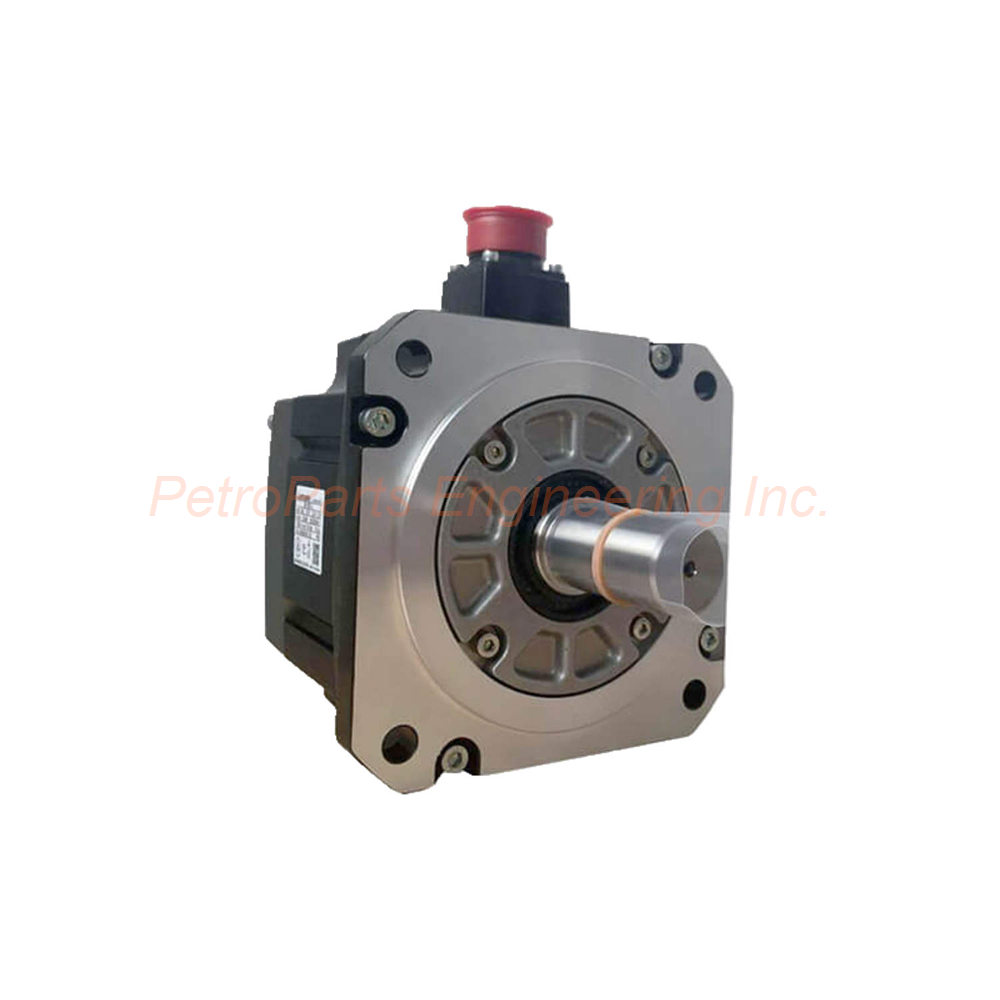

Mitsubishi HG-SR152J Servo Motor 1.5kW 2000rpm IP67 200VAC
Introduction:
The Mitsubishi HG-SR152J is a brushless servo motor for precise control applications. It offers 1.5kW power and 2000 rpm rated speed.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Mitsubishi HG-SR152J Servo Motor Overview
The Mitsubishi HG-SR152J is a brushless servo motor from the HG Series. This motor delivers 1.5 kW rated active power for medium capacity applications. The Mitsubishi HG-SR152J operates at a rated speed of 2000 rpm for efficient performance. Its supply voltage is 200V AC class for various power configurations. The motor provides nominal torque of 7.2 Nm for continuous operation. Maximum torque reaches 21.5 Nm for demanding load conditions. The Mitsubishi HG-SR152J features medium inertia for rapid acceleration and deceleration. This servo motor includes an oil seal to protect internal components from contamination.
Technical Specifications
General Specifications
Manufacturer: Mitsubishi.
Product Line: HG Series.
Part Number: HG-SR152J.
Motor Type: Brushless Servo Motor.
Inertia Type: Medium Inertia.
Capacity: Medium Capacity.
Connection Type: 2 MS-Type connectors.
Oil Seal: Included.
IP Rating: IP67.
Electrical Ratings
Rated Active Power: 1.5 kW.
Rated Speed: 2000 rpm.
Rated Current: 9.4 A.
Maximum Current: 29 A.
Supply Voltage: 200V AC Class.
Nominal Torque: 7.2 Nm.
Maximum Torque: 21.5 Nm.
Physical Specifications
Weight: 5.44 kg (12.00 lbs).
Gross Weight: 6.2 kg (with packaging).
Environmental Protection
IP Rating: IP67 (excellent resistance to dust and water ingress).
Oil Seal: Yes (protects internal components from oil contamination).
Installation Guide
Follow these steps to install the Mitsubishi HG-SR152J correctly:
Ensure the power supply is completely disconnected before installation.
Mount the motor securely on a rigid mounting surface.
Connect the two MS-type connectors to the matching cables.
Connect the 200V AC power supply to the motor terminals.
Ground the motor housing according to local electrical codes.
Verify the oil seal is intact before installing in oily environments.
Check that the IP67 rating is maintained with proper cable seals.
Test the Mitsubishi HG-SR152J at rated speed of 2000 rpm without load.
Packaging List
Mitsubishi HG-SR152J brushless servo motor (1 unit)
Oil seal (pre-installed)
Mounting bolts (4 pieces)
Installation manual (1 copy)
MS-type connector set (2 pairs)
Frequently Asked Questions (FAQ)
1. What is the rated power output of the Mitsubishi HG-SR152J?
The Mitsubishi HG-SR152J delivers 1.5 kW rated active power for medium capacity applications.
2. What is the maximum torque this servo motor can provide?
This motor provides maximum torque of 21.5 Nm for demanding load conditions.
3. Is the HG-SR152J suitable for harsh environments?
Yes, the Mitsubishi HG-SR152J has IP67 rating and includes an oil seal for protection.
4. What is the rated speed of this servo motor?
The rated speed is 2000 rpm for efficient continuous operation.
5. What inertia type does the HG-SR152J have?
The Mitsubishi HG-SR152J features medium inertia for balanced acceleration and deceleration.
