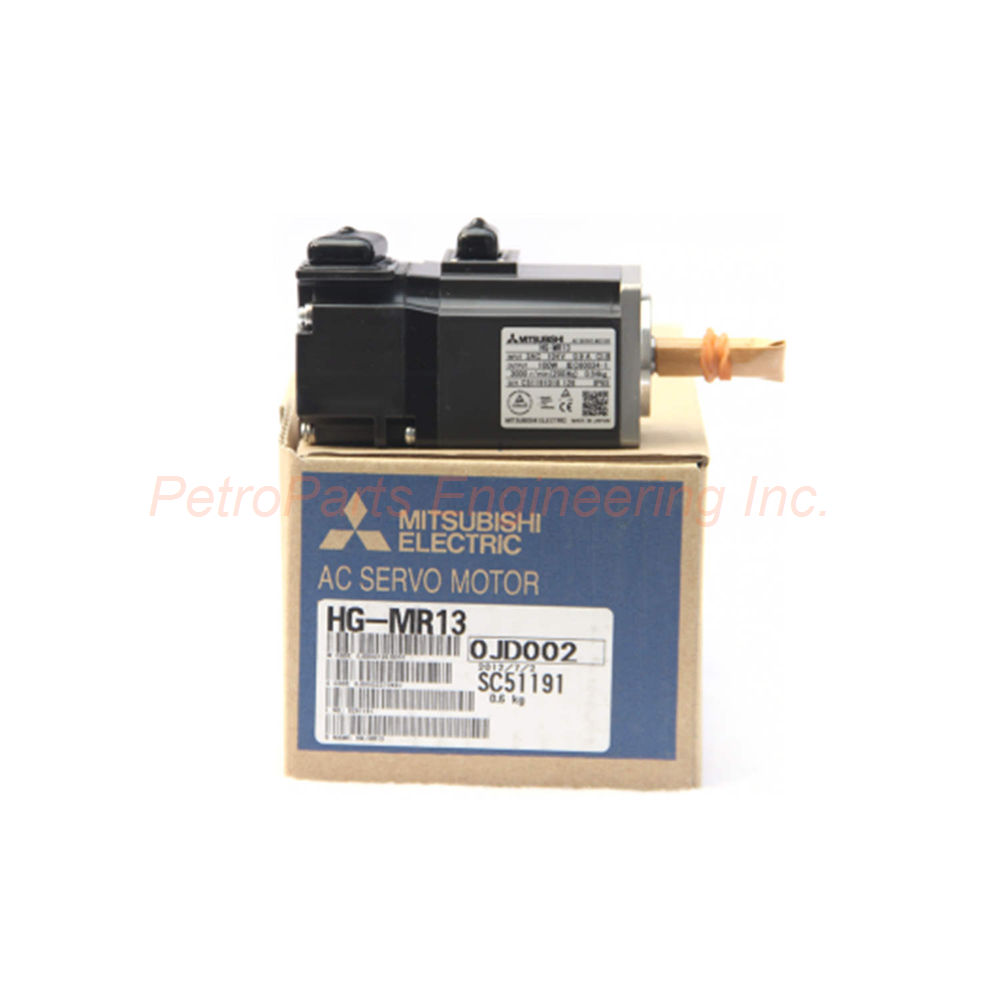

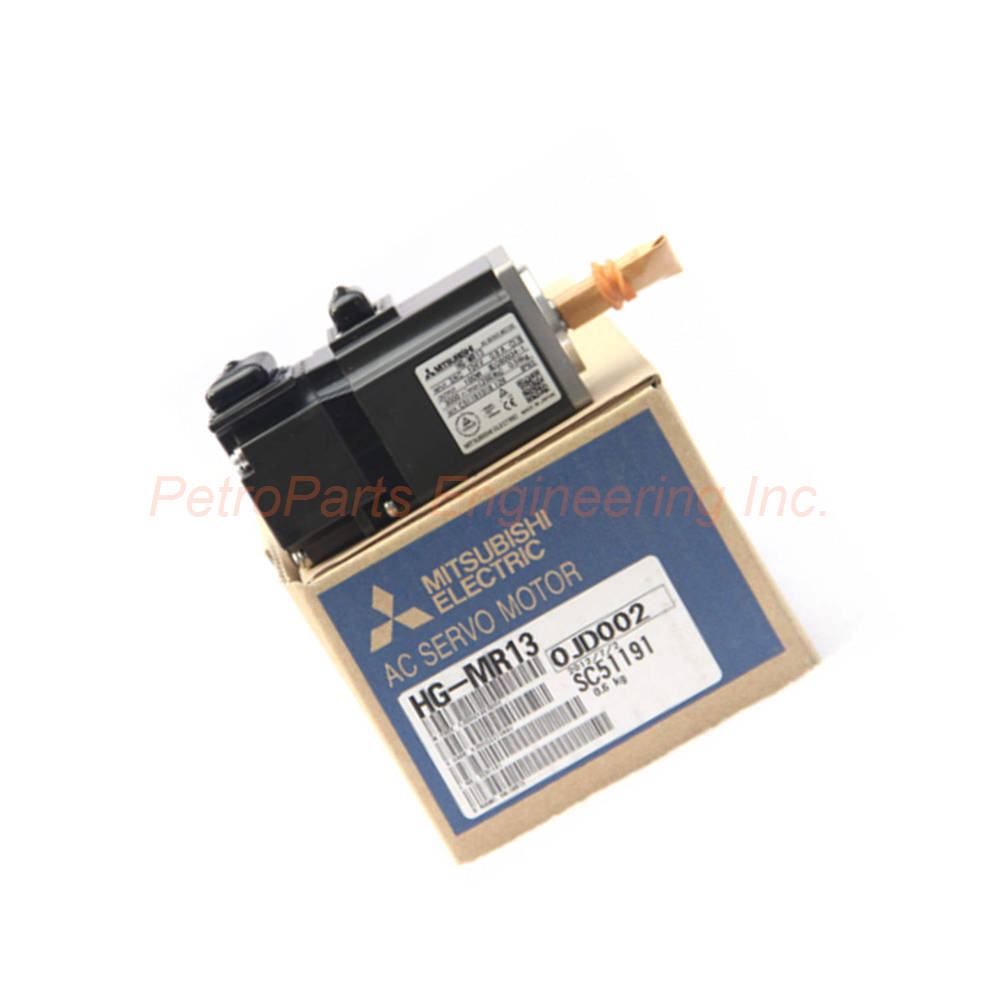

Mitsubishi HG-MR13 – Ultra-Low Inertia Servo Motor for High-Speed Applications

The Mitsubishi HG-MR13 belongs to the HG Series. Specifically, this servo motor specializes in ultra-low inertia applications. It features a compact design for small capacity operations. Furthermore, this motor has a totally-enclosed structure. Consequently, it provides robust protection against environmental contaminants.

Speed and Torque Specifications

• Rated Speed: 3000 RPM standard operation.

• Maximum Speed: 6000 RPM for rapid performance.

• Rated Torque: 0.32 Nm continuous output.

• Maximum Torque: 0.95 Nm peak output.

• Rated Current: 0.9 A nominal draw.

• Maximum Current: 2.5 A peak draw.

• Therefore, the Mitsubishi HG-MR13 delivers excellent responsiveness for high-speed tasks.

Encoder and Feedback System

• Encoder Type: 22-bit encoder integrated.

• Feedback Accuracy: High-resolution position feedback.

• Purpose: Accurate motion control and positioning.

• Benefit: Enhanced performance for precision applications.

• Result: Smooth operation across the speed range.

• Thus, the HG-MR13 provides exceptional motion control accuracy.

Load Capacities and Mechanical Limits

• Maximum Radial Load: 88 N capacity.

• Maximum Axial Load: 59 N capacity.

• Shaft Type: Straight shaft configuration.

• Electromagnetic Brake: Not included in this model.

• Structure: Totally-enclosed design.

• IP Rating: IP65 protection level.

• Consequently, the Mitsubishi HG-MR13 suits specific high-speed control scenarios without a brake.

Environmental and Physical Specifications

• IP Rating: IP65 for dust and water resistance.

• Structure Type: Totally-enclosed enclosure.

• Weight: 0.26 kg (0.56 lbs) net.

• Capacity Class: Small capacity application.

• Protection: Resists environmental contaminants effectively.

• Cooling: Natural convection cooling.

• Moreover, the Mitsubishi HG-MR13 operates reliably in demanding conditions.

Installation Guide

First, mount the Mitsubishi HG-MR13 securely to your machine frame. Then, align the straight shaft with the driven load carefully. After that, couple the shaft using a flexible coupling. Next, connect the power and encoder cables to the matching drivers. Ensure the 22-bit encoder wires are properly shielded. Then, apply rated current of 0.9 A for normal operation. For peak torque needs, allow up to 2.5 A maximum. Subsequently, verify radial loads do not exceed 88 N. Also, confirm axial loads stay below 59 N. Finally, test the motor at both 3000 RPM and 6000 RPM speeds. As a result, the HG-MR13 will deliver optimal high-speed performance.

Packaging List

• One Mitsubishi HG-MR13 ultra-low inertia servo motor

• One straight shaft key (if applicable)

• One power connector kit

• One encoder connector kit

• One mounting instruction sheet

Common FAQs

Q1: What is the maximum speed of the Mitsubishi HG-MR13?
A: The maximum speed reaches 6000 RPM. Specifically, the rated speed is 3000 RPM for continuous operation. Therefore, this motor suits rapid performance requirements.

Q2: Does the HG-MR13 include an electromagnetic brake?
A: No, this model does not include an electromagnetic brake. Consequently, it suits specific high-speed control scenarios without braking needs. For brake requirements, consider other HG Series models.

Q3: What encoder does the Mitsubishi HG-MR13 use?
A: This servo motor uses a 22-bit encoder. Therefore, it provides accurate feedback for motion control. As a result, positioning precision is excellent.

Q4: What is the IP rating of this servo motor?
A: The HG-MR13 has an IP65 protection rating. Specifically, it resists dust and water jets. Furthermore, its totally-enclosed structure ensures robust environmental protection.

Q5: What are the maximum load ratings for the Mitsubishi HG-MR13?
A: The maximum radial load is 88 N. The maximum axial load is 59 N. Additionally, always stay within these limits to prevent bearing damage.
