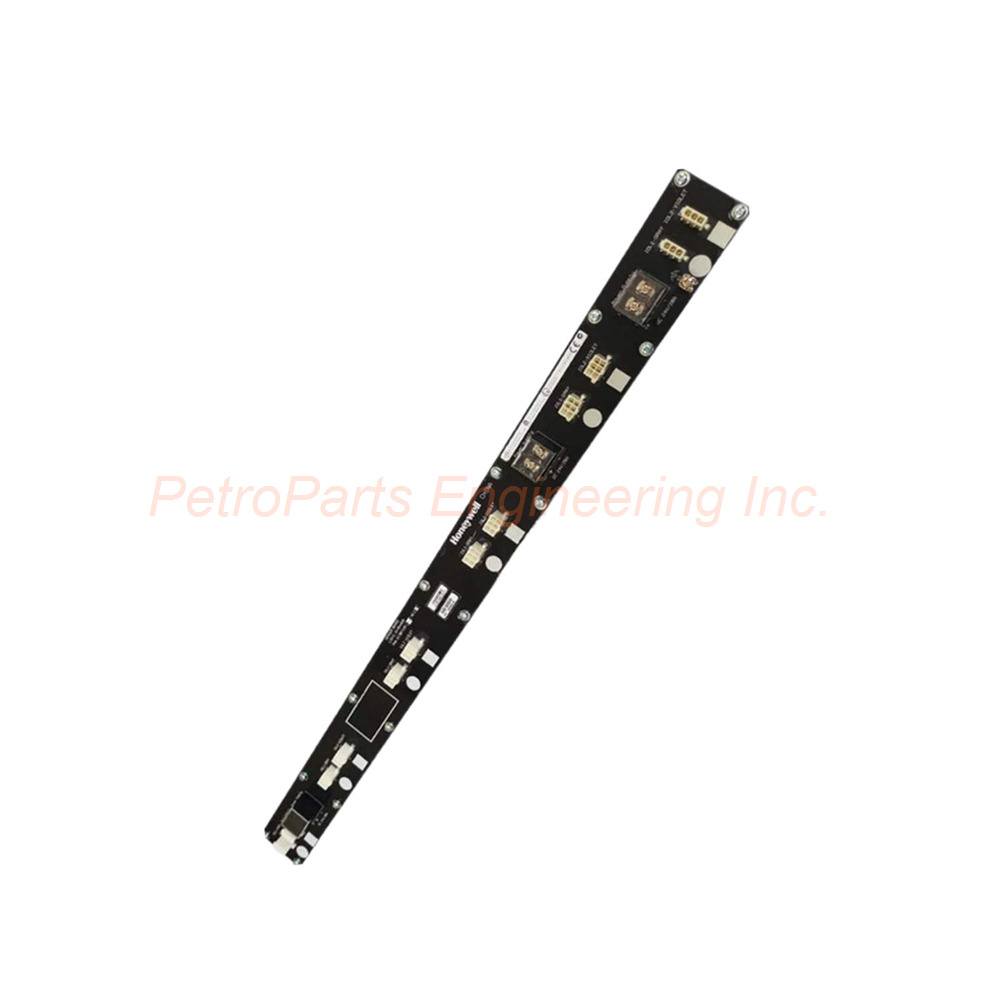

Key Technical Specifications of the 8C-SHEDA1

The 8C-SHEDA1 header board accepts a power input of 24 VDC. Consequently, it delivers the same stable power output of 24 VDC. This consistent voltage ensures reliable operation for all connected IO modules.

Specifically, the board includes three power connectors for input connections. Moreover, it provides four pairs of combo cable connectors. Each combo connector has 6 pins for combined power and IOLink signals.

For IOLink extension, the 8C-SHEDA1 offers two pairs of connectors. Additionally, each extension connector uses 3 pins. The ambient temperature range is 0 to 60 degrees Celsius.

Redundant Power and Communication Features

First, one pair of header boards can provide redundant power distribution. Likewise, the same pair also delivers redundant IO communication. As a result, this redundancy increases system reliability significantly.

Furthermore, the Honeywell 8C-SHEDA1 distributes 24 VDC from a power system. Then, it sends power to one or more columns of mounting plates. These plates can sit on one or both sides of a cabinet.

IOLink Daisy-Chain Capability

The combination power and IOLink cable uses a daisy-chain connection. Therefore, this design allows connection to multiple IO modules in sequence. For example, disconnecting the cable from one IO module does not affect other modules. Thus, this feature simplifies maintenance and troubleshooting.

Meanwhile, the IOTA module receives its power through this combo cable. Similarly, it also gets IOLINK communication from the same cable. Hence, the 8C-SHEDA1 header board serves as the central source for this connection.

Cabinet Extension Ability

The 8C-SHEDA1 can extend power and IOLink to adjacent cabinets. Specifically, this extension works through built-in connectors on the board. As a result, you can link multiple cabinets without adding extra power supplies. Consequently, this design saves space and reduces wiring complexity.

Environmental and Physical Specifications

The header board operates within 0 to 60 degrees Celsius ambient temperature. Accordingly, this range covers most standard industrial indoor environments. However, the board requires proper ventilation inside the control cabinet.

Step-by-Step Installation Guide for 8C-SHEDA1

Follow these steps to install your 8C-SHEDA1 correctly:

1. Mount the header board inside the main control cabinet first. Then, use the pre-drilled mounting holes for secure attachment.

2. Connect the 24VDC power input to the three power connectors. Therefore, verify polarity carefully before applying any power.

3. Attach combo cables to the four pairs of 6-pin connectors. After that, route cables safely toward your IOTA modules.

4. Use daisy-chain connections for multiple IO modules on one cable. Consequently, this method reduces total cable length significantly.

5. Add a second header board for redundant power distribution. For instance, connect both boards to the same power source.

6. Extend to adjacent cabinets using the IOLink extension ports. Specifically, the 3-pin connectors handle this task effectively.

7. Power up the system and verify LED status on all connected modules. Finally, check communication with each IOTA module.

Complete Package List for Honeywell 8C-SHEDA1

Your package includes the following items:

• One Honeywell 8C-SHEDA1 header board assembly

• One quick installation reference card

• Four plastic end caps for unused connectors

Important Note: This package does not include combination power or IOLink cables. Thus, you must purchase cables separately based on your cabinet layout.

Frequently Asked Questions (FAQ)

Q1: Can the 8C-SHEDA1 work without a second redundant board?
Yes, the 8C-SHEDA1 works perfectly as a single non-redundant board. However, redundant operation requires two paired header boards. As a result, one board alone still distributes power and IOLink normally.

Q2: How many IO modules can one 8C-SHEDA1 support?
The 8C-SHEDA1 supports multiple IO modules through daisy-chaining. Nevertheless, the exact number depends on total power consumption. Specifically, each combo cable connector starts one daisy-chain line.

Q3: What happens if I disconnect one IOTA module?
Disconnecting one IOTA module does not affect other modules. Therefore, the daisy-chain design maintains communication to remaining modules. Consequently, this feature allows hot-swapping of individual IO modules.

Q4: Is the 8C-SHEDA1 compatible with other Series 8 components?
Yes, the Honeywell 8C-SHEDA1 works with all Series 8 IOTA modules. Additionally, it pairs with Series 8 power systems and mounting plates. For best results, use the specified combo cable for proper connection.

Q5: Can I mount this board outside a cabinet?
No, the 8C-SHEDA1 requires installation inside a protected cabinet. Specifically, its temperature range is 0 to 60 degrees Celsius. Therefore, outdoor use would need an additional environmental enclosure.

Why Choose the Honeywell 8C-SHEDA1?

This header board simplifies power and IOLink distribution inside cabinets. First, the daisy-chain design reduces wiring and maintenance effort. Second, redundant capability improves system uptime for critical applications. Third, four combo connectors support multiple IO modules from one board. Finally, cabinet extension features allow easy system expansion later. Choose the 8C-SHEDA1 for reliable Series 8 infrastructure.
