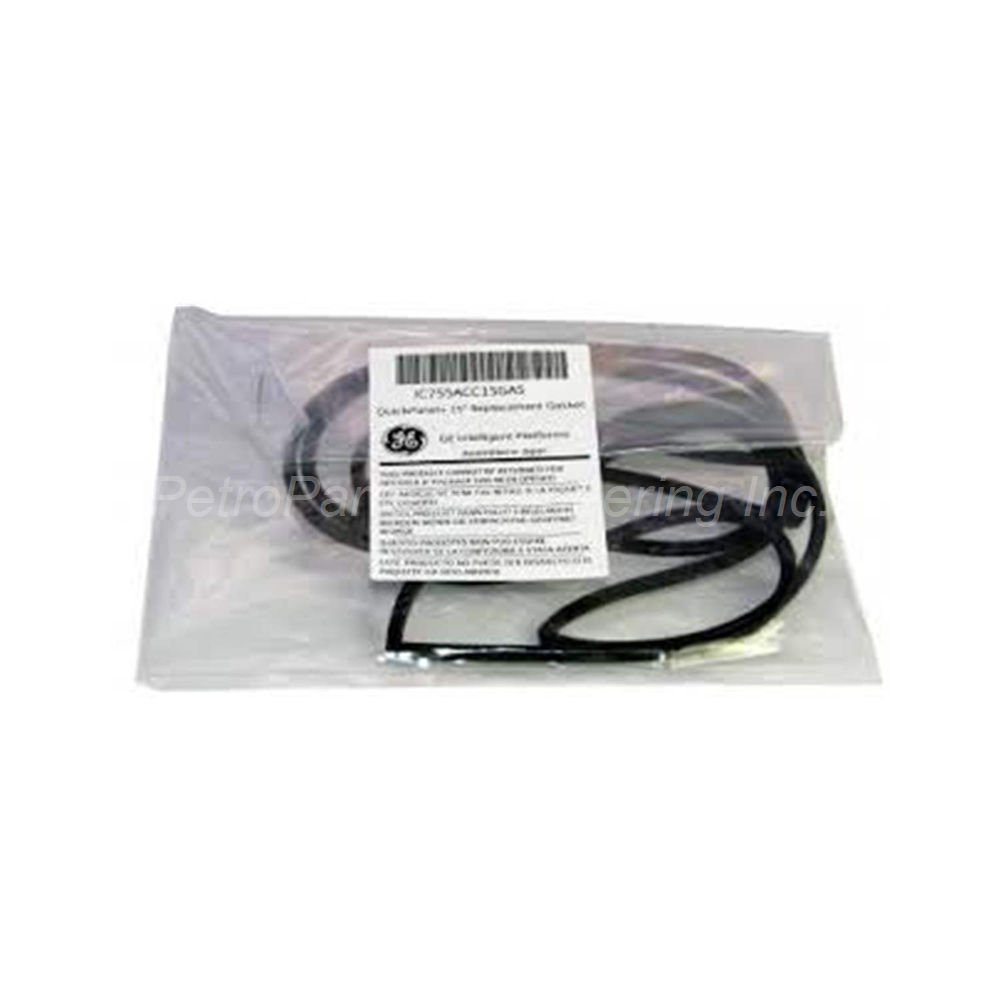

IC755ACC15GAS Replacement Gasket for 15-Inch QuickPanel+ HMI Units

This IC755ACC15GAS gasket serves as a field-replaceable seal for 15-inch displays. The IC755ACC15GAS is designed for GE QuickPanel+ units with 15-inch screens. QuickPanel+ units come with pre-installed gaskets from the factory. These original gaskets can be replaced in the field if they become damaged. A fresh gasket provides full protection for the HMI terminal.

Technical Specifications

The IC755ACC15GAS is compatible with all 15-inch QuickPanel+ units. The enclosure used for installation must be made of metal. The enclosure must have an IP65 environmental protection rating.

Gasket Specifications:

• Product Type: Replacement gasket

• Compatibility: 15-inch QuickPanel+ units

• Enclosure Material: Metal enclosure required

• Required IP Rating: IP65

• Repeated Insertion/Removal: Not recommended

Compatible 15-Inch QuickPanel+ Terminal Specifications:

• Unit Weight: Approximately 9.83 pounds

• Unit Dimensions: 15.71 x 12.72 x 2.76 inches

• Panel Cutout Size: 14.92 x 12.01 inches

• VESA Mount Size: 3.94 x 3.94 inches (alternative)

• Processor: 1 GHz ARM Cortex A8

• Operating System: Windows Embedded Compact 7

• Compliance: EU RoHS directive 2011/65/EU

Power Specifications for Compatible Terminal:

• Input Voltage: 12/24 VDC with ±20% tolerance

• Power Consumption: 30 Watts maximum

• Current at 12 VDC: 2.5 Amps

• Current at 24 VDC: 1.25 Amps

Installation Environment Requirements:

• Ventilation: Well-ventilated location required

• Protection Needs: No exposure to rain, dust, corrosive gases, or direct sunlight

The IC755ACC15GAS requires careful handling during installation. Repeated removals and insertions of the unit should be limited to prevent gasket damage. Special attention must be paid when installing the unit into the panel. This care prevents damage to the QuickPanel+ terminal itself.

Installation Guide

Follow these steps to install the IC755ACC15GAS replacement gasket properly. Disconnect all power from the QuickPanel+ terminal. Remove the terminal from the panel enclosure carefully. Clean the bezel channels on the sides of the device. Remove any old gasket residue from the channels. Place the new IC755ACC15GAS gasket into the bezel channels. Ensure the gasket sits evenly around the entire perimeter. Insert the terminal into the metal enclosure without forcing it. Use a panel cutout of 14.92 x 12.01 inches for standard mounting. Alternatively use a VESA mount measuring 3.94 x 3.94 inches. Secure the terminal using the mounting clips. Do not over-tighten the clips. Limit the number of future insertions and removals. Keep the unit away from rain, dust, corrosive gases, and direct sunlight. Ensure the location has good ventilation.

What’s in the Box

Please check the package contents upon delivery.

• IC755ACC15GAS Replacement Gasket (1 piece)

• Installation instruction sheet (1 piece)

Common FAQs

1. Which QuickPanel+ units work with the IC755ACC15GAS gasket?
This replacement gasket is compatible with all 15-inch QuickPanel+ units. These units feature a 1 GHz ARM Cortex A8 processor and Windows Embedded Compact 7 operating system.

2. What enclosure requirements does this gasket need?
The mounting enclosure must be made of metal. It also requires an IP65 environmental protection rating for proper sealing.

3. Can I repeatedly remove and insert the terminal with this gasket?
No, repeated insertion and removal is not recommended. This practice can damage the gasket and reduce its sealing effectiveness.

4. What is the required panel cutout size for installation?
The standard panel cutout size is 14.92 x 12.01 inches. You can also use a VESA mount measuring 3.94 x 3.94 inches as an alternative mounting method.

5. What environmental conditions are safe for the IC755ACC15GAS installation?
Install the unit in a well-ventilated location away from rain, dust, corrosive gases, and direct sunlight. The enclosure must maintain IP65 protection for safe operation.
