Product Overview

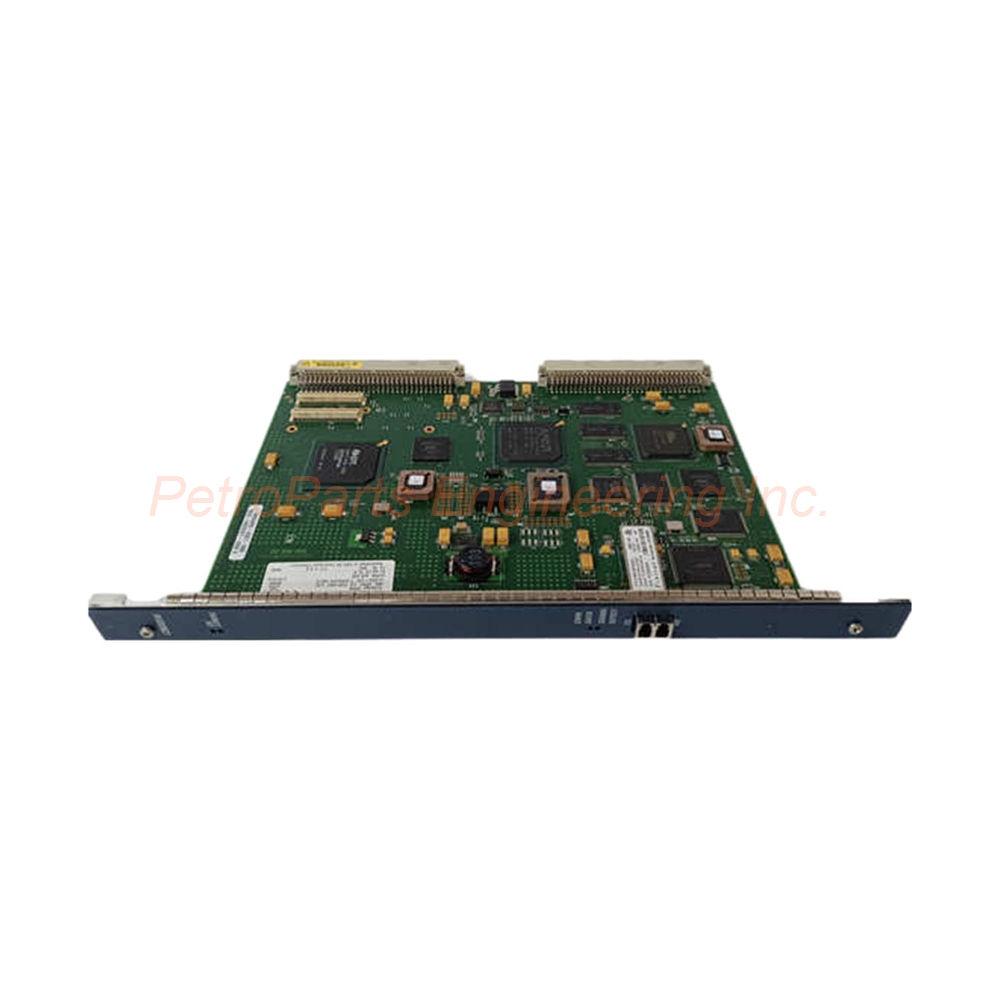

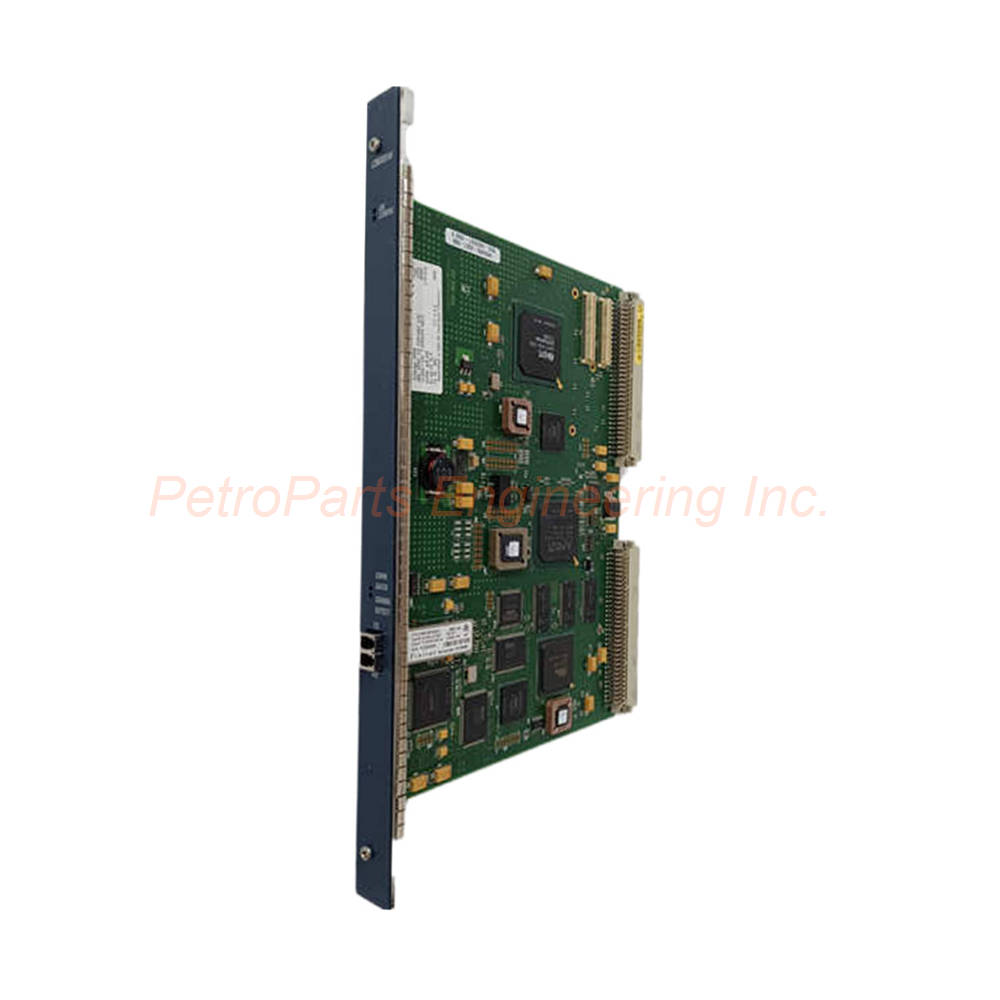

The GE Fanuc IC698CMX016 is a Control Memory Exchange Module for PACSystem RX7i. This module uses reflective memory technology for data sharing. It provides deterministic communication among PLCs and compatible devices. The module works over a fiber optic network. It operates independently without CPU processing. This module occupies a single slot in the RX7i rack.

For inquiries, contact us at +86 158 8020 0923 (WhatsApp).

Part Number Breakdown (Tree Structure)

• IC698 → Series Family
  • PACSystem RX7i platform
  • GE Fanuc / Emerson Automation
• CMX → Product Type
  • Control Memory Exchange
  • Reflective memory module
• 016 → Specific Model
  • 16 MB SDRAM memory
  • Fiber optic communication
  • Multi-mode fiber support

Key Specifications

• Brand: GE Fanuc / Emerson Automation
• Part Number: GE Fanuc IC698CMX016
• Series: PACSystem RX7i
• Product Type: Control Memory Exchange Module
• User Memory: 16 MB SDRAM (reflective memory with parity)
• Slot Width: Single slot
• Product Lifecycle: Active

Fiber Optic Communication

• Communication Interface: Multi-mode fiber optic port
• Connector Type: LC connector (conforms to IEC 61754-20)
• Number of Ports: 2 ports (TX and RX)
• Transmission Speed: 2.12 Gbaud
• Maximum Distance: 300 meters (984.25 feet)
• Fiber Type: Multi-mode fiber media
• Insertion Loss: 0.35 dB maximum
• Return Loss: -30 dB

Data Transfer Performance

• Packet Size: Dynamic (4 to 64 bytes)
• Transfer Rate (4-byte packets): 43 Mbytes per second
• Transfer Rate (64-byte packets): 174 Mbytes per second
• Packet Control: Automatically controlled by module

Network Capabilities

• Node Capacity: 256 nodes per network
• Network Topology: Daisy-chain loop
• Redundant Operation: Supports redundant transfer mode
• Compatibility: VMIC 5565 family of reflective memory devices
• CPU Independence: No CPU processing required

Power Requirements

• Operating Voltage: 5 VDC (from backplane power supply)
• Current Rating: 1.8 Amps

Physical Specifications

• Dimensions (W x H): 6.299 x 9.187 inches
• Slot Requirement: Single slot
• Temperature Range: -20°C to +85°C

LED Status Indicators

• OK: Module operation status
• CONFIG: Configuration status
• OWN DATA: Own data transmission indicator
• SIGNAL DETECT: Signal detection status

LED Functions

• OK LED shows module is powered and working.
• CONFIG LED indicates proper configuration settings.
• OWN DATA LED blinks when transmitting own data.
• SIGNAL DETECT LED shows fiber optic signal presence.
• Use these LEDs for quick network diagnostics.

Software Requirements

• Configuration Software: Proficy Machine Edition Logic Developer PLC
• Minimum Version: Version 4.5 or later
• CPU Firmware Requirement: RX7i CPU release 2.00 or higher

System Requirements

• RX7i CPU with release 2.00 or higher firmware
• RX7i CPU rack with power supply
• Proficy Machine Edition version 4.5 or later
• Multi-mode fiber optic cables with LC connectors
• Compatible VMIC 5565 devices for each node

Key Features

• Deterministic data sharing among PLCs
• CPU independent operation
• Reflective memory technology
• High-speed fiber optic network
• Up to 256 nodes per network
• Redundant transfer mode support
• VME bus output configuration
• Network error detection

Network Error Detection

• The module offers network error detection features.
• This ensures smooth data transfers across the network.
• Errors are detected and reported via status LEDs.
• Use software diagnostics for detailed error analysis.

Installation Guide

• Turn off all power before installation.
• Locate an empty slot in the RX7i rack.
• Insert the GE Fanuc IC698CMX016 into the slot.
• Press firmly until the module seats properly.
• Connect fiber optic cables to TX and RX ports.
• Use LC connectors for secure attachment.
• Keep cable length under 300 meters per segment.
• Daisy-chain multiple nodes in a loop configuration.
• Apply power and check OK LED status.
• Configure the module using Proficy Machine Edition version 4.5 or later.
• Verify communication with all network nodes.

Maintenance Tips

• Inspect fiber optic cables for damage or bends.
• Clean LC connectors with proper fiber cleaning tools.
• Check LED indicators for abnormal status.
• Monitor network error counts periodically.
• Verify transmission speeds meet application needs.
• Replace module if communication errors persist.

Application Scenarios

• High-speed data sharing between multiple PLCs
• Distributed control systems needing deterministic updates
• Simulation and testing environments
• Motion control coordination across machines
• Real-time data logging systems
• Redundant control networks

Diagnostic Capabilities

• Monitor data transfer rates (43 to 174 Mbytes/s).
• Check node status for all 256 network nodes.
• Use own data LED to confirm transmission.
• Monitor signal detect LED for fiber integrity.
• Check CONFIG LED for proper setup.
• Use Proficy software for detailed diagnostics.

Compatibility Notes

• Works with PACSystem RX7i platforms only.
• Compatible with VMIC 5565 reflective memory family.
• Requires RX7i CPU firmware release 2.00 or higher.
• Network compatible with other CMX modules.
• Multi-mode fiber required (not single-mode).

Package Contents

• One GE Fanuc IC698CMX016 control memory exchange module
• One product label
• Fiber optic cables not included (order separately)
• LC connectors on module (cables need LC terminations)

Warranty and Shipping

• 12 months factory warranty from shipment date.
• Warranty covers manufacturing defects only.
• Physical damage or wrong fiber connection voids warranty.
• Shipping options: FedEx, UPS, DHL.
• Tracking number provided after shipment.

Frequently Asked Questions (FAQ)

Q1: How much memory does the IC698CMX016 have?

The GE Fanuc IC698CMX016 has 16 MB of SDRAM reflective memory. Memory includes parity checking for data integrity. This memory is dedicated to reflective memory operations.

Q2: What is the maximum number of nodes on the network?

This module supports up to 256 nodes per reflective memory network. Each node requires a compatible VMIC 5565 device. Nodes connect in a daisy-chain loop configuration.

Q3: Does the IC698CMX016 require a CPU to operate?

No, this module operates independently without CPU processing. It handles all reflective memory functions on its own. This reduces load on the main CPU.

Q4: What is the maximum transmission distance?

Maximum distance is 300 meters (984 feet) using multi-mode fiber. Use LC connectors for proper termination. Keep insertion loss below 0.35 dB for reliable operation.

Q5: What software configures the IC698CMX016?

Use Proficy Machine Edition Logic Developer PLC software. Version 4.5 or later is required for full support. The CPU must have release 2.00 or higher firmware.

Buying Guide

When you buy a GE Fanuc IC698CMX016 control memory exchange module, follow these tips. First, count your network nodes. This module supports up to 256 nodes. Second, measure your fiber distances. Keep each segment under 300 meters. Third, verify your fiber type. Use multi-mode fiber with LC connectors. Fourth, check your software version. You need Proficy Machine Edition 4.5 or later. Fifth, confirm your CPU firmware. RX7i CPU must be release 2.00 or higher. Sixth, calculate your speed requirements. Transfer rates range from 43 to 174 Mbytes/s. Seventh, plan your network topology. Use daisy-chain loops for best performance. Eighth, consider redundant operation. This module supports redundant transfer mode. Ninth, review warranty terms. We offer 12 months coverage. Tenth, choose your shipping method. We use FedEx, UPS, and DHL. Finally, test the network with two nodes before adding all 256.
