High-Precision Proximity Sensing for Industrial Turbomachinery

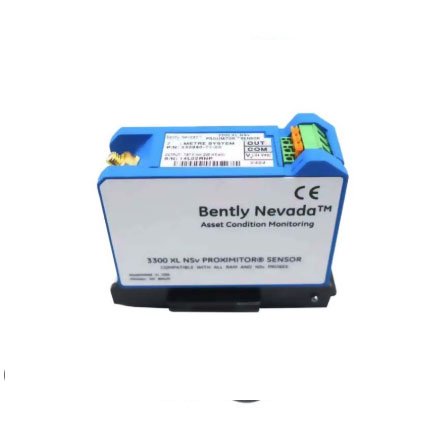

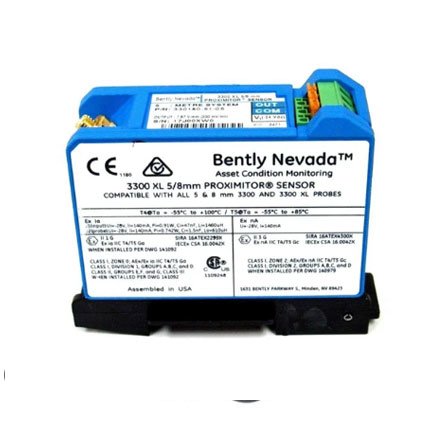

The Bently Nevada 330980-50-00 represents a specialized solution in the field of vibration monitoring and machinery protection. As a part of the 3300 XL NSv (Narrow Side view) series, this Proximitor sensor provides critical data regarding shaft vibration and position in applications where space is extremely limited. Bently Nevada designed this specific model to interface with 3300 RAM or 3300 NSv proximity probes, ensuring that maintenance teams receive accurate, real-time diagnostics for their most sensitive rotating equipment.

Detailed Model Breakdown: 330980-50-00

The part number 330980-50-00 indicates specific hardware configurations tailored for industrial integration:

• 330980: Defines the NSv Proximitor Sensor base model.
• 50: Specifies a 5.0-meter (16.4 feet) total system length with a panel mount configuration.
• 00: Indicates that no specific agency approvals (such as ATEX or CSA) are required for this particular unit.

Comprehensive Technical Specifications

The 330980-50-00 module offers robust electrical and mechanical characteristics:

• Manufacturer: Bently Nevada (a Baker Hughes business)
• Housing Material: A380 Aluminum
• Weight: Approximately 255 g (9 oz)
• Input Compatibility: 3300 RAM or 3300 NSv Proximity Probes and Extension Cables
• Power Requirements: -17.5 VDC to -26 VDC (12 mA max consumption)
• Output Resistance: 50 Ω
• Supply Sensitivity: < 2 mV change per volt change in input
• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Relative Humidity: 100% condensing (non-submersible)
• Linear Range: Typically calibrated to AISI 4140 steel targets

Key Advantages of the NSv Series

The 3300 XL NSv Proximitor Sensor introduces several design improvements that enhance both performance and user experience:

1. Advanced RFI/EMI Immunity

Industrial environments often contain significant electromagnetic interference from radio signals and high-frequency equipment. Bently Nevada engineers integrated superior RFI/EMI immunity into the 330980-50-00. This design prevents nearby radio signals from distorting the transducer output, ensuring that the vibration data remains clean and reliable. This high level of immunity allows the sensor to achieve European CE mark approvals without requiring specialized shielded mounting.

2. Compact and Versatile Mounting

The “Narrow Side view” (NSv) designation highlights the sensor’s thin physical profile. This slim design allows users to mount the sensor in high-density DIN-rail installations or traditional panel mount configurations. The 50 suffix in this specific part number confirms the panel mount option, which provides a secure, vibration-resistant attachment to the control cabinet or instrument enclosure.

3. Tool-Free SpringLoc Terminals

The 330980-50-00 features SpringLoc terminal strips. Unlike traditional screw terminals, SpringLoc connectors require no special installation tools. Technicians simply push the wire into the terminal for a highly robust, vibration-proof connection. This feature significantly reduces installation time and eliminates the risk of loose connections caused by machinery vibration over time.

Environmental Durability and Reliability

Bently Nevada builds the 330980-50-00 to withstand the harshest industrial climates. With an operating temperature range extending down to -52°C, this sensor performs reliably in arctic conditions and high-heat environments up to 100°C. The A380 aluminum housing provides excellent corrosion resistance. Furthermore, the unit handles 100% condensing humidity, provided the connectors receive proper protection. This durability makes the 330980-50-00 a standard choice for oil and gas refineries, power plants, and chemical processing facilities.

Application Scenarios

The 3300 XL NSv system is ideal for:

• Small Centrifugal Compressors: Where probe mounting space is restricted.
• High-Speed Turbomachinery: Requiring precise vibration monitoring.
• Fluid-Film Bearing Machines: Measuring radial vibration and axial thrust.
• Retrofit Projects: Replacing older proximity systems with modern, RFI-immune technology.
