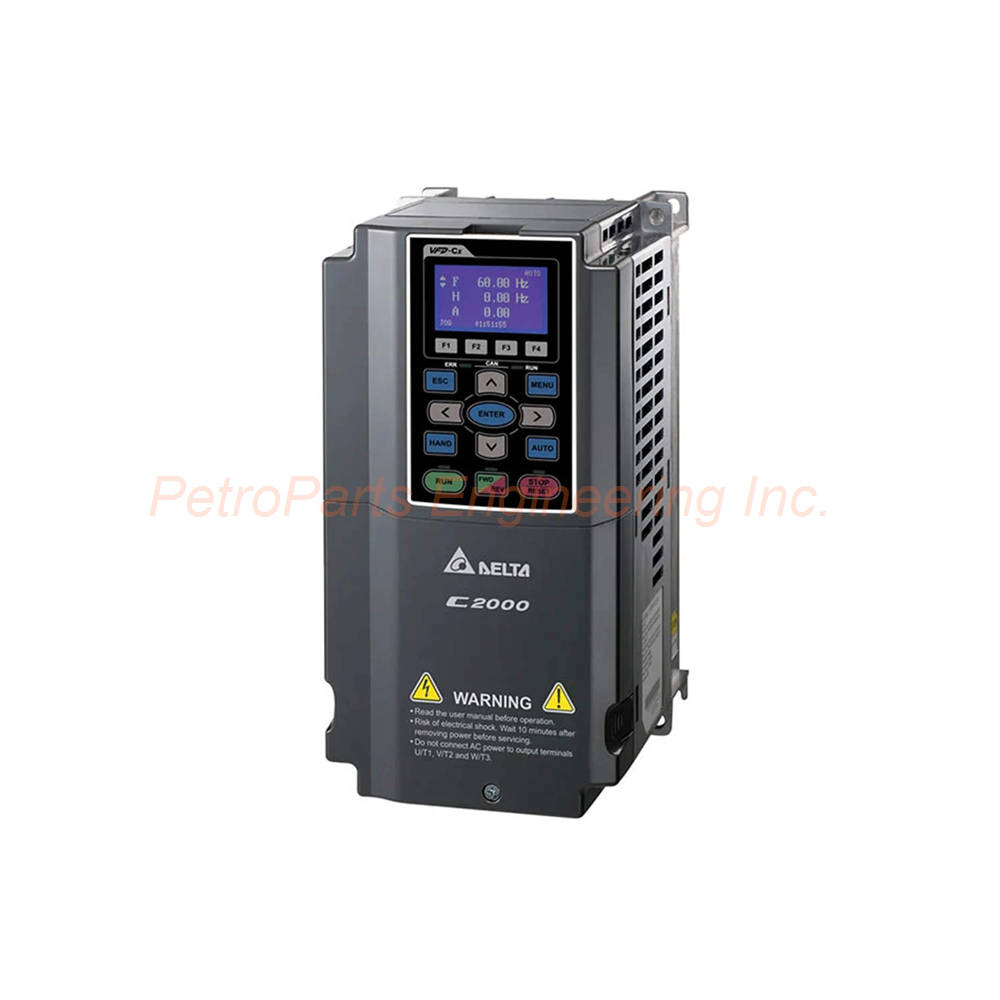

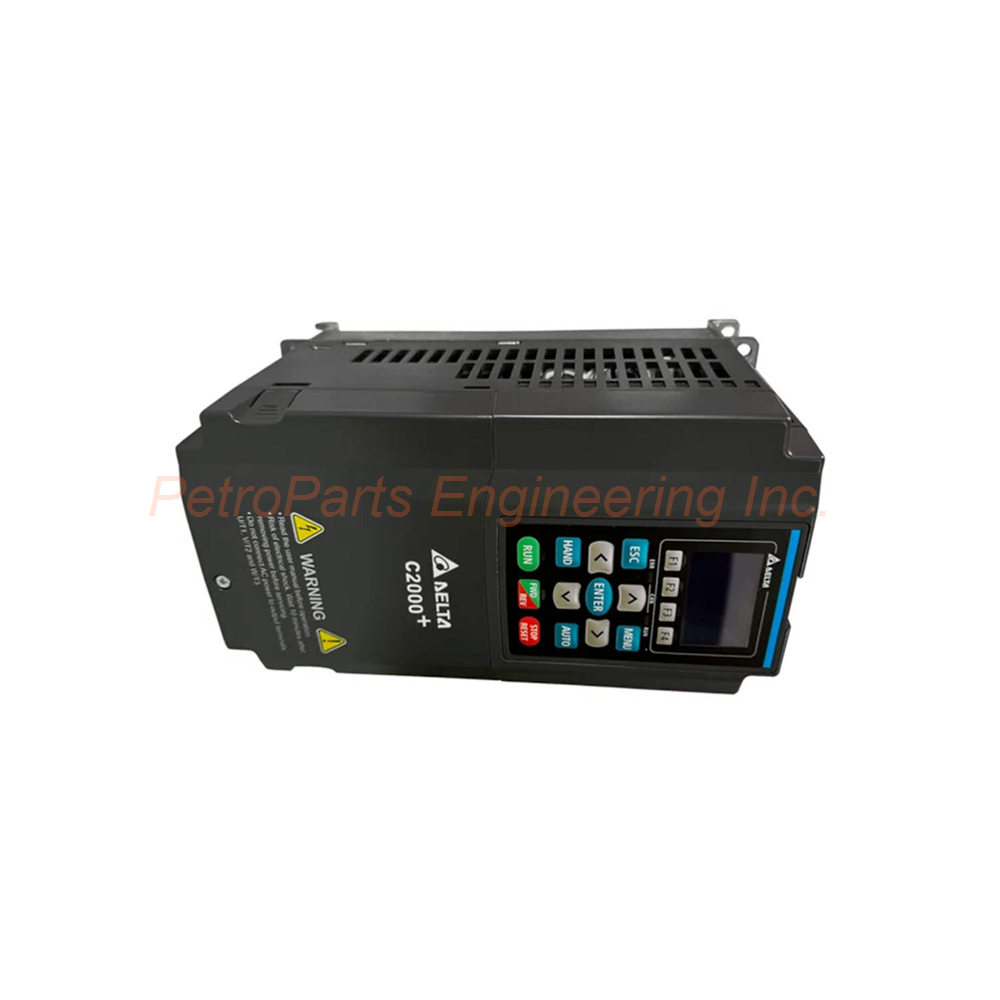

What Is the VFD037CP53A-21?

When pump and fan applications demand reliable variable torque control, the VFD037CP53A-21 from Delta provides a cost-effective solution. This drive is part of the CP2000 series, engineered specifically for HVAC and pumping systems. With a 5 HP rating at 600 V, it handles light duty loads efficiently. The NEMA 1 enclosure protects the drive in indoor environments. By choosing this model, you reduce energy waste and lower operational costs.

Key Features & Technical Specs

• Input voltage is 575 V – 3 phase, matching common industrial power systems.
• Rated at 5 HP and 3.7 kW, it delivers sufficient power for medium-duty applications.
• Light duty amps are 6.7 A, with normal duty amps at 5.5 A for flexible operation.
• Built-in braking chopper reduces the need for external components, saving installation cost.
• IP 20 rating allows use in clean, controlled environments without extra enclosures.
• Frame size A ensures compact mounting, minimizing panel space requirements.
• Weight is 6.6 lbs, making it easy to handle during installation.

Unique Insight: The dual rating design (light duty and normal duty) lets you match the drive to actual load conditions. This flexibility prevents oversizing, which directly cuts capital expenditure and energy consumption over the drive’s life.

Real-World Applications

In HVAC systems, the VFD037CP53A-21 controls fans and pumps to maintain precise airflow or water flow. For variable torque loads, it reduces motor speed during low demand periods, saving significant electricity. Additionally, in industrial water treatment plants, this drive helps manage pump pressure without mechanical throttling. Consequently, users see lower maintenance costs and extended equipment life.

Installation Guide

Mount the VFD037CP53A-21 on a flat, vertical surface inside a NEMA 1 rated enclosure. Ensure adequate clearance around the drive for airflow—refer to the manual for minimum spacing. Connect 575 V, 3-phase power to the input terminals, and wire the motor to the output. Use the built-in braking chopper if regenerative braking is needed. Always follow local electrical codes and the manufacturer’s wiring diagram.

Routine Care

Periodically inspect the drive for dust buildup on the heatsink and fan. Clean with a soft brush or low-pressure air to maintain thermal performance. Check all terminal connections for tightness every six months. Since the drive operates in temperatures up to 50°C, ensure the ambient environment stays within limits. These simple steps prevent unexpected downtime and extend service life, supporting your ROI.

Compatible Systems

The VFD037CP53A-21 works with standard 575 V, 3-phase induction motors. It integrates easily into existing control systems via the I/O extension card slot. For communication, various optional cards are available (check compatibility with your network). This modular design allows you to add functionality as needed, reducing upfront investment.

Common Questions

Q: What is the input voltage requirement for the VFD037CP53A-21?

A: The drive requires 575 V – 3 phase input power.

Q: Can this drive handle overload conditions?

A: Yes, it provides 120% rated current for 1 minute every 5 minutes for both light and normal duty.

Q: Does the VFD037CP53A-21 include a braking chopper?

A: Yes, a built-in braking chopper is included to handle regenerative energy.

Q: What is the IP rating of this drive?

A: The IP rating is IP 20.

Q: What is the weight of the VFD037CP53A-21?

A: The drive weighs 6.6 lbs.

Product Support & Availability

The VFD037CP53A-21 is available from PetroPartsOnline. Contact our team for current stock levels and lead times. We provide fast shipping and dedicated support to keep your operations running.
