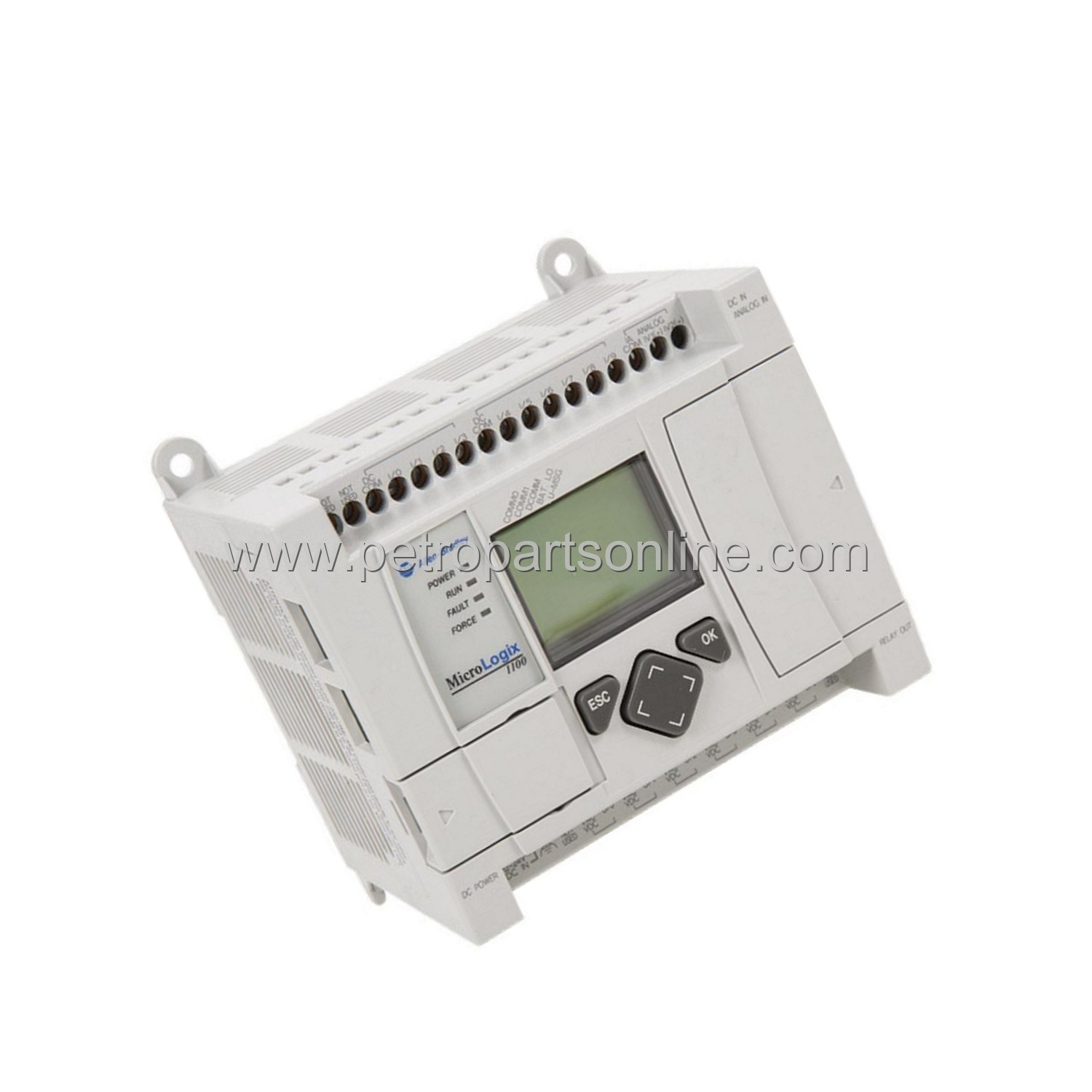

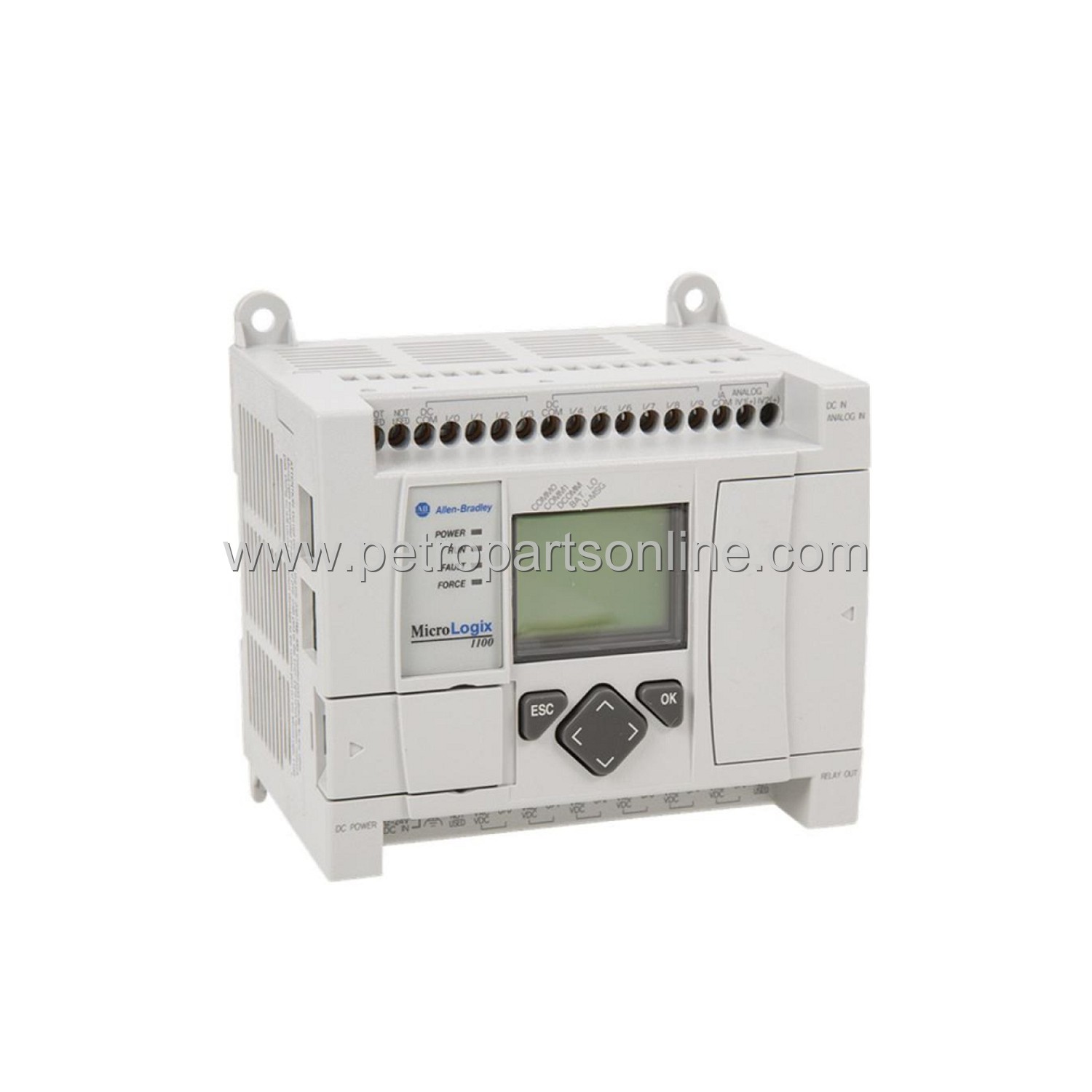

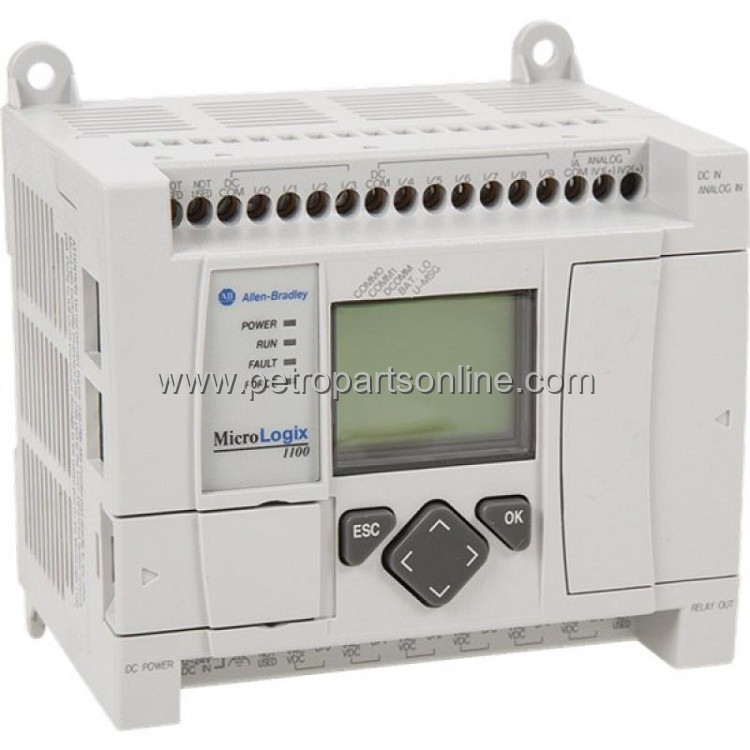

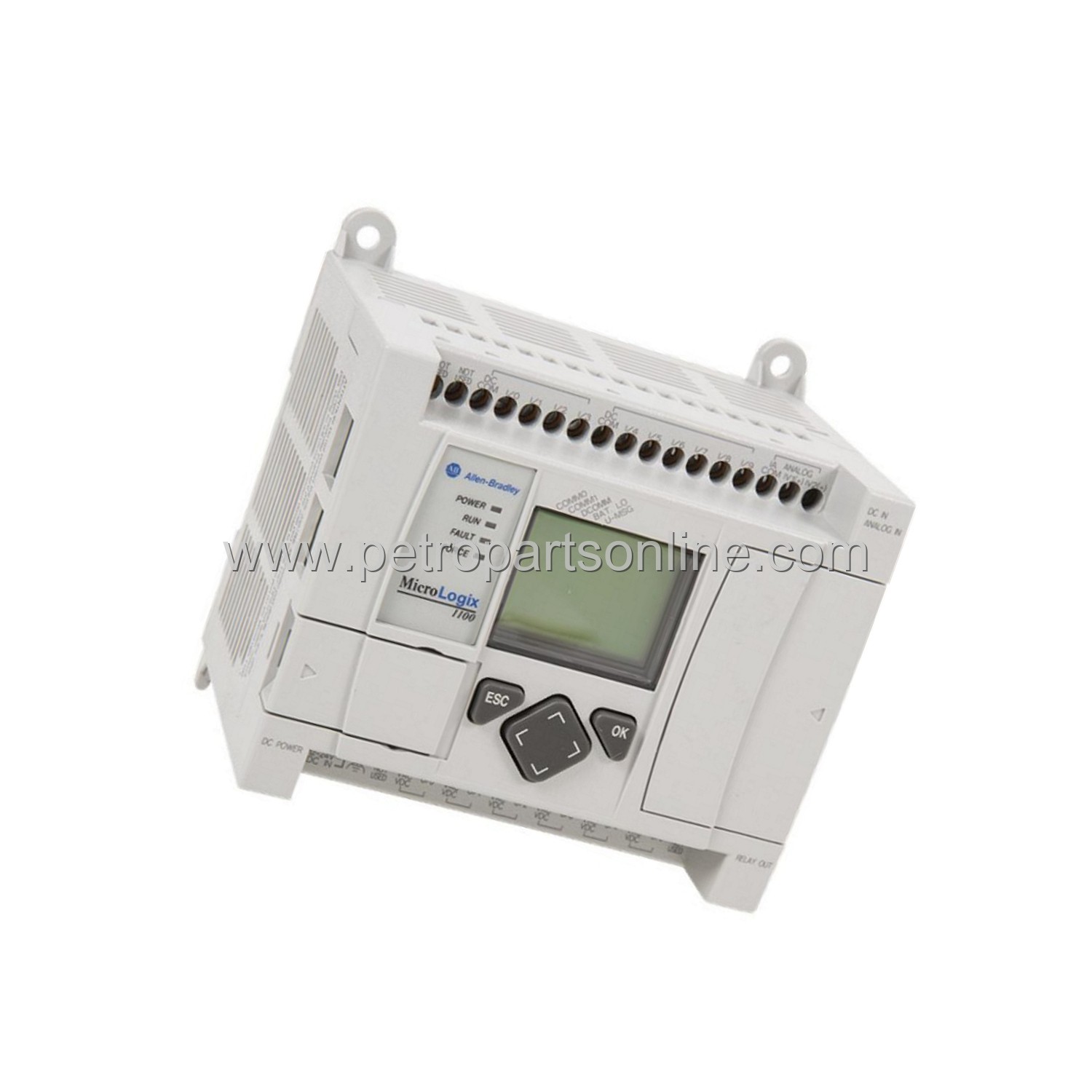

1763-L16AWA | Allen-Bradley MicroLogix 1100 PLC
Introduction:
MicroLogix 1100 PLC with 16 I/O, Ethernet, LCD. Ideal for small automation systems.
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Overview
The Allen-Bradley 1763-L16AWA is a MicroLogix 1100 programmable logic controller. It combines a CPU, power supply, and I/O in one unit. This model supports 120/240V AC input. It features 10 digital inputs and 6 relay outputs. The controller includes an LCD screen for local status. It provides embedded Ethernet and serial ports. This PLC is ideal for small to medium automation tasks. It offers reliable control for standalone machines. The 1763-L16AWA is part of the MicroLogix family. It ensures easy programming with RSLogix 500 software. This unit is a cost-effective solution for basic control needs.
Application Scenarios
This controller works well in packaging machines. It controls conveyor systems in warehouses. It manages simple batch processes in food lines. The PLC operates HVAC systems in commercial buildings. It runs pump and fan controls in water treatment. The unit handles material handling in factories. It is used in small assembly stations. The controller supports remote monitoring via Ethernet. It fits in panel boxes with limited space. The 1763-L16AWA is suited for OEM machine builders.
Technical Specifications
- Input voltage: 120/240V AC, 50/60 Hz
- Digital inputs: 10 (sink/source)
- Output type: 6 relay outputs
- Program memory: 8 KB
- Data memory: 4 KB
- Built-in Ethernet port: 10/100 Mbps
- Serial ports: RS-232 and RS-485
- LCD display: 2 lines x 16 characters
- Operating temperature: 0 to 55 °C
- Storage temperature: -20 to 85 °C
- Dimensions: 120 x 80 x 60 mm
- Weight: 0.5 kg
Installation & Maintenance Guide
Mount the controller on a DIN rail. Ensure proper ventilation around the unit. Connect AC power to the L1 and L2 terminals. Wire inputs to the designated screw terminals. Wire outputs to the relay common and normally open contacts. Use shielded cable for Ethernet connections. Power on the system and check the LCD display. Program the controller using RSLogix 500. Download the program via Ethernet or serial cable. Test all I/O points for correct operation. Perform regular visual inspections for damage. Keep the enclosure clean and free of dust. Replace the unit if the LCD shows errors.
Frequently Asked Questions (FAQ)
What is the primary function of 1763-L16AWA?
The 1763-L16AWA is a MicroLogix 1100 programmable logic controller. It executes user-written logic to control machines and processes.
What input voltage does 1763-L16AWA require?
This controller operates on 120/240V AC power supply. It accepts a wide range of AC input voltages.
How many I/O points does 1763-L16AWA have?
The unit has 10 digital inputs and 6 relay outputs. Total onboard I/O is 16 points.
Can 1763-L16AWA communicate over Ethernet?
Yes, it includes a built-in Ethernet port. This allows remote programming and monitoring.
What software is used to program 1763-L16AWA?
RSLogix 500 programming software is required. It supports ladder logic programming for this controller.
