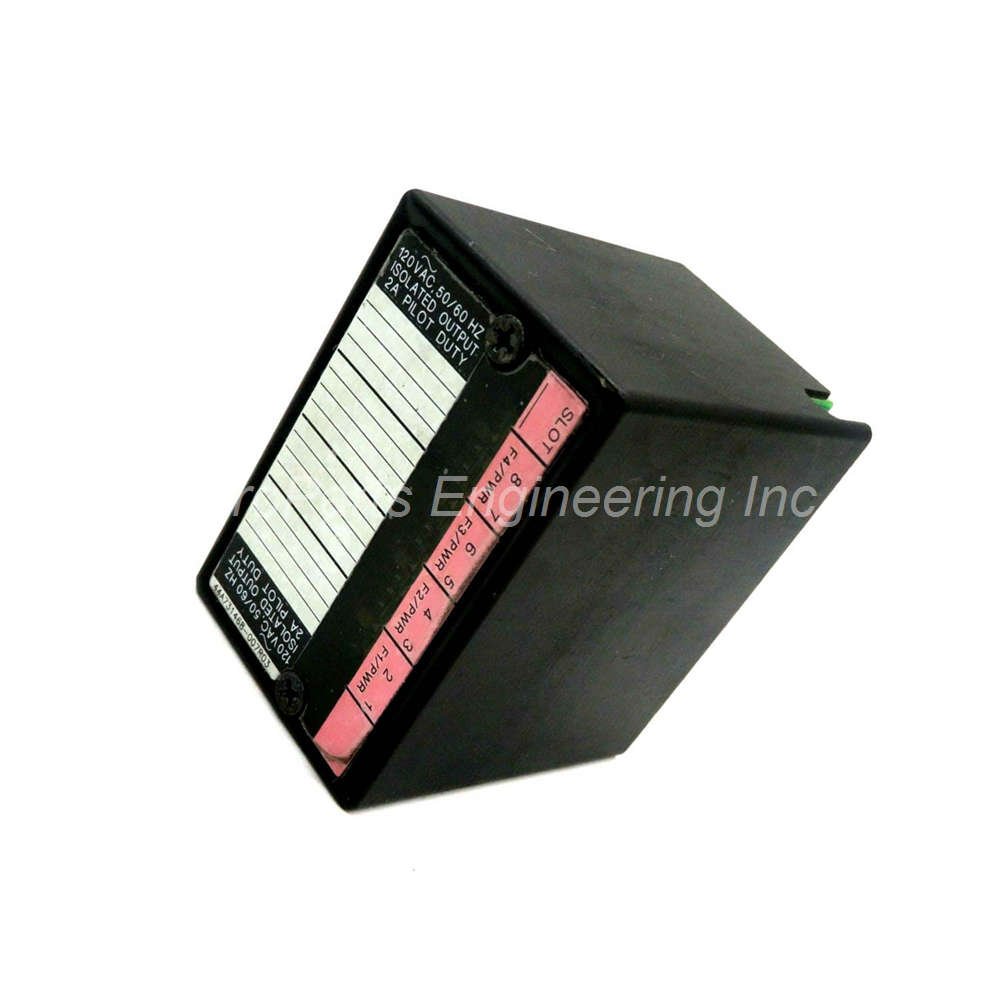

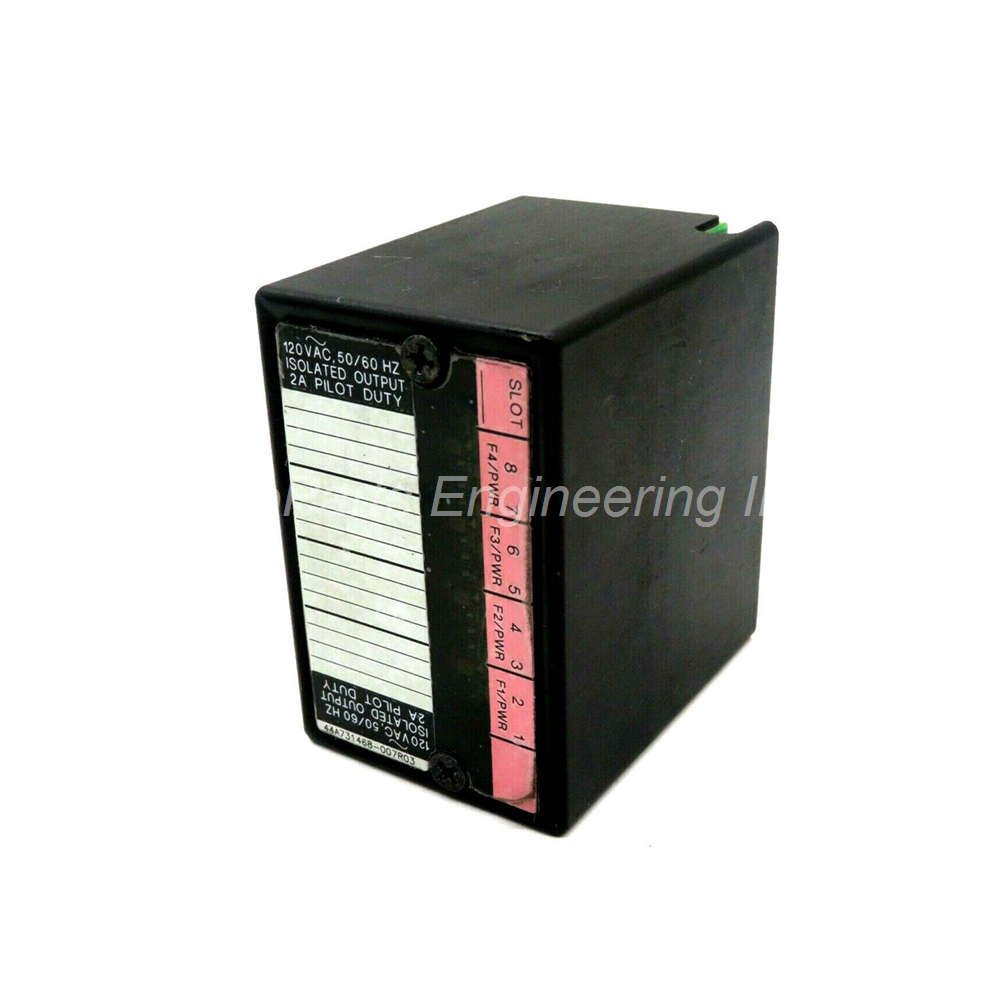

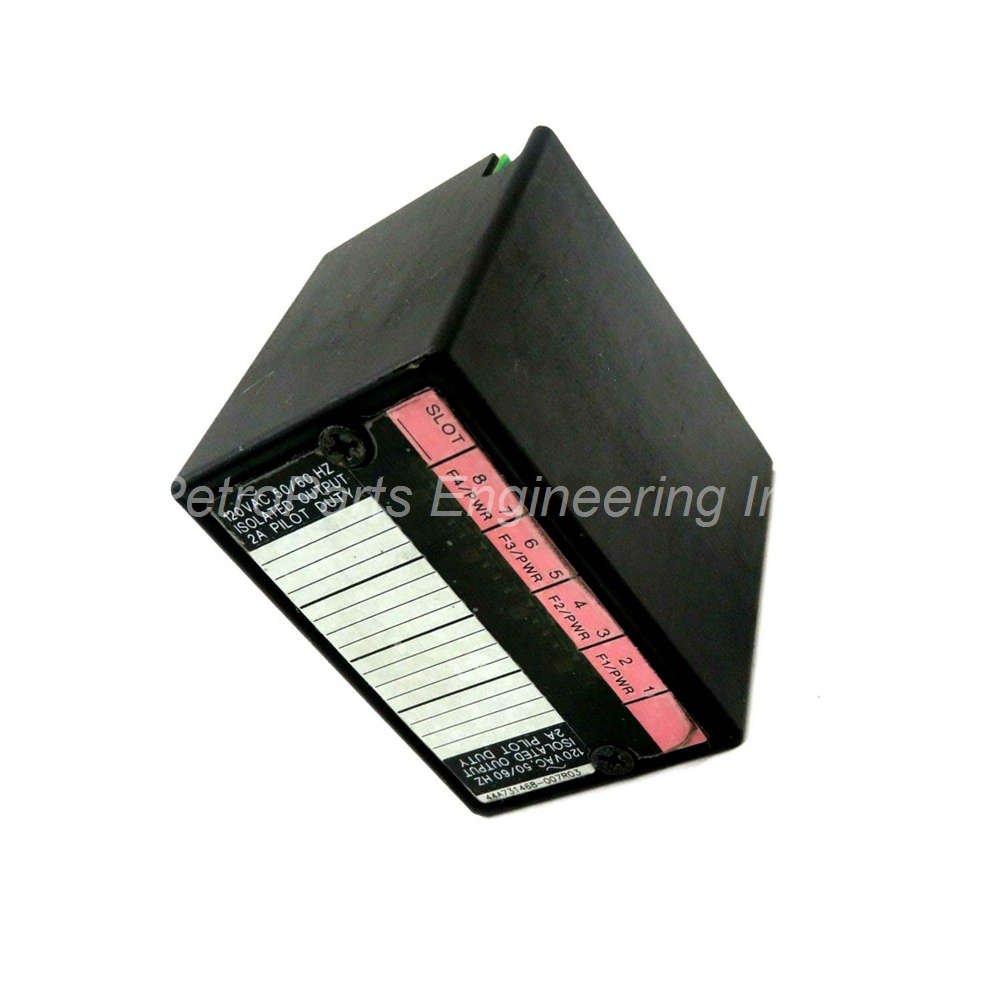

GE Fanuc IC670MDL331 Field Control 8 Point Isolated Output Module New Stock
Introduction:
Product Summary The GE Fanuc IC670MDL331 is a high-performance discrete output module designed for the Field Control I/O system. This module provides eight isolated output channels for switching heavy AC loads. Each channel handles up to 2 Amperes, ensuring reliability for demanding industrial actuators. Technical Specifications Brand: GE Fanuc Series: Field Control I/O Model Number: […]
Customer Reviews
UBEST Automation – Trusted Global Automation Parts Supplier
We offer a wide range of in-stock industrial automation spare parts. All products come with a 12-month warranty and a 30-day refund for quality issues.
Product Attributes:
Notice: For real-time prices and inventory, please click the button below to contact us.
Product Summary
The GE Fanuc IC670MDL331 is a high-performance discrete output module designed for the Field Control I/O system. This module provides eight isolated output channels for switching heavy AC loads. Each channel handles up to 2 Amperes, ensuring reliability for demanding industrial actuators.
Technical Specifications
- Brand: GE Fanuc
- Series: Field Control I/O
- Model Number: IC670MDL331
- Output Type: 120VAC Discrete Output (Isolated)
- Channel Count: 8 Points (4 isolated groups of 2)
- Voltage Range: 85 to 132 Volts AC
- Frequency Response: 47 to 63 Hertz
- Current per Point: 2 Amps (Maximum)
- Total Module Current: 6 Amps to 8 Amps (Maximum)
- Inrush Current: 20 Amps for one cycle
- Isolation Voltage: 250VAC continuous / 1500VAC for 1 minute
- Response Time (On): 1 millisecond (Maximum)
- Response Time (Off): 1/2 cycle (Maximum)
- Backplane Current: 154 mA from BIU
- Input Impedance: 3K typical
Diagnostic and Protection Features
- Logic Side LEDs: Individual indicators show the On/Off state of each channel.
- Fuse OK LED: Confirms the status of the internal protection per group.
- Internal Protection: Each group features a 3 Amp Slow-Acting fuse.
- Snubber Circuit: Built-in R-C network (47.5 ohms, 0.022 µfd) for noise suppression.
- Reporting: The Bus Interface Unit (BIU) transmits real-time diagnostic data to the controller.
Compatibility and Installation
- Module Compatibility: Works with IC670M, IC670MD, and IC670MDL bases.
- System Interface: Requires a Field Control Bus Interface Unit (BIU) for operation.
- Easy Maintenance: Terminal base design allows for module replacement without disturbing field wiring.
- Load Type: Optimized for inductive loads like solenoids, starters, and relays.
Shipping and Warranty Terms
- Warranty: 12-Month Quality Guarantee.
- Global Delivery: Fast shipping via FedEx, UPS, and DHL.
- Package List: 1 x GE Fanuc IC670MDL331 Output Module.
- Product Status: Discontinued/Obsolete (Available as high-quality surplus).
Frequently Asked Questions (FAQ)
- What is the maximum current per channel?
It supports up to 2 Amps per point at 120VAC. - Is this module isolated?
Yes, it features isolated groups to protect the control logic. - Can I replace the fuse?
Yes, it uses a standard 5 x 20 mm 3A Slow Blow metric fuse.
